Hawke Bay 4 Details
| Property | Value |
|---|---|
| Rupture Count | 39 |
| Ruptures Above Sect Min Mag | 37 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.72, 7.87] |
| Length Range | [13, 192] km |
| Total Rate | 9.9511984E-5 /yr |
| Multi-Fault Rate | 9.9511984E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 11 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

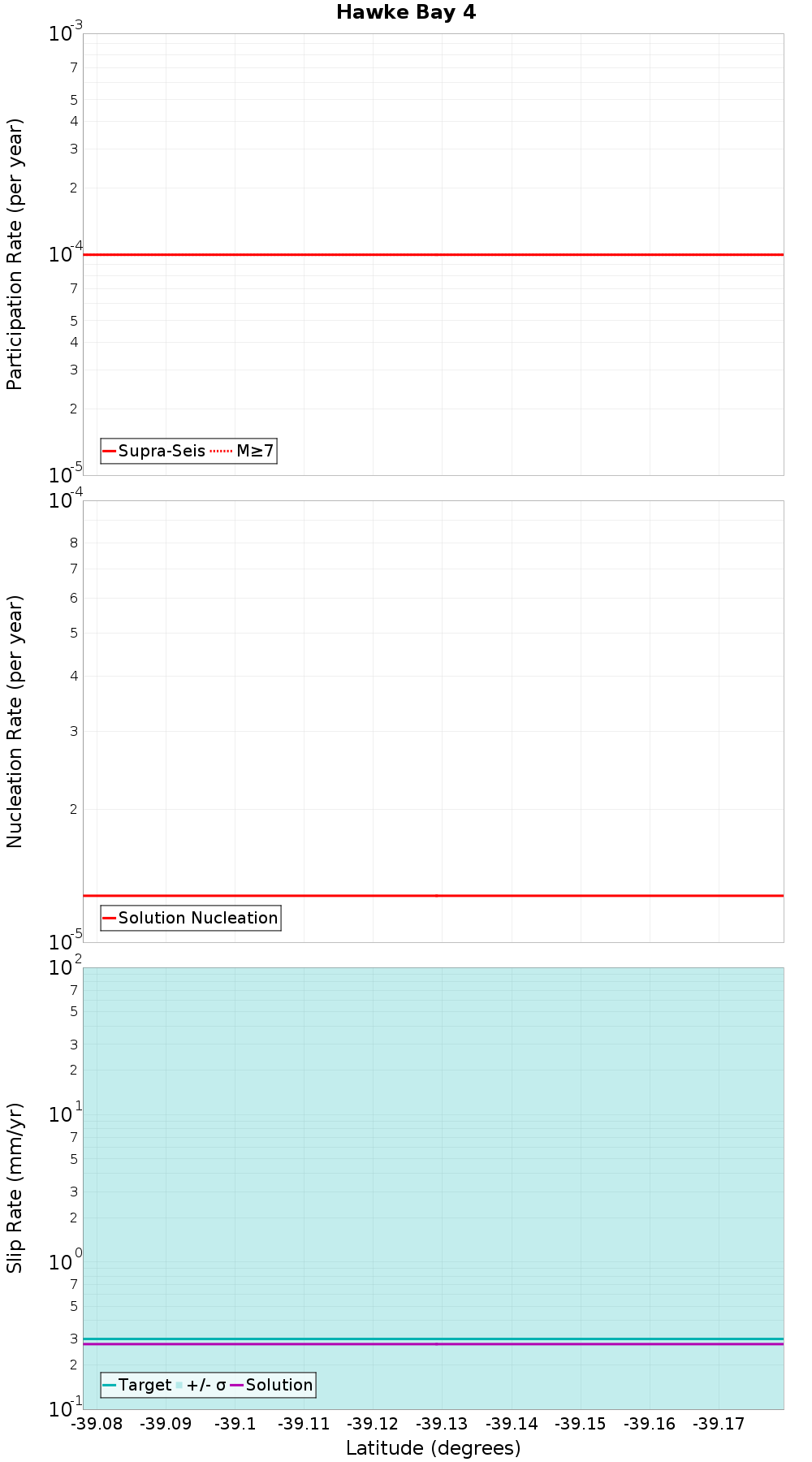

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hawke Bay 5 & 11, 4.23 km away |
| Hawke Bay 1, 4.48 km away |
Hawke Bay 5 & 11, 4.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 9.7709984E-5 |
Hawke Bay 1, 4.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 31 |
| Co-rupture Rate | 1.802E-6 |
