Wellington Hutt Valley: 3 Details
| Property | Value |
|---|---|
| Rupture Count | 1,544 |
| Ruptures Above Sect Min Mag | 1,540 |
| Ruptures w/ Nonzero Rates | 99 |
| Magnitude Range | [6.58, 8.35] |
| Length Range | [11, 639] km |
| Total Rate | 9.322409E-4 /yr |
| Multi-Fault Rate | 9.322409E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 85 |
Table Of Contents

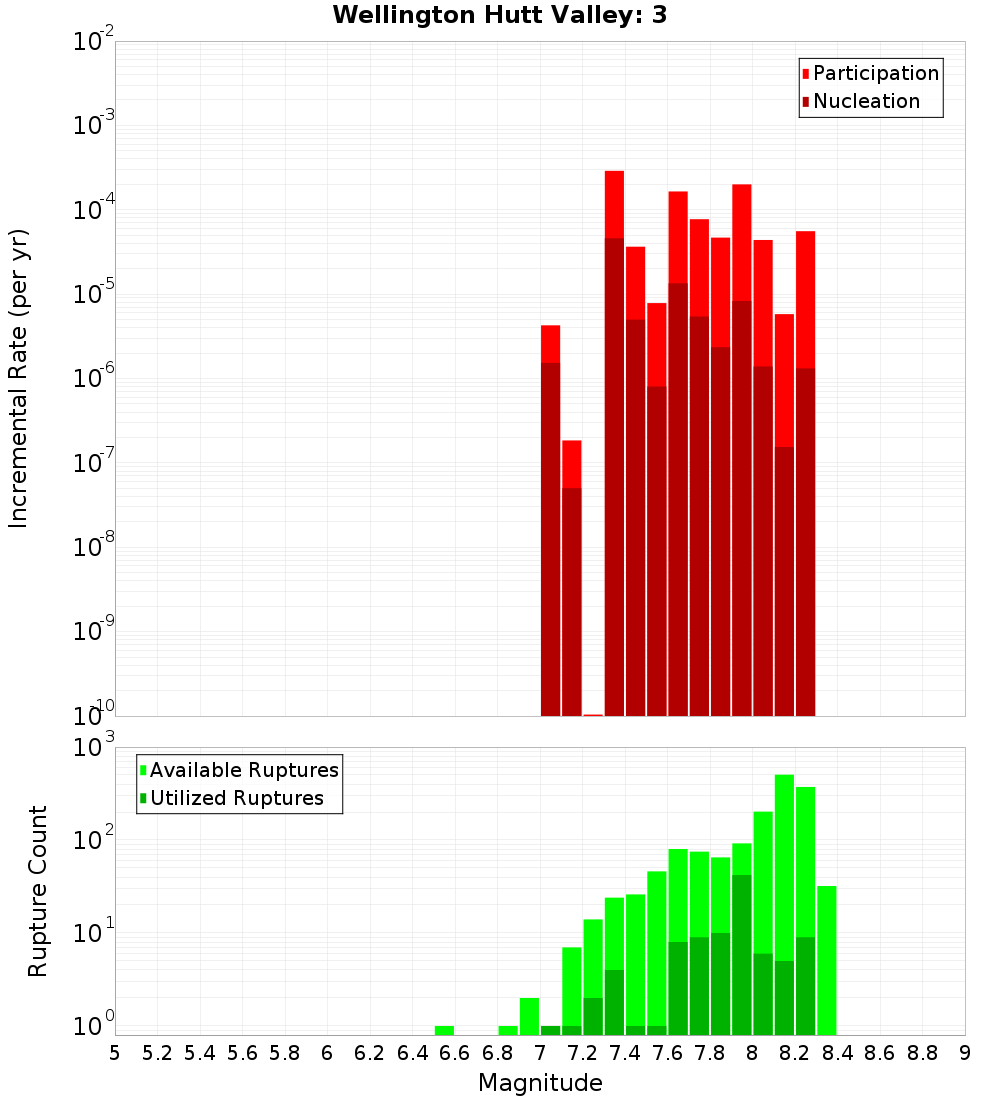

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Wellington Hutt Valley: 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 809 |
| Co-rupture Rate | 9.103441E-4 |
Wellington Hutt Valley: 4, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,367 |
| Co-rupture Rate | 9.262273E-4 |
Whitemans Valley, 1.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 4.4534468E-6 |
Aotea - Evans Bay, 1.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Ohariu, 3.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 172 |
| Co-rupture Rate | 2.44337E-4 |
Moonshine, 5.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 155 |
| Co-rupture Rate | 5.9568276E-7 |
Ohariu South 2, 6.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pukerua - Shepherds Gully: 1, 7.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pukerua - Shepherds Gully: 2, 7.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wharekauhau, 7.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Shepherds Gully - Mana, 7.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington Hutt Valley: 1, 8.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pukerua - Shepherds Gully: 3, 8.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairarapa: 1, 12.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Okupe 1, 13.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohariu South 1, 13.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
