Woodville Details

Property	Value
Rupture Count	5,772
Ruptures Above Sect Min Mag	5,771
Ruptures w/ Nonzero Rates	28
Magnitude Range	[6.86, 8.33]
Length Range	[21, 602] km
Total Rate	4.0929564E-5 /yr
Multi-Fault Rate	4.0929564E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	80

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

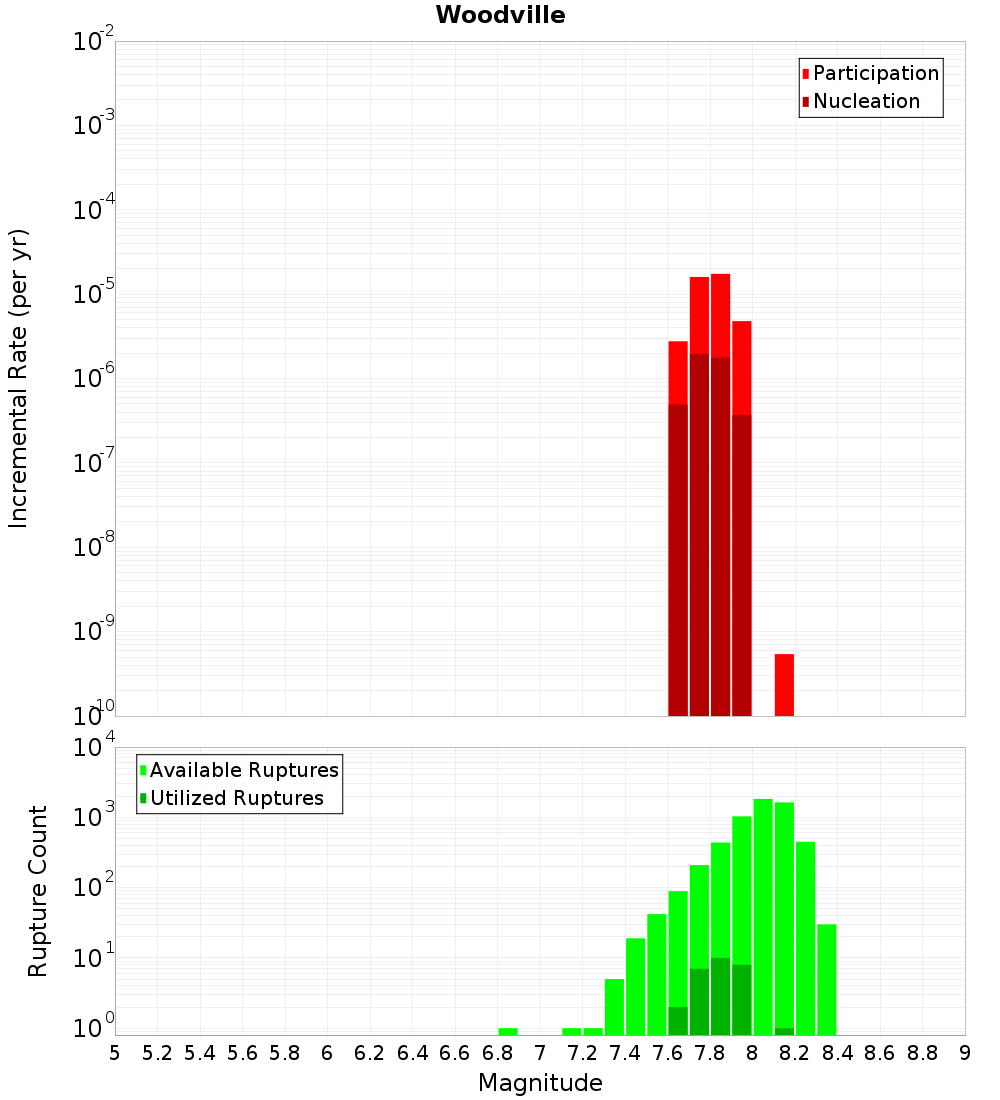

Magnitude-Frequency Distribution

Incremental	Cumulative

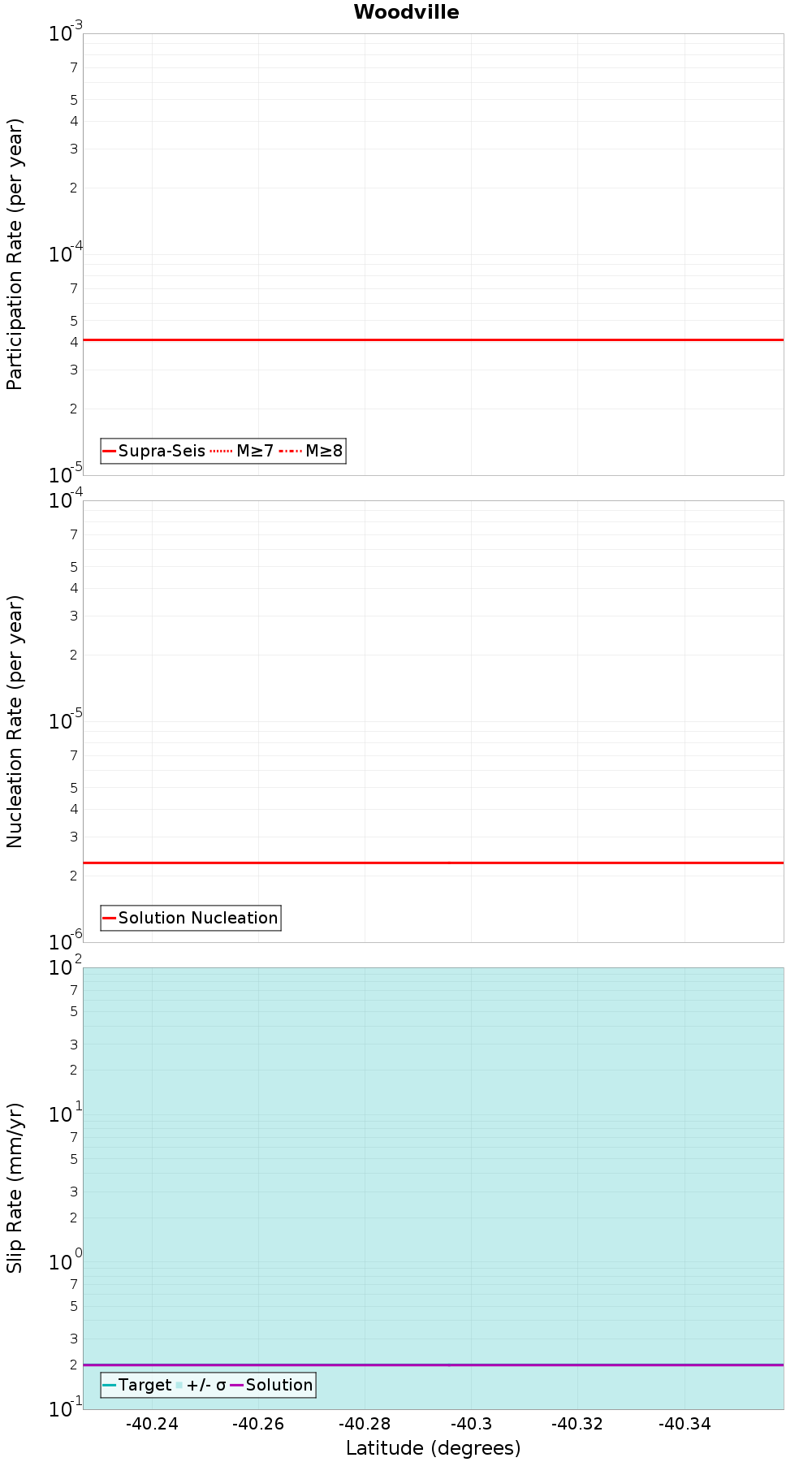

Along-Strike Values

Moment-Rates and b-Values

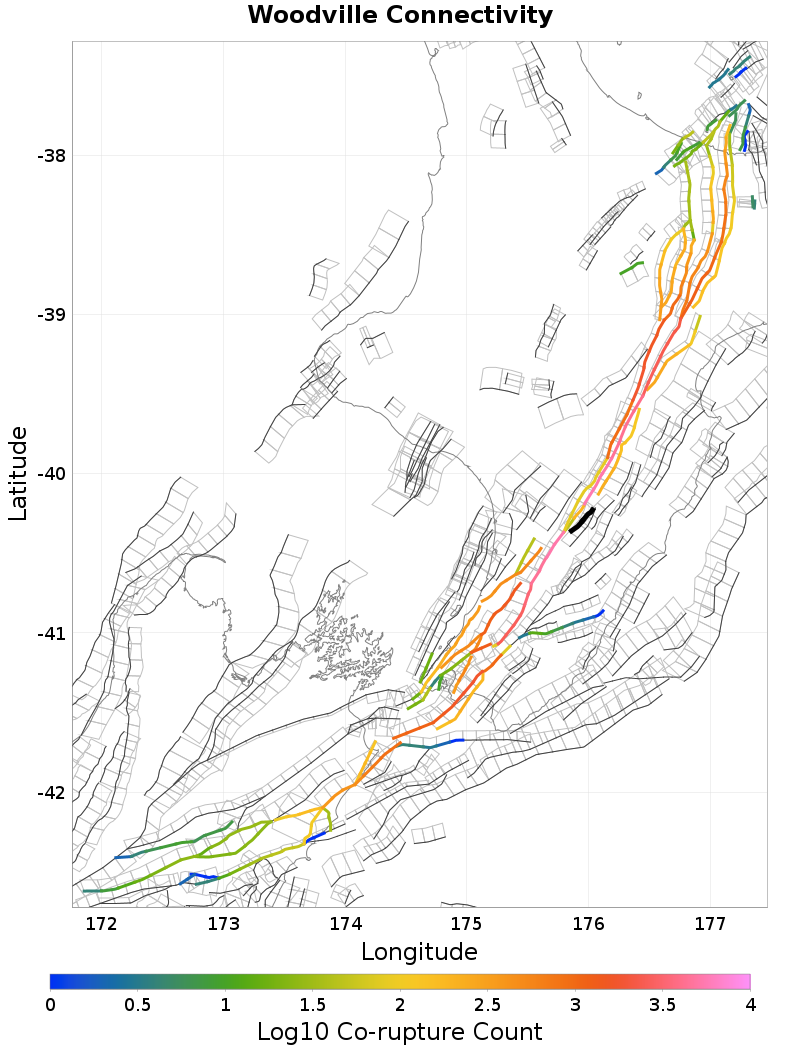

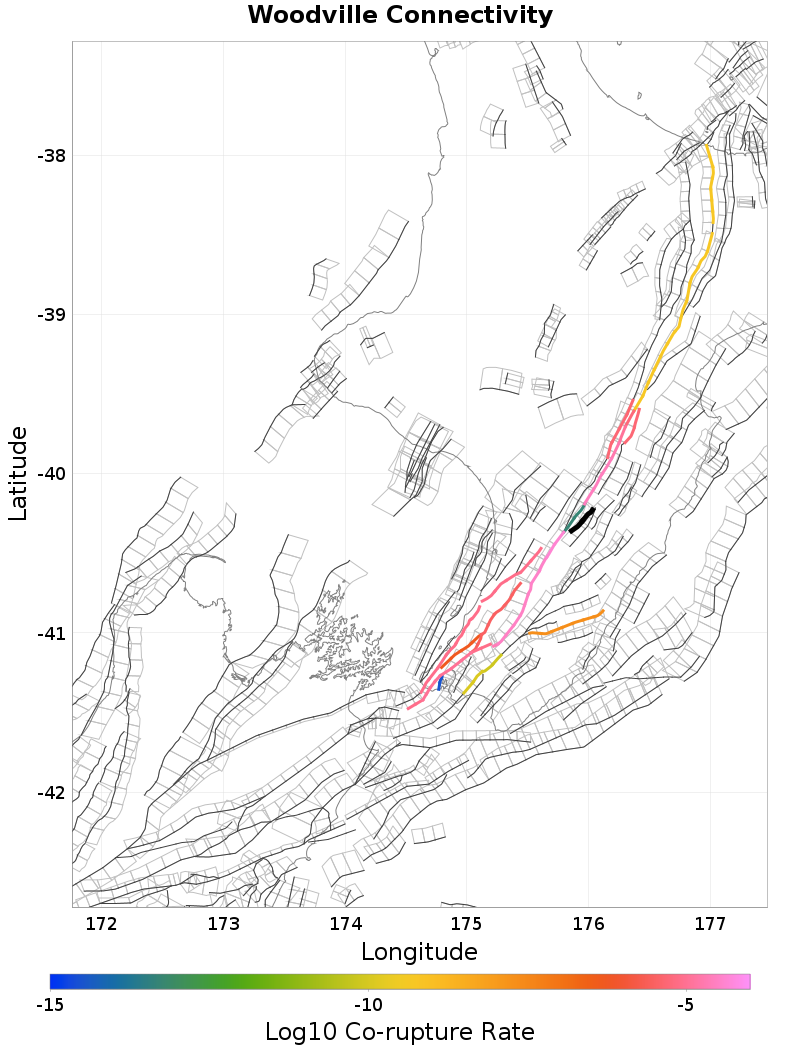

Connectivity

Nearby Sections

Fault Section
Mohaka: South, 0.4 km away
Pahiatua, 1.01 km away
Ruahine: South, 1.31 km away
Wellington: Pahiatua, 5.06 km away
Maunga, 5.91 km away
Rangefront, 10.84 km away
Pohangina, 12.61 km away
Waewaepa, 13.08 km away

Mohaka: South, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx
Connected?	true
Directly Connected?	true
Co-rupture Count	5,613
Co-rupture Rate	2.5896252E-5

Pahiatua, 1.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruahine: South, 1.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx
Connected?	true
Directly Connected?	true
Co-rupture Count	82
Co-rupture Rate	0.0

Wellington: Pahiatua, 5.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx
Connected?	true
Directly Connected?	true
Co-rupture Count	5,229
Co-rupture Rate	4.0929564E-5

Maunga, 5.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangefront, 10.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx
Connected?	true
Directly Connected?	false
Co-rupture Count	223
Co-rupture Rate	0.0

Pohangina, 12.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waewaepa, 13.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NjQuMFZnTTlx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
