Alpine: Kaniere to Springs Junction Details

PropertyValue
Rupture Count128,579
Ruptures Above Sect Min Mag128,570
Ruptures w/ Nonzero Rates667
Magnitude Range[6.86, 8.62]
Length Range[21, 1,132] km
Total Rate0.0050497344 /yr
Multi-Fault Rate0.004068449 /yr (80.57%)
Directly-Connected Faults11
All Co-Rupturing Faults175

Table Of Contents

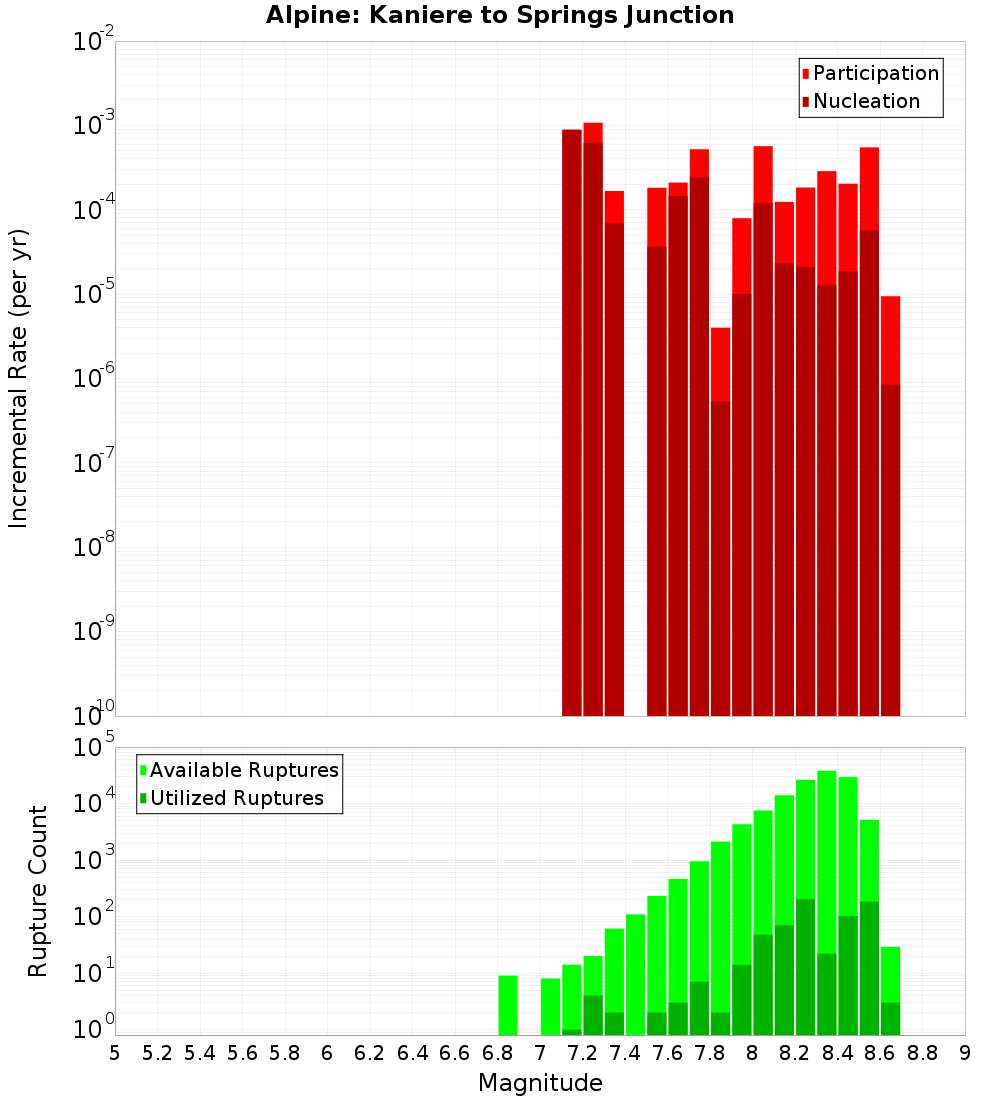

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

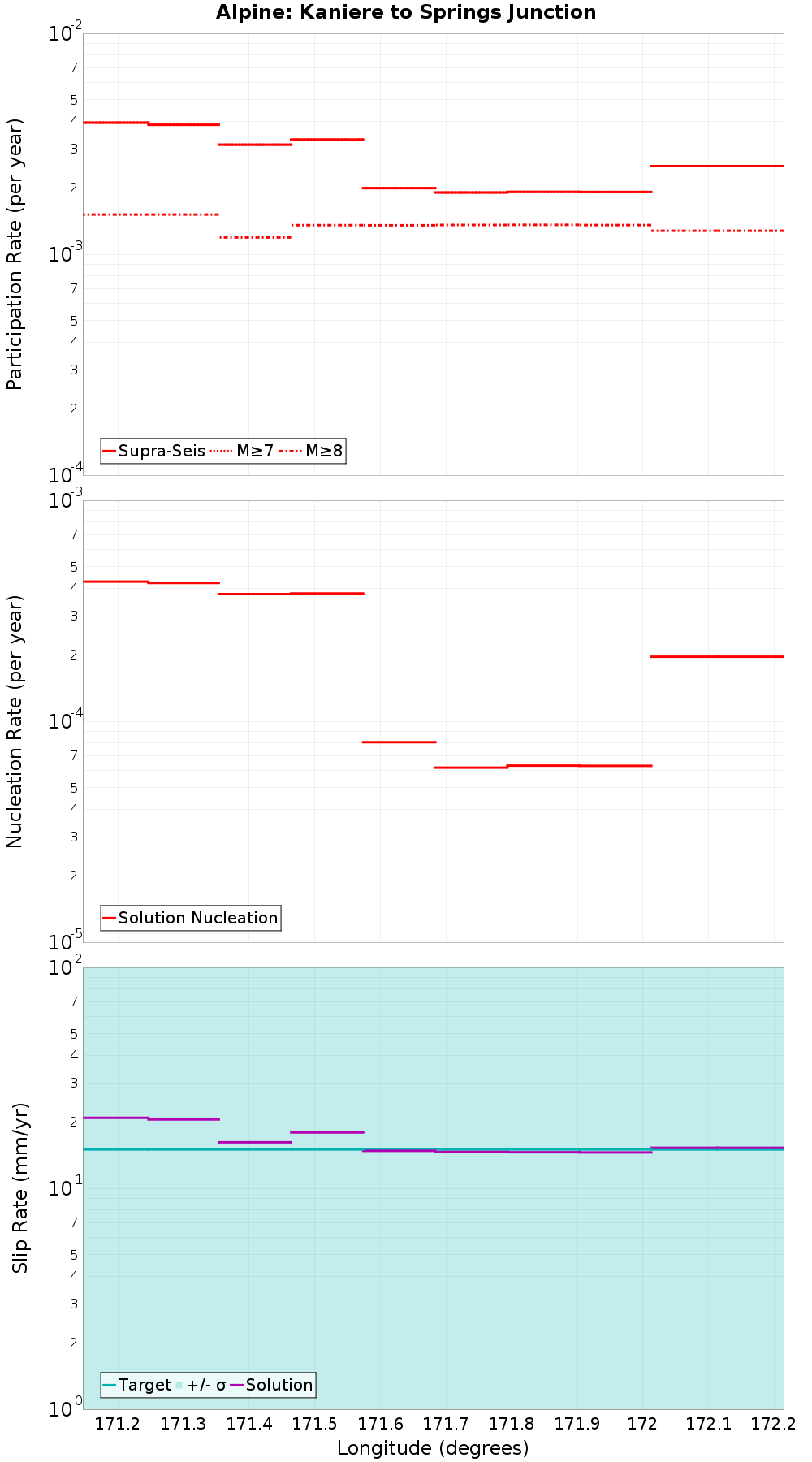

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

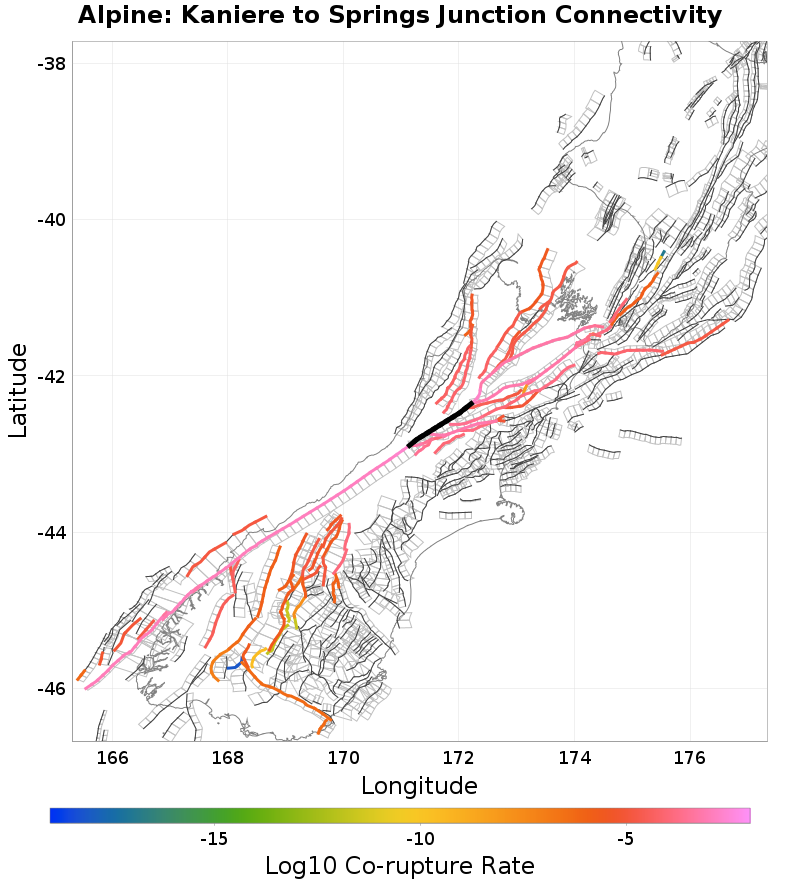

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Alpine: Jacksons to Kaniere, 0 km away
Kelly, 0 km away
Awatere: Southwest, 0 km away
Browning Pass, 0.16 km away
Hope: Hurunui, 0.19 km away
Clarence: Southwest, 0.21 km away
Hope: Taramakau, 0.23 km away
Fowlers, 0.24 km away
Hope: Hope River, 2.94 km away
Kakapo, 6.32 km away
White Creek - buried, 12.03 km away
Esk North, 14.76 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NzUuMGtpV2Zv
Connected?true
Directly Connected?true
Co-rupture Count67,926
Co-rupture Rate0.0017639606

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NzUuMGtpV2Zv
Connected?true
Directly Connected?true
Co-rupture Count117,557
Co-rupture Rate0.002175421

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NzUuMGtpV2Zv
Connected?true
Directly Connected?true
Co-rupture Count37,469
Co-rupture Rate0.0010842597

Awatere: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NzUuMGtpV2Zv
Connected?true
Directly Connected?true
Co-rupture Count27,971
Co-rupture Rate7.111489E-4

Browning Pass, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NzUuMGtpV2Zv
Connected?true
Directly Connected?true
Co-rupture Count21,986
Co-rupture Rate2.6687005E-4

Hope: Hurunui, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NzUuMGtpV2Zv
Connected?true
Directly Connected?true
Co-rupture Count11,511
Co-rupture Rate6.489442E-4

Clarence: Southwest, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NzUuMGtpV2Zv
Connected?true
Directly Connected?true
Co-rupture Count6,884
Co-rupture Rate2.2948397E-4

Hope: Taramakau, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NzUuMGtpV2Zv
Connected?true
Directly Connected?true
Co-rupture Count2,939
Co-rupture Rate7.247751E-4

Fowlers, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NzUuMGtpV2Zv
Connected?true
Directly Connected?true
Co-rupture Count5,401
Co-rupture Rate3.0407382E-5

Hope: Hope River, 2.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NzUuMGtpV2Zv
Connected?true
Directly Connected?true
Co-rupture Count10,955
Co-rupture Rate7.2722364E-4

Kakapo, 6.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NzUuMGtpV2Zv
Connected?true
Directly Connected?false
Co-rupture Count939
Co-rupture Rate1.2765297E-4

White Creek - buried, 12.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NzUuMGtpV2Zv
Connected?true
Directly Connected?true
Co-rupture Count7,516
Co-rupture Rate6.361835E-5

Esk North, 14.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY3NzUuMGtpV2Zv
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
