Irishman Creek Details

PropertyValue
Rupture Count609
Ruptures Above Sect Min Mag608
Ruptures w/ Nonzero Rates23
Magnitude Range[7.02, 8.14]
Length Range[23, 368] km
Total Rate2.0645889E-4 /yr
Multi-Fault Rate2.0645889E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults44

Table Of Contents

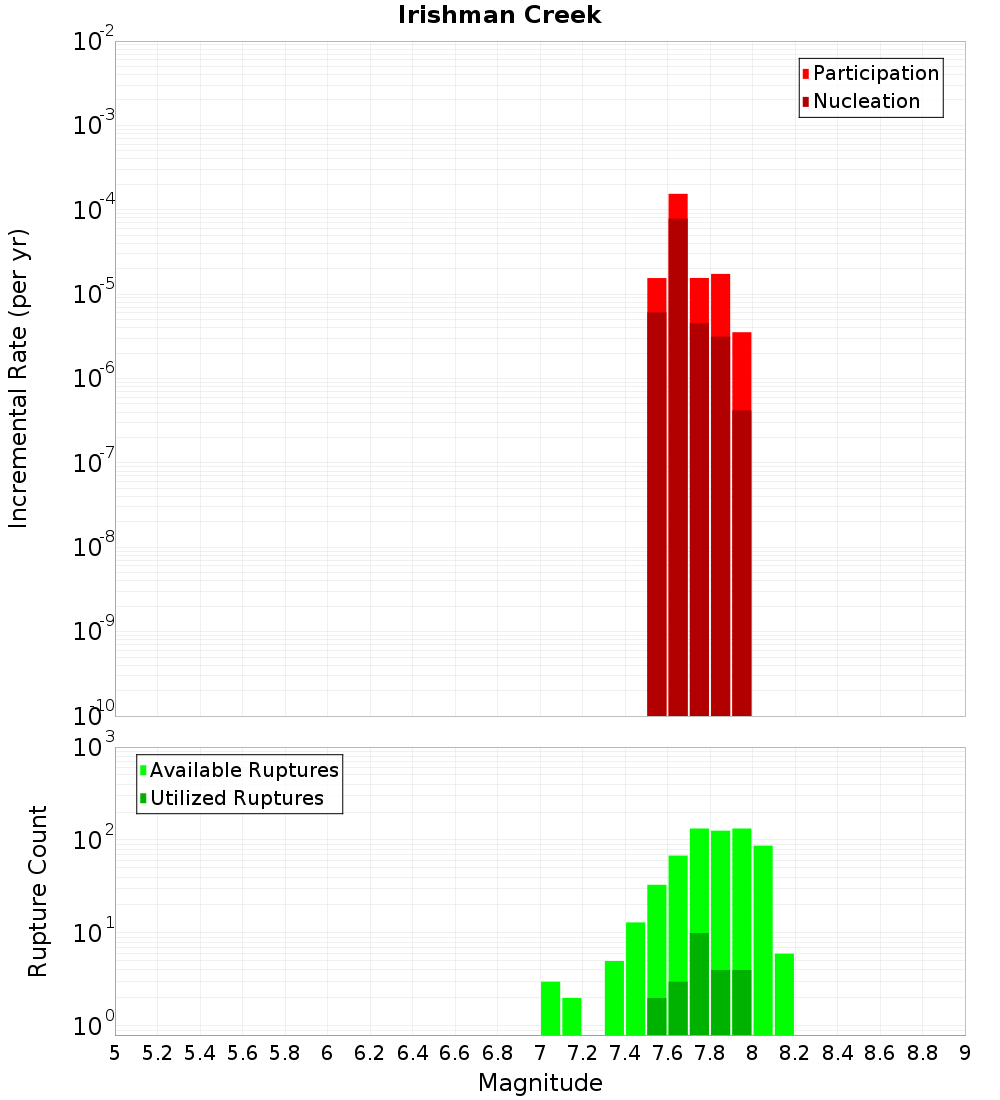

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

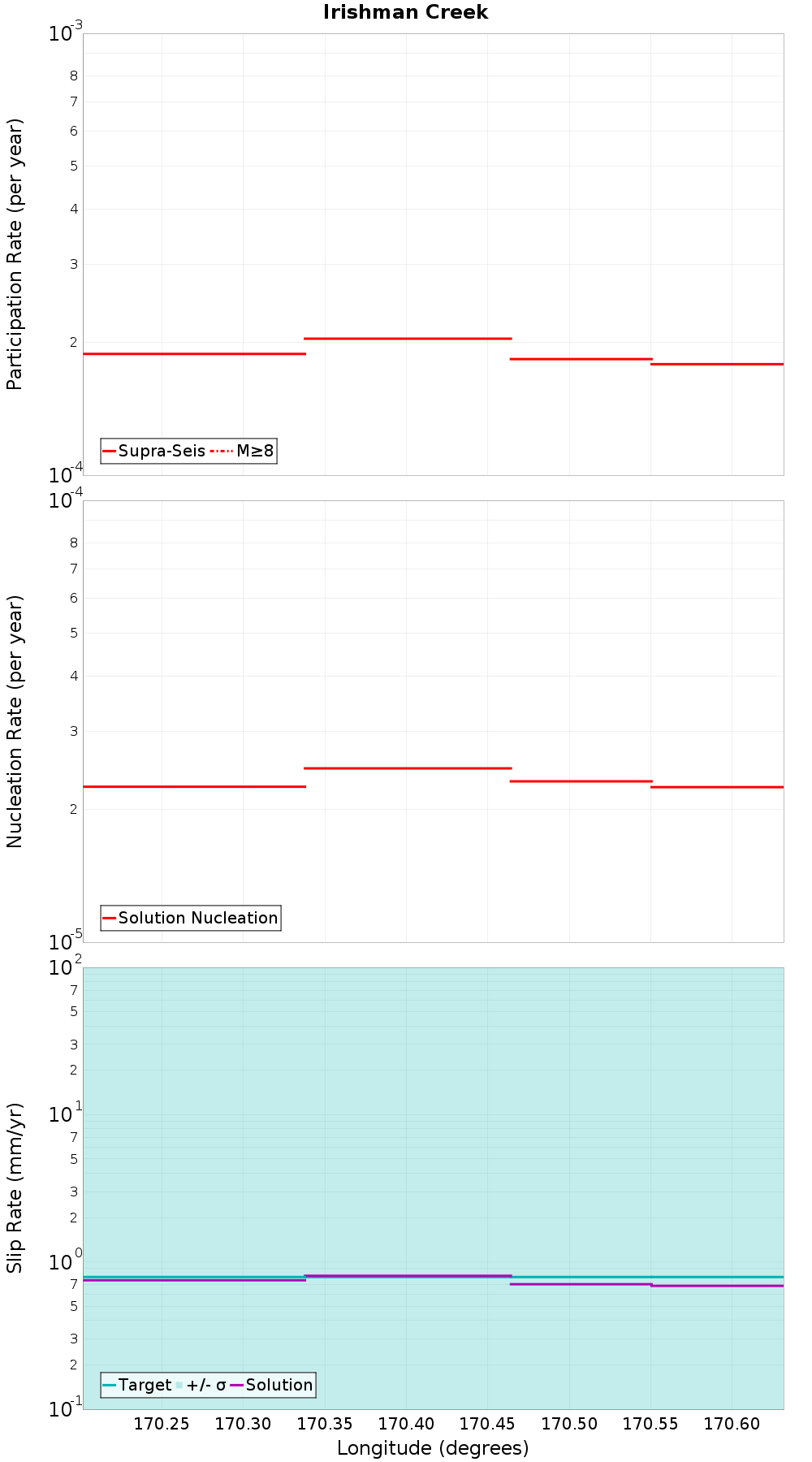

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Fox Peak, 0.28 km away
Dalgety, 0.34 km away
Sugarloaf, 0.39 km away
Albury, 0.42 km away
Brothers, 7.28 km away
Ostler North, 8.16 km away
Catherine, 8.38 km away
Opawa, 8.46 km away
Hutt Peel, 9.61 km away
Chamberlain, 10.65 km away
Grampian, 10.72 km away
Edith, 11.87 km away
Ben McLeod, 14.47 km away

Fox Peak, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MDMuMGdGUGpz
Connected?true
Directly Connected?true
Co-rupture Count446
Co-rupture Rate1.9392287E-4

Dalgety, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MDMuMGdGUGpz
Connected?true
Directly Connected?true
Co-rupture Count425
Co-rupture Rate2.186909E-5

Sugarloaf, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MDMuMGdGUGpz
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate0.0

Albury, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MDMuMGdGUGpz
Connected?true
Directly Connected?true
Co-rupture Count80
Co-rupture Rate9.663353E-6

Brothers, 7.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MDMuMGdGUGpz
Connected?true
Directly Connected?true
Co-rupture Count31
Co-rupture Rate2.8432003E-6

Ostler North, 8.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MDMuMGdGUGpz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Catherine, 8.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MDMuMGdGUGpz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opawa, 8.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MDMuMGdGUGpz
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate6.755766E-7

Hutt Peel, 9.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MDMuMGdGUGpz
Connected?true
Directly Connected?false
Co-rupture Count228
Co-rupture Rate0.0

Chamberlain, 10.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MDMuMGdGUGpz
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate1.790922E-7

Grampian, 10.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MDMuMGdGUGpz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edith, 11.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MDMuMGdGUGpz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ben McLeod, 14.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MDMuMGdGUGpz
Connected?true
Directly Connected?false
Co-rupture Count299
Co-rupture Rate2.1000234E-5
