Waimate Details
| Property | Value |
|---|---|
| Rupture Count | 335 |
| Ruptures Above Sect Min Mag | 332 |
| Ruptures w/ Nonzero Rates | 15 |
| Magnitude Range | [6.75, 7.95] |
| Length Range | [19, 233] km |
| Total Rate | 1.02089125E-5 /yr |
| Multi-Fault Rate | 1.02089125E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 21 |
Table Of Contents

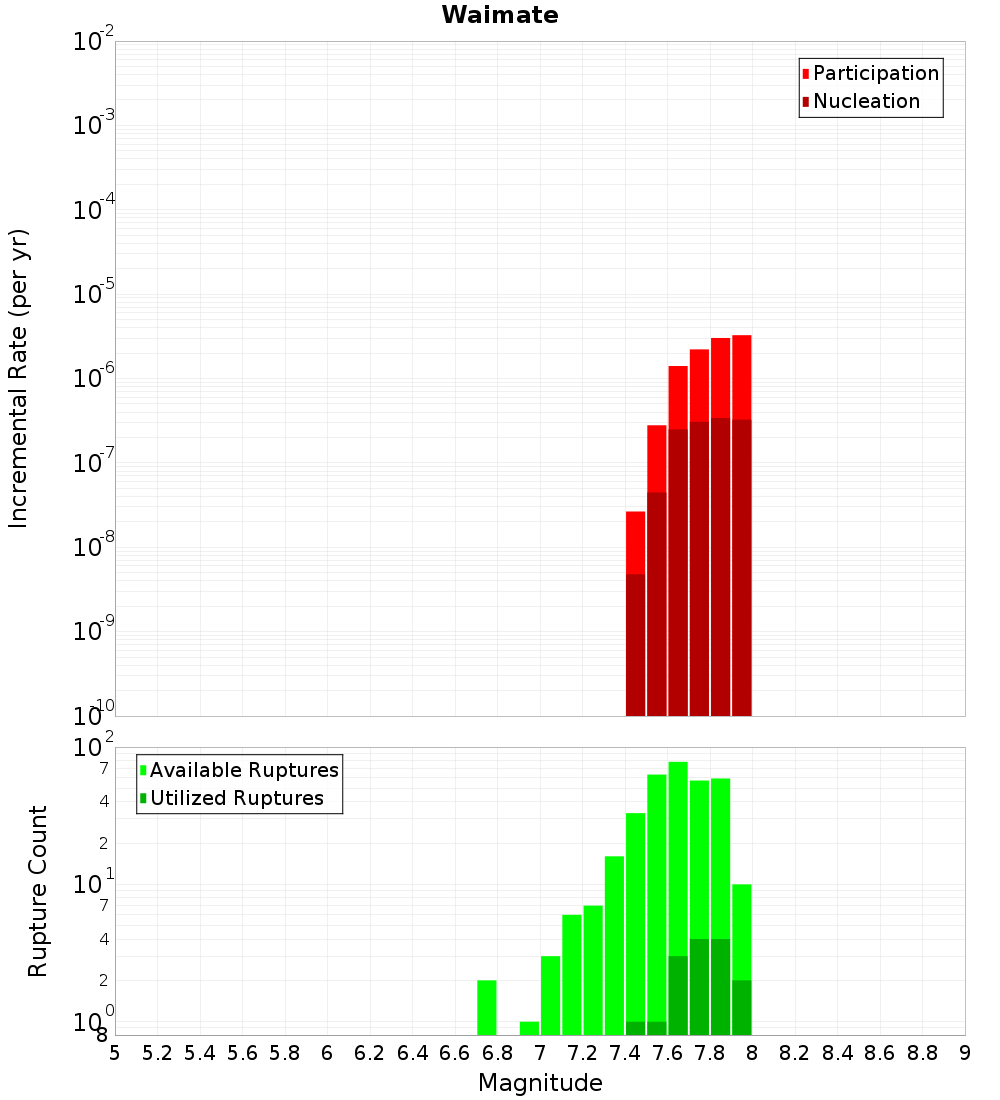

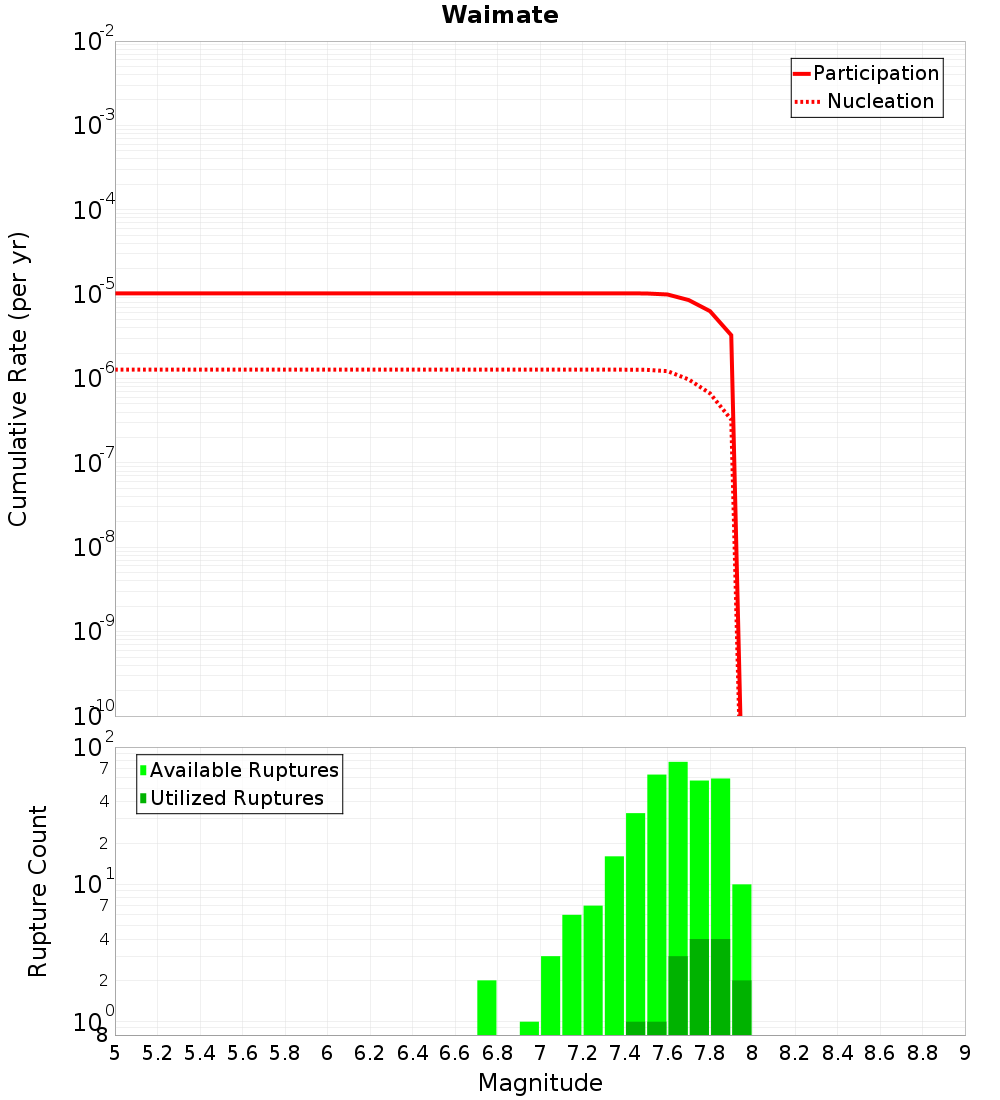

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

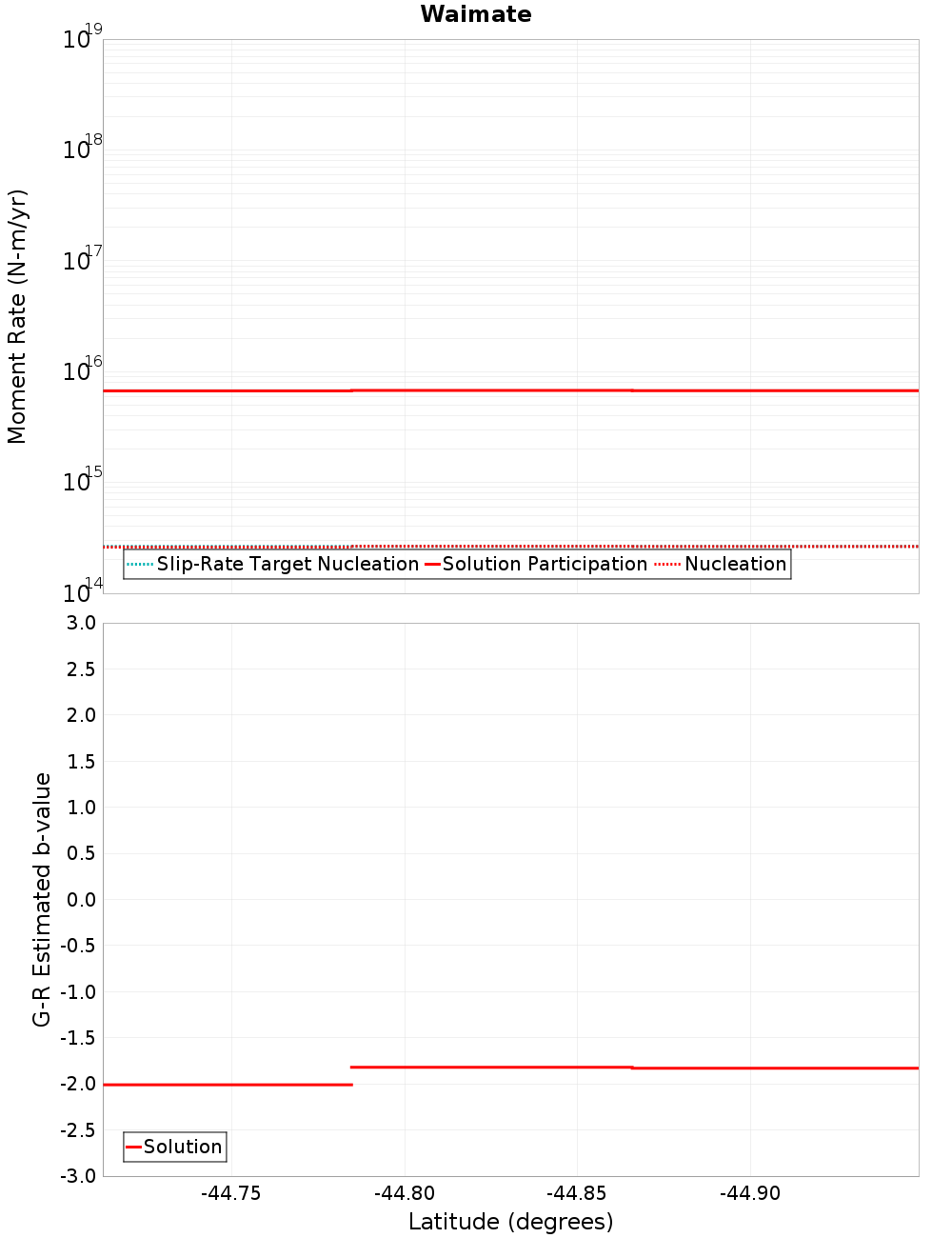

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Stonewall, 0.35 km away |
| Hunters, 0.59 km away |
| Waitaki, 8.23 km away |
| Awamoa, 8.62 km away |
| Black Hill, 11.81 km away |
| Maungati, 13.4 km away |
| Campbell Hills, 14.94 km away |
Stonewall, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MTMuMDRkYUhO | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 210 |
| Co-rupture Rate | 9.0801575E-7 |
Hunters, 0.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MTMuMDRkYUhO | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 118 |
| Co-rupture Rate | 9.300897E-6 |
Waitaki, 8.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MTMuMDRkYUhO | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 119 |
| Co-rupture Rate | 6.547763E-6 |
Awamoa, 8.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MTMuMDRkYUhO | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 59 |
| Co-rupture Rate | 6.547763E-6 |
Black Hill, 11.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MTMuMDRkYUhO | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maungati, 13.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MTMuMDRkYUhO | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Campbell Hills, 14.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MTMuMDRkYUhO | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 24 |
| Co-rupture Rate | 0.0 |
