Kohaihai South Details
| Property | Value |
|---|---|
| Rupture Count | 924 |
| Ruptures Above Sect Min Mag | 923 |
| Ruptures w/ Nonzero Rates | 18 |
| Magnitude Range | [6.86, 8.44] |
| Length Range | [17, 771] km |
| Total Rate | 6.874979E-5 /yr |
| Multi-Fault Rate | 6.874979E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 31 |
Table Of Contents

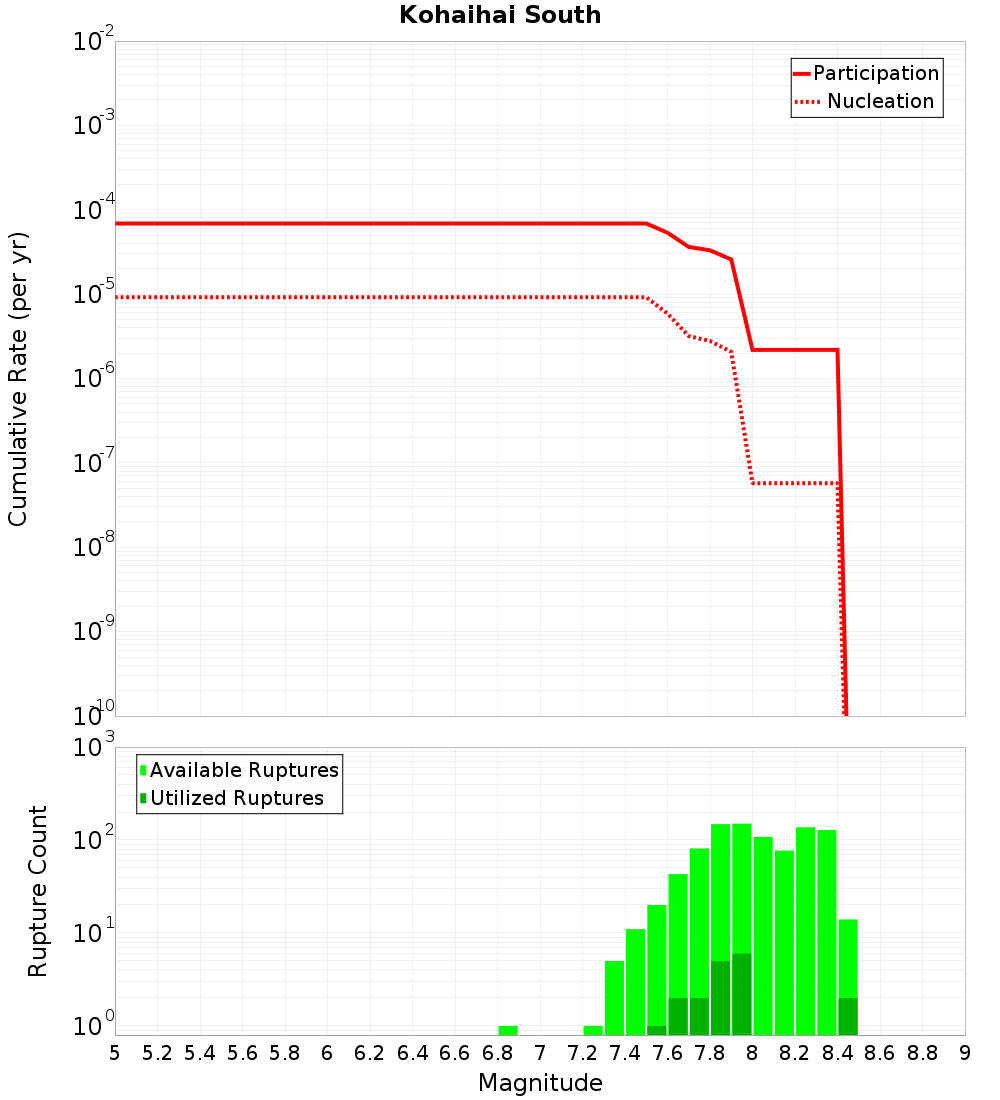

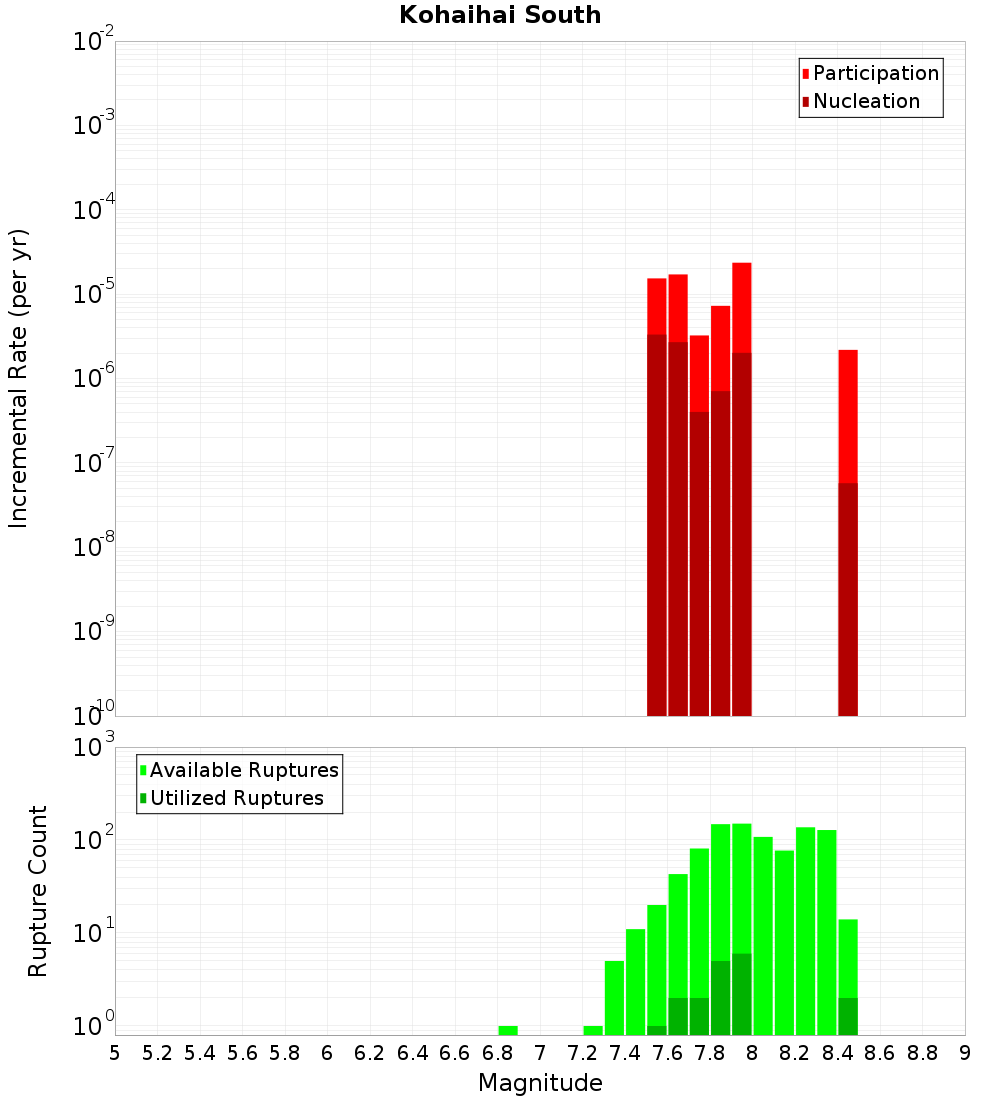

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

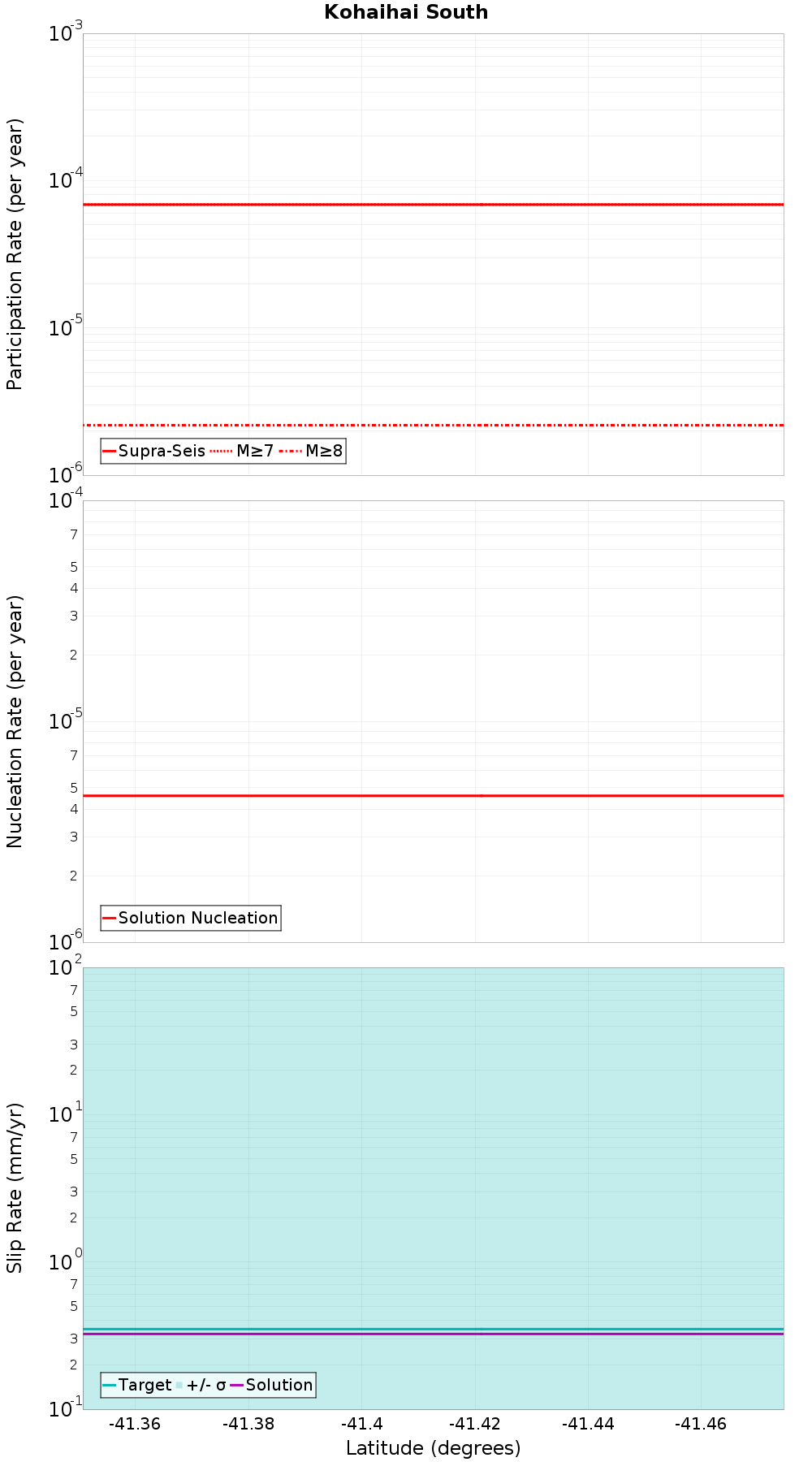

Along-Strike Values
Moment-Rates and b-Values

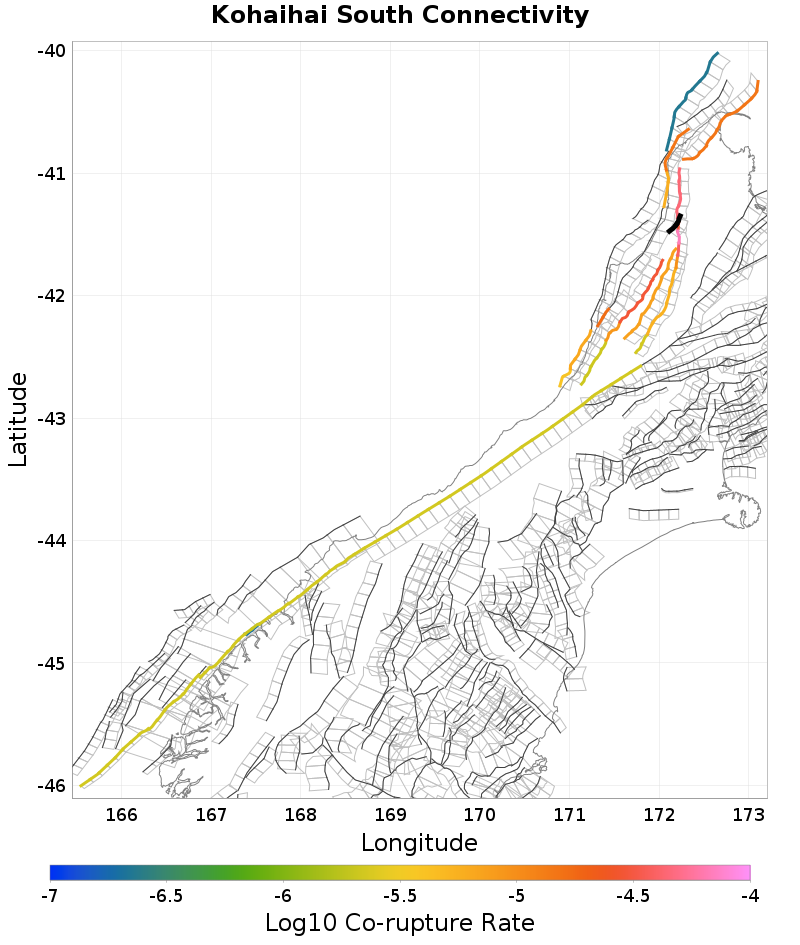

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| White Creek, 0.56 km away |
| Kohaihai, 1.73 km away |
| Kongahau, 7.34 km away |
White Creek, 0.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MzYuME44RFZa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 889 |
| Co-rupture Rate | 6.809675E-5 |
Kohaihai, 1.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MzYuME44RFZa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 668 |
| Co-rupture Rate | 4.4042015E-5 |
Kongahau, 7.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MzYuME44RFZa | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 235 |
| Co-rupture Rate | 1.4985042E-5 |
