Tuakana 6 Details

PropertyValue
Rupture Count74
Ruptures Above Sect Min Mag73
Ruptures w/ Nonzero Rates8
Magnitude Range[6.86, 7.75]
Length Range[14, 126] km
Total Rate1.5955706E-4 /yr
Multi-Fault Rate1.5955706E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults15

Table Of Contents

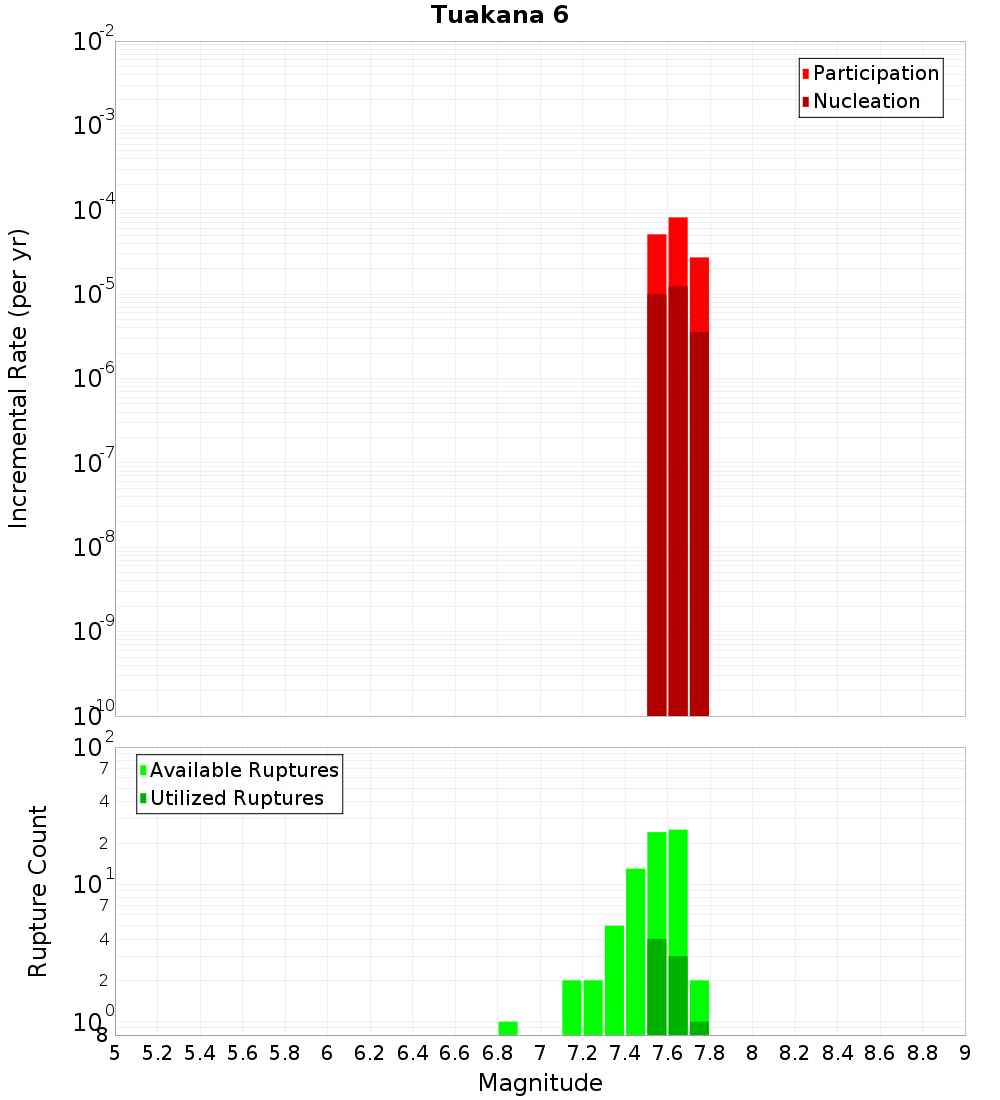

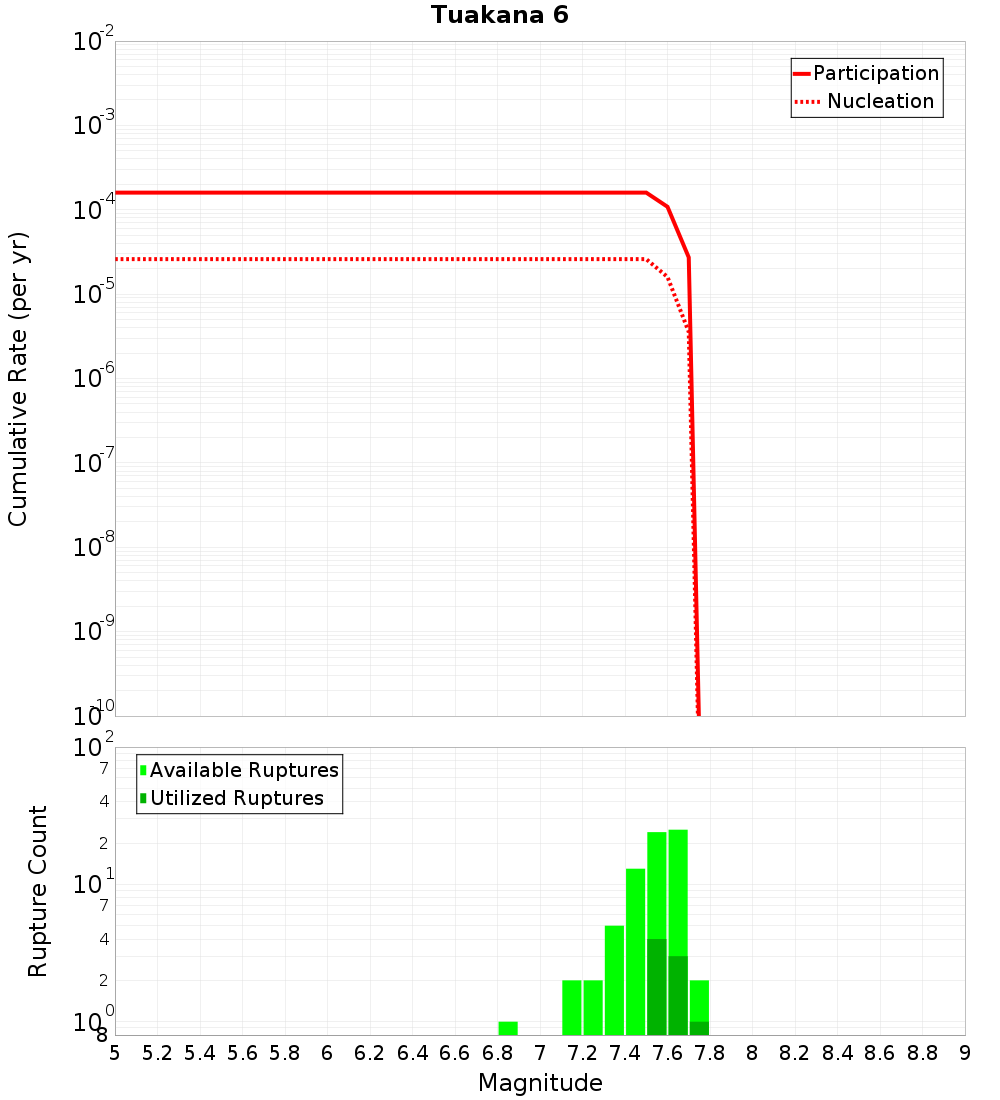

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

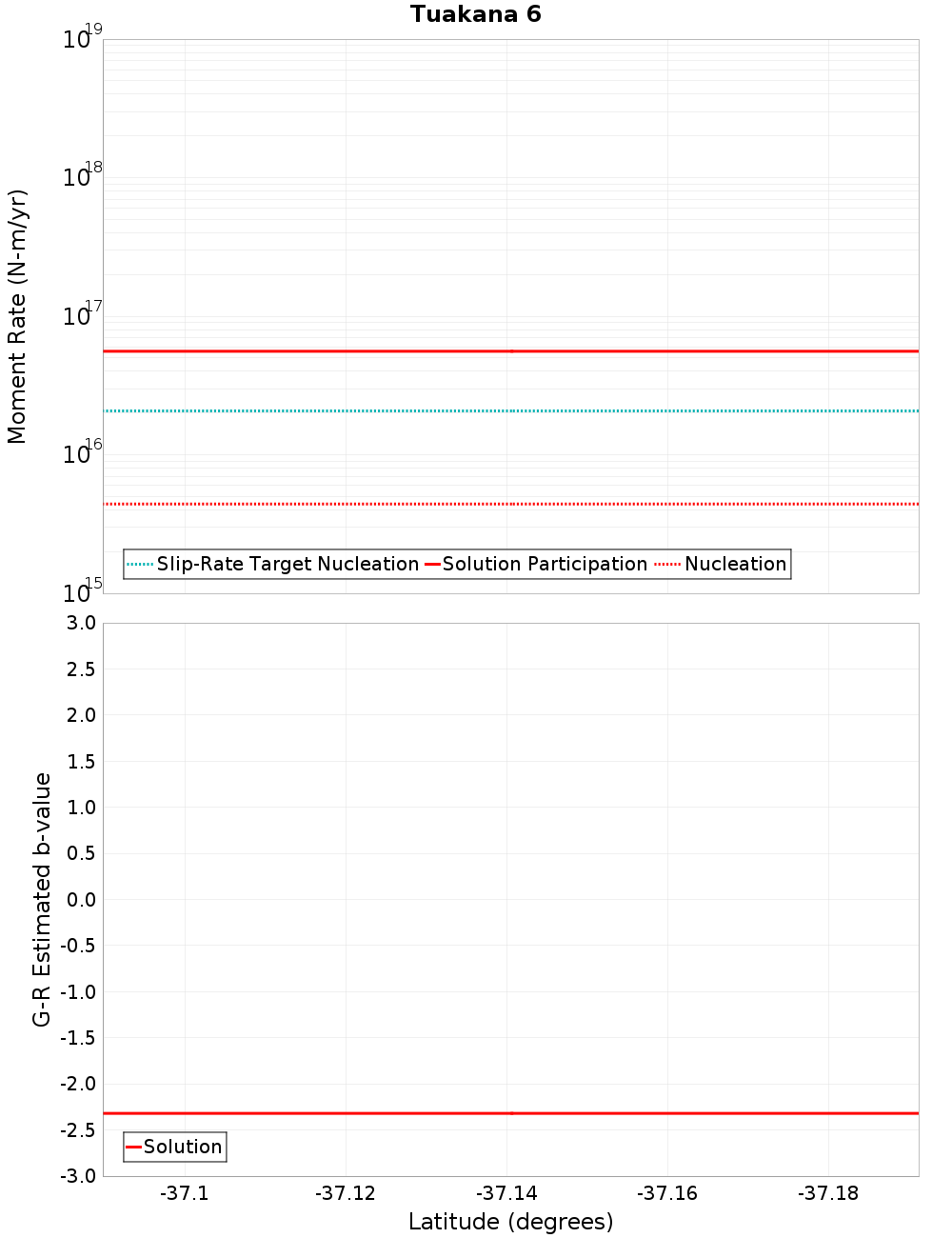

Moment-Rates and b-Values

(top)

Along-strike plot

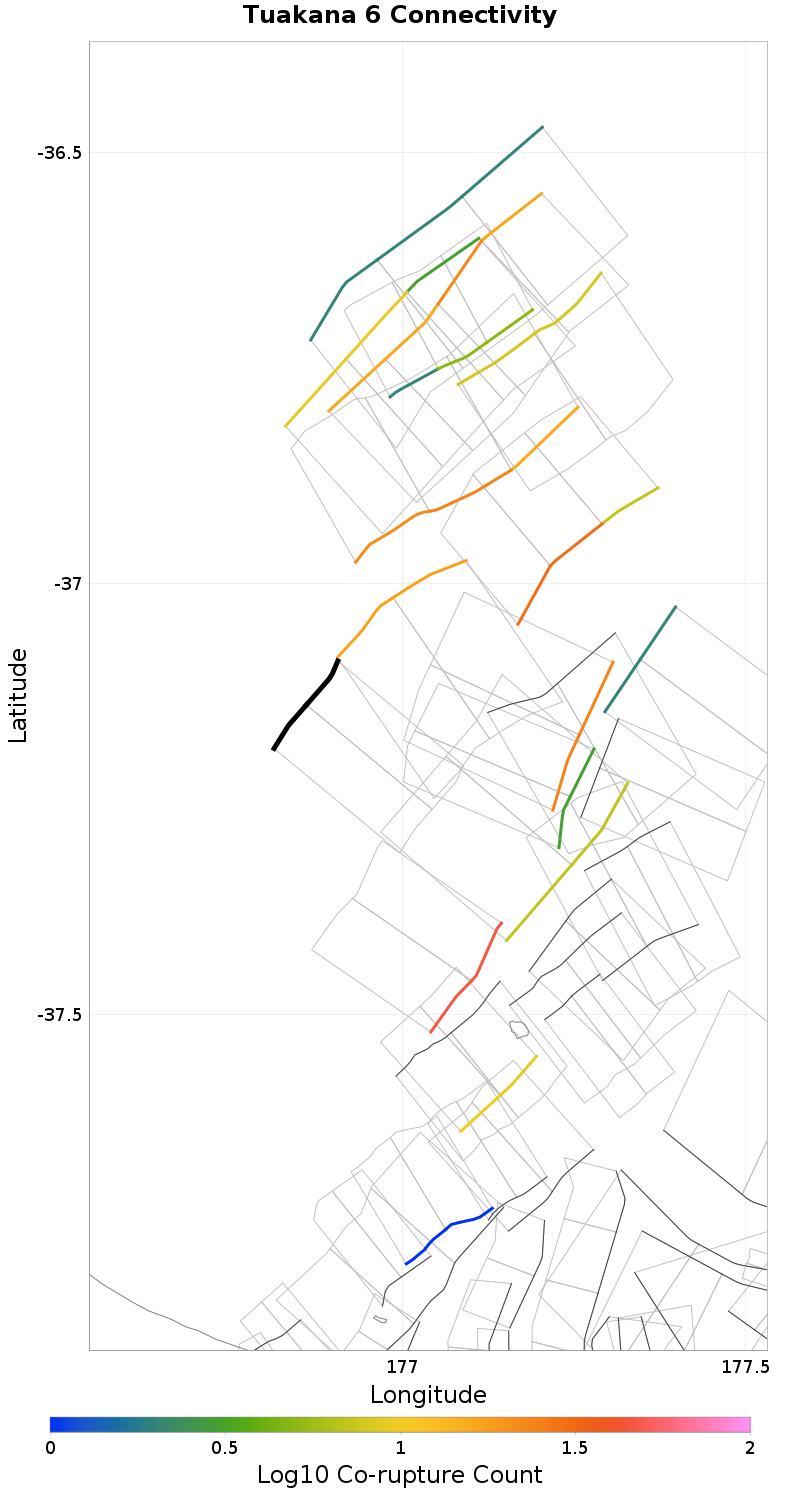

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Volkner 3, 0.32 km away
Volkner 4, 0.33 km away
Otara West 1, 0.34 km away
Tuakana 7, 0.39 km away
Otara West 2, 0.52 km away
Tuatoru 2, 11.58 km away
Tauranga Trough West 2, 12.95 km away
Otara West 3, 14.13 km away

Volkner 3, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MzYuME44RFZa
Connected?true
Directly Connected?true
Co-rupture Count46
Co-rupture Rate1.330565E-4

Volkner 4, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MzYuME44RFZa
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate0.0

Otara West 1, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MzYuME44RFZa
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Tuakana 7, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MzYuME44RFZa
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate1.6782382E-6

Otara West 2, 0.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MzYuME44RFZa
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate1.0299651E-4

Tuatoru 2, 11.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MzYuME44RFZa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tauranga Trough West 2, 12.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MzYuME44RFZa
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate5.4882315E-5

Otara West 3, 14.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4MzYuME44RFZa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
