Clarence: Southwest Details

PropertyValue
Rupture Count27,431
Ruptures Above Sect Min Mag27,425
Ruptures w/ Nonzero Rates33
Magnitude Range[6.95, 8.53]
Length Range[23, 973] km
Total Rate5.6936167E-4 /yr
Multi-Fault Rate5.6936167E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults213

Table Of Contents

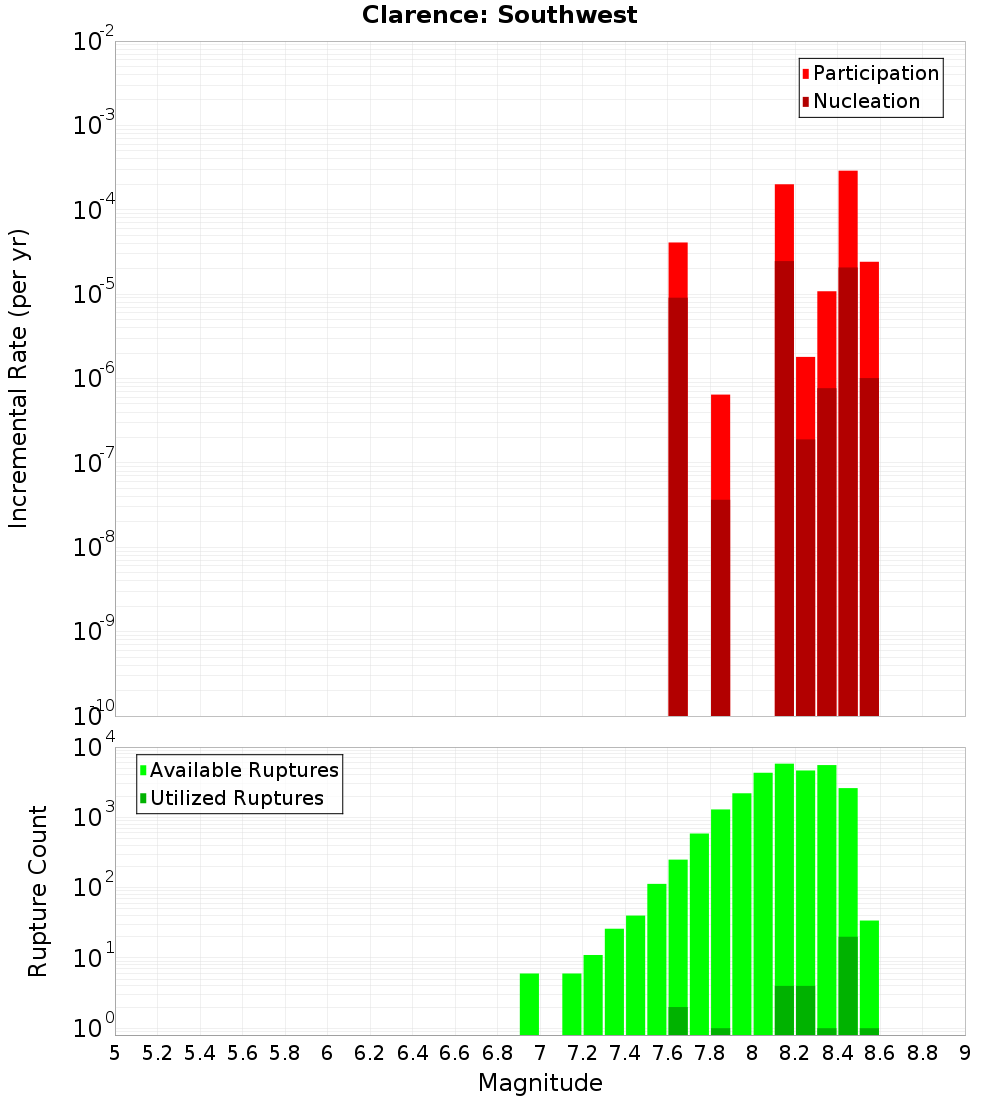

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

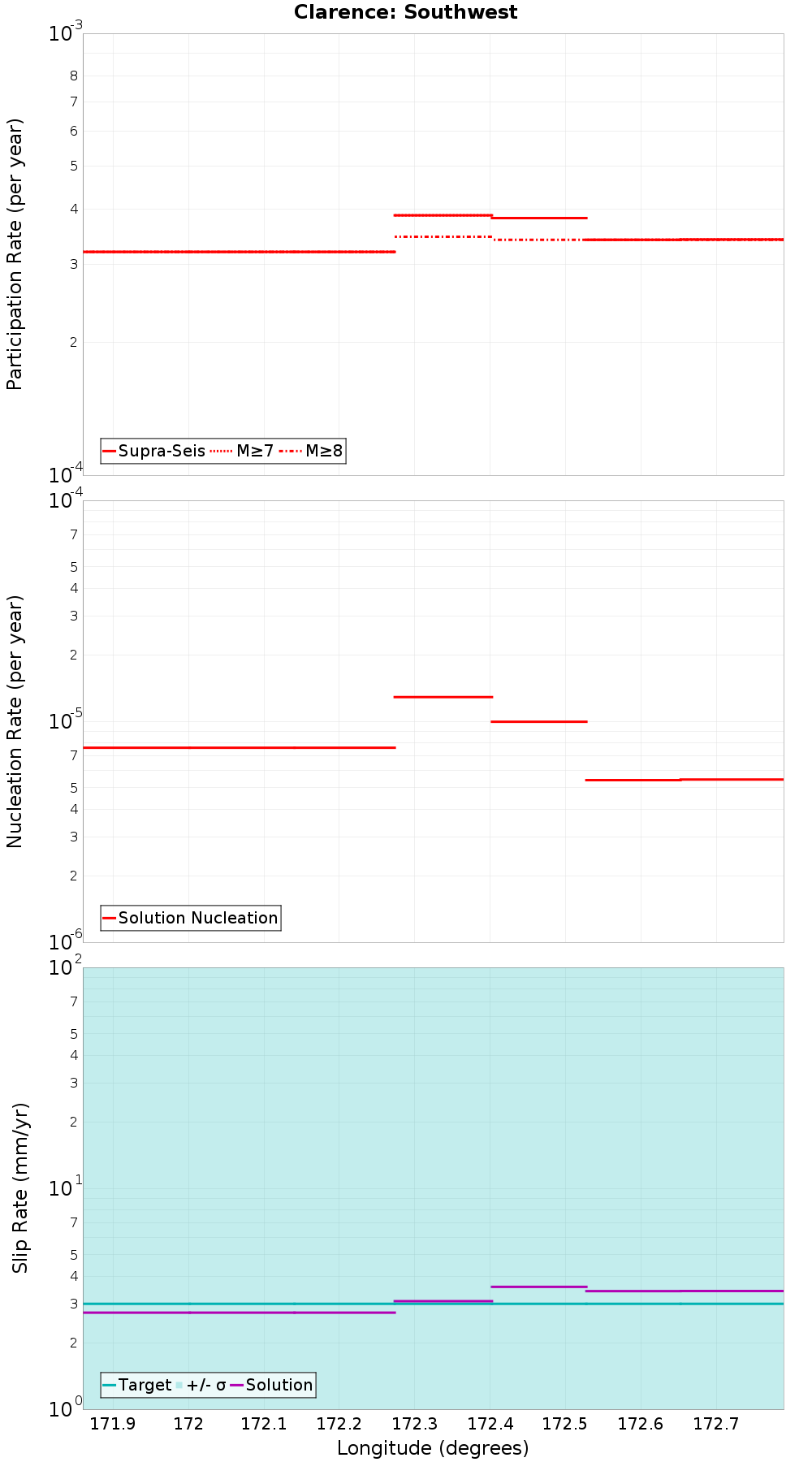

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Clarence: Central, 0 km awayKakapo, 8.64 km away
Alpine: Kaniere to Springs Junction, 0.21 km awayEsk North, 8.71 km away
Elliott, 0.33 km awayHanmer, 11.45 km away
Fowlers, 2.09 km awayHope: Kakapo-2-Hamner, 12.23 km away
Hope: Hope River, 5.56 km awayHope: Hanmer NW, 12.23 km away
Alpine: Springs Junction to Tophouse, 5.57 km awayKelly, 13.14 km away
White Creek - buried, 6.06 km awayHope: Taramakau, 13.86 km away
Hope: Hurunui, 8.29 km awayHope: Hamner SW, 13.9 km away

Clarence: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?true
Co-rupture Count16,820
Co-rupture Rate2.99302E-4

Alpine: Kaniere to Springs Junction, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?true
Co-rupture Count6,907
Co-rupture Rate2.9411944E-4

Elliott, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?true
Co-rupture Count6,129
Co-rupture Rate4.2217205E-5

Fowlers, 2.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?true
Co-rupture Count1,413
Co-rupture Rate0.0

Hope: Hope River, 5.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?true
Co-rupture Count7,487
Co-rupture Rate2.223925E-4

Alpine: Springs Junction to Tophouse, 5.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?true
Co-rupture Count838
Co-rupture Rate0.0

White Creek - buried, 6.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hurunui, 8.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?false
Co-rupture Count8,724
Co-rupture Rate2.0746996E-4

Kakapo, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?true
Co-rupture Count1,940
Co-rupture Rate2.6026628E-5

Esk North, 8.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?true
Co-rupture Count789
Co-rupture Rate6.7127505E-5

Hanmer, 11.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?true
Co-rupture Count2,333
Co-rupture Rate6.4475626E-7

Hope: Kakapo-2-Hamner, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?false
Co-rupture Count169
Co-rupture Rate0.0

Hope: Hanmer NW, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?false
Co-rupture Count58
Co-rupture Rate0.0

Kelly, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?false
Co-rupture Count10,808
Co-rupture Rate2.0746996E-4

Hope: Taramakau, 13.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?false
Co-rupture Count172
Co-rupture Rate0.0

Hope: Hamner SW, 13.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NTAuME03VnJv
Connected?true
Directly Connected?false
Co-rupture Count96
Co-rupture Rate0.0
