Awahokomo Details

PropertyValue
Rupture Count4
Ruptures Above Sect Min Mag4
Ruptures w/ Nonzero Rates0
Magnitude Range[7.68, 7.78]
Length Range[123, 161] km
Total Rate0.0 /yr
Multi-Fault Rate0.0 /yr (NaN)
Directly-Connected Faults2
All Co-Rupturing Faults5

Table Of Contents

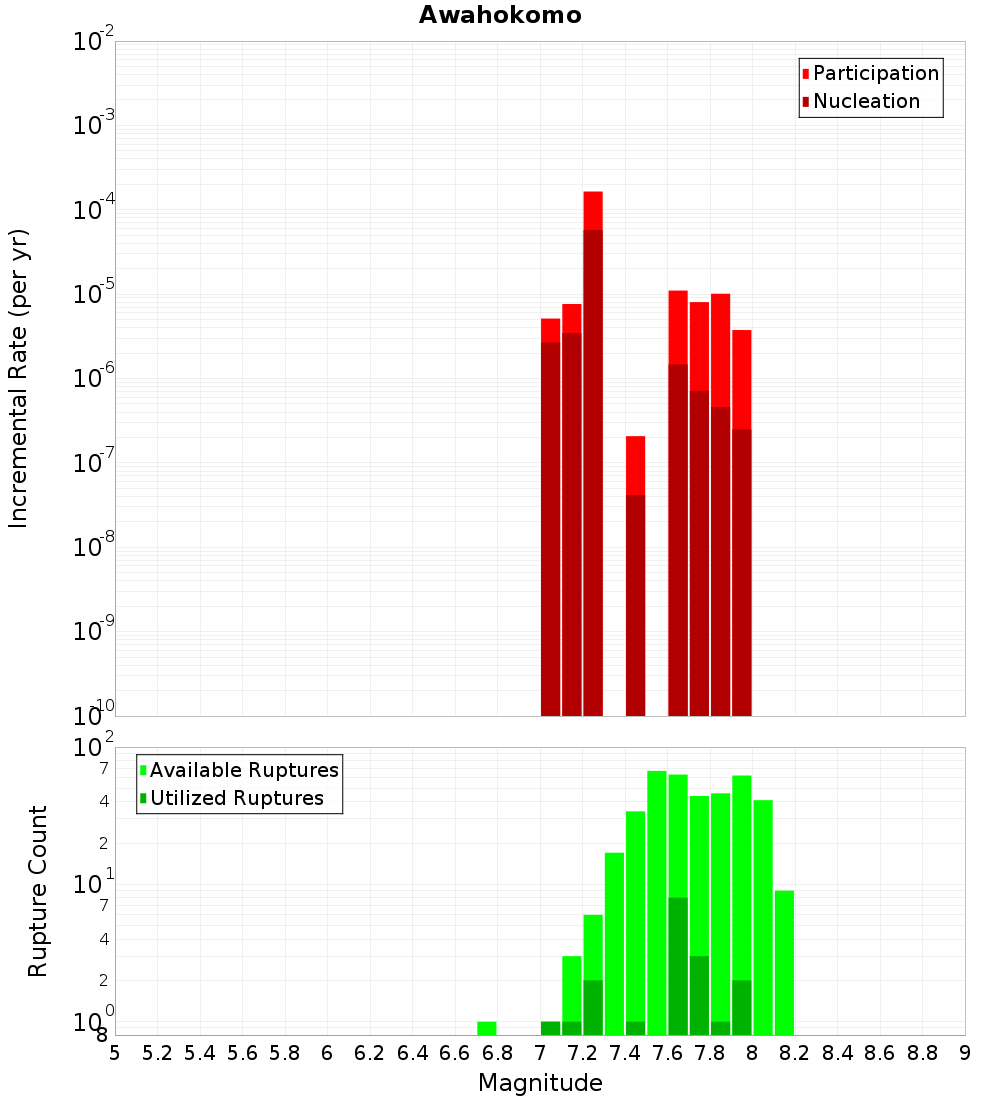

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

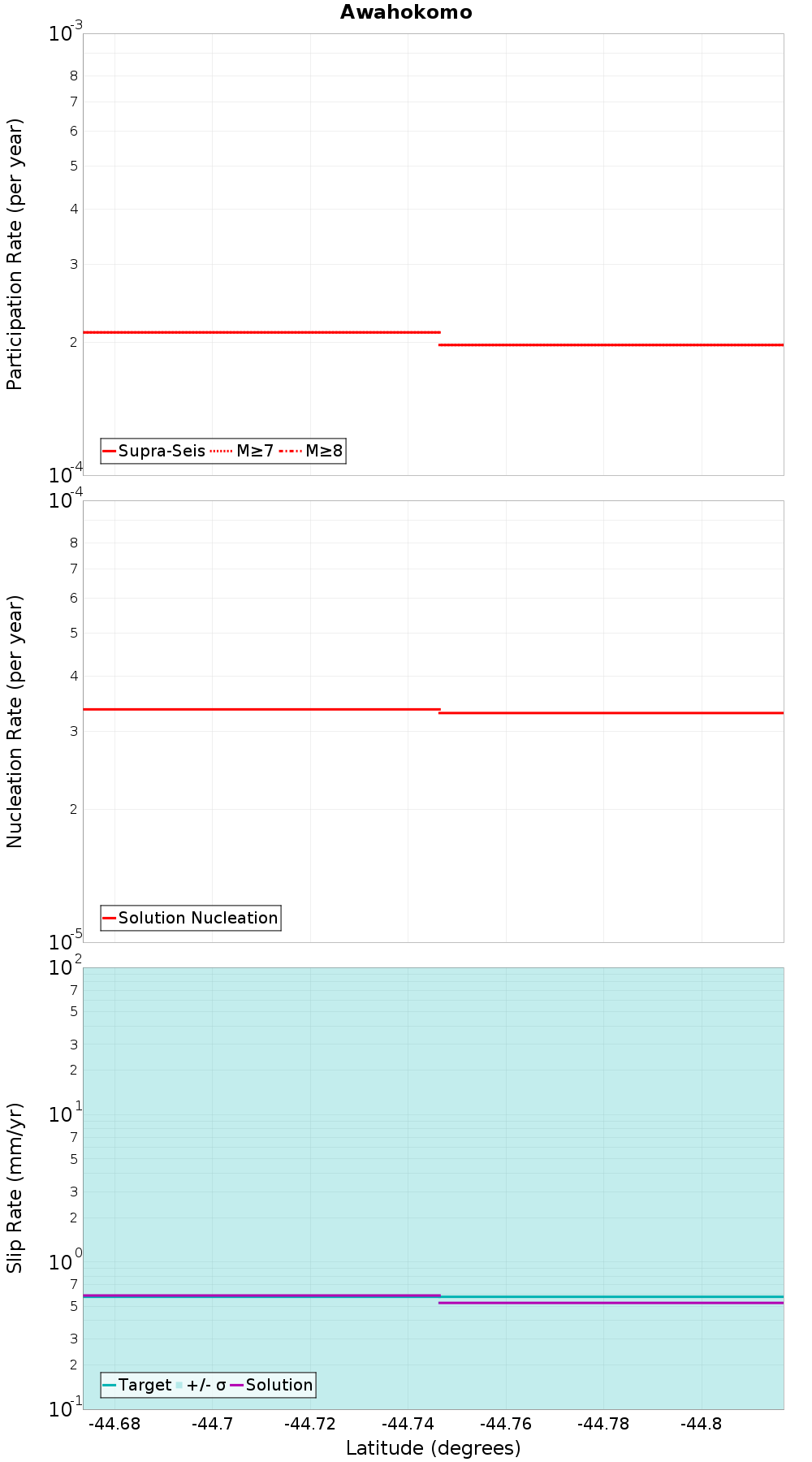

Along-Strike Values

(top)

Along-strike plot

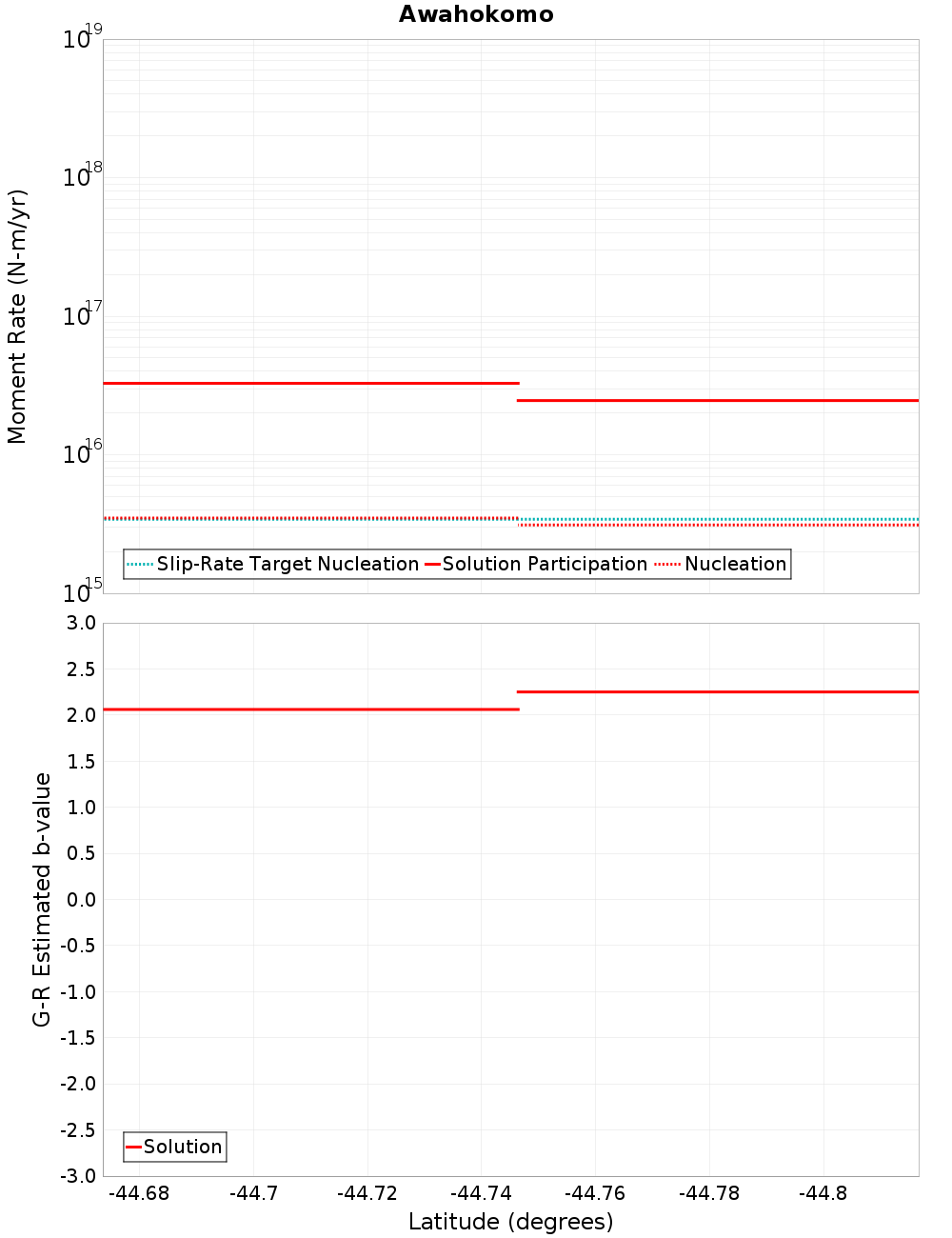

Moment-Rates and b-Values

(top)

Along-strike plot

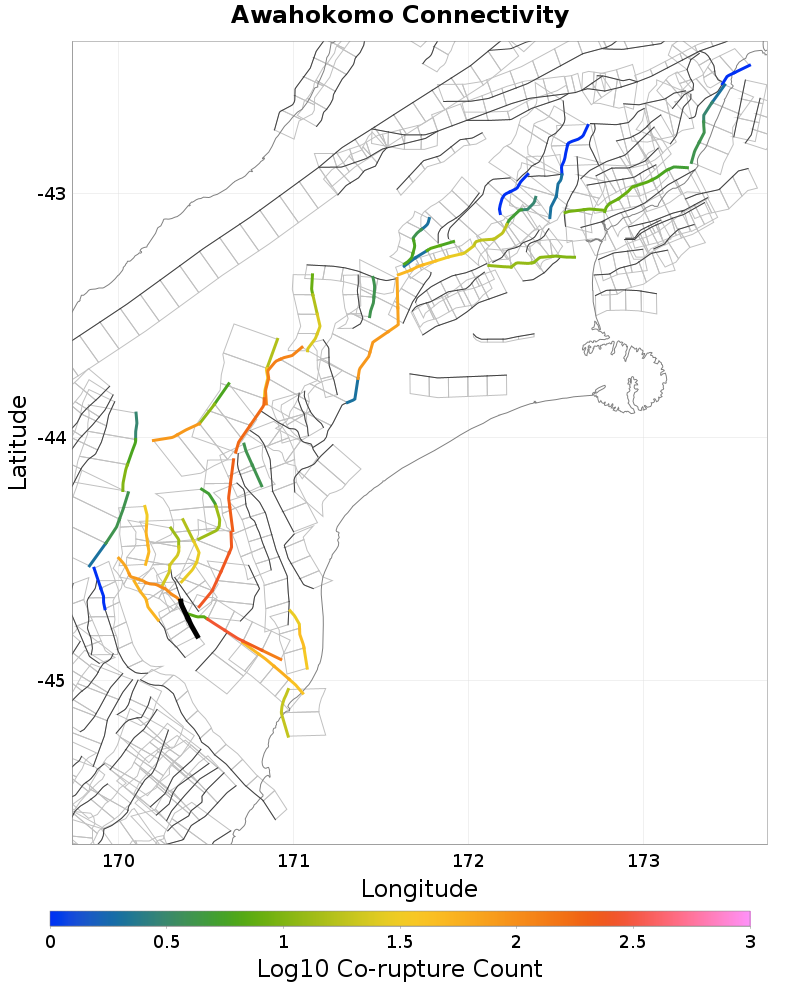

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Middle Range, 0.03 km away
Waitangi, 0.42 km away
Fern Gully, 0.47 km away
Stonewall, 0.84 km away
Dryburgh, 3.91 km away
Kirkliston, 5.59 km away
Mt Sutton, 8.83 km away
Black Hill, 10.17 km away
Hawkdun, 10.54 km away
Gibson, 10.93 km away
Waihemo, 12.83 km away
Campbell Hills, 13.6 km away

Middle Range, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NjcuMHJDWlNF
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate1.6789221E-5

Waitangi, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NjcuMHJDWlNF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fern Gully, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NjcuMHJDWlNF
Connected?true
Directly Connected?true
Co-rupture Count118
Co-rupture Rate1.9682288E-4

Stonewall, 0.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NjcuMHJDWlNF
Connected?true
Directly Connected?true
Co-rupture Count278
Co-rupture Rate6.411421E-6

Dryburgh, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NjcuMHJDWlNF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 5.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NjcuMHJDWlNF
Connected?true
Directly Connected?true
Co-rupture Count244
Co-rupture Rate2.6995742E-5

Mt Sutton, 8.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NjcuMHJDWlNF
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate0.0

Black Hill, 10.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NjcuMHJDWlNF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 10.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NjcuMHJDWlNF
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Gibson, 10.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NjcuMHJDWlNF
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate0.0

Waihemo, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NjcuMHJDWlNF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Campbell Hills, 13.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NjcuMHJDWlNF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
