Alfredton North Details
| Property | Value |
|---|---|
| Rupture Count | 2,925 |
| Ruptures Above Sect Min Mag | 2,920 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [6.65, 8.49] |
| Length Range | [15, 892] km |
| Total Rate | 3.0310143E-4 /yr |
| Multi-Fault Rate | 3.0310143E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 77 |
Table Of Contents

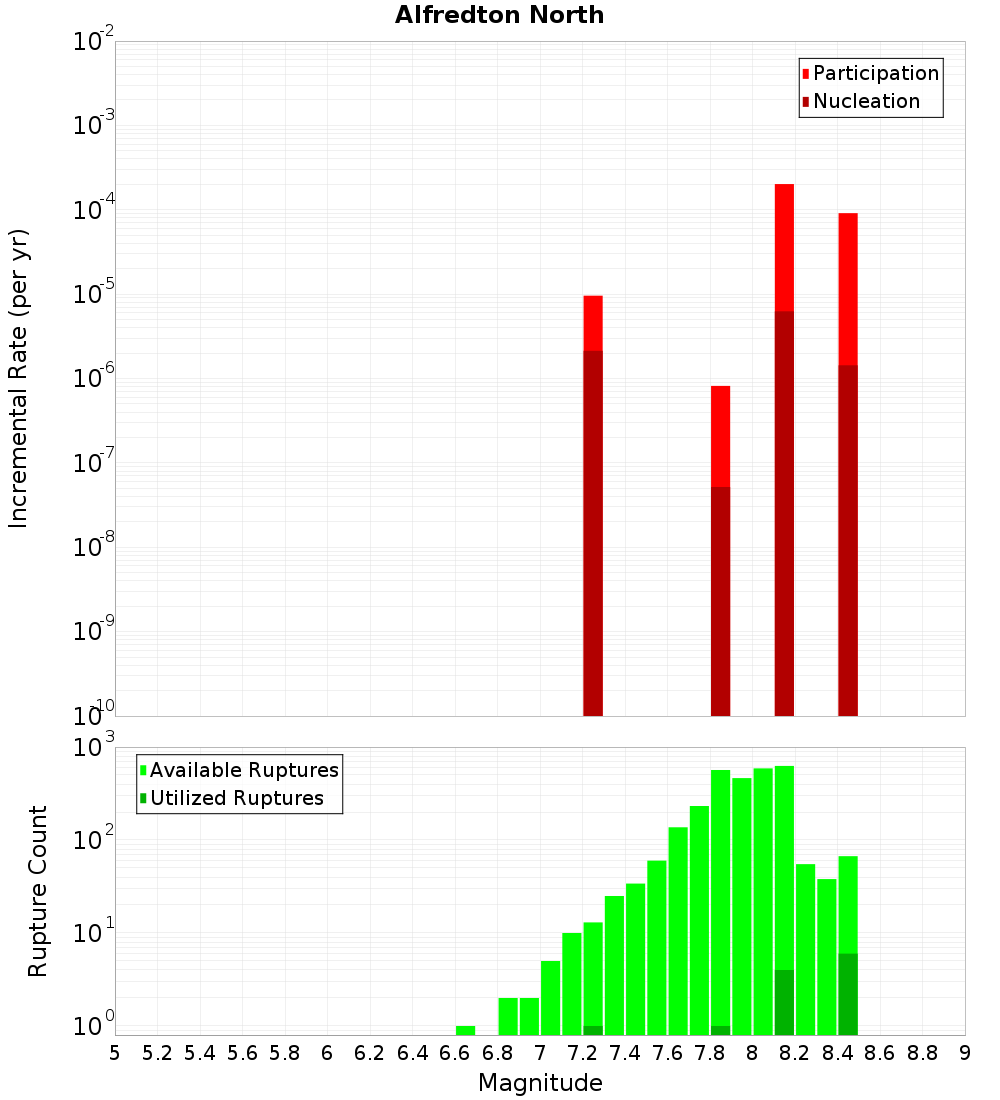

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Alfredton South, 0 km away |
| Saunders Road, 0 km away |
| Pa Valley, 0.21 km away |
| Makuri - Waewaepa, 0.29 km away |
| Dreyers Rock, 5.12 km away |
| Pahiatua, 12.97 km away |
| Waitawhiti, 14.48 km away |
Alfredton South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NzAuMGVTQ0pp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,947 |
| Co-rupture Rate | 2.9351402E-4 |
Saunders Road, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NzAuMGVTQ0pp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pa Valley, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NzAuMGVTQ0pp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Makuri - Waewaepa, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NzAuMGVTQ0pp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,266 |
| Co-rupture Rate | 3.0310143E-4 |
Dreyers Rock, 5.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NzAuMGVTQ0pp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,872 |
| Co-rupture Rate | 3.0228408E-4 |
Pahiatua, 12.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NzAuMGVTQ0pp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waitawhiti, 14.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NzAuMGVTQ0pp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
