Uruti Ridge 2 Details

Property	Value
Rupture Count	5,853
Ruptures Above Sect Min Mag	5,851
Ruptures w/ Nonzero Rates	12
Magnitude Range	[6.83, 8.52]
Length Range	[19, 958] km
Total Rate	3.1759767E-4 /yr
Multi-Fault Rate	3.1759767E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	88

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

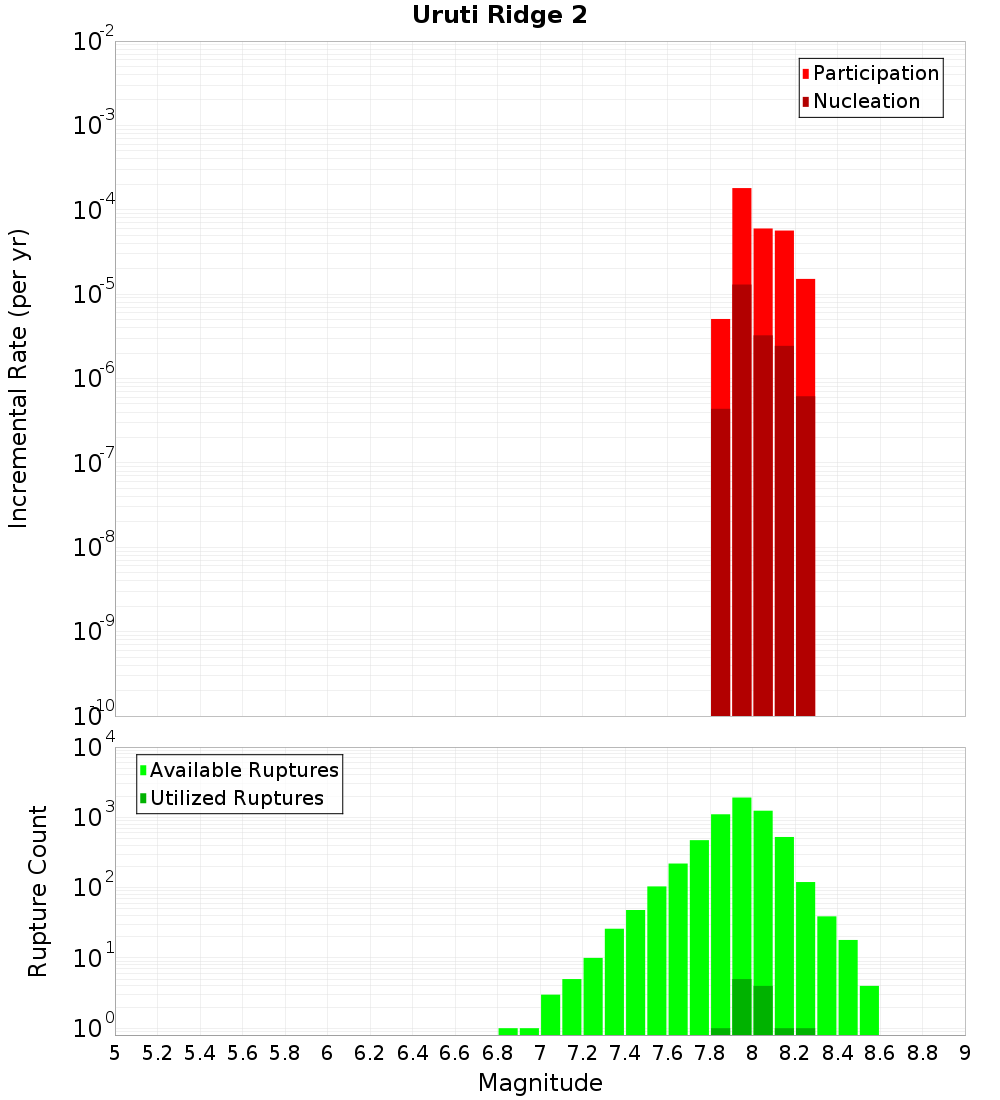

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

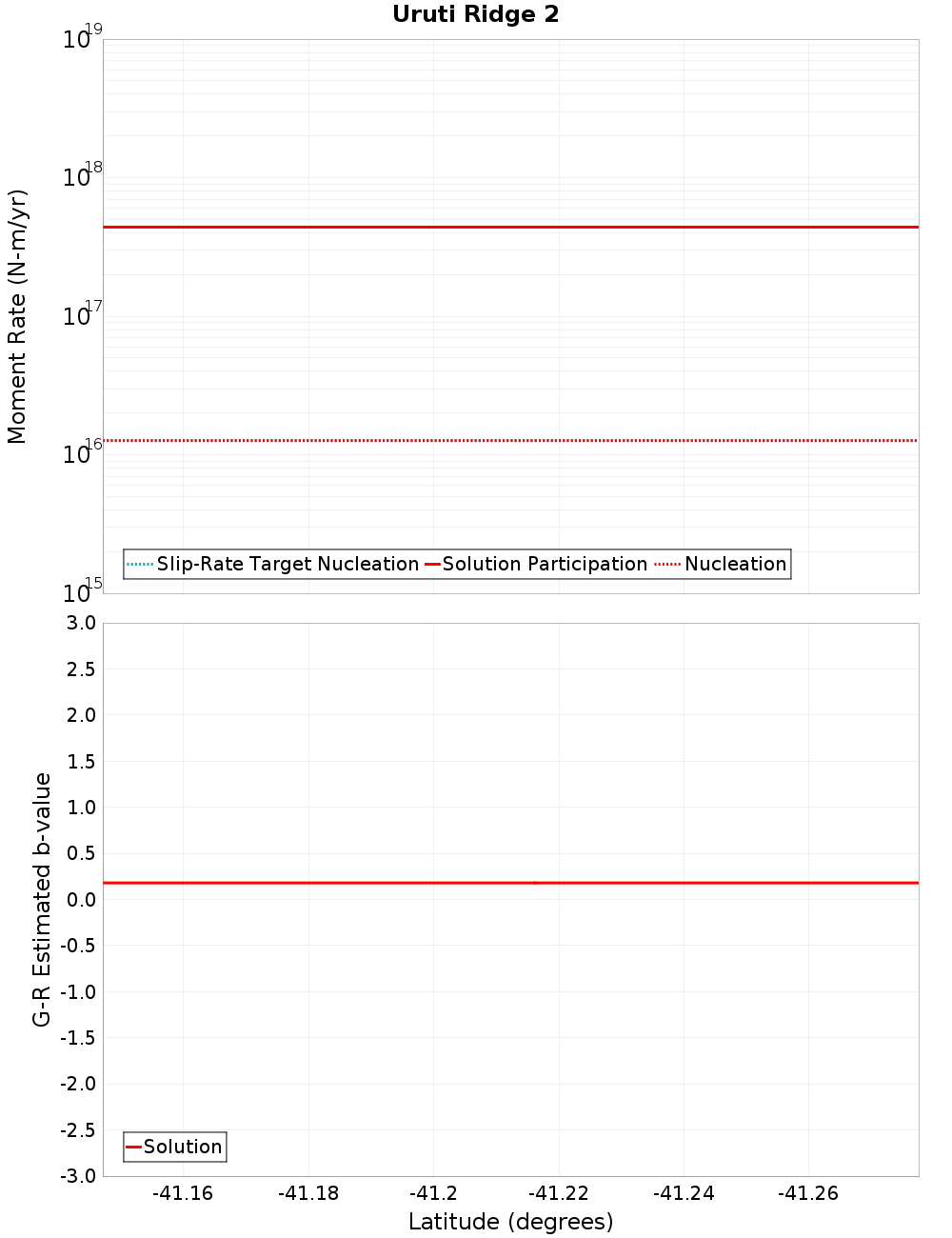

Moment-Rates and b-Values

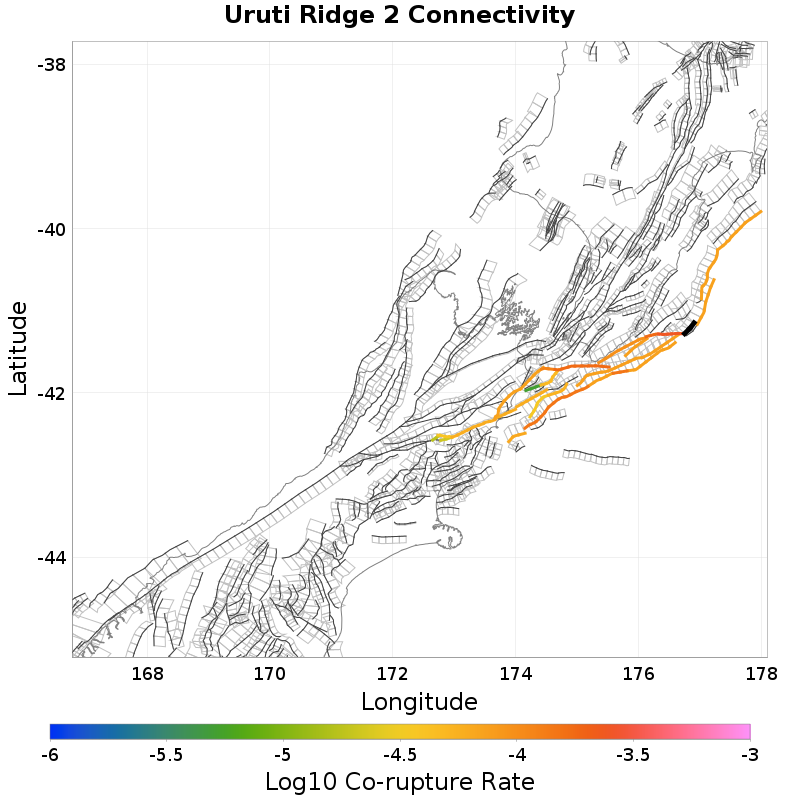

Connectivity

Nearby Sections

Fault Section
Uruti Basin, 0 km away
Opouawe - Uruti, 2.43 km away
Uruti East - PorWest 1, 2.58 km away
Uruti Basin 2, 2.88 km away
Uruti North, 8.5 km away
Pahaua, 12.05 km away

Uruti Basin, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NzAuMGVTQ0pp
Connected?	true
Directly Connected?	true
Co-rupture Count	3,660
Co-rupture Rate	2.4575397E-4

Opouawe - Uruti, 2.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NzAuMGVTQ0pp
Connected?	true
Directly Connected?	true
Co-rupture Count	3,981
Co-rupture Rate	7.9702186E-5

Uruti East - PorWest 1, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NzAuMGVTQ0pp
Connected?	true
Directly Connected?	true
Co-rupture Count	4,770
Co-rupture Rate	7.1843715E-5

Uruti Basin 2, 2.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NzAuMGVTQ0pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Uruti North, 8.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NzAuMGVTQ0pp
Connected?	true
Directly Connected?	false
Co-rupture Count	48
Co-rupture Rate	0.0

Pahaua, 12.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY4NzAuMGVTQ0pp
Connected?	true
Directly Connected?	false
Co-rupture Count	1,132
Co-rupture Rate	1.4490112E-4
