Big Ben Details

PropertyValue
Rupture Count1,435
Ruptures Above Sect Min Mag1,427
Ruptures w/ Nonzero Rates93
Magnitude Range[6.62, 8.25]
Length Range[13, 392] km
Total Rate1.02253194E-4 /yr
Multi-Fault Rate1.02253194E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults63

Table Of Contents

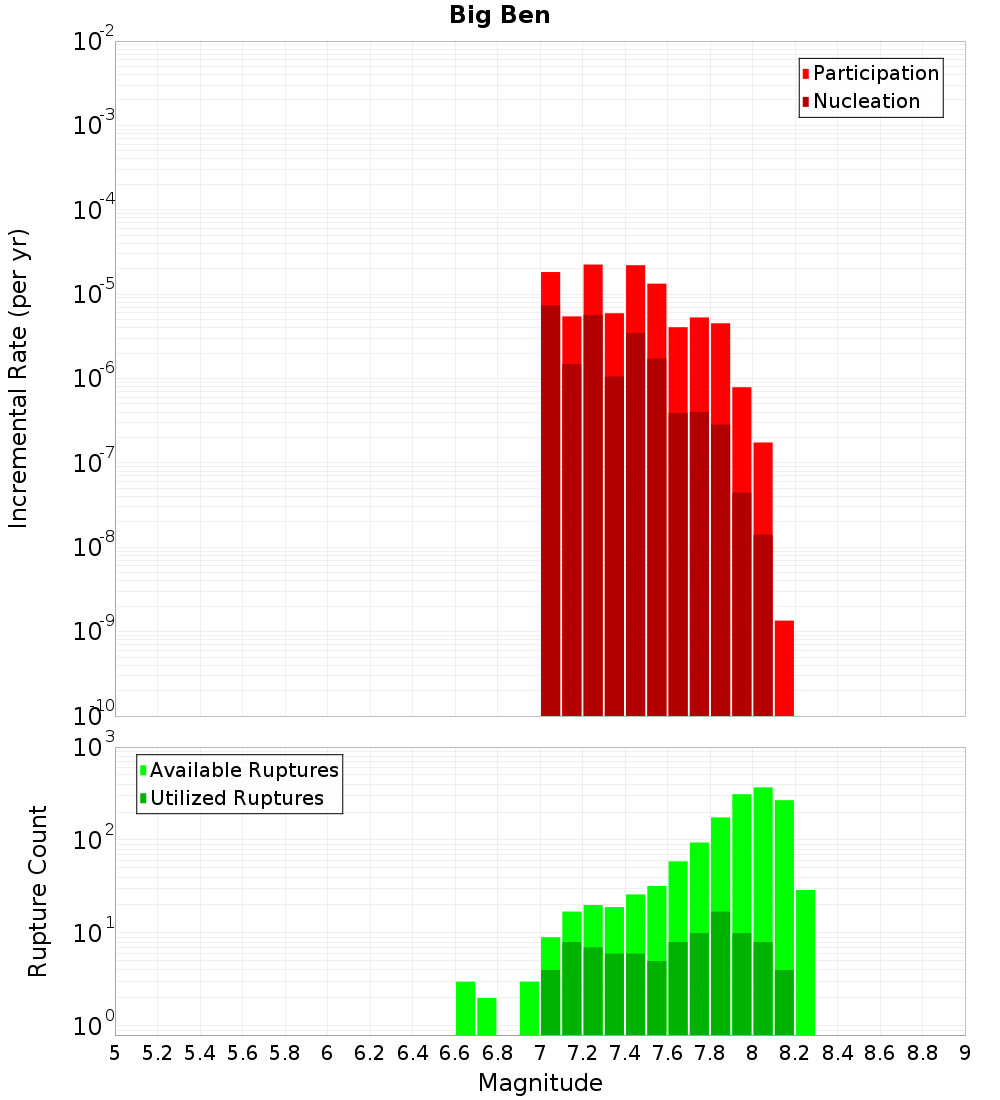

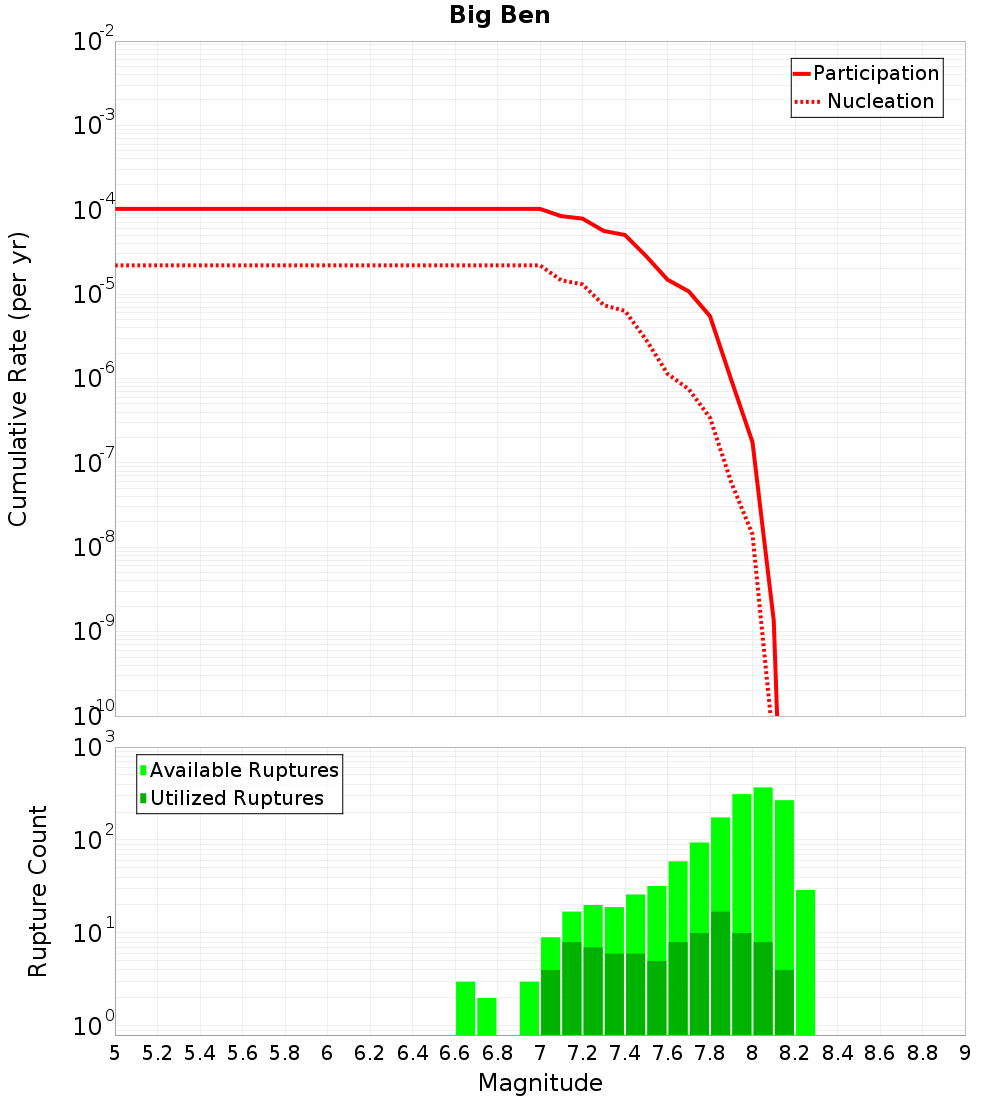

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

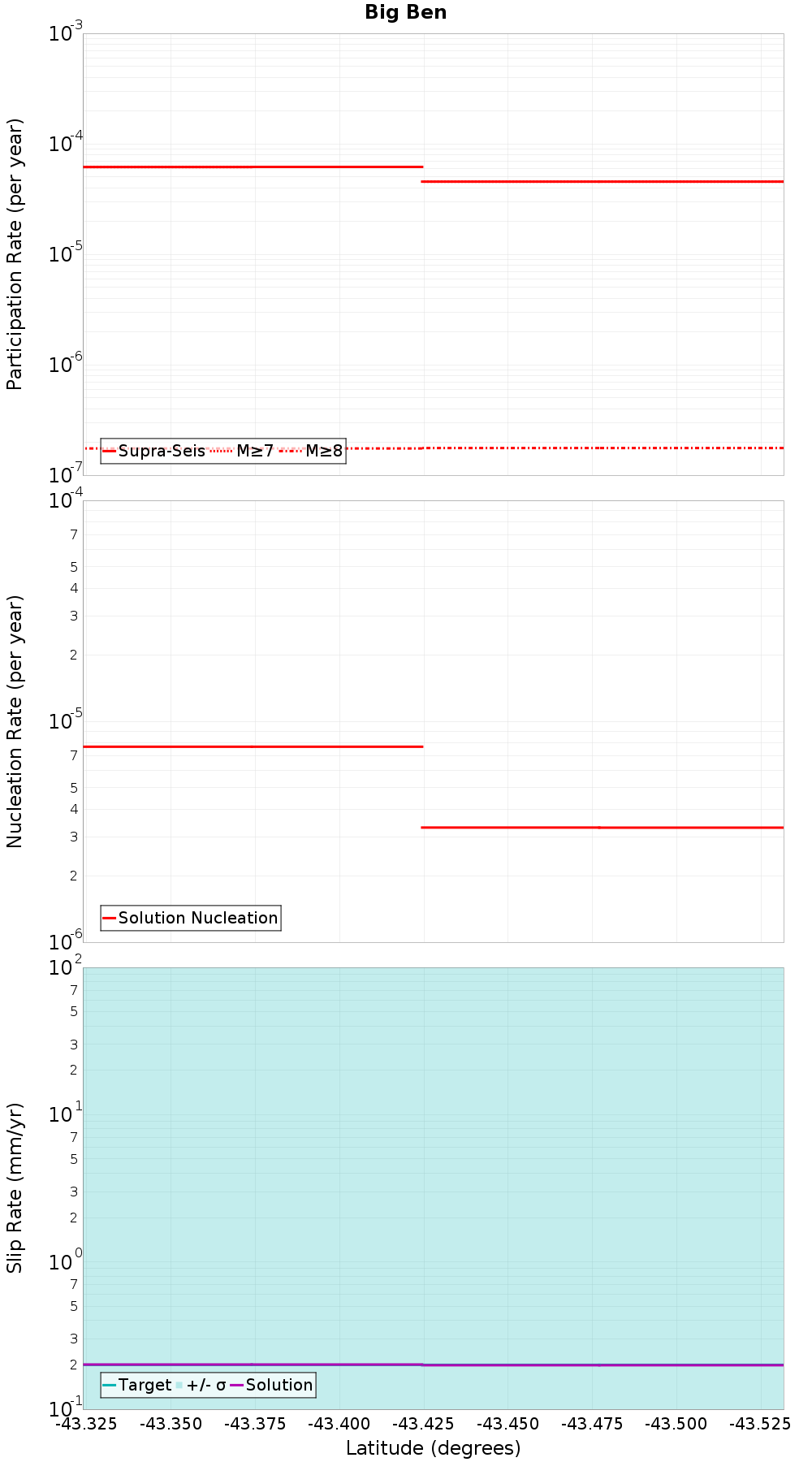

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Torlesse, 0.37 km away
Kowai - View Hill, 0.83 km away
High Peak - Sheffield, 1.56 km away
Hutt Peel, 2.07 km away
Porters Pass, 2.18 km away
Double Hill, 2.59 km away
Hororata, 8.05 km away
Cheeseman, 9.71 km away
Redcliffe, 12.35 km away
Sailor, 13.73 km away

Torlesse, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?true
Directly Connected?true
Co-rupture Count82
Co-rupture Rate2.7958991E-5

Kowai - View Hill, 0.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?true
Directly Connected?true
Co-rupture Count1,211
Co-rupture Rate1.2051078E-6

High Peak - Sheffield, 1.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hutt Peel, 2.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?true
Directly Connected?true
Co-rupture Count1,034
Co-rupture Rate4.195423E-5

Porters Pass, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?true
Directly Connected?true
Co-rupture Count70
Co-rupture Rate2.0373059E-6

Double Hill, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?true
Directly Connected?true
Co-rupture Count37
Co-rupture Rate5.6794364E-5

Hororata, 8.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cheeseman, 9.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate9.012421E-6

Redcliffe, 12.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sailor, 13.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate3.6455514E-8
