Lake Heron Details

PropertyValue
Rupture Count195
Ruptures Above Sect Min Mag192
Ruptures w/ Nonzero Rates57
Magnitude Range[6.89, 8.10]
Length Range[18, 260] km
Total Rate4.0625353E-4 /yr
Multi-Fault Rate1.4119591E-4 /yr (34.76%)
Directly-Connected Faults3
All Co-Rupturing Faults28

Table Of Contents

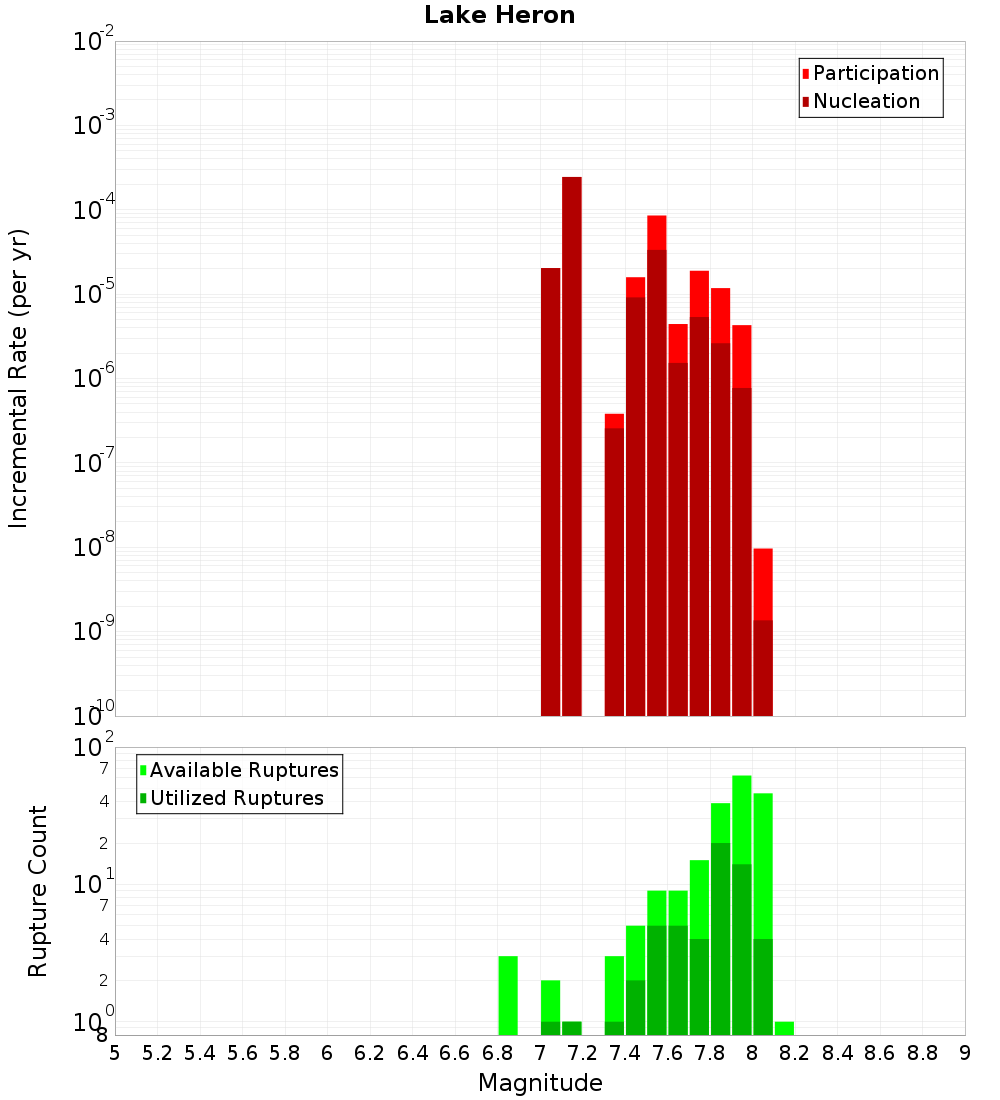

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

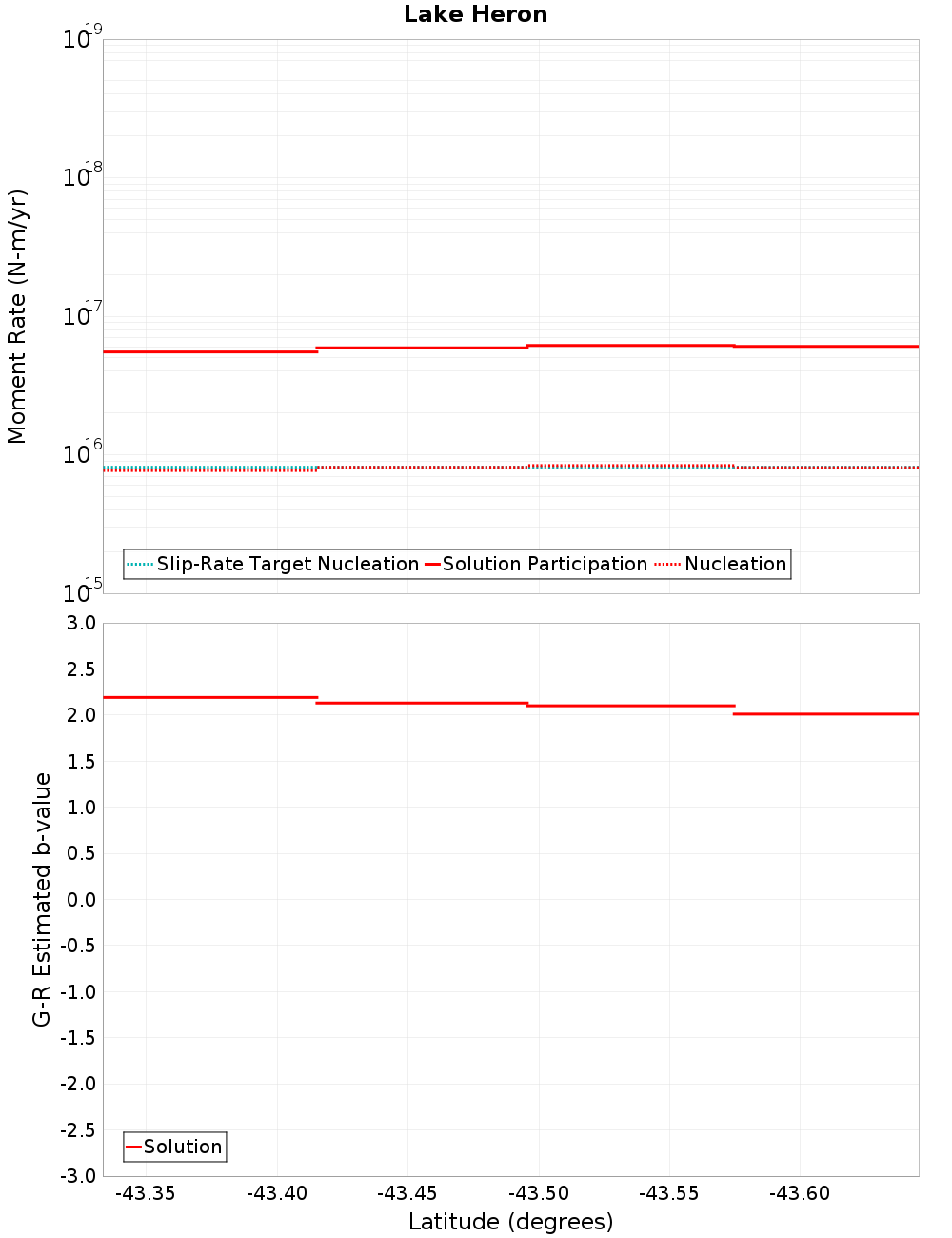

Moment-Rates and b-Values

(top)

Along-strike plot

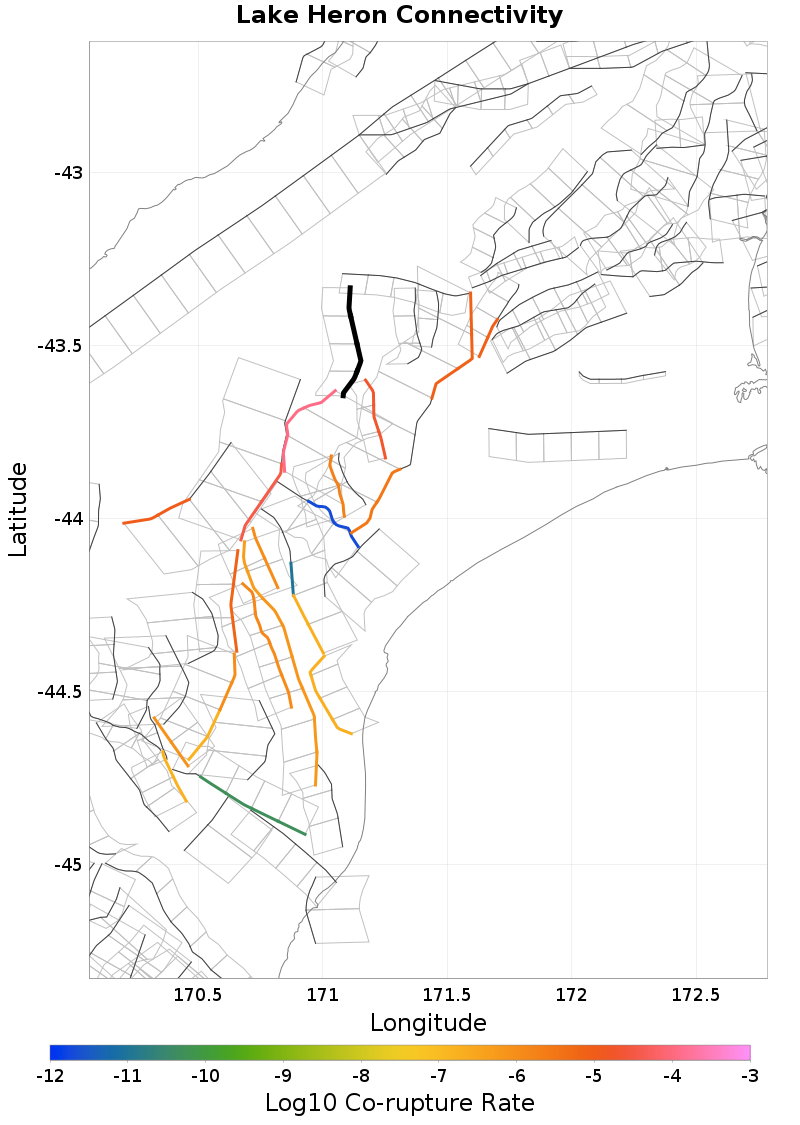

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ben McLeod, 0.47 km away
Double Hill, 1.64 km away
Klondyke Moor, 3.5 km away
Hutt Peel, 12.22 km away
Fox Peak, 13.35 km away
North Branch, 14.3 km away

Ben McLeod, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?true
Directly Connected?true
Co-rupture Count168
Co-rupture Rate1.13924325E-4

Double Hill, 1.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Klondyke Moor, 3.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate1.9153682E-5

Hutt Peel, 12.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?true
Directly Connected?true
Co-rupture Count19
Co-rupture Rate1.1033541E-5

Fox Peak, 13.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?true
Directly Connected?false
Co-rupture Count159
Co-rupture Rate3.5019897E-5

North Branch, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDMuMDdyZWN1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
