Inangahua Details

Property	Value
Rupture Count	2,838
Ruptures Above Sect Min Mag	2,837
Ruptures w/ Nonzero Rates	625
Magnitude Range	[6.97, 8.24]
Length Range	[20, 396] km
Total Rate	5.8779606E-5 /yr
Multi-Fault Rate	5.8779606E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	18

Table Of Contents

Magnitude-Frequency Distribution

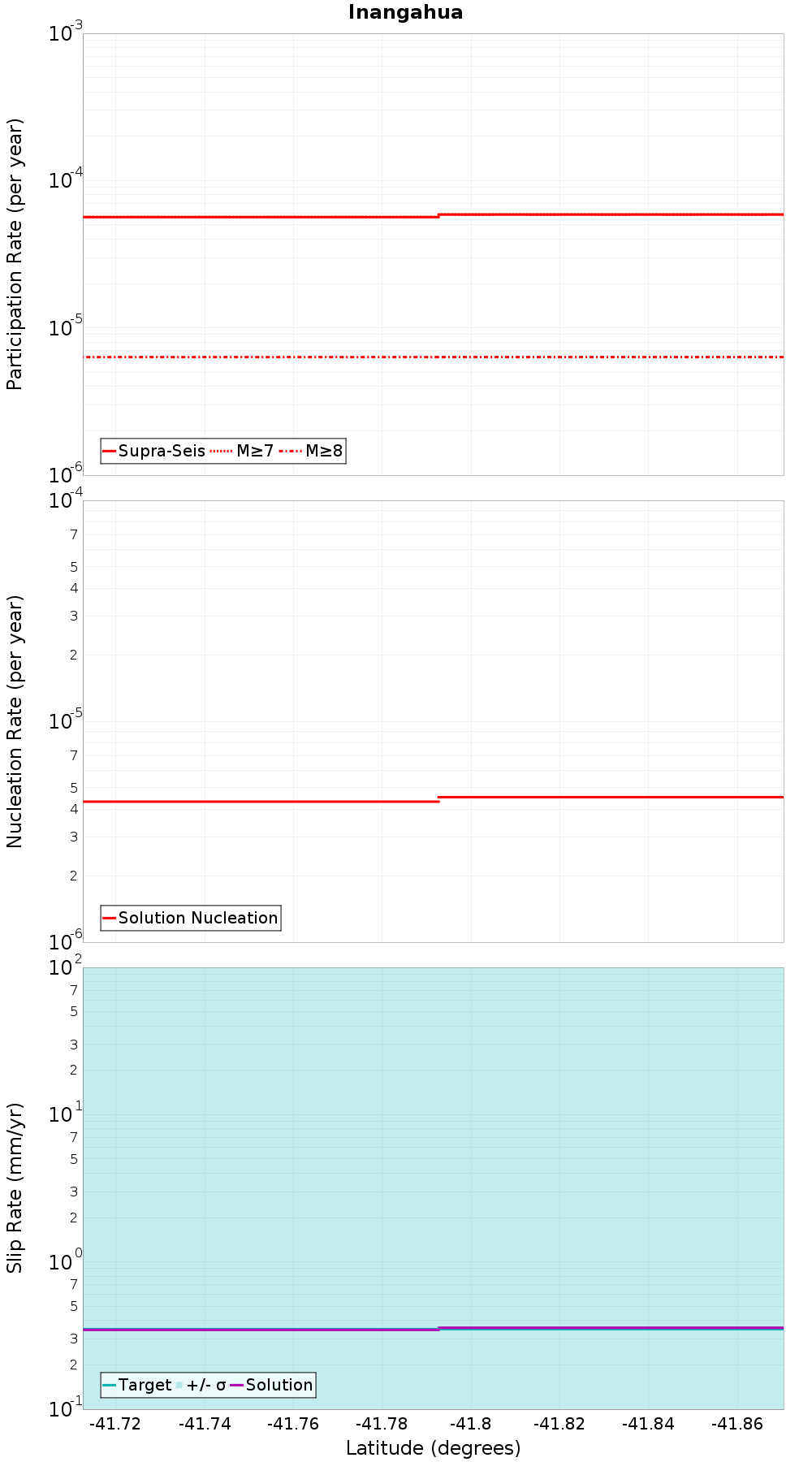

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Maimai: North, 0 km away
Paparoa West: North, 0.83 km away
Paparoa West, 1.12 km away
Kongahau, 1.46 km away
Lyell, 5.51 km away
Lyell South, 9 km away
White Creek, 13.07 km away

Maimai: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDQuMEF1NFlx
Connected?	true
Directly Connected?	true
Co-rupture Count	1,952
Co-rupture Rate	3.9761293E-5

Paparoa West: North, 0.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDQuMEF1NFlx
Connected?	true
Directly Connected?	false
Co-rupture Count	167
Co-rupture Rate	9.535012E-7

Paparoa West, 1.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDQuMEF1NFlx
Connected?	true
Directly Connected?	true
Co-rupture Count	1,228
Co-rupture Rate	3.6493035E-5

Kongahau, 1.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDQuMEF1NFlx
Connected?	true
Directly Connected?	true
Co-rupture Count	2,350
Co-rupture Rate	2.3312661E-5

Lyell, 5.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDQuMEF1NFlx
Connected?	true
Directly Connected?	true
Co-rupture Count	192
Co-rupture Rate	6.5571953E-6

Lyell South, 9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDQuMEF1NFlx
Connected?	true
Directly Connected?	false
Co-rupture Count	249
Co-rupture Rate	2.5230977E-6

White Creek, 13.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDQuMEF1NFlx
Connected?	true
Directly Connected?	true
Co-rupture Count	618
Co-rupture Rate	3.5704084E-5
