Waiotahi: South Details

PropertyValue
Rupture Count40
Ruptures Above Sect Min Mag40
Ruptures w/ Nonzero Rates0
Magnitude Range[8.17, 8.32]
Length Range[304, 431] km
Total Rate0.0 /yr
Multi-Fault Rate0.0 /yr (NaN)
Directly-Connected Faults4
All Co-Rupturing Faults16

Table Of Contents

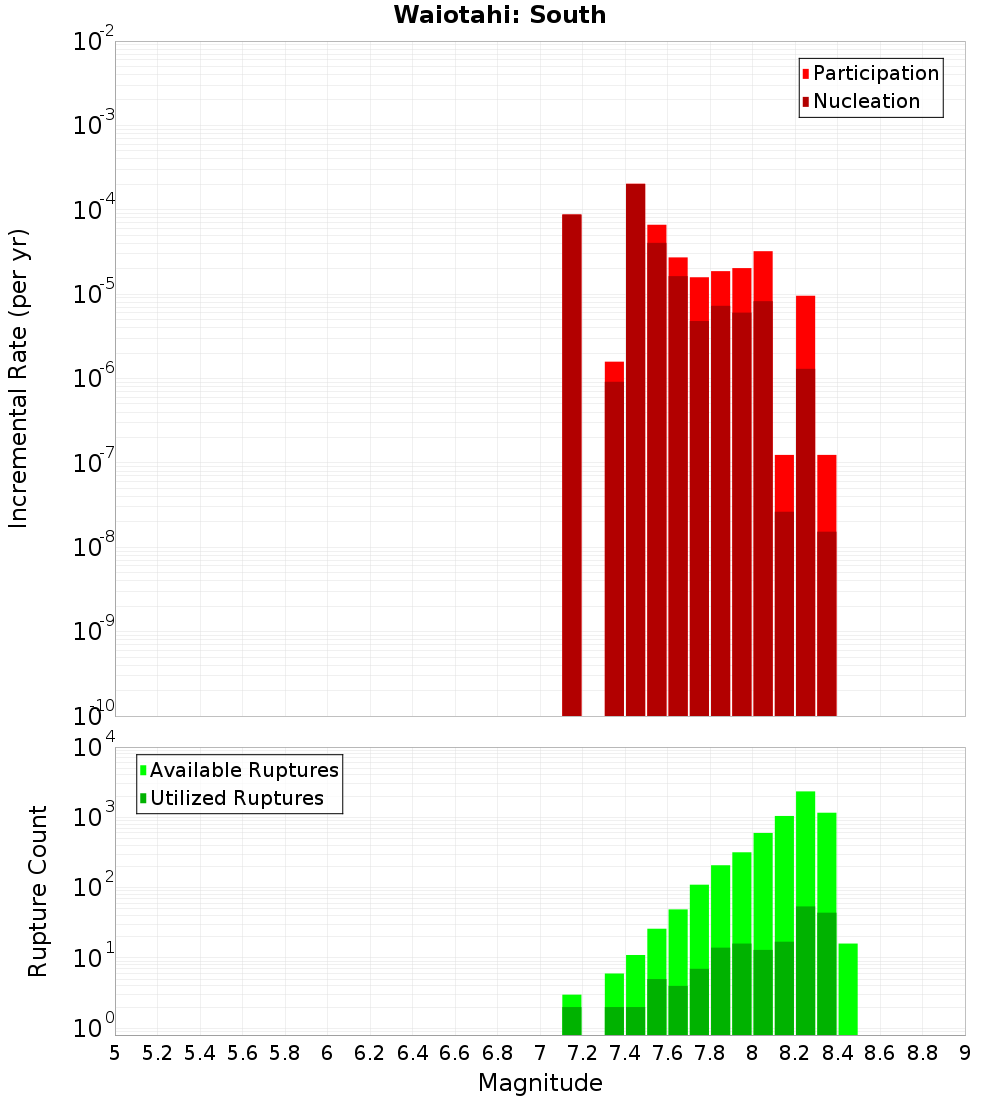

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

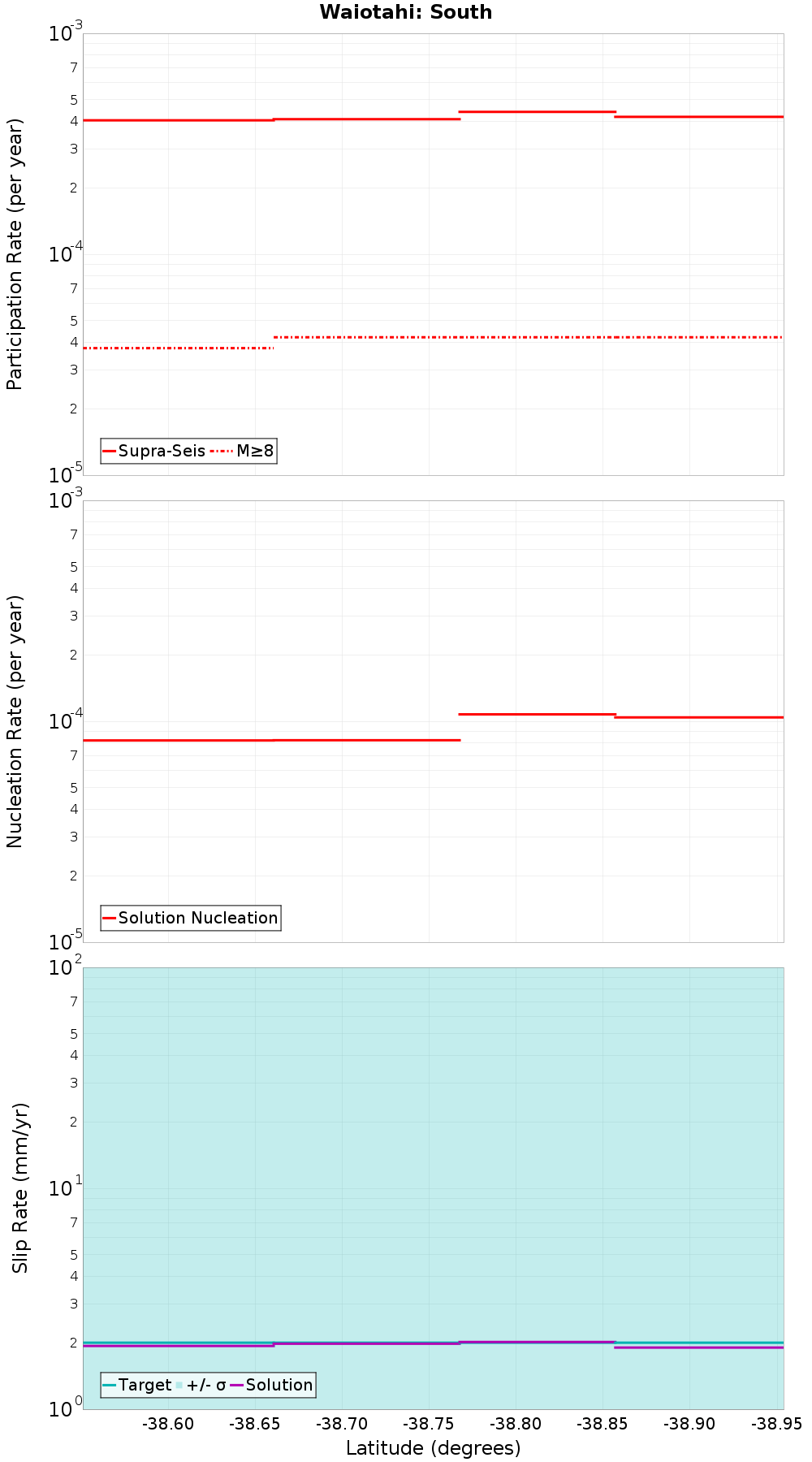

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waiotahi: North, 0 km away
Waimana: South, 2.15 km away
Waimana: North, 2.4 km away
Whakatane: South, 5.93 km away
Patoka - Rangiora, 7.72 km away
Whakatane: North, 10.84 km away
Mohaka: North, 11.48 km away
Waiohau: South, 12.21 km away

Waiotahi: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDcuMEFncHVn
Connected?true
Directly Connected?true
Co-rupture Count2,893
Co-rupture Rate1.8639861E-4

Waimana: South, 2.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDcuMEFncHVn
Connected?true
Directly Connected?true
Co-rupture Count2,028
Co-rupture Rate0.0

Waimana: North, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDcuMEFncHVn
Connected?true
Directly Connected?true
Co-rupture Count2,191
Co-rupture Rate4.261236E-6

Whakatane: South, 5.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDcuMEFncHVn
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate4.192554E-5

Patoka - Rangiora, 7.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDcuMEFncHVn
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate7.0614064E-6

Whakatane: North, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDcuMEFncHVn
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate8.767921E-6

Mohaka: North, 11.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDcuMEFncHVn
Connected?true
Directly Connected?true
Co-rupture Count5,719
Co-rupture Rate5.989675E-5

Waiohau: South, 12.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMDcuMEFncHVn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
