Cape Foulwind 1 Details

Property	Value
Rupture Count	3,030
Ruptures Above Sect Min Mag	3,023
Ruptures w/ Nonzero Rates	752
Magnitude Range	[6.90, 8.24]
Length Range	[20, 396] km
Total Rate	1.926098E-4 /yr
Multi-Fault Rate	1.4785069E-4 /yr (76.76%)
Directly-Connected Faults	5
All Co-Rupturing Faults	19

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

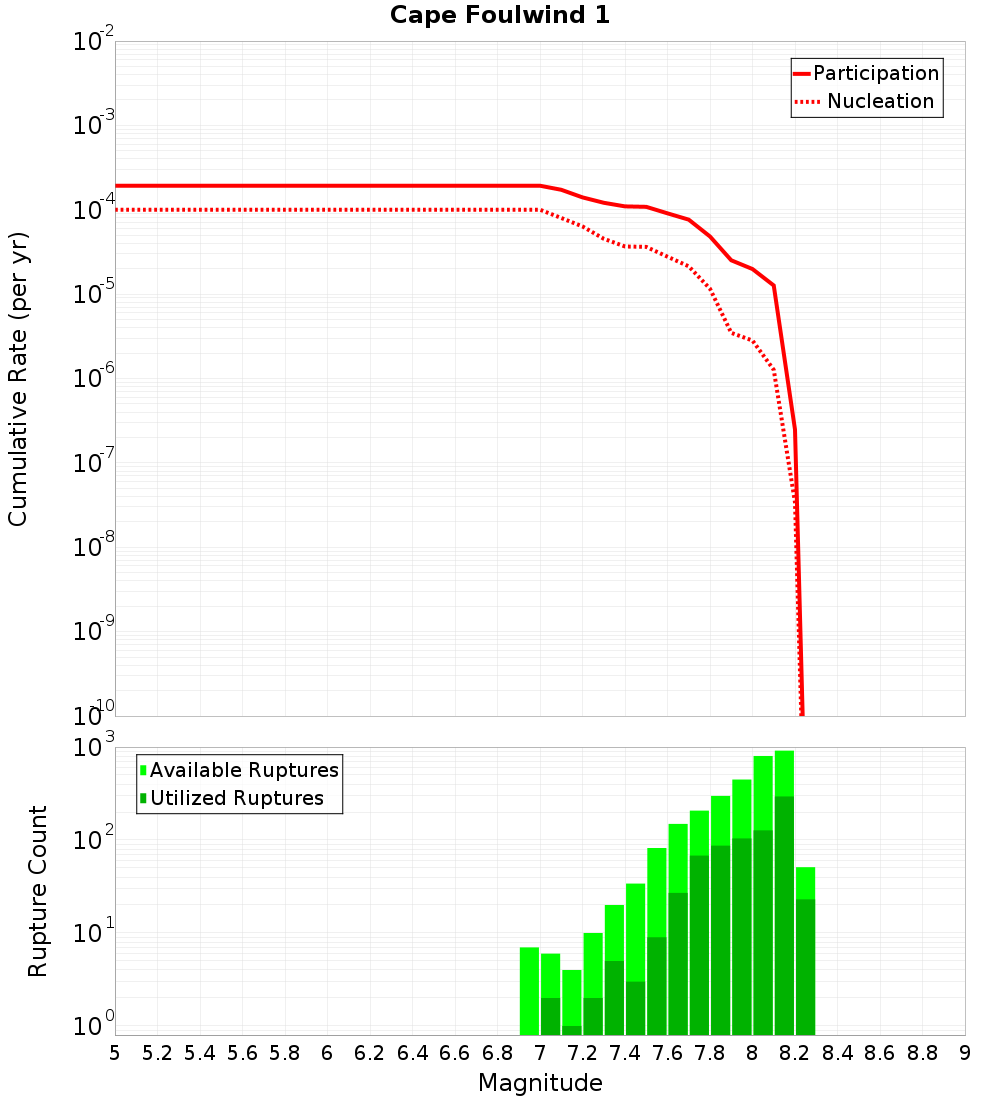

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

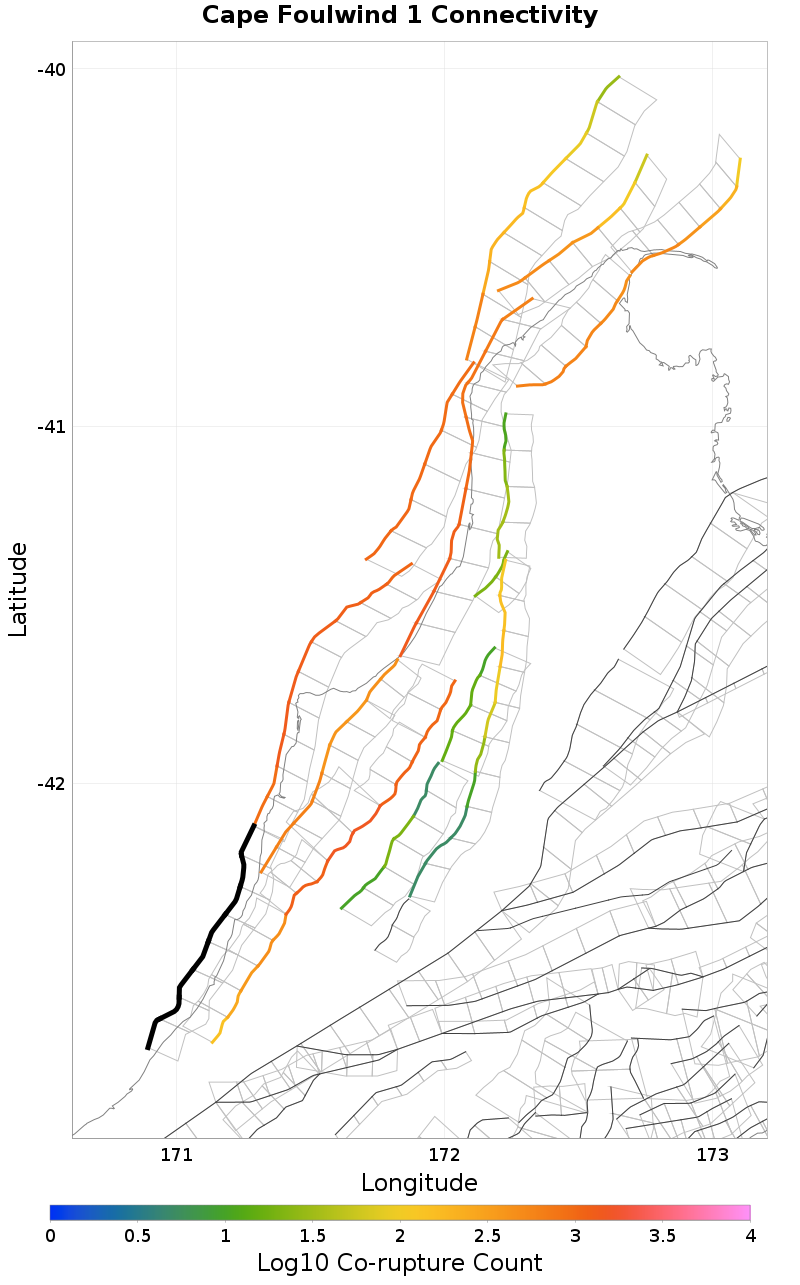

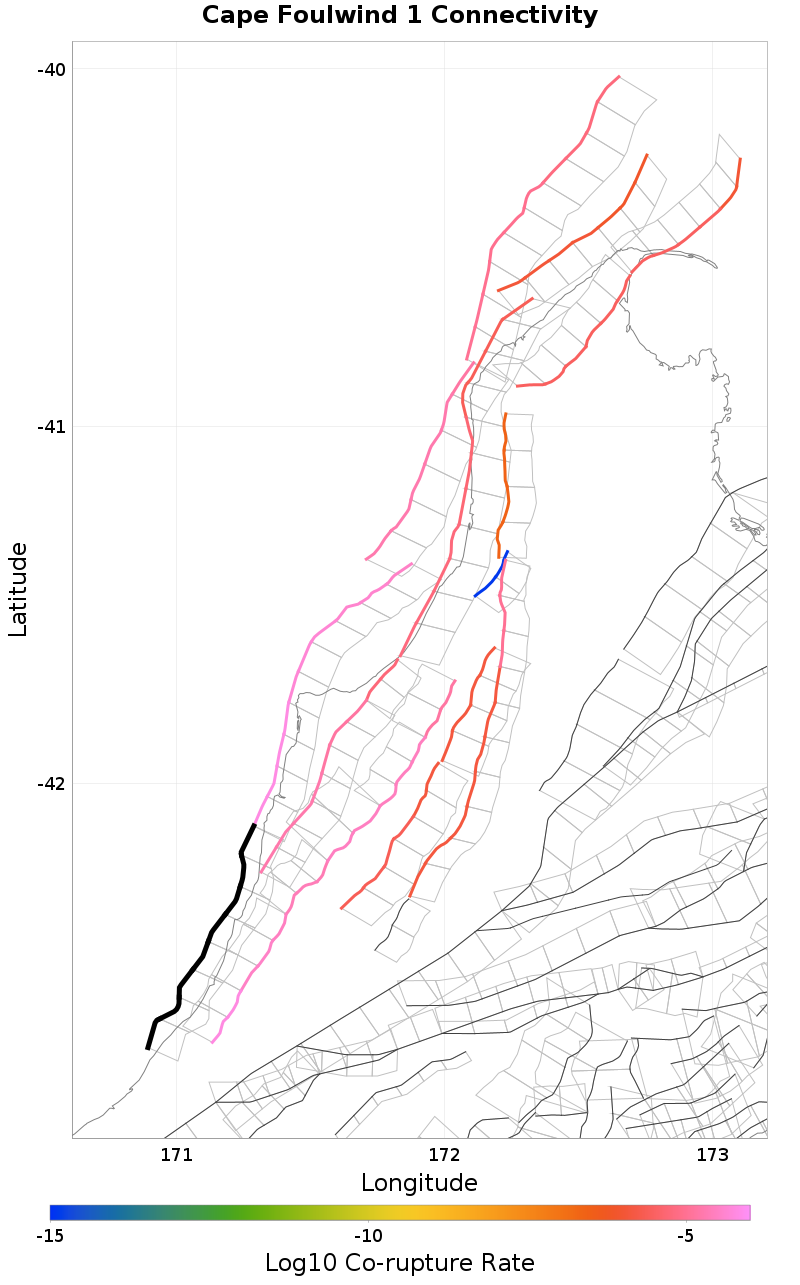

Connectivity

Nearby Sections

Fault Section
Cape Foulwind 2, 0 km away
Maimai: South, 0.4 km away
Maimai: Brunner Anticline, 0.41 km away
Paparoa West, 4.61 km away
Maimai, 4.83 km away
Kelly, 11.56 km away

Cape Foulwind 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	true
Directly Connected?	true
Co-rupture Count	1,370
Co-rupture Rate	6.632987E-5

Maimai: South, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	true
Directly Connected?	true
Co-rupture Count	1,218
Co-rupture Rate	2.3161743E-5

Maimai: Brunner Anticline, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	true
Directly Connected?	true
Co-rupture Count	470
Co-rupture Rate	6.627533E-5

Paparoa West, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	true
Directly Connected?	true
Co-rupture Count	616
Co-rupture Rate	1.7452016E-5

Maimai, 4.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	true
Directly Connected?	true
Co-rupture Count	1,465
Co-rupture Rate	2.8066484E-5

Kelly, 11.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
