Hopkins Details
| Property | Value |
|---|---|
| Rupture Count | 57,033 |
| Ruptures Above Sect Min Mag | 57,031 |
| Ruptures w/ Nonzero Rates | 1,901 |
| Magnitude Range | [7.09, 8.72] |
| Length Range | [24, 963] km |
| Total Rate | 5.6338606E-5 /yr |
| Multi-Fault Rate | 5.0086135E-5 /yr (88.90%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 108 |
Table Of Contents

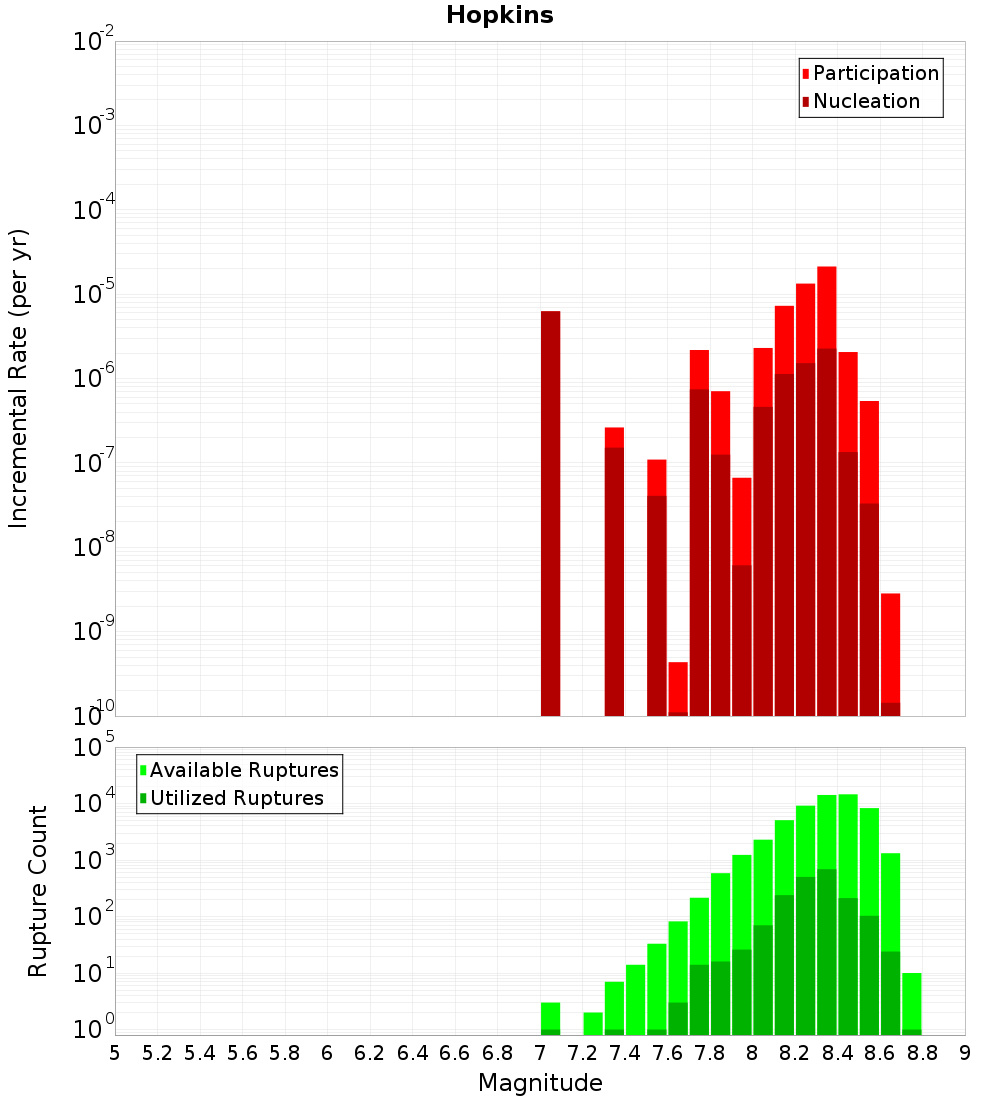

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

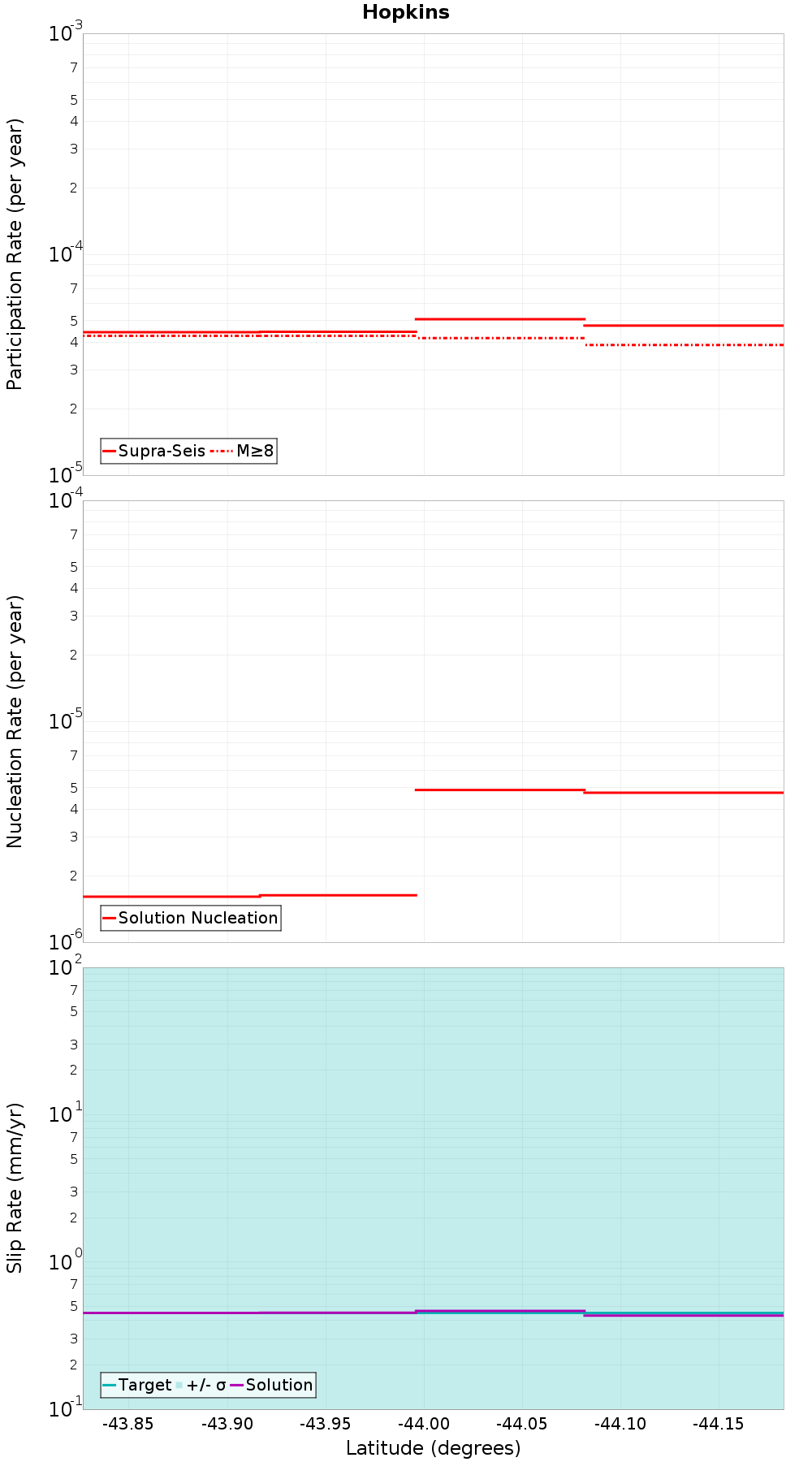

Along-Strike Values

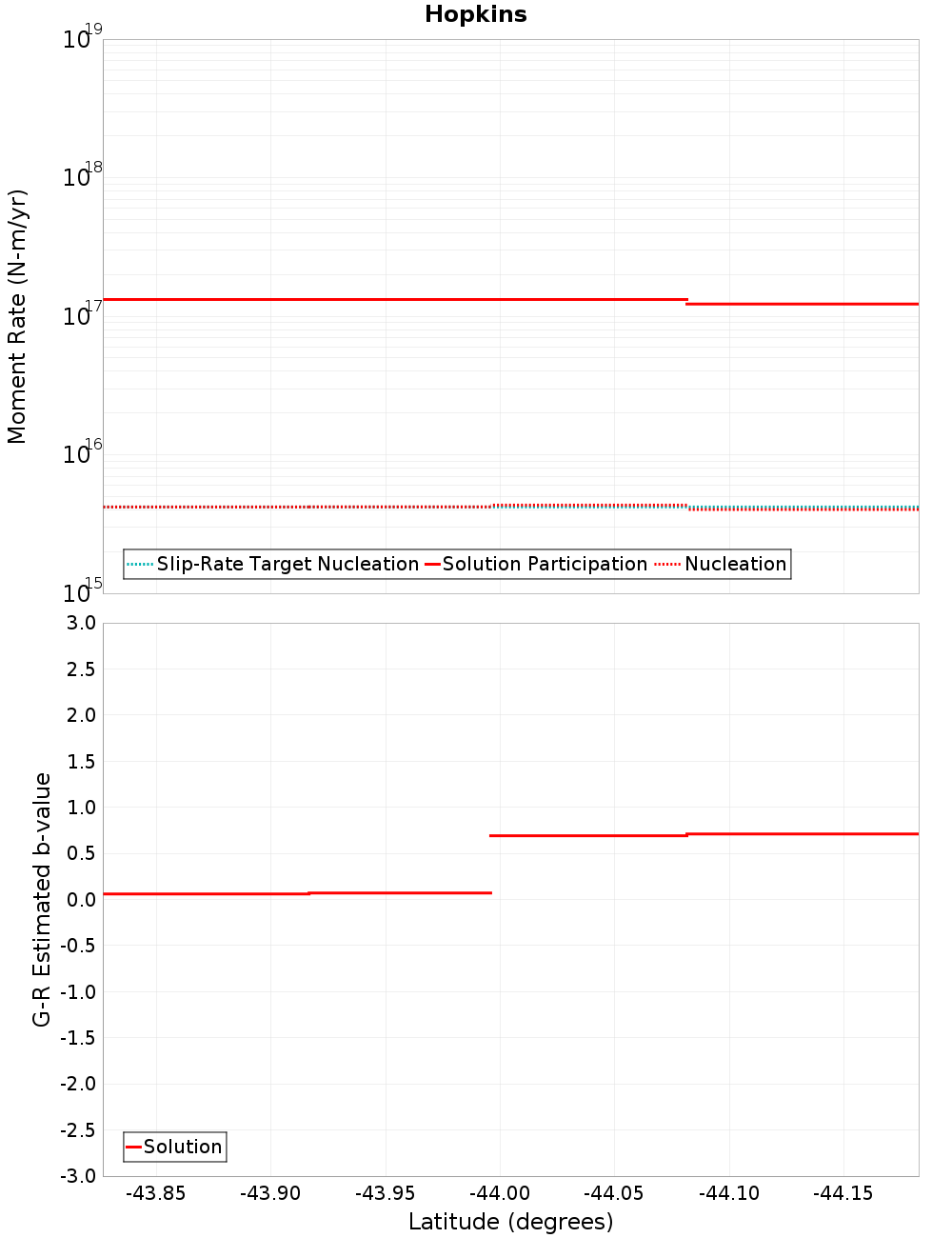

Moment-Rates and b-Values

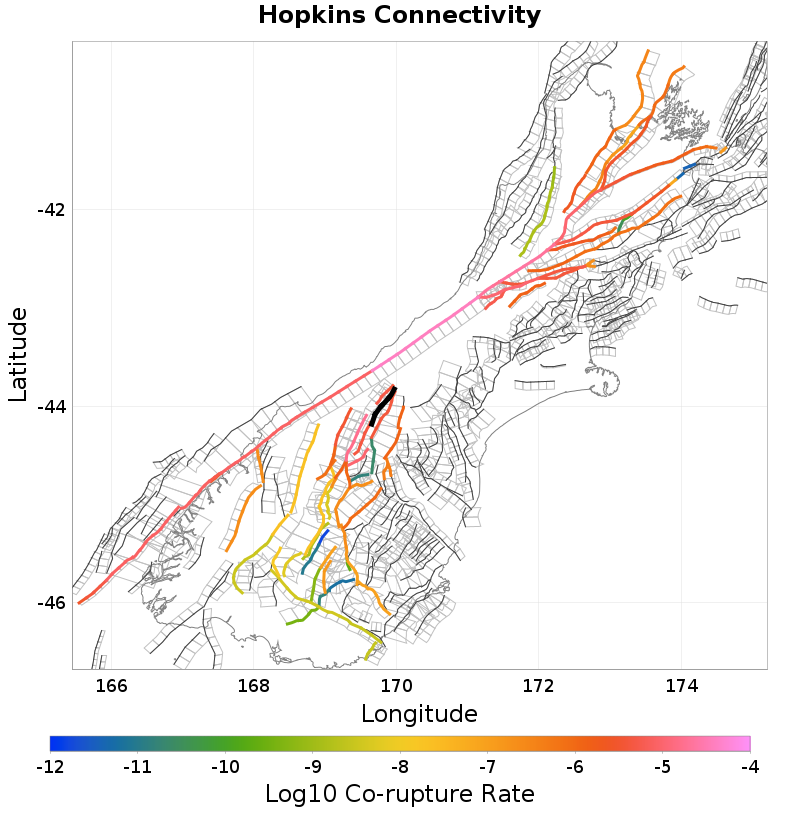

Connectivity
 |  |
|---|
Nearby Sections
Dingle, 1.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 19,929 |
| Co-rupture Rate | 4.4421754E-6 |
Barrier Range, 1.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,128 |
| Co-rupture Rate | 4.067049E-6 |
Wanaka, 1.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 40,051 |
| Co-rupture Rate | 4.185124E-6 |
Huxley, 3.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8,388 |
| Co-rupture Rate | 5.277496E-6 |
Ostler North, 4.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 140 |
| Co-rupture Rate | 1.2719956E-6 |
Alpine: Jacksons to Kaniere, 5.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 51,362 |
| Co-rupture Rate | 4.789219E-5 |
Hunter Valley, 7.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,647 |
| Co-rupture Rate | 1.785979E-5 |
