Rangefront Details

Property	Value
Rupture Count	76
Ruptures Above Sect Min Mag	76
Ruptures w/ Nonzero Rates	0
Magnitude Range	[7.88, 8.31]
Length Range	[160, 423] km
Total Rate	0.0 /yr
Multi-Fault Rate	0.0 /yr (NaN)
Directly-Connected Faults	2
All Co-Rupturing Faults	21

Table Of Contents

Magnitude-Frequency Distribution

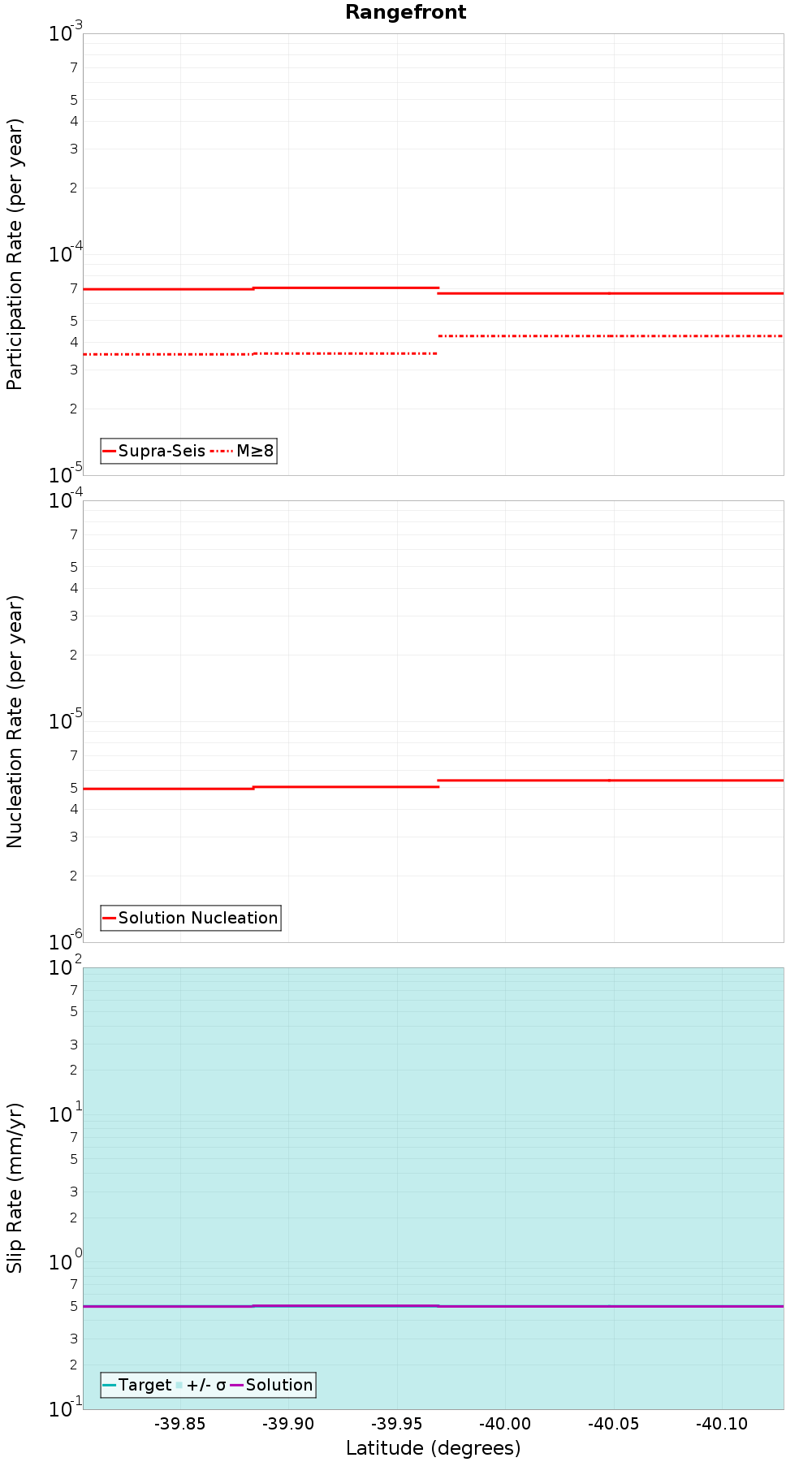

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

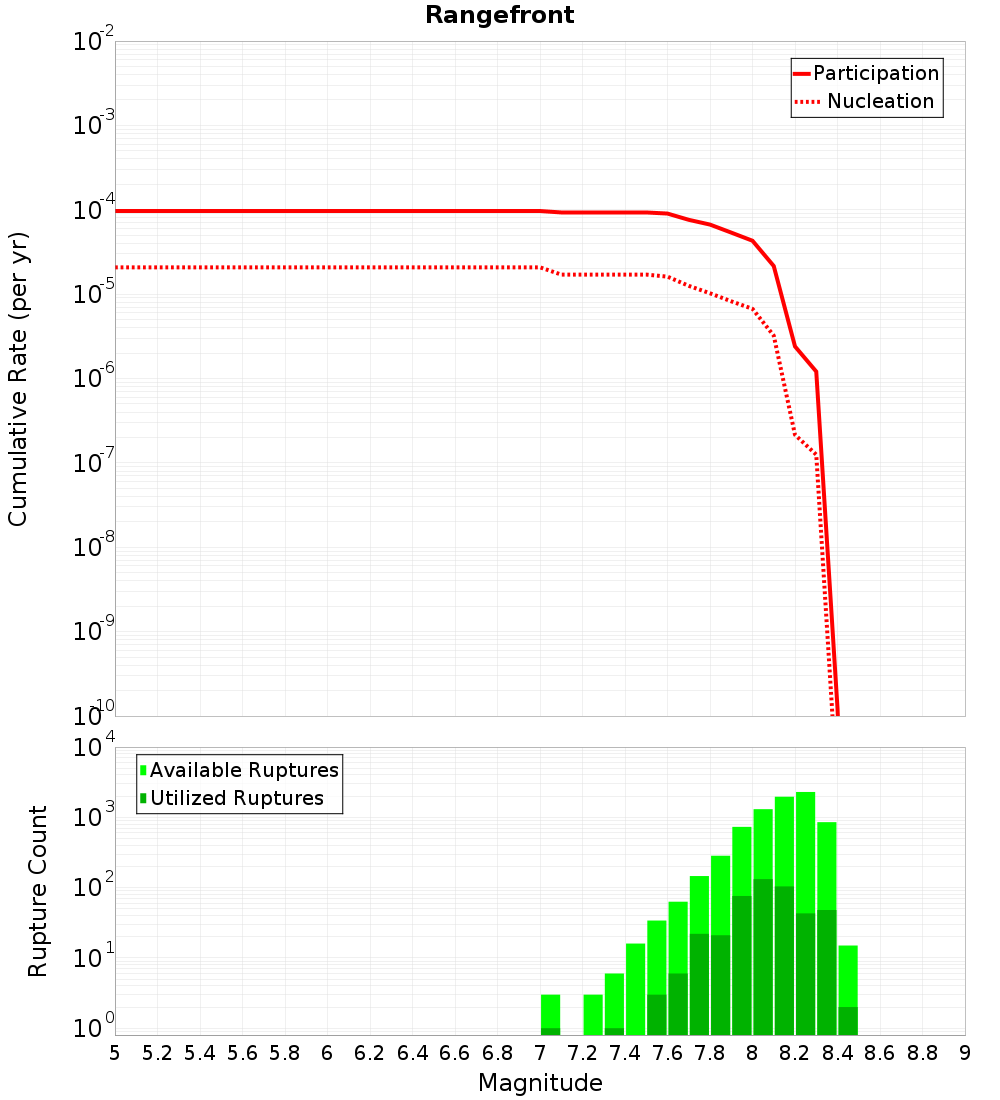

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

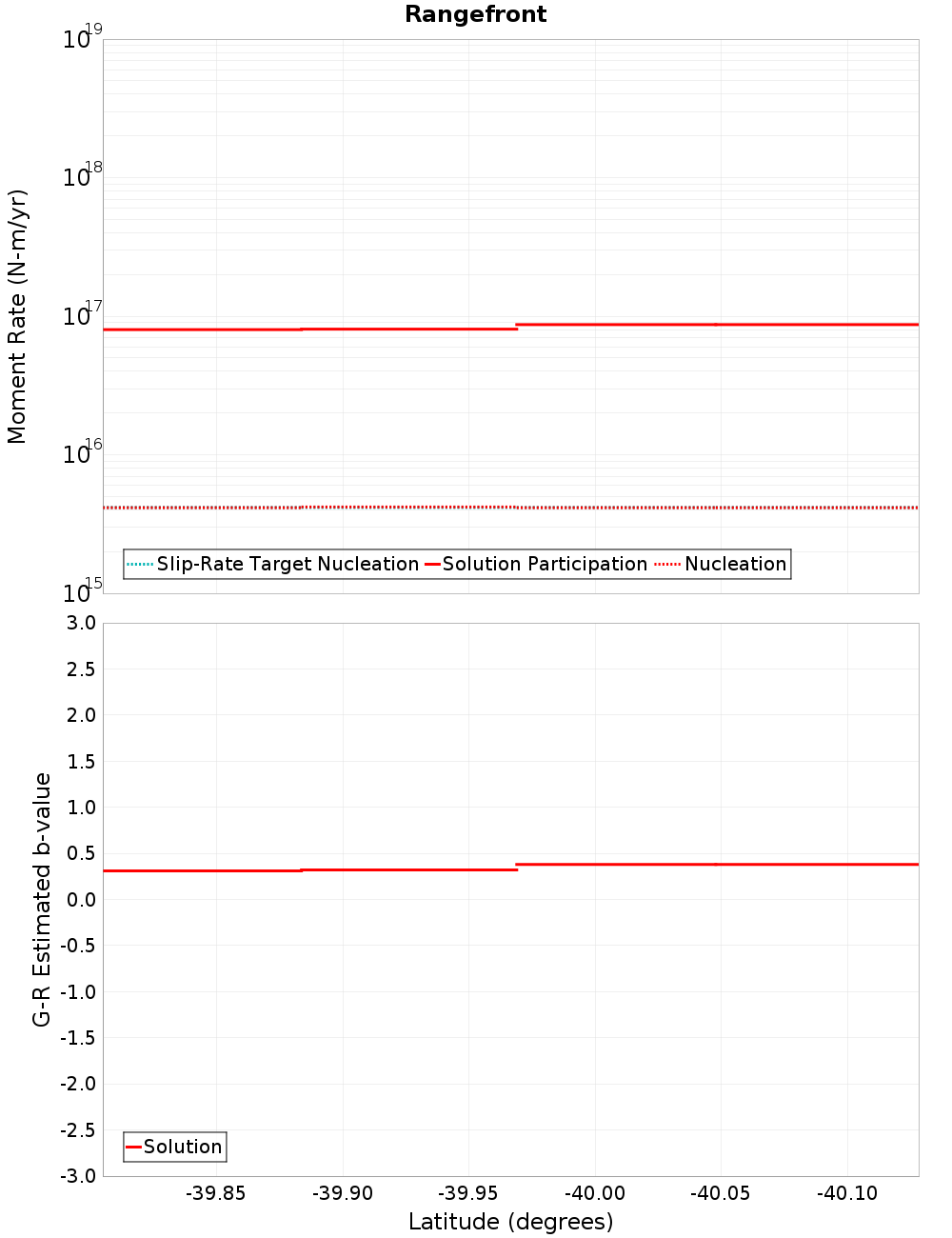

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wakarara, 0 km away
Ruahine: South, 0.19 km away
Ruahine: Central, 0.2 km away
Mohaka: South, 0.2 km away
Ruataniwha, 8.95 km away
Pahiatua, 9.78 km away
Maunga, 10.17 km away
Woodville, 10.84 km away
Pohangina, 12.41 km away

Wakarara, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	true
Directly Connected?	true
Co-rupture Count	396
Co-rupture Rate	1.2677787E-5

Ruahine: South, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	true
Directly Connected?	true
Co-rupture Count	971
Co-rupture Rate	9.233299E-6

Ruahine: Central, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	true
Directly Connected?	true
Co-rupture Count	1,397
Co-rupture Rate	1.7361044E-5

Mohaka: South, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	true
Directly Connected?	true
Co-rupture Count	10,336
Co-rupture Rate	8.155672E-5

Ruataniwha, 8.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	true
Directly Connected?	true
Co-rupture Count	414
Co-rupture Rate	3.0161324E-5

Pahiatua, 9.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	true
Directly Connected?	false
Co-rupture Count	182
Co-rupture Rate	5.6968333E-6

Maunga, 10.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	true
Directly Connected?	false
Co-rupture Count	191
Co-rupture Rate	3.0161234E-5

Woodville, 10.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	true
Directly Connected?	false
Co-rupture Count	223
Co-rupture Rate	2.29346E-7

Pohangina, 12.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
