Wairau 2 Details
| Property | Value |
|---|---|
| Rupture Count | 7,055 |
| Ruptures Above Sect Min Mag | 7,054 |
| Ruptures w/ Nonzero Rates | 215 |
| Magnitude Range | [6.88, 8.71] |
| Length Range | [16, 1,132] km |
| Total Rate | 6.005794E-4 /yr |
| Multi-Fault Rate | 6.005794E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 101 |
Table Of Contents

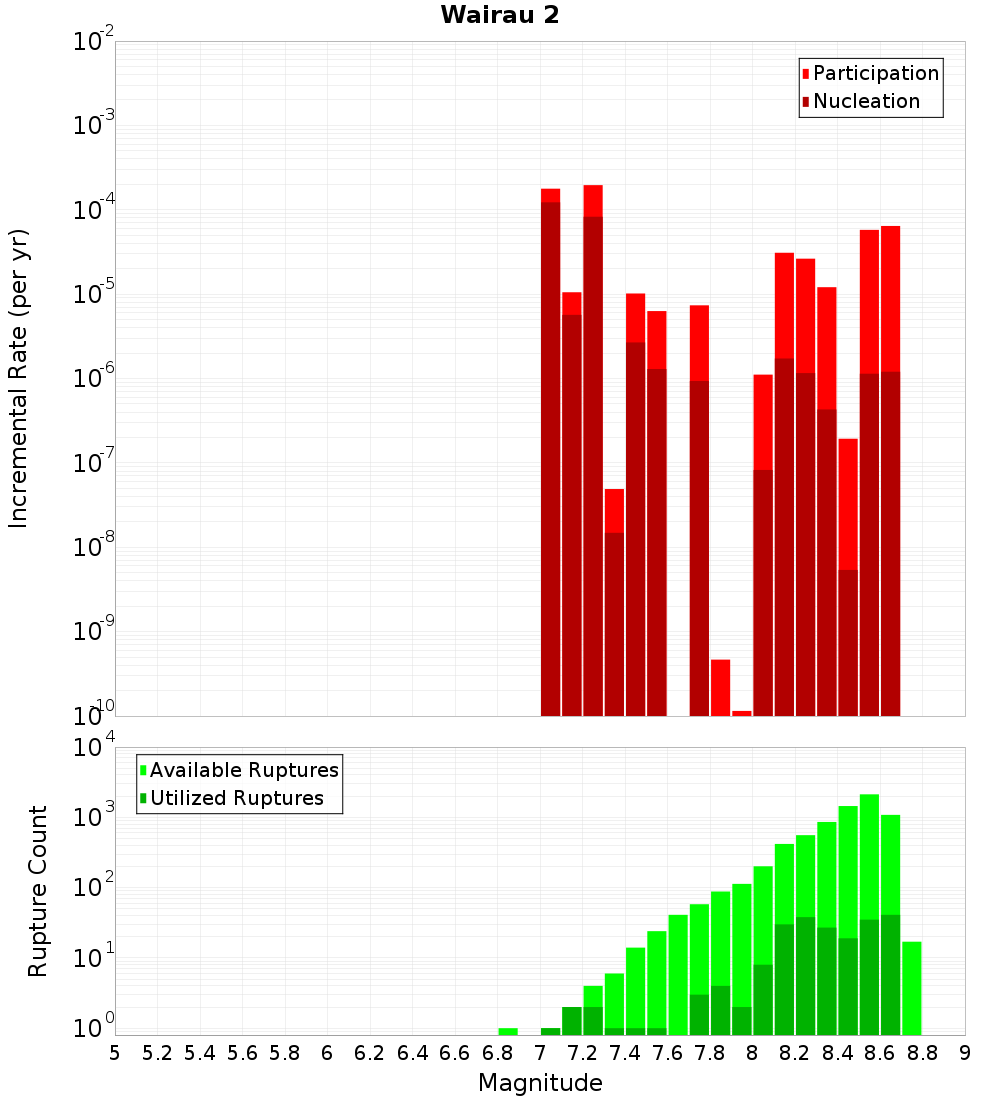

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

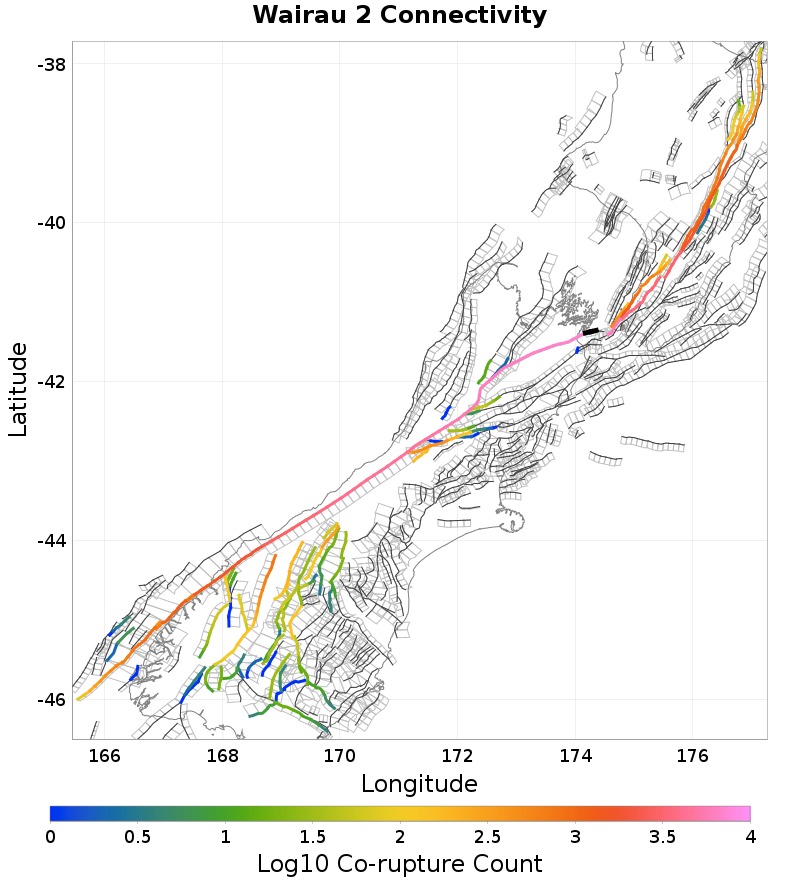

Connectivity
 |  |
|---|
Nearby Sections
Wairau 3, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6,922 |
| Co-rupture Rate | 4.0151962E-4 |
Ohariu South 1, 1.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awatere: Northeast 2, 7.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cloudy 1, 8.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington Hutt Valley: 1, 8.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cloudy 2, 10.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cloudy 3, 10.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohariu South 2, 12.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6,137 |
| Co-rupture Rate | 2.8195878E-4 |
Vernon 2, 14.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTIuMFNrakdX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
