Alpine: Nancy Details

PropertyValue
Rupture Count20,007
Ruptures Above Sect Min Mag20,006
Ruptures w/ Nonzero Rates1,152
Magnitude Range[6.75, 8.71]
Length Range[12, 1,129] km
Total Rate0.0014009294 /yr
Multi-Fault Rate0.0014009294 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults125

Table Of Contents

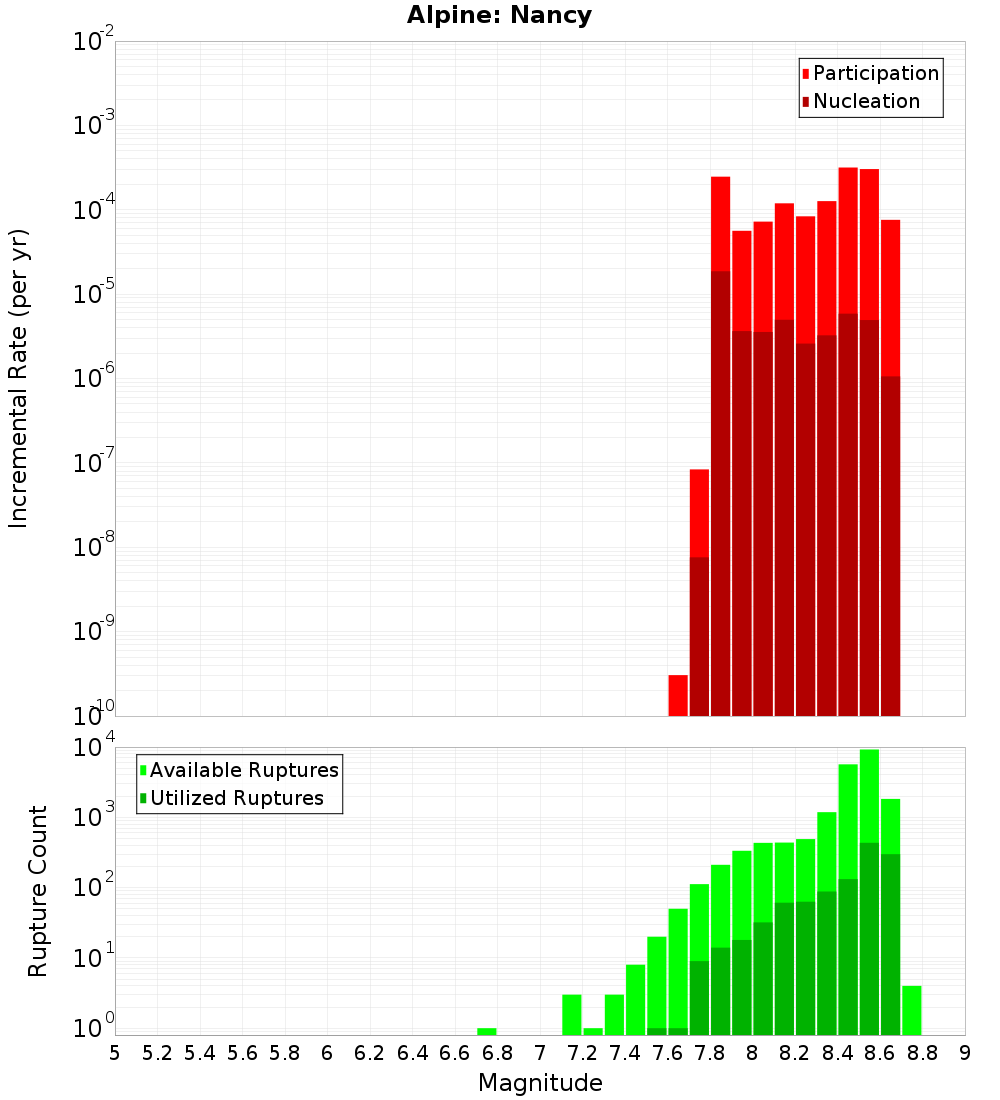

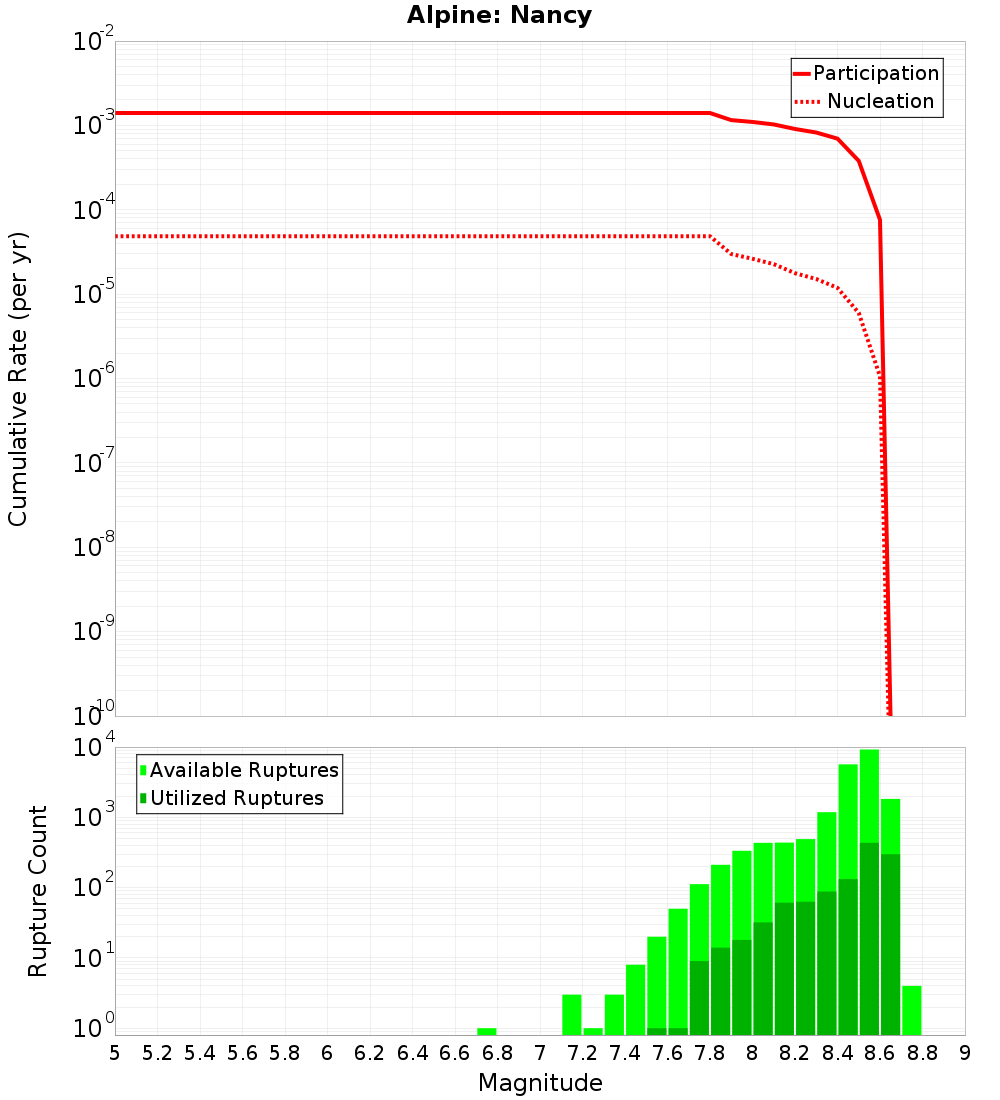

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

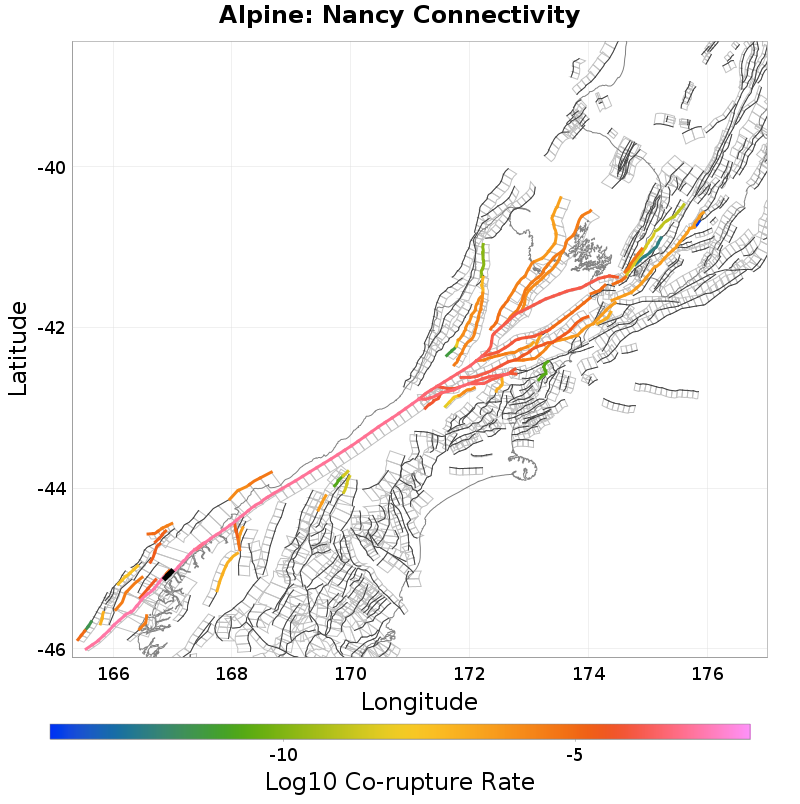

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Caswell, 0 km away
South Wedge 2, 0.07 km away
Central Wedge 4 - South Wedge 411, 0.38 km away
Alpine: Resolution - Charles, 2.58 km away
Alpine: Resolution - Dagg, 2.58 km away
Central Wedge 1 & 2 & 3, 3.81 km away
South Wedge 1, 8.89 km away
South Wedge 5, 14.35 km away
South Wedge 3-6-10, 14.88 km away

Alpine: Caswell, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTYuMGplaEVh
Connected?true
Directly Connected?true
Co-rupture Count19,719
Co-rupture Rate0.0013390651

South Wedge 2, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTYuMGplaEVh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Central Wedge 4 - South Wedge 411, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTYuMGplaEVh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Resolution - Charles, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTYuMGplaEVh
Connected?true
Directly Connected?false
Co-rupture Count515
Co-rupture Rate1.0623266E-5

Alpine: Resolution - Dagg, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTYuMGplaEVh
Connected?true
Directly Connected?true
Co-rupture Count18,225
Co-rupture Rate0.0013963095

Central Wedge 1 & 2 & 3, 3.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTYuMGplaEVh
Connected?true
Directly Connected?true
Co-rupture Count496
Co-rupture Rate2.3334589E-5

South Wedge 1, 8.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTYuMGplaEVh
Connected?true
Directly Connected?false
Co-rupture Count215
Co-rupture Rate3.1059066E-5

South Wedge 5, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTYuMGplaEVh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 3-6-10, 14.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMTYuMGplaEVh
Connected?true
Directly Connected?false
Co-rupture Count674
Co-rupture Rate3.3241918E-6
