Kelly Details

PropertyValue
Rupture Count61,108
Ruptures Above Sect Min Mag61,097
Ruptures w/ Nonzero Rates588
Magnitude Range[6.71, 8.59]
Length Range[17, 973] km
Total Rate0.0019366912 /yr
Multi-Fault Rate0.0019366912 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults174

Table Of Contents

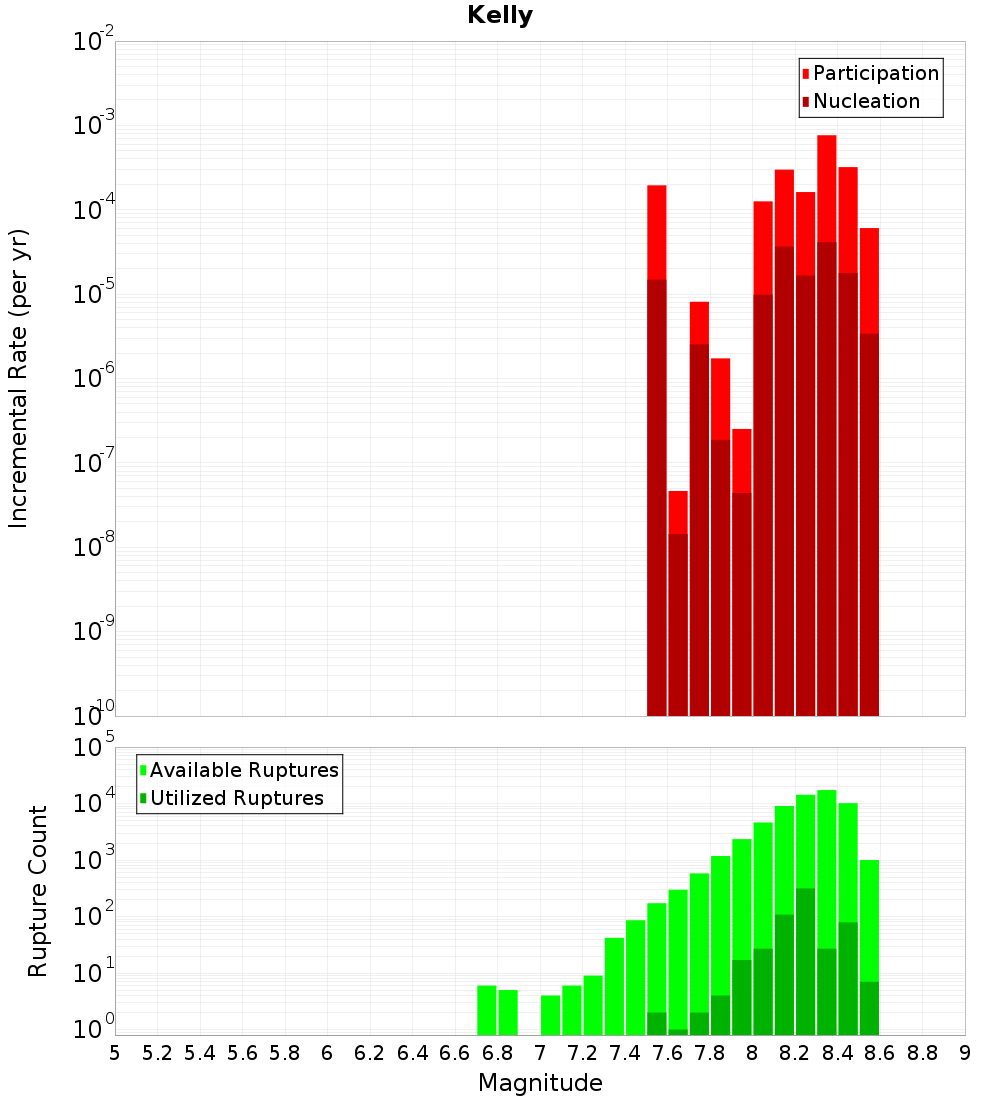

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

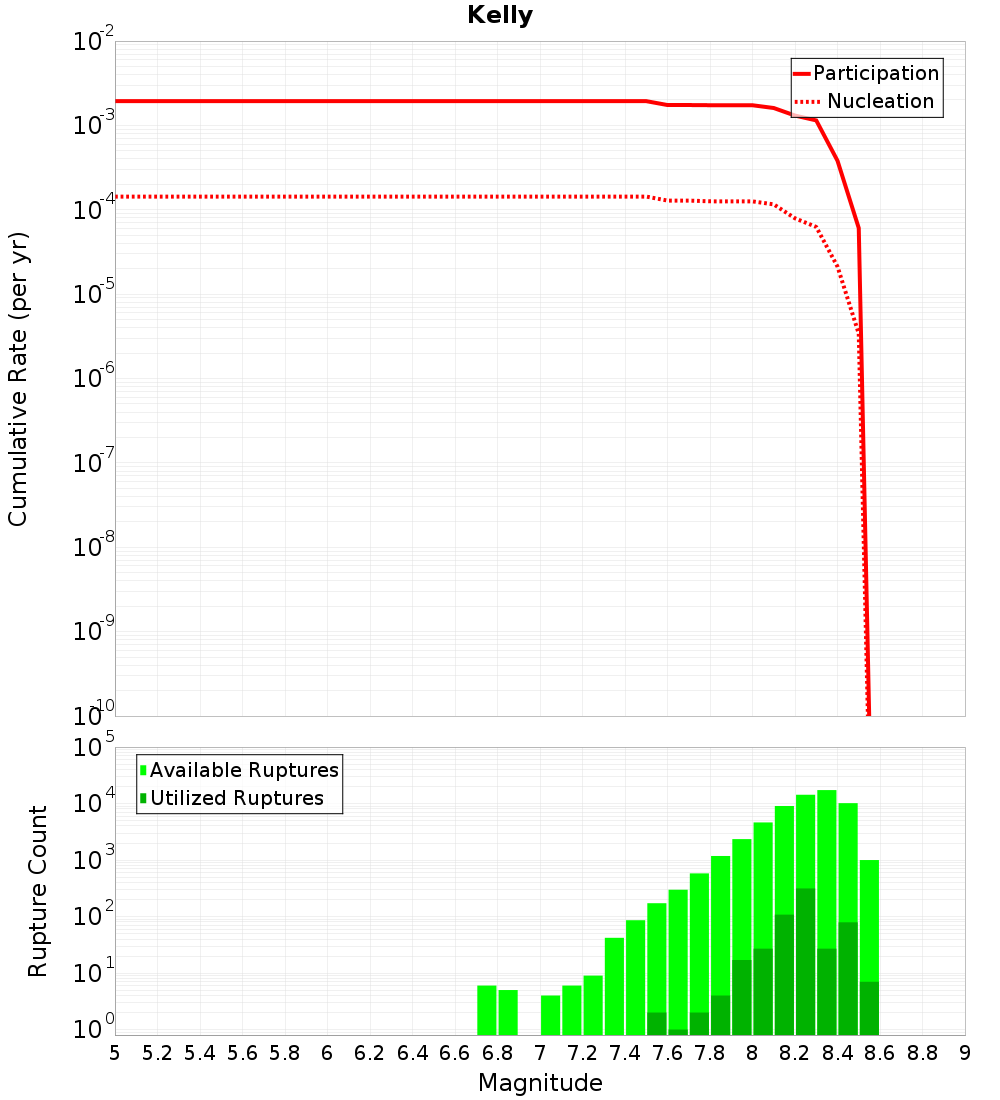

Incremental PlotCumulative Plot

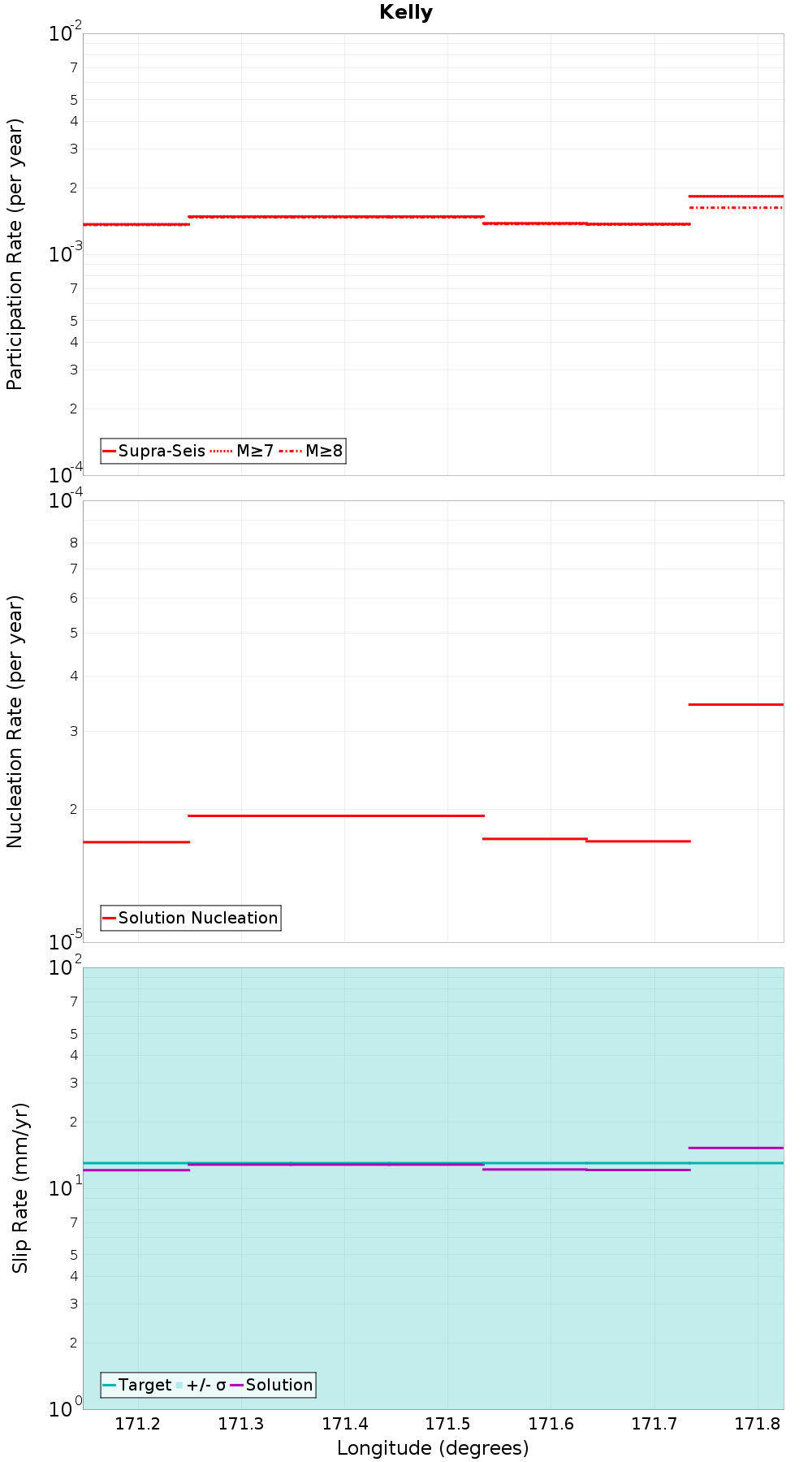

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Jacksons to Kaniere, 0 km away
Hope: Hurunui, 0 km away
Hope: Taramakau, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.1 km away
Poulter, 9.5 km away
Cape Foulwind 1, 11.56 km away
Clarence: Southwest, 13.14 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzMuMEdoUWRm
Connected?true
Directly Connected?true
Co-rupture Count56,730
Co-rupture Rate0.0016017671

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzMuMEdoUWRm
Connected?true
Directly Connected?true
Co-rupture Count29,970
Co-rupture Rate0.0017776205

Hope: Taramakau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzMuMEdoUWRm
Connected?true
Directly Connected?true
Co-rupture Count2,576
Co-rupture Rate4.7011557E-4

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzMuMEdoUWRm
Connected?true
Directly Connected?true
Co-rupture Count37,700
Co-rupture Rate4.3546312E-4

Browning Pass, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzMuMEdoUWRm
Connected?true
Directly Connected?false
Co-rupture Count321
Co-rupture Rate1.5323226E-7

Poulter, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzMuMEdoUWRm
Connected?true
Directly Connected?false
Co-rupture Count375
Co-rupture Rate1.214421E-5

Cape Foulwind 1, 11.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzMuMEdoUWRm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzMuMEdoUWRm
Connected?true
Directly Connected?false
Co-rupture Count10,808
Co-rupture Rate1.2085005E-4

Kakapo, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzMuMEdoUWRm
Connected?true
Directly Connected?false
Co-rupture Count7,156
Co-rupture Rate6.700349E-4

Hope: Hope River, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzMuMEdoUWRm
Connected?true
Directly Connected?false
Co-rupture Count23,160
Co-rupture Rate0.0011810831
