Tauranga Trough West 2 Details
| Property | Value |
|---|---|
| Rupture Count | 52 |
| Ruptures Above Sect Min Mag | 50 |
| Ruptures w/ Nonzero Rates | 42 |
| Magnitude Range | [6.99, 7.69] |
| Length Range | [24, 114] km |
| Total Rate | 1.570261E-4 /yr |
| Multi-Fault Rate | 1.5702599E-4 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

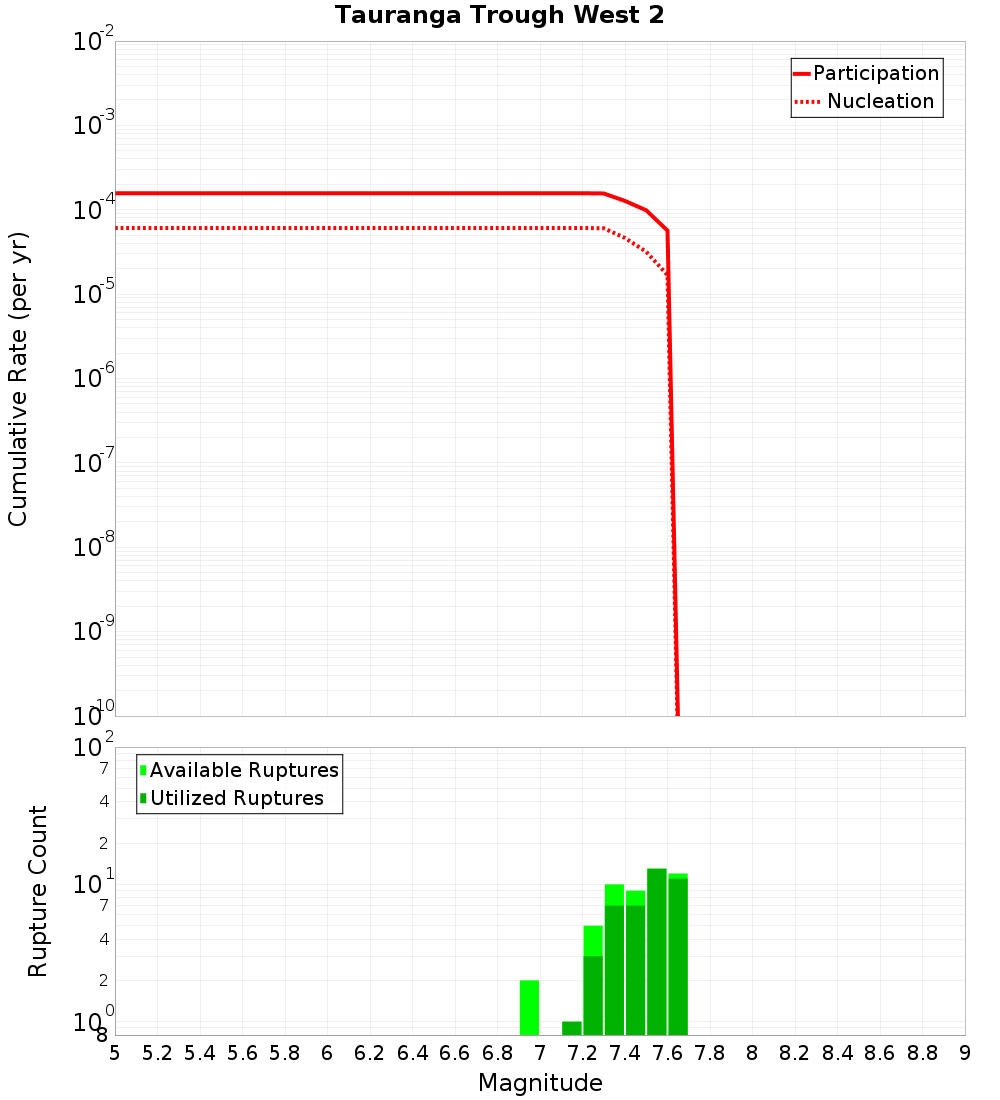

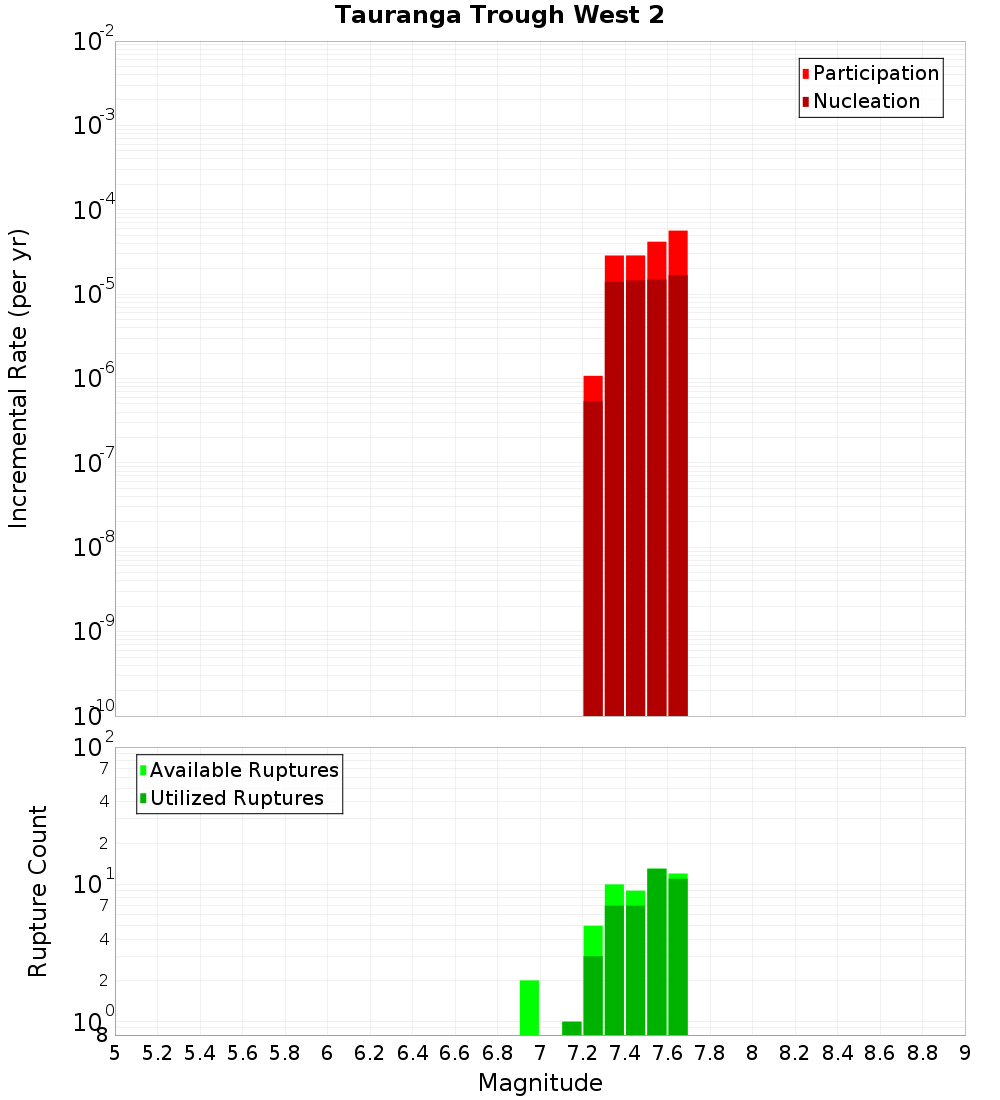

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Ohena 3, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzcuMHZkWmdF | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 1.5874502E-5 |
Ohena 2, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzcuMHZkWmdF | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 29 |
| Co-rupture Rate | 1.1442731E-4 |
Ngatoro South 2, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzcuMHZkWmdF | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 8.226317E-6 |
Ohena 4, 0.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzcuMHZkWmdF | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 1.0246754E-5 |
Tuakana 7, 6.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzcuMHZkWmdF | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 3.6560746E-6 |
Tauranga Trough East 2, 9.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzcuMHZkWmdF | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 4.3660315E-5 |
Ngatoro South 5, 10.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzcuMHZkWmdF | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 7.261966E-5 |
Tuakana 6, 12.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwMzcuMHZkWmdF | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 24 |
| Co-rupture Rate | 8.8862995E-5 |
