Needles Details

PropertyValue
Rupture Count53,906
Ruptures Above Sect Min Mag53,895
Ruptures w/ Nonzero Rates1,798
Magnitude Range[6.68, 8.53]
Length Range[17, 973] km
Total Rate0.0026227732 /yr
Multi-Fault Rate0.0026227732 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults182

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

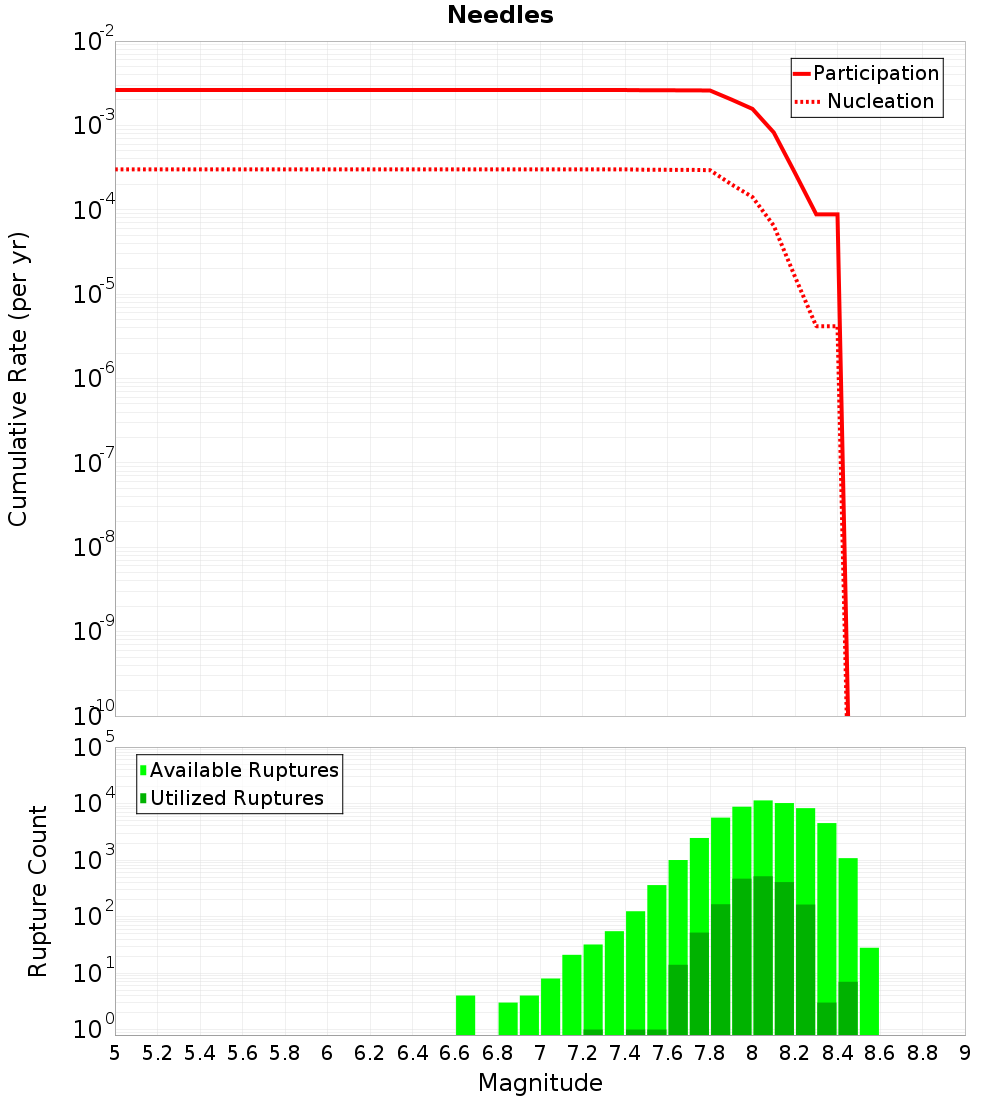

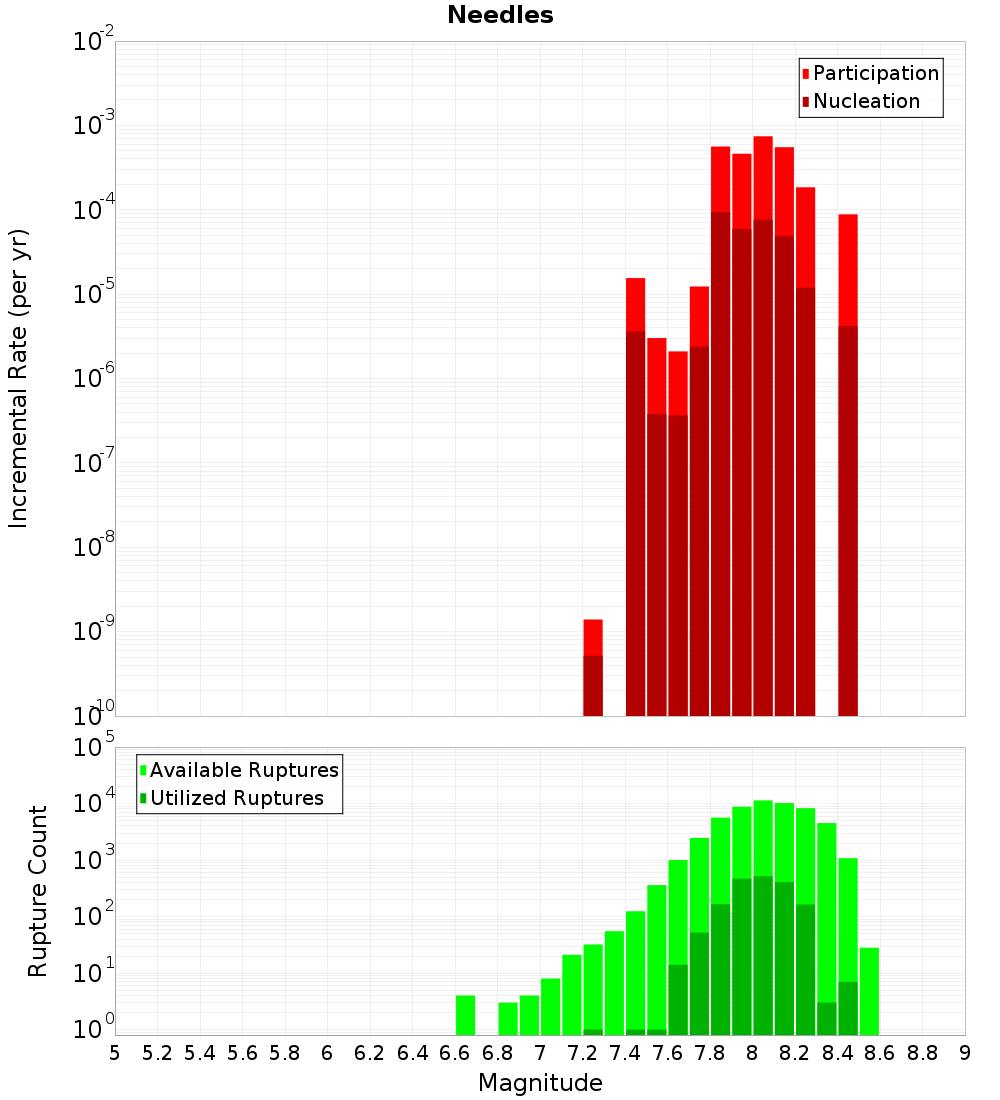

Incremental PlotCumulative Plot

Along-Strike Values

(top)

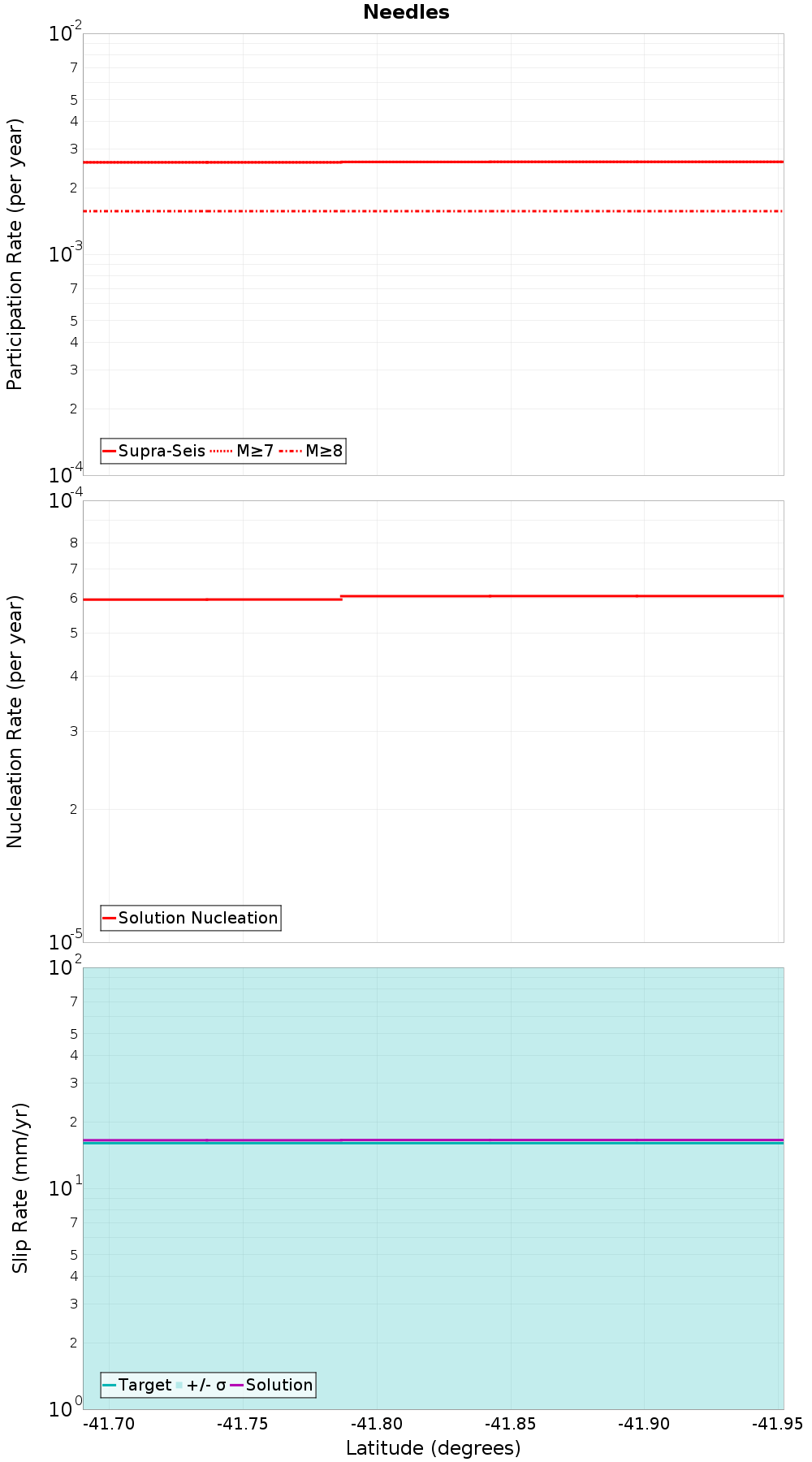

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kekerengu 1, 0 km away
London Hill, 0 km away
BooBoo, 0.17 km away
Needles East 2, 0.22 km away
Vernon 4, 3.69 km away
Wairarapa: Needles, 4.57 km away
Chancet, 6.52 km away
Cloudy 3, 9.38 km away
Wharanui, 10.35 km away
Clarence: Northeast, 11.97 km away
Upper Slope, 14.3 km away
Vernon 3, 14.87 km away

Kekerengu 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNDEuMG83WDcy
Connected?true
Directly Connected?true
Co-rupture Count40,777
Co-rupture Rate0.0026181021

London Hill, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNDEuMG83WDcy
Connected?true
Directly Connected?true
Co-rupture Count3,448
Co-rupture Rate1.3942531E-11

BooBoo, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNDEuMG83WDcy
Connected?true
Directly Connected?true
Co-rupture Count19,770
Co-rupture Rate0.001066178

Needles East 2, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNDEuMG83WDcy
Connected?true
Directly Connected?true
Co-rupture Count788
Co-rupture Rate3.0182232E-6

Vernon 4, 3.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNDEuMG83WDcy
Connected?true
Directly Connected?false
Co-rupture Count46
Co-rupture Rate3.8999564E-4

Wairarapa: Needles, 4.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNDEuMG83WDcy
Connected?true
Directly Connected?true
Co-rupture Count33,033
Co-rupture Rate0.0015354825

Chancet, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNDEuMG83WDcy
Connected?true
Directly Connected?true
Co-rupture Count625
Co-rupture Rate1.9087673E-5

Cloudy 3, 9.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNDEuMG83WDcy
Connected?true
Directly Connected?false
Co-rupture Count438
Co-rupture Rate3.3949033E-5

Wharanui, 10.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNDEuMG83WDcy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Northeast, 11.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNDEuMG83WDcy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Upper Slope, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNDEuMG83WDcy
Connected?true
Directly Connected?false
Co-rupture Count247
Co-rupture Rate4.862715E-5

Vernon 3, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNDEuMG83WDcy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
