Hope: Te Rapa Details

PropertyValue
Rupture Count11,199
Ruptures Above Sect Min Mag11,181
Ruptures w/ Nonzero Rates164
Magnitude Range[6.62, 8.52]
Length Range[16, 946] km
Total Rate4.4568416E-4 /yr
Multi-Fault Rate4.4568416E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults106

Table Of Contents

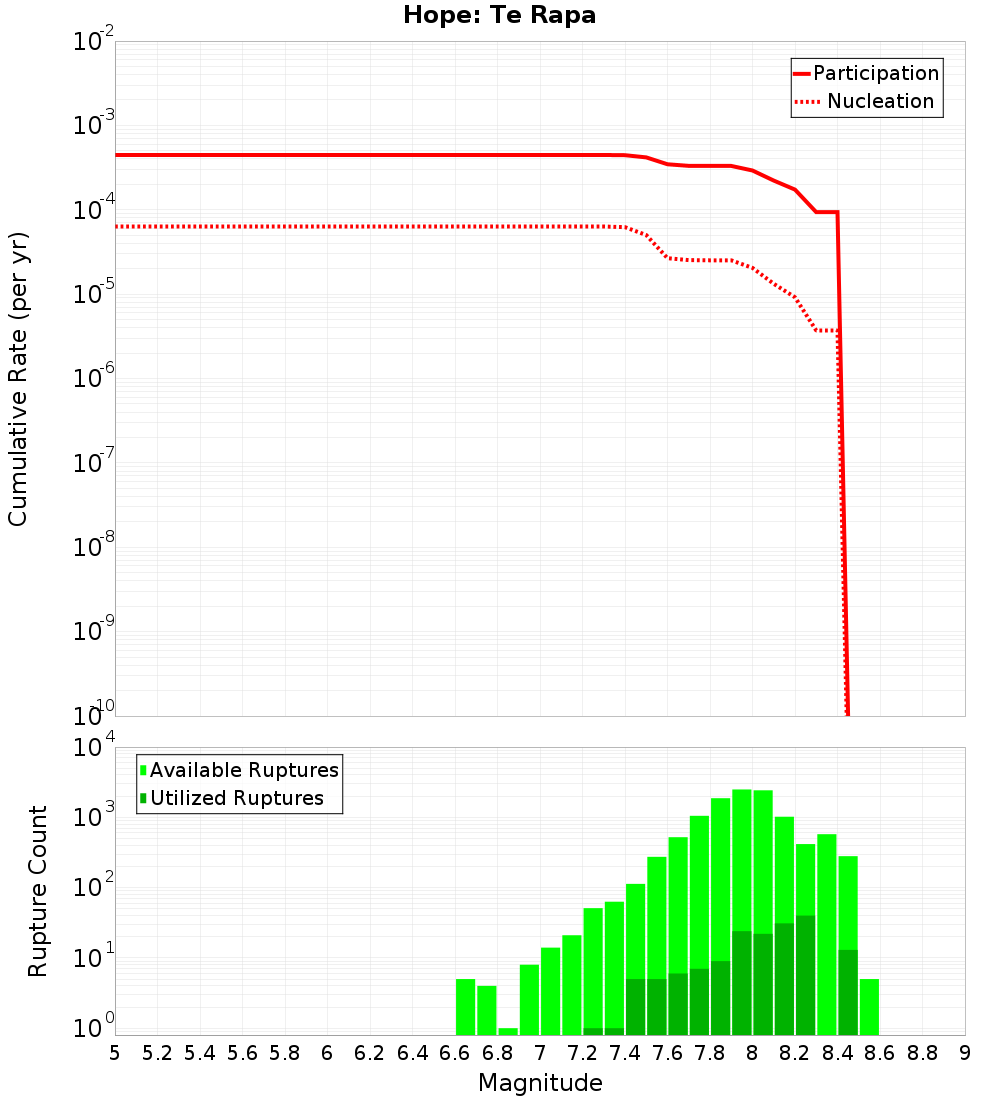

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

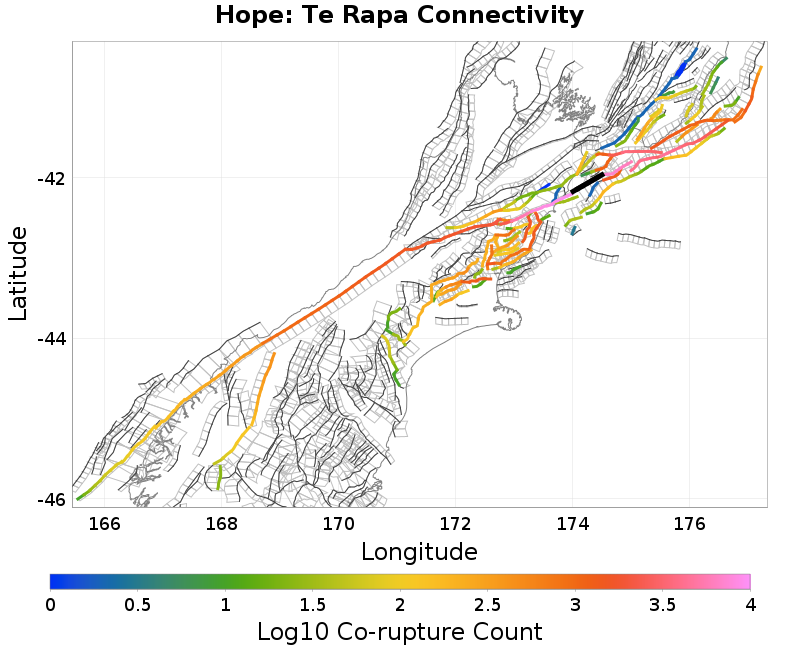

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Rapa 1, 0 km away
Upper Slope, 0.1 km away
Hope: Seaward, 3.47 km away
London Hill, 4.43 km away
Wharanui, 4.7 km away
Chancet, 8.16 km away
Kaikoura - Mangamaunu, 8.9 km away
Kekerengu Bank, 8.98 km away
Papatea, 11.56 km away
Campbell Bank, 12.5 km away
Te Rapa 2, 14.01 km away

Te Rapa 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTIuMFJabVFQ
Connected?true
Directly Connected?true
Co-rupture Count6,906
Co-rupture Rate2.9169527E-4

Upper Slope, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTIuMFJabVFQ
Connected?true
Directly Connected?true
Co-rupture Count1,500
Co-rupture Rate2.8132376E-5

Hope: Seaward, 3.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTIuMFJabVFQ
Connected?true
Directly Connected?true
Co-rupture Count9,186
Co-rupture Rate4.4236248E-4

London Hill, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTIuMFJabVFQ
Connected?true
Directly Connected?true
Co-rupture Count185
Co-rupture Rate0.0

Wharanui, 4.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTIuMFJabVFQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Chancet, 8.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTIuMFJabVFQ
Connected?true
Directly Connected?true
Co-rupture Count1,133
Co-rupture Rate5.7658224E-5

Kaikoura - Mangamaunu, 8.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTIuMFJabVFQ
Connected?true
Directly Connected?true
Co-rupture Count31
Co-rupture Rate1.1409656E-4

Kekerengu Bank, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTIuMFJabVFQ
Connected?true
Directly Connected?true
Co-rupture Count214
Co-rupture Rate3.3215194E-6

Papatea, 11.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTIuMFJabVFQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Campbell Bank, 12.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTIuMFJabVFQ
Connected?true
Directly Connected?false
Co-rupture Count1,077
Co-rupture Rate5.7658224E-5

Te Rapa 2, 14.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTIuMFJabVFQ
Connected?true
Directly Connected?false
Co-rupture Count6,711
Co-rupture Rate2.6799075E-4
