Cape Foulwind 4 Details
| Property | Value |
|---|---|
| Rupture Count | 2,184 |
| Ruptures Above Sect Min Mag | 2,179 |
| Ruptures w/ Nonzero Rates | 346 |
| Magnitude Range | [6.96, 8.10] |
| Length Range | [24, 369] km |
| Total Rate | 5.599732E-5 /yr |
| Multi-Fault Rate | 5.599732E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 11 |
Table Of Contents

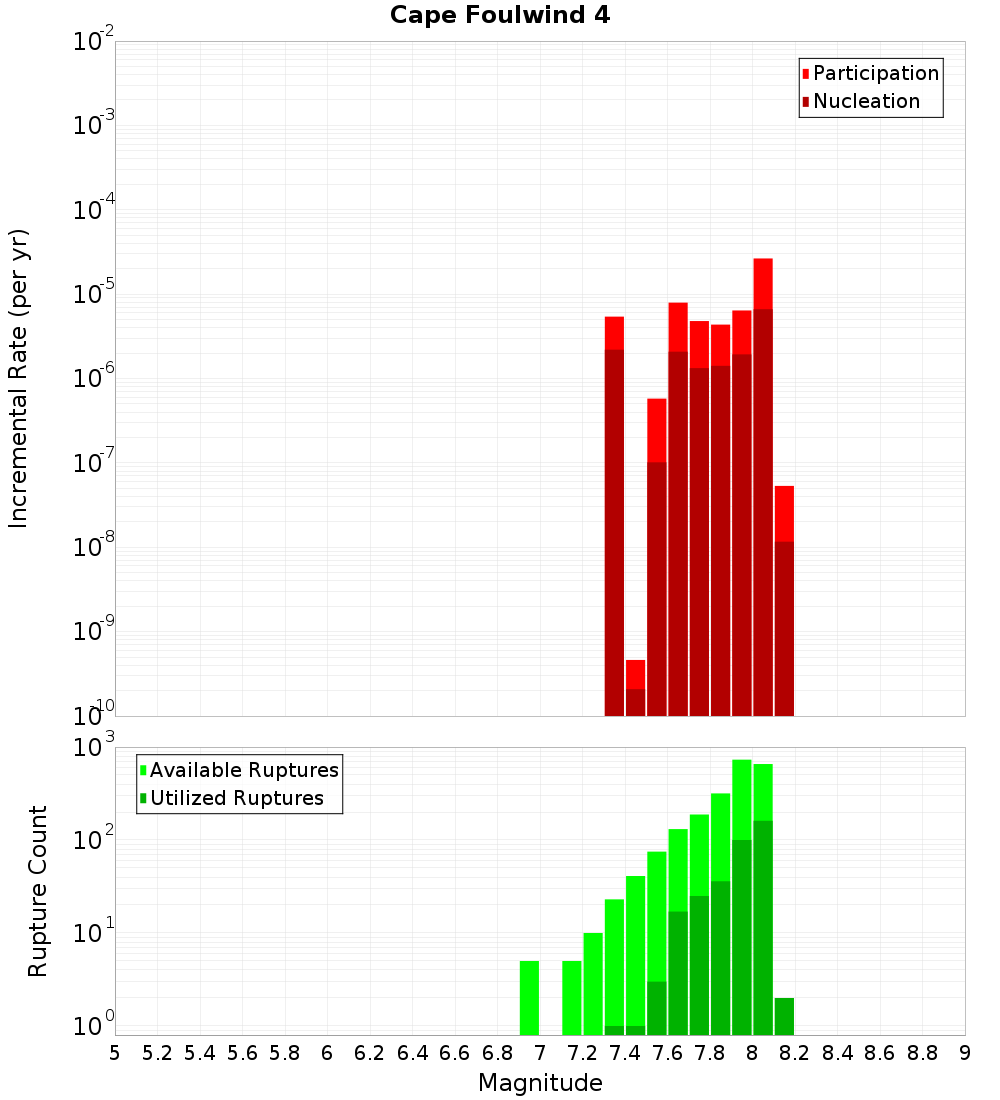

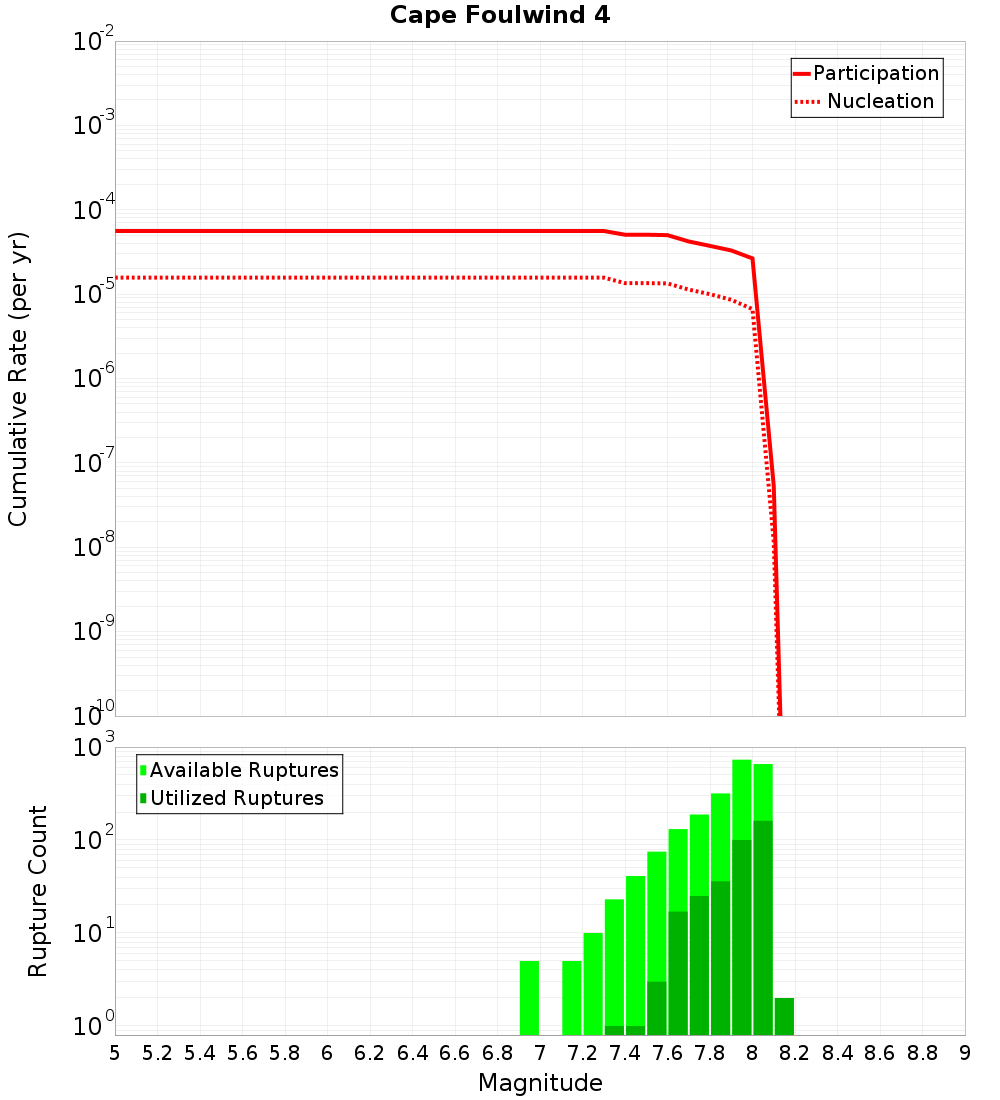

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

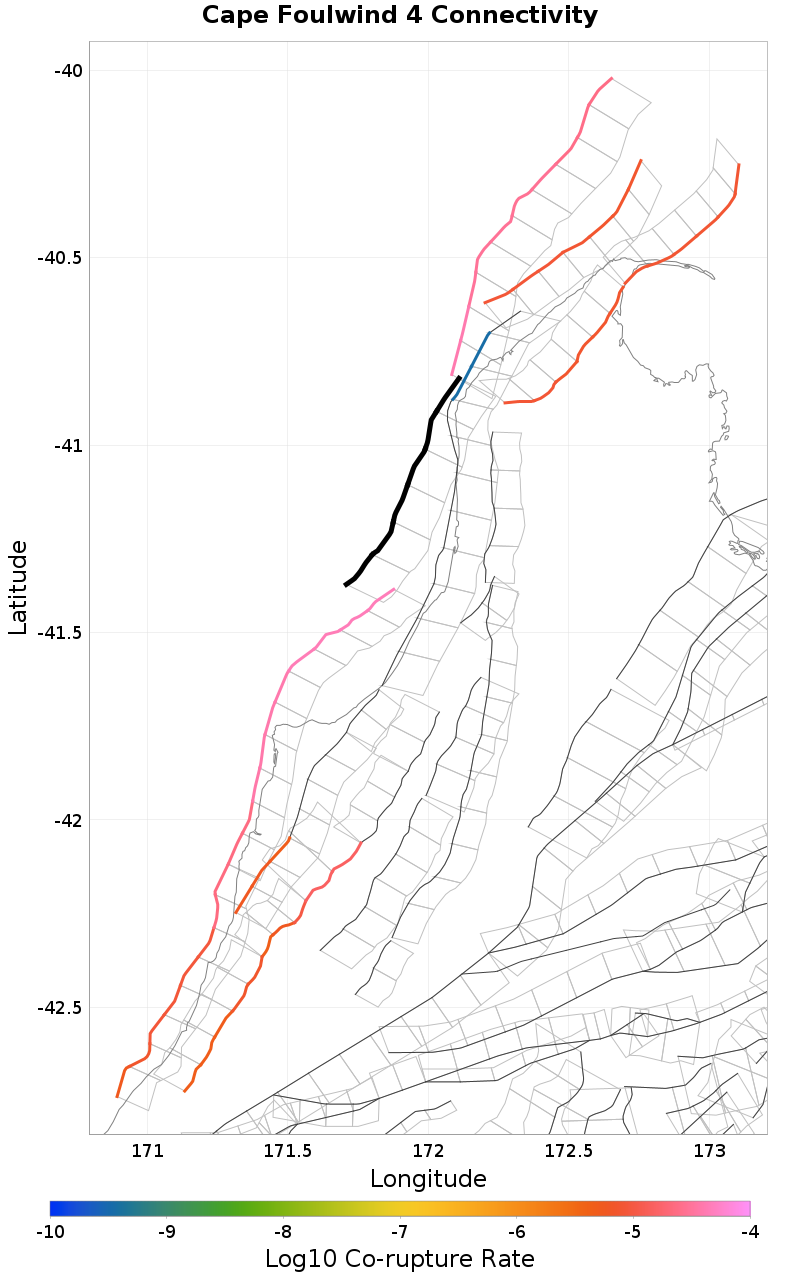

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kahurangi, 0.46 km away |
| Kongahau, 1.15 km away |
| Wakamarama, 1.46 km away |
| Cape Foulwind 2, 8.22 km away |
| Kohaihai, 11.38 km away |
Kahurangi, 0.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTYuMFhLWDZF | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,233 |
| Co-rupture Rate | 4.003199E-5 |
Kongahau, 1.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTYuMFhLWDZF | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 72 |
| Co-rupture Rate | 3.57125E-10 |
Wakamarama, 1.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTYuMFhLWDZF | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 713 |
| Co-rupture Rate | 8.198361E-6 |
Cape Foulwind 2, 8.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTYuMFhLWDZF | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,901 |
| Co-rupture Rate | 4.5279896E-5 |
Kohaihai, 11.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTYuMFhLWDZF | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
