Kairakau North Details
| Property | Value |
|---|---|
| Rupture Count | 39 |
| Ruptures Above Sect Min Mag | 38 |
| Ruptures w/ Nonzero Rates | 15 |
| Magnitude Range | [6.73, 7.65] |
| Length Range | [18, 138] km |
| Total Rate | 3.6560424E-4 /yr |
| Multi-Fault Rate | 3.6560424E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

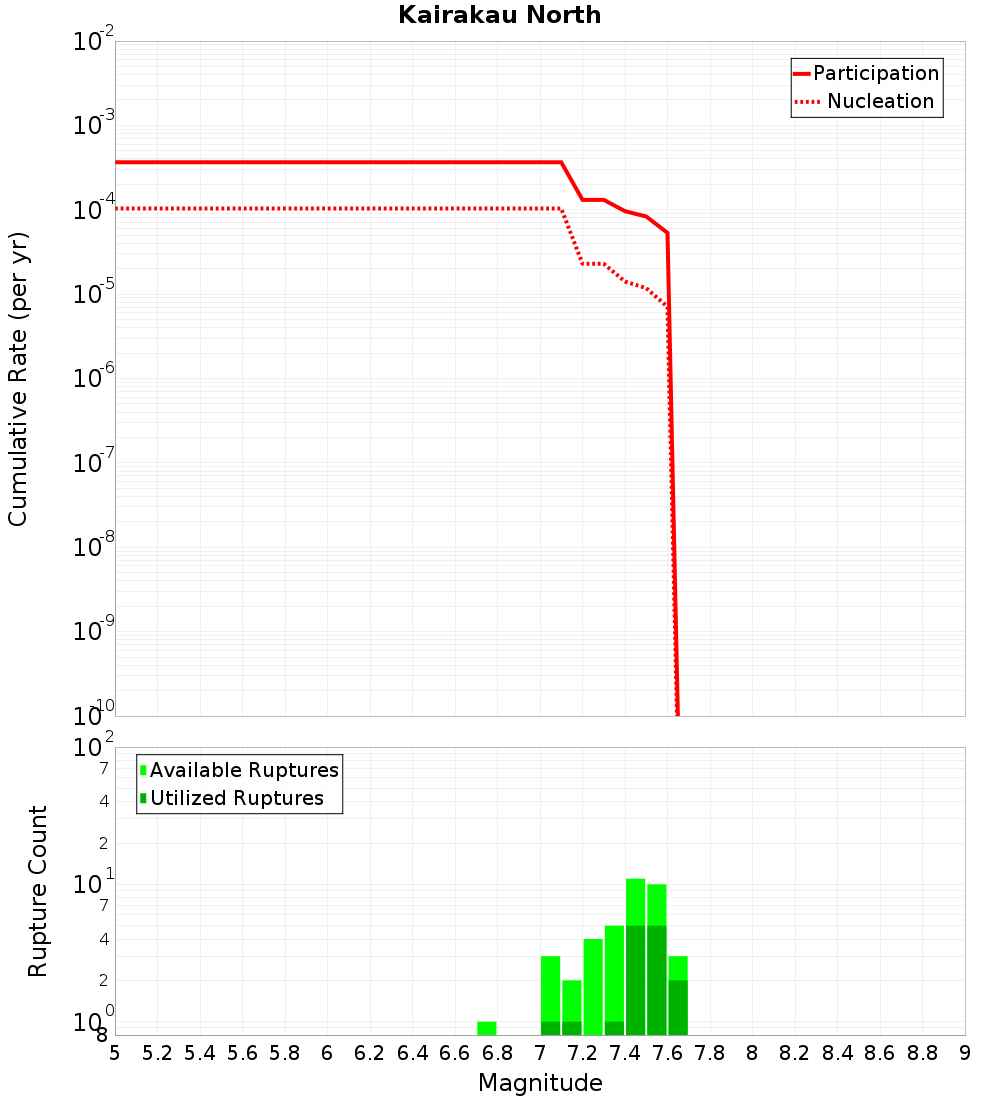

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

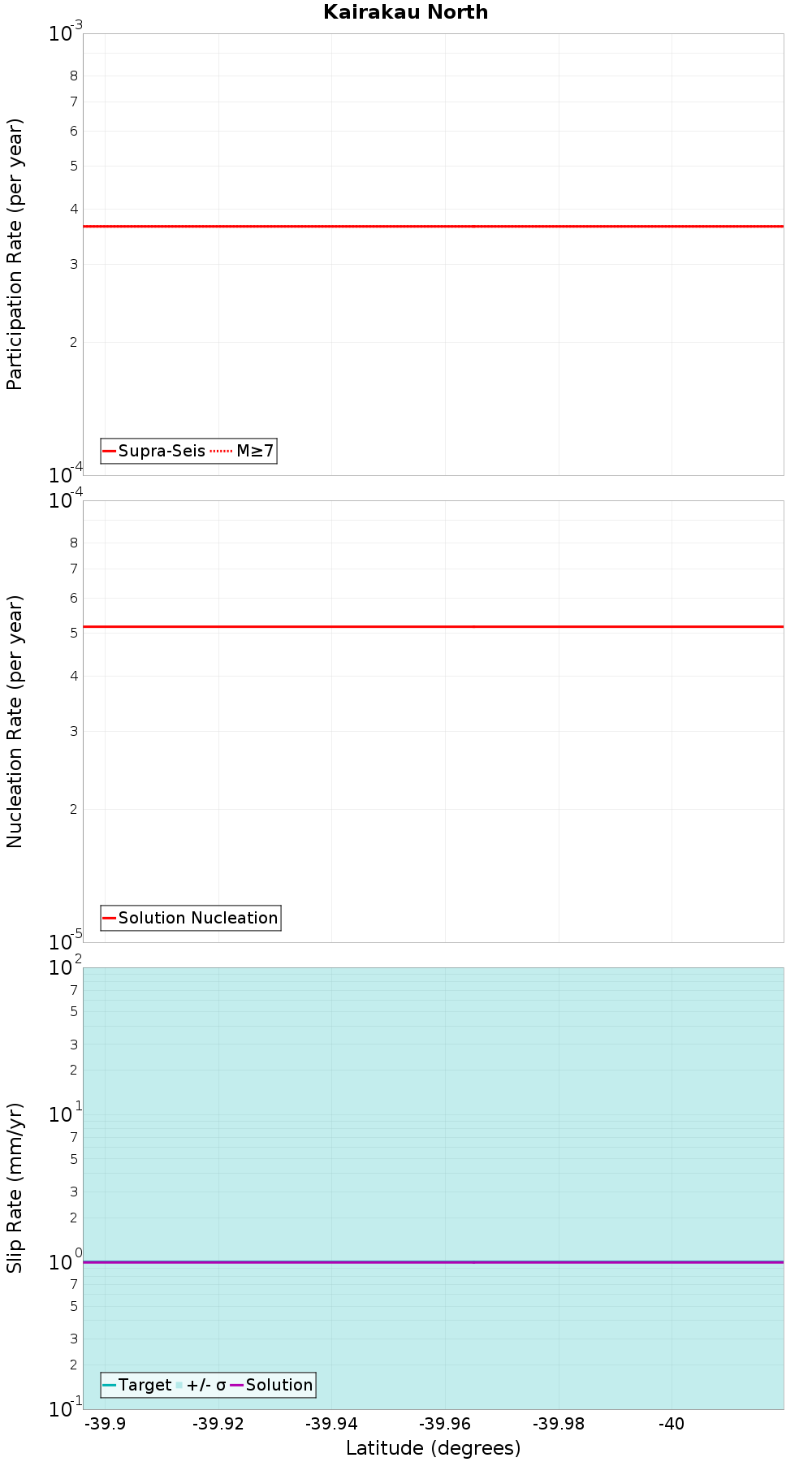

Along-Strike Values
Moment-Rates and b-Values

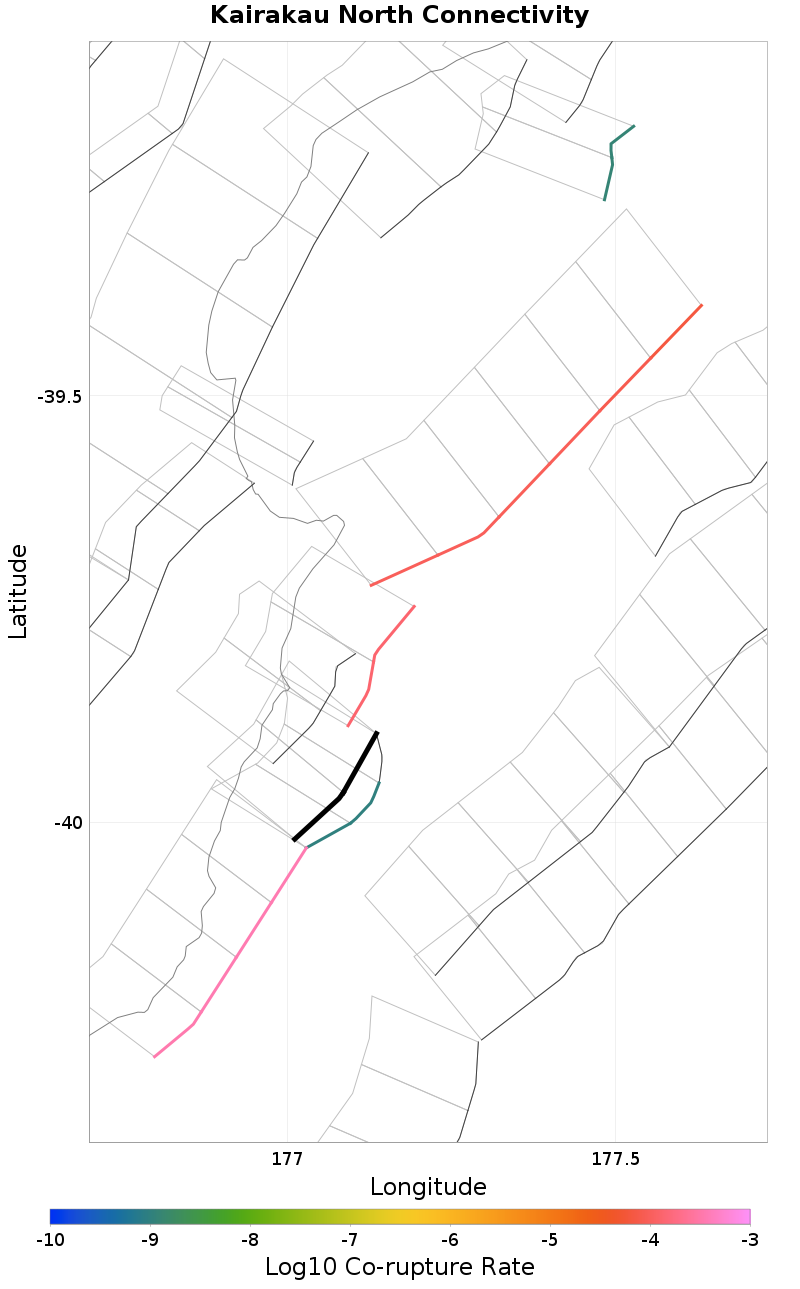

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kairakau 2, 0 km away |
| Kairakau South, 1.29 km away |
| Waimarama 3 & 4, 2.41 km away |
| Waimarama 1 & 2, 5.05 km away |
Kairakau 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTYuMFhLWDZF | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 9.90034E-10 |
Kairakau South, 1.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTYuMFhLWDZF | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 31 |
| Co-rupture Rate | 3.5470465E-4 |
Waimarama 3 & 4, 2.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTYuMFhLWDZF | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 34 |
| Co-rupture Rate | 1.3113109E-4 |
Waimarama 1 & 2, 5.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNTYuMFhLWDZF | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
