Hawke Bay 1 Details
| Property | Value |
|---|---|
| Rupture Count | 121 |
| Ruptures Above Sect Min Mag | 119 |
| Ruptures w/ Nonzero Rates | 31 |
| Magnitude Range | [6.95, 8.04] |
| Length Range | [21, 278] km |
| Total Rate | 1.1302079E-5 /yr |
| Multi-Fault Rate | 1.1302079E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 14 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

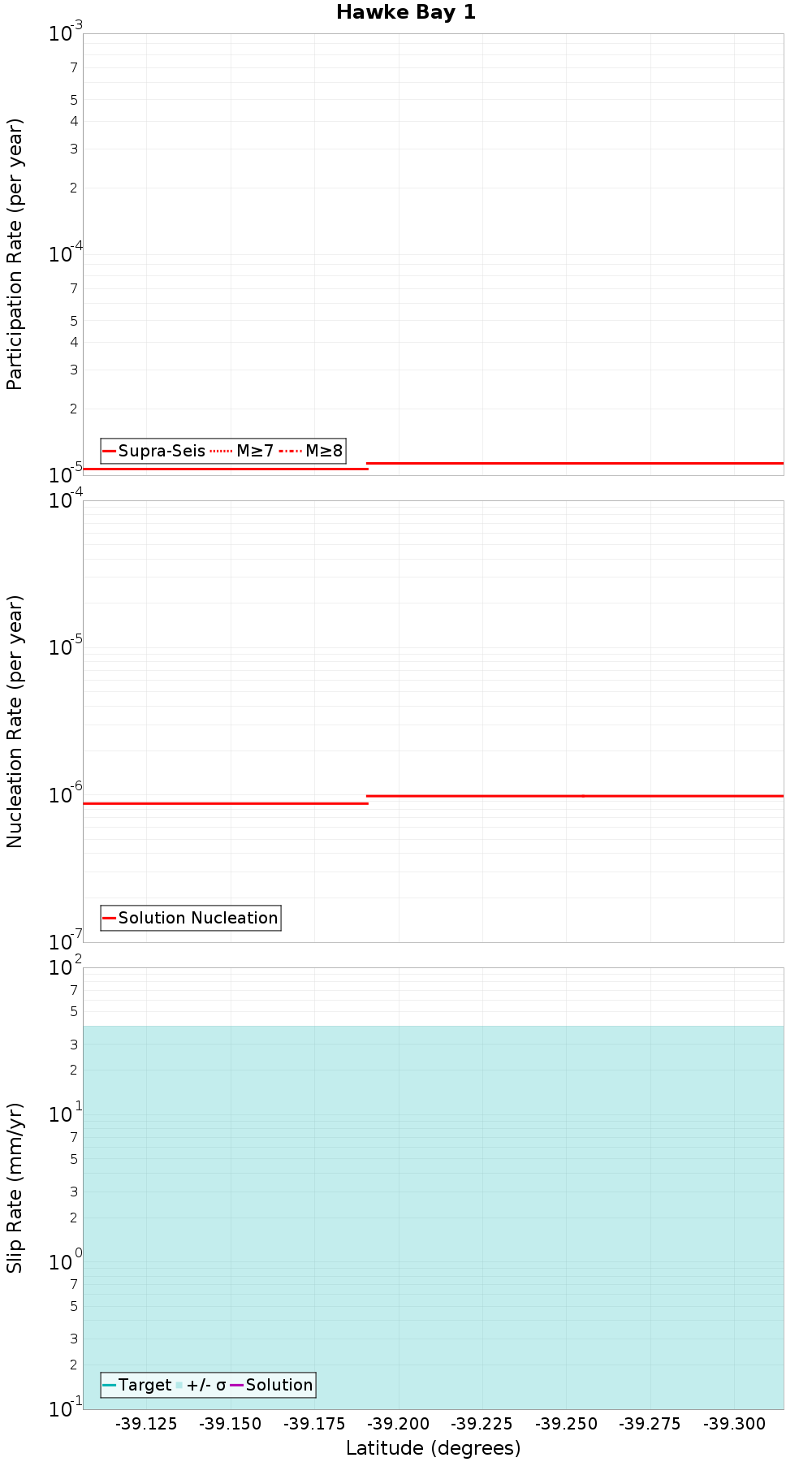

Along-Strike Values
Moment-Rates and b-Values

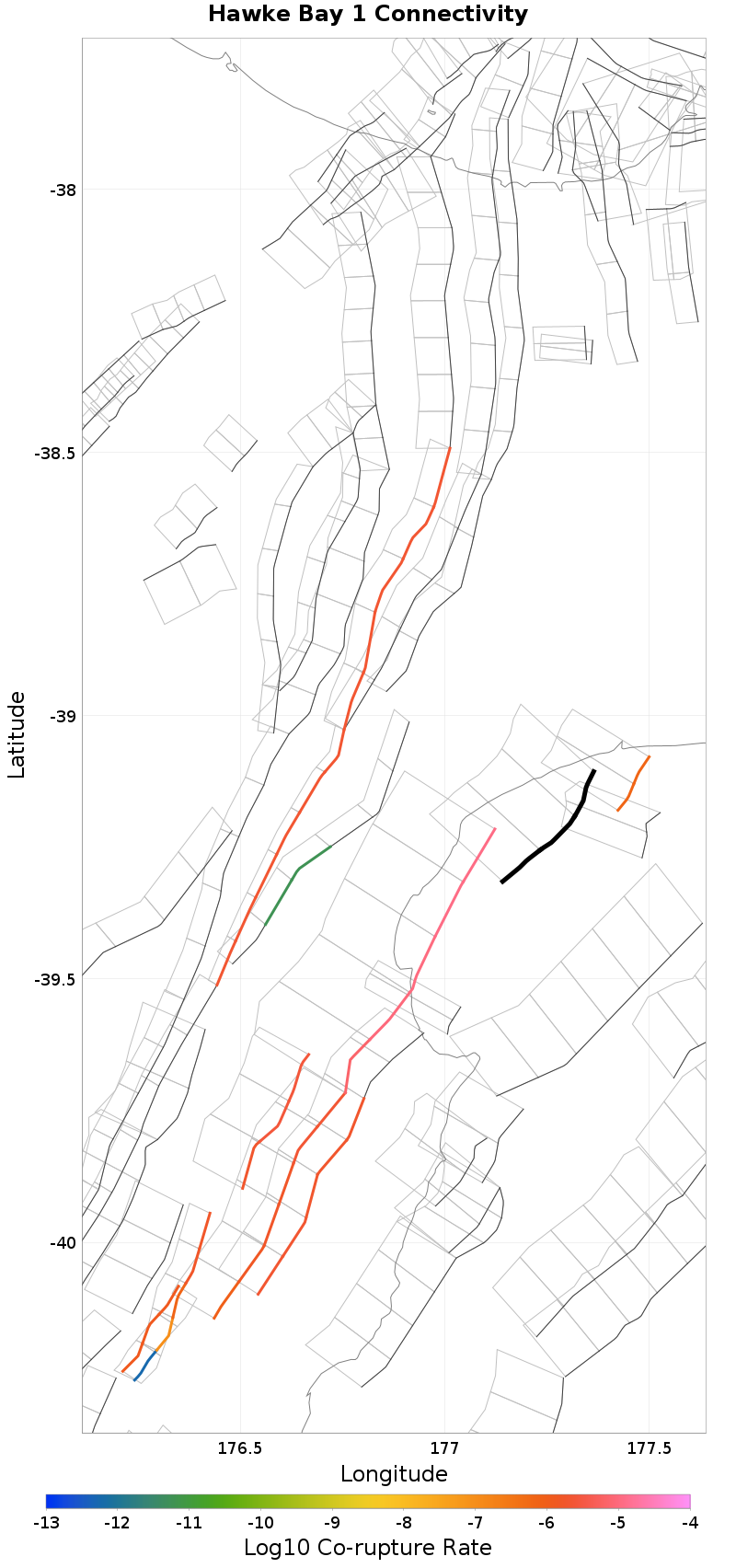

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hawke Bay 4, 4.48 km away |
| Awanui, 4.64 km away |
| Hawke Bay 5 & 11, 8.85 km away |
| Patoka - Rangiora, 12.96 km away |
Hawke Bay 4, 4.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNzEuMFFBOUVz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 31 |
| Co-rupture Rate | 6.428921E-7 |
Awanui, 4.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNzEuMFFBOUVz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 117 |
| Co-rupture Rate | 1.1302079E-5 |
Hawke Bay 5 & 11, 8.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNzEuMFFBOUVz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Patoka - Rangiora, 12.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNzEuMFFBOUVz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 5.7577445E-12 |
