Farewell Details
| Property | Value |
|---|---|
| Rupture Count | 1,648 |
| Ruptures Above Sect Min Mag | 1,637 |
| Ruptures w/ Nonzero Rates | 428 |
| Magnitude Range | [6.76, 8.11] |
| Length Range | [19, 369] km |
| Total Rate | 3.6354104E-5 /yr |
| Multi-Fault Rate | 2.9439445E-5 /yr (80.98%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 19 |
Table Of Contents

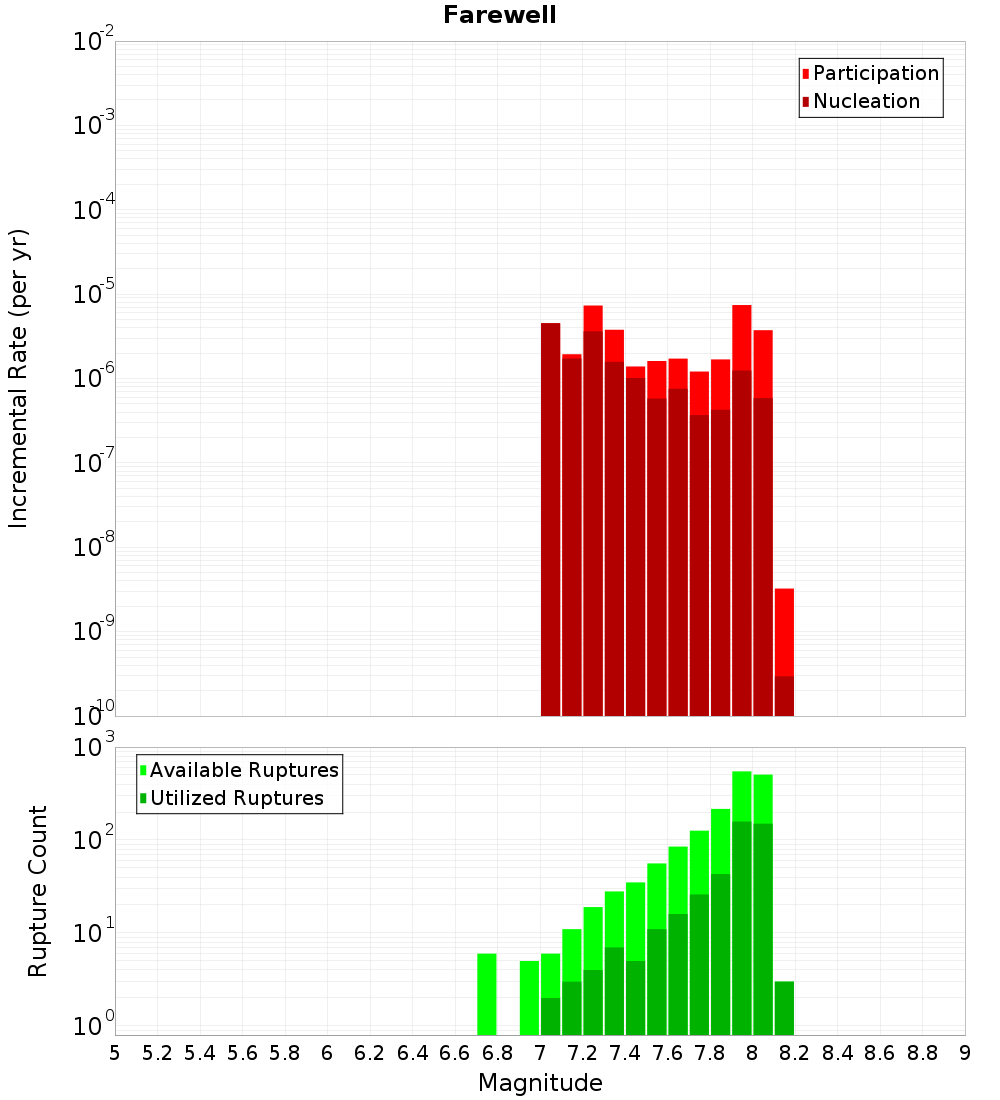

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

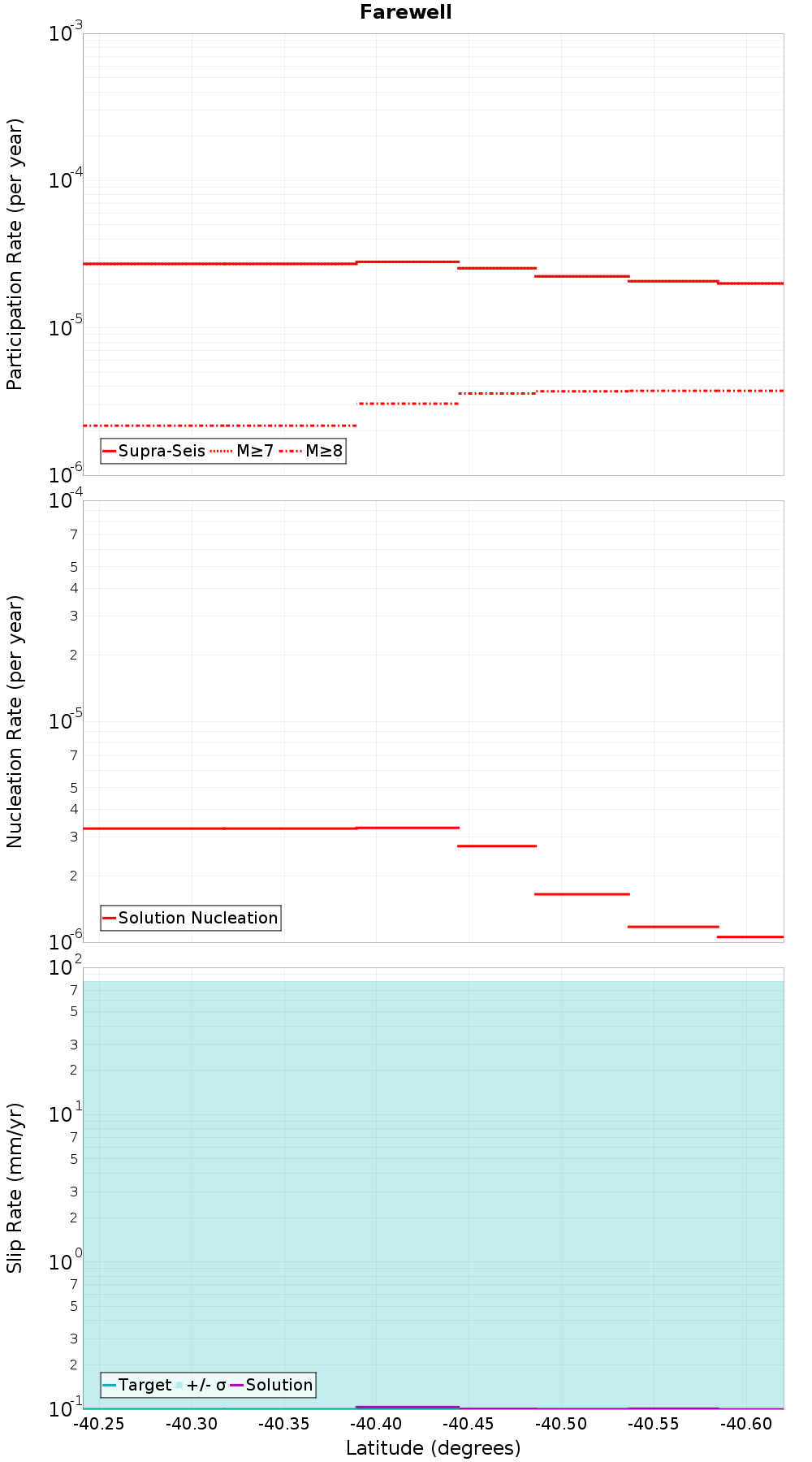

Along-Strike Values

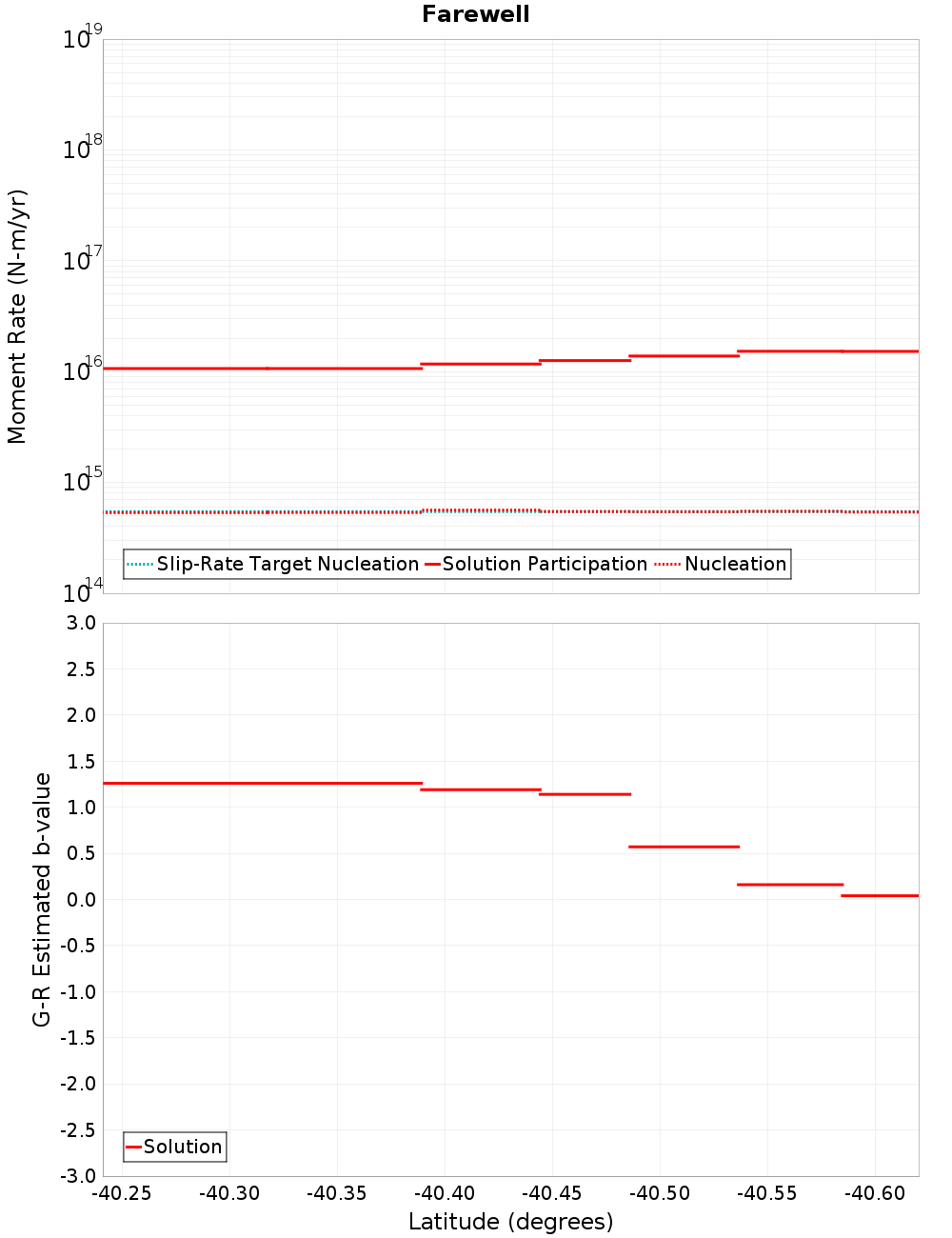

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Wakamarama Offshore, 0.22 km away |
| Wakamarama, 0.23 km away |
| Kahurangi, 0.25 km away |
| Kongahau, 3.83 km away |
Wakamarama Offshore, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNzkuMDdBcmVY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 639 |
| Co-rupture Rate | 1.1221573E-5 |
Wakamarama, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNzkuMDdBcmVY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 144 |
| Co-rupture Rate | 5.5336777E-8 |
Kahurangi, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNzkuMDdBcmVY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 670 |
| Co-rupture Rate | 1.1485796E-5 |
Kongahau, 3.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwNzkuMDdBcmVY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 876 |
| Co-rupture Rate | 8.3236555E-6 |
