Fern Gully Details

PropertyValue
Rupture Count861
Ruptures Above Sect Min Mag856
Ruptures w/ Nonzero Rates77
Magnitude Range[6.76, 8.16]
Length Range[18, 308] km
Total Rate2.5358258E-4 /yr
Multi-Fault Rate2.108677E-4 /yr (83.16%)
Directly-Connected Faults6
All Co-Rupturing Faults45

Table Of Contents

Magnitude-Frequency Distribution

(top)

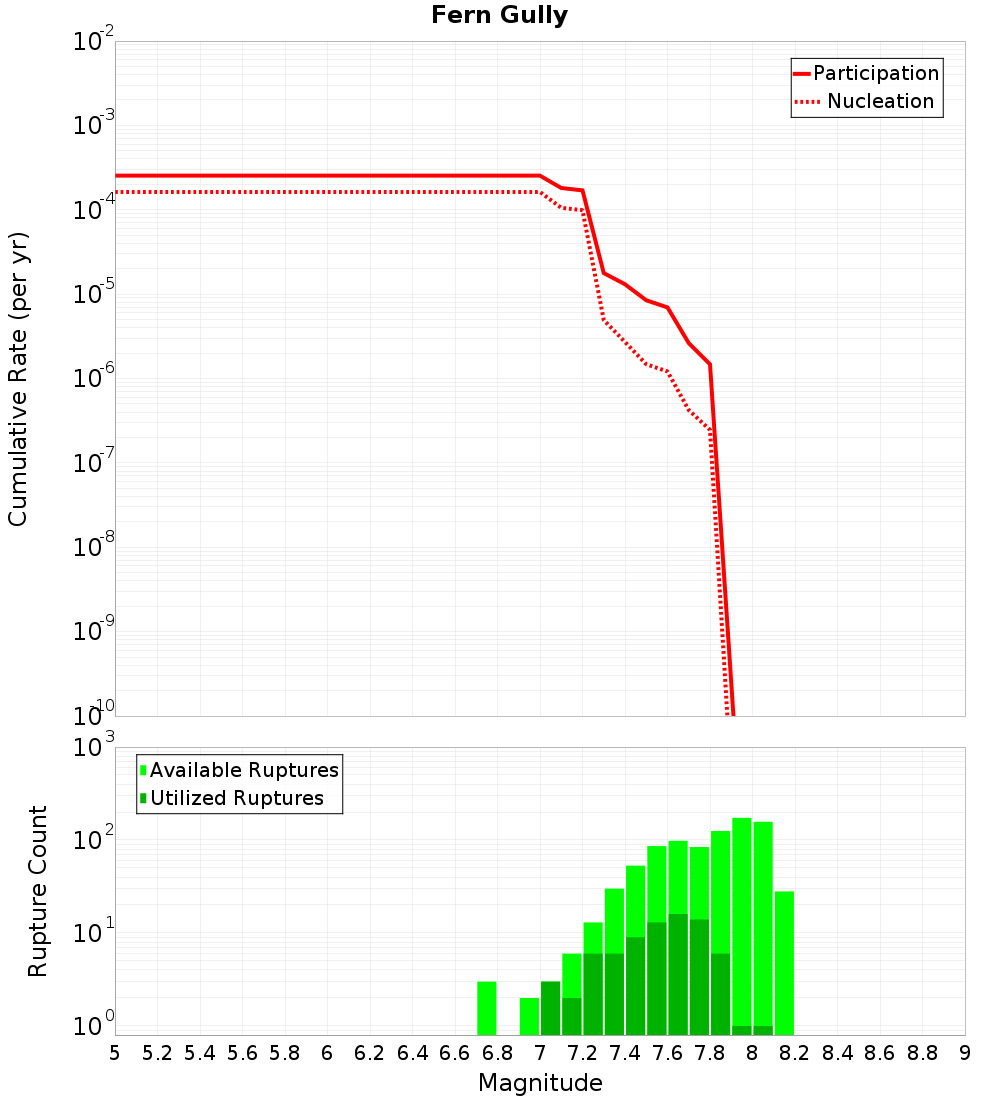

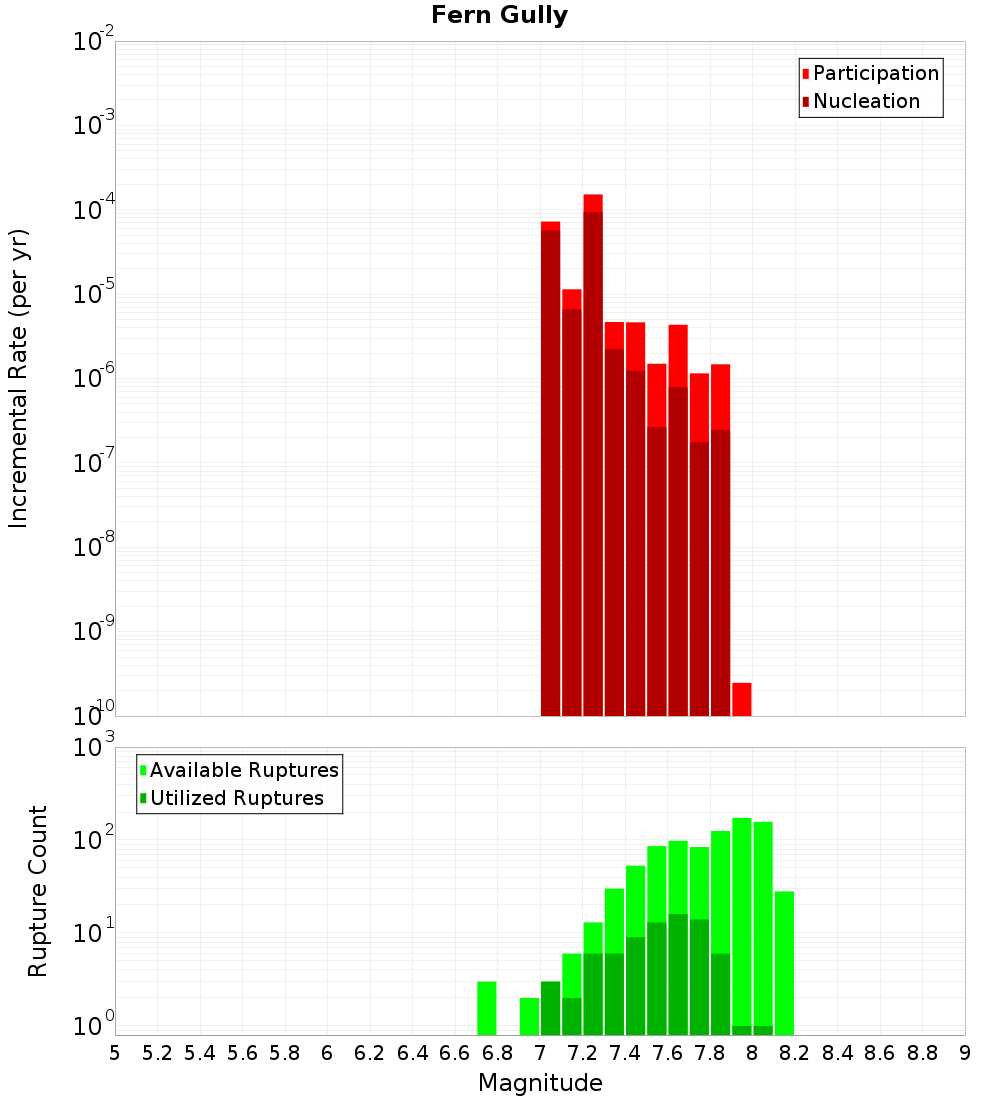

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

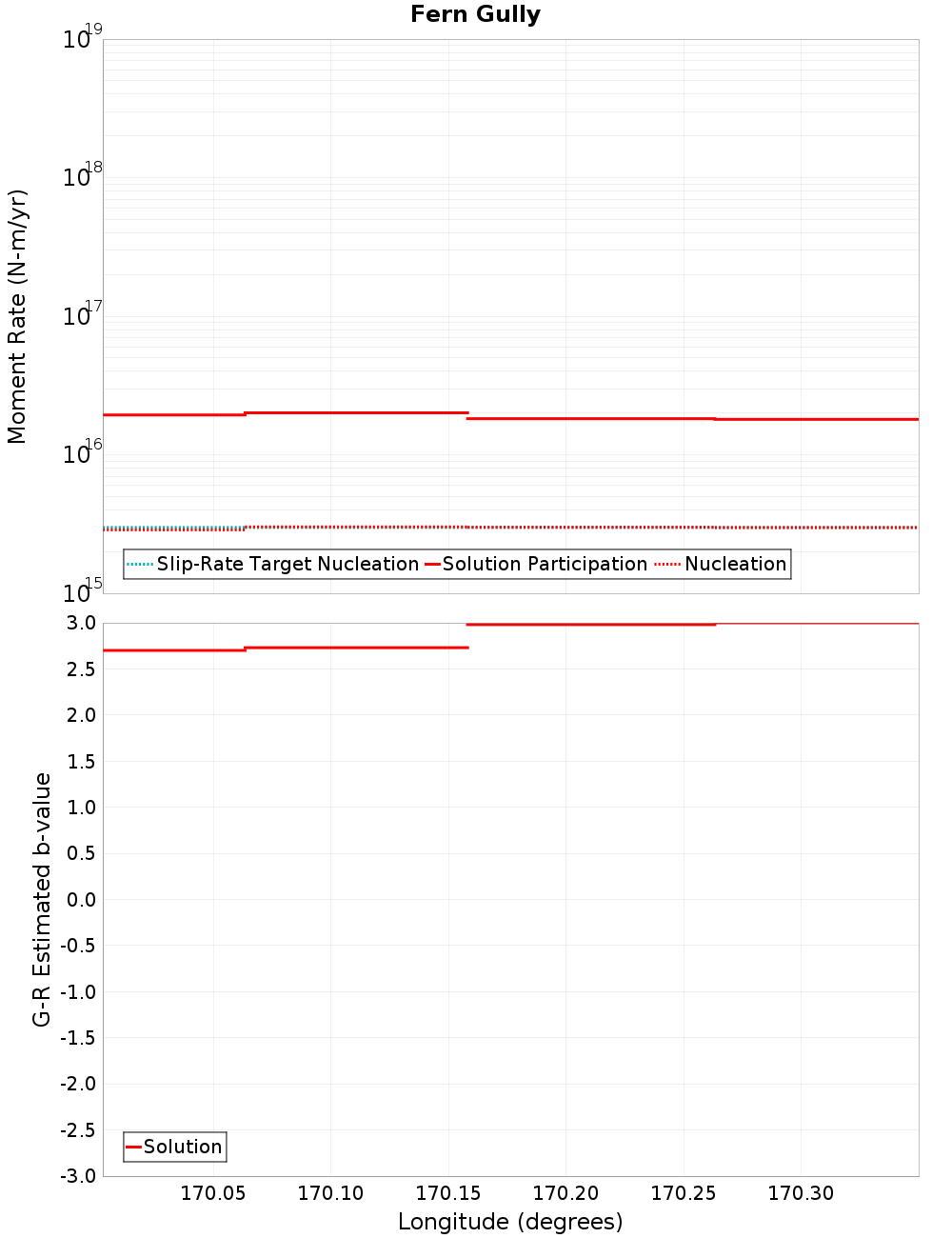

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Middle Range, 0.1 km away
Omarama Saddle, 0.26 km away
Waitangi, 0.29 km away
Gibson, 0.31 km away
Awahokomo, 0.47 km away
Hawkdun, 0.99 km away
Falstone, 2.99 km away
Kirkliston, 3.19 km away
Mt Sutton, 3.2 km away
Dryburgh, 4.21 km away
Stonewall, 6.14 km away
Ostler South, 8.7 km away
Campbell Hills, 11.61 km away
Blue Lake, 11.86 km away

Middle Range, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwODUuMEhITXBm
Connected?true
Directly Connected?true
Co-rupture Count139
Co-rupture Rate2.03817E-5

Omarama Saddle, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwODUuMEhITXBm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitangi, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwODUuMEhITXBm
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate3.5205207E-6

Gibson, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwODUuMEhITXBm
Connected?true
Directly Connected?true
Co-rupture Count38
Co-rupture Rate4.109177E-7

Awahokomo, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwODUuMEhITXBm
Connected?true
Directly Connected?true
Co-rupture Count118
Co-rupture Rate1.9985194E-4

Hawkdun, 0.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwODUuMEhITXBm
Connected?true
Directly Connected?true
Co-rupture Count585
Co-rupture Rate3.255688E-7

Falstone, 2.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwODUuMEhITXBm
Connected?true
Directly Connected?true
Co-rupture Count487
Co-rupture Rate1.3875301E-5

Kirkliston, 3.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwODUuMEhITXBm
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate1.4740477E-6

Mt Sutton, 3.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwODUuMEhITXBm
Connected?true
Directly Connected?true
Co-rupture Count43
Co-rupture Rate9.2879655E-11

Dryburgh, 4.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwODUuMEhITXBm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 6.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwODUuMEhITXBm
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate1.9169383E-6

Ostler South, 8.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwODUuMEhITXBm
Connected?true
Directly Connected?false
Co-rupture Count37
Co-rupture Rate3.665023E-6

Campbell Hills, 11.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwODUuMEhITXBm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Lake, 11.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwODUuMEhITXBm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
