Hauroko: South Details
| Property | Value |
|---|---|
| Rupture Count | 454 |
| Ruptures Above Sect Min Mag | 450 |
| Ruptures w/ Nonzero Rates | 39 |
| Magnitude Range | [7.04, 8.39] |
| Length Range | [26, 627] km |
| Total Rate | 1.4956541E-4 /yr |
| Multi-Fault Rate | 7.3429044E-5 /yr (49.09%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 19 |
Table Of Contents

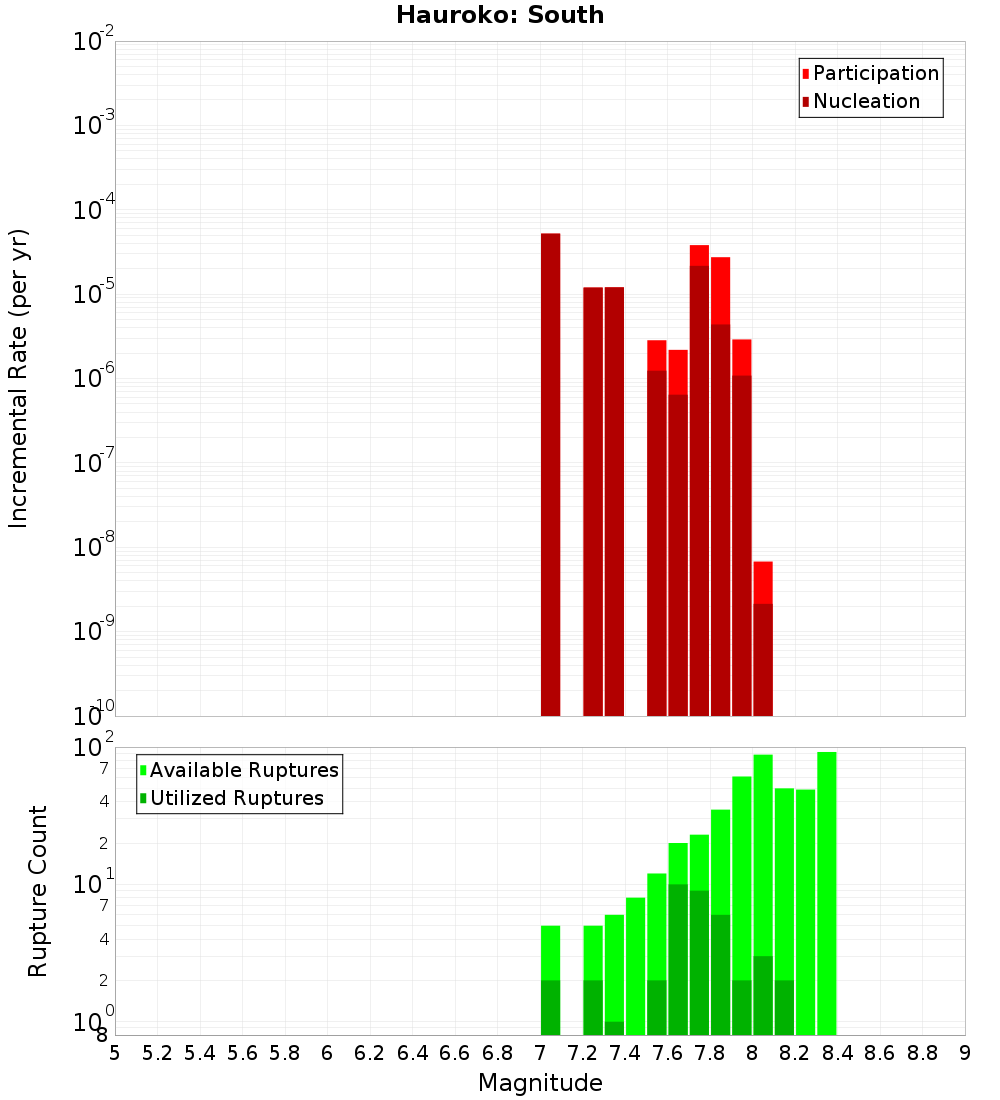

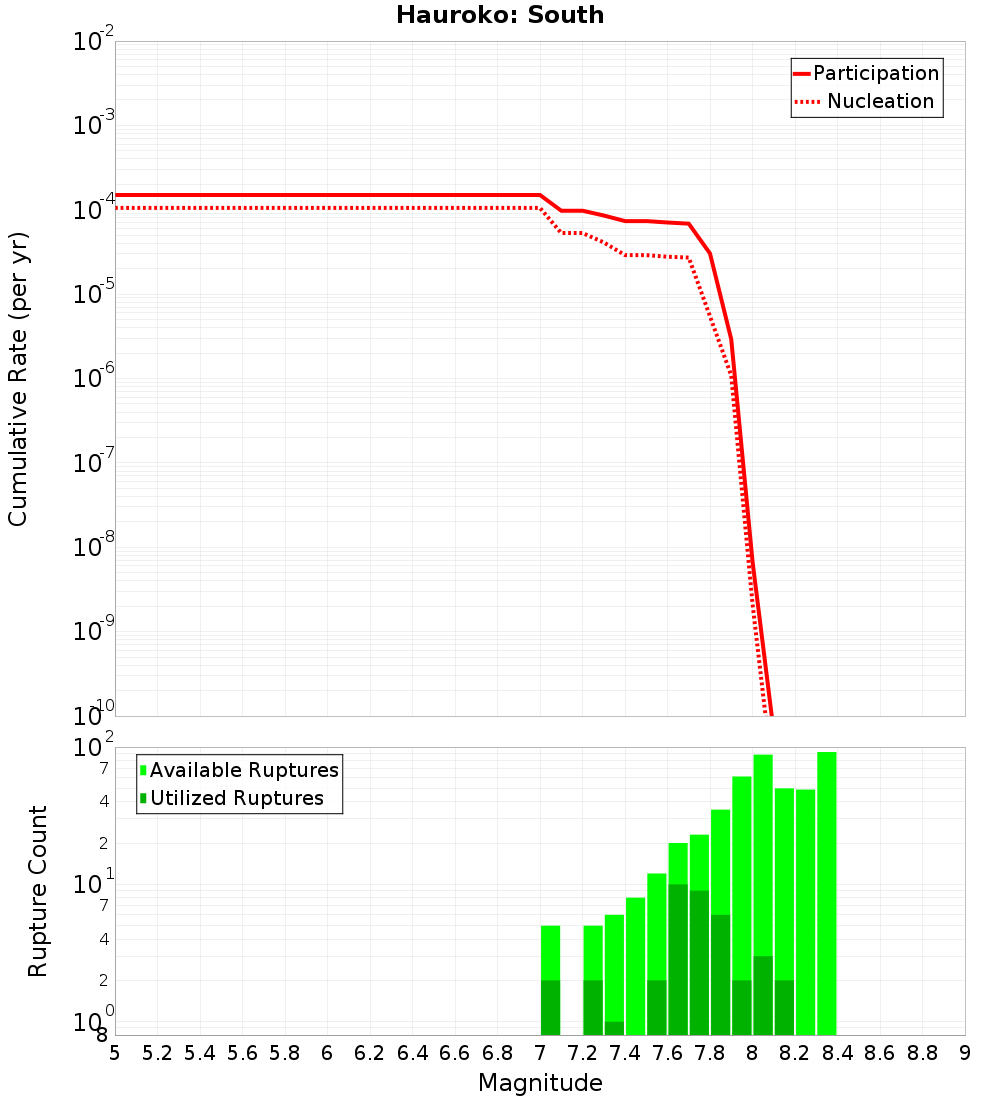

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: North, 0.32 km away |
| Hump Ridge, 3.03 km away |
| Monowai, 14.37 km away |
Hauroko: North, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwOTMuMFhQTFJI | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 423 |
| Co-rupture Rate | 6.361989E-5 |
Hump Ridge, 3.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwOTMuMFhQTFJI | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 61 |
| Co-rupture Rate | 3.6313675E-5 |
Monowai, 14.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwOTMuMFhQTFJI | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 18 |
| Co-rupture Rate | 4.9138882E-5 |
