Rangefront Details

PropertyValue
Rupture Count76
Ruptures Above Sect Min Mag76
Ruptures w/ Nonzero Rates0
Magnitude Range[7.78, 8.21]
Length Range[160, 423] km
Total Rate0.0 /yr
Multi-Fault Rate0.0 /yr (NaN)
Directly-Connected Faults2
All Co-Rupturing Faults21

Table Of Contents

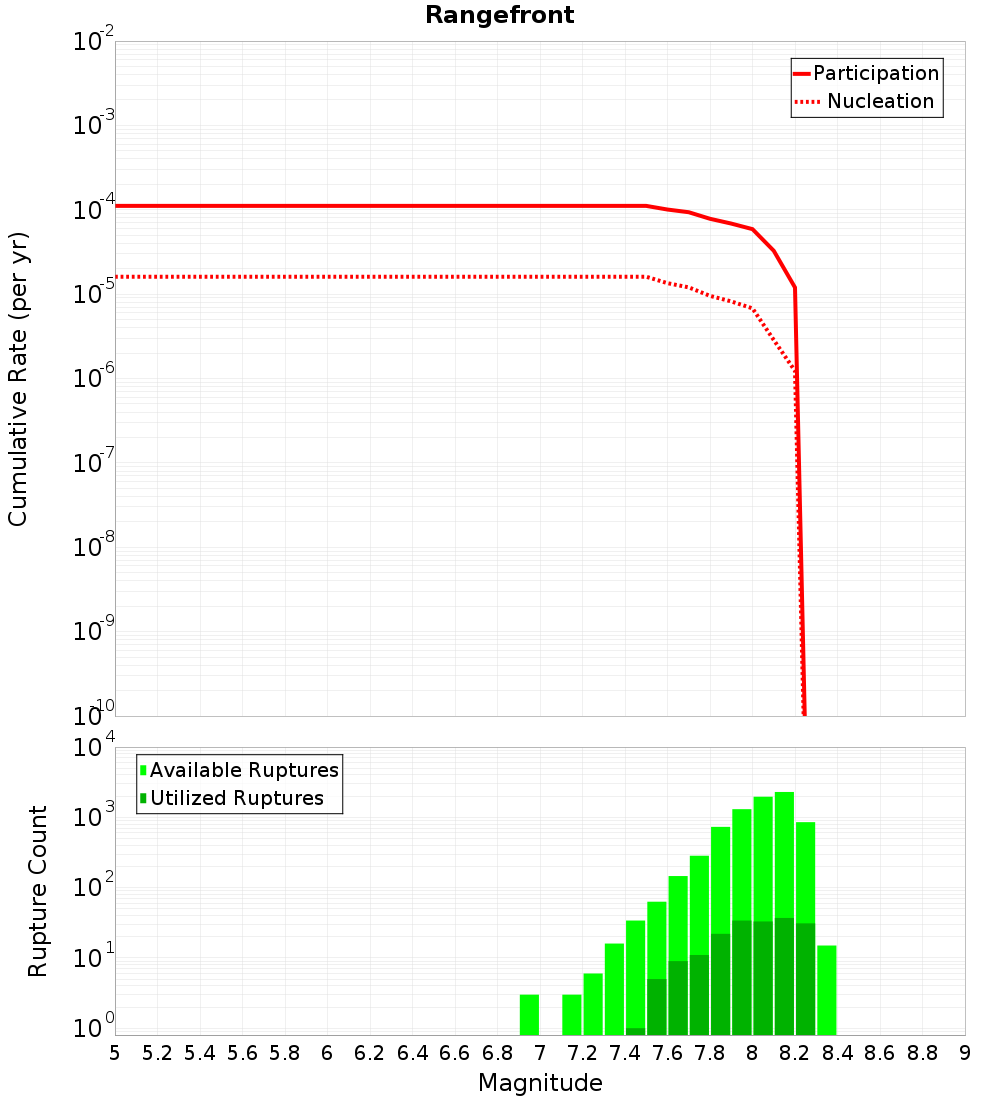

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

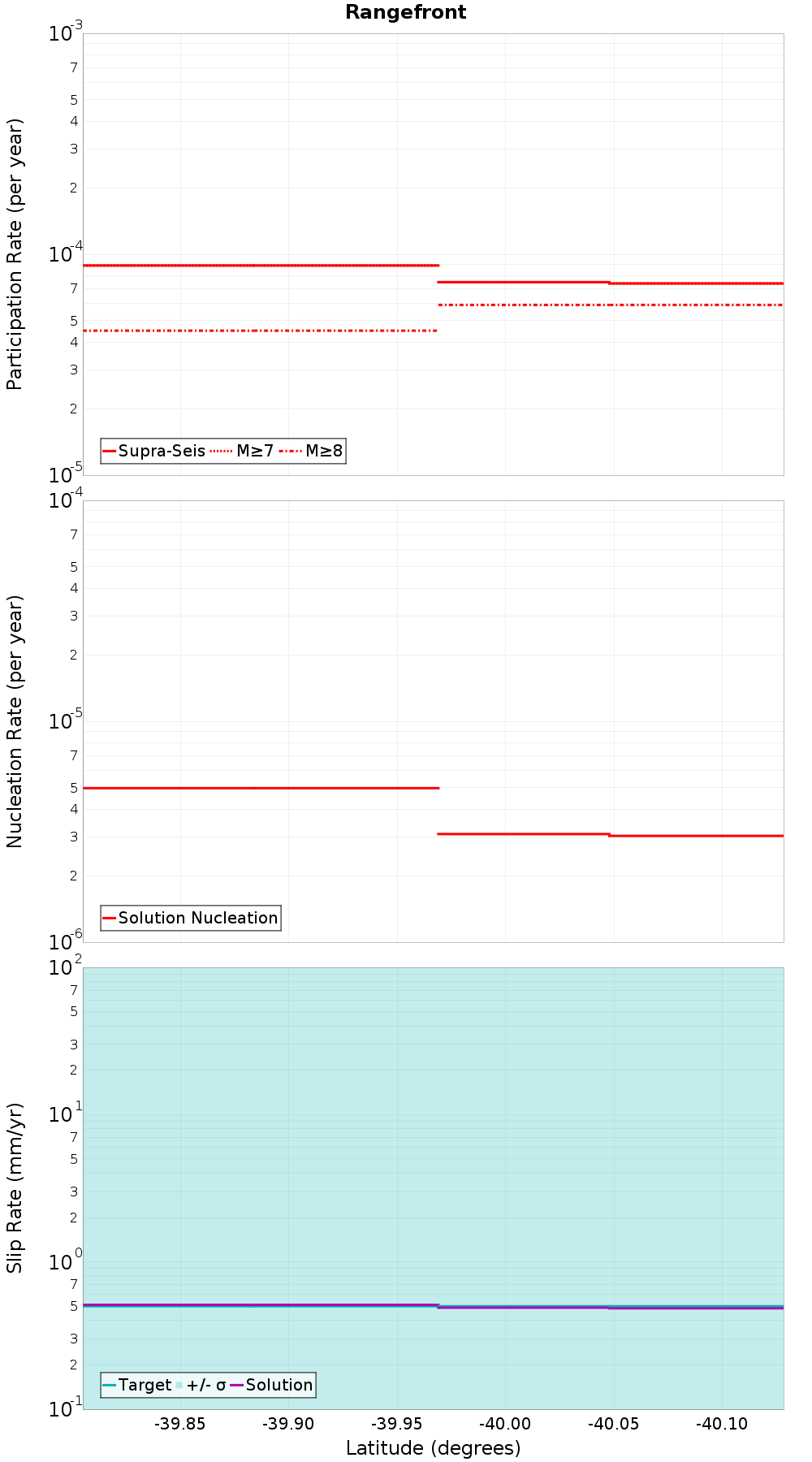

Along-Strike Values

(top)

Along-strike plot

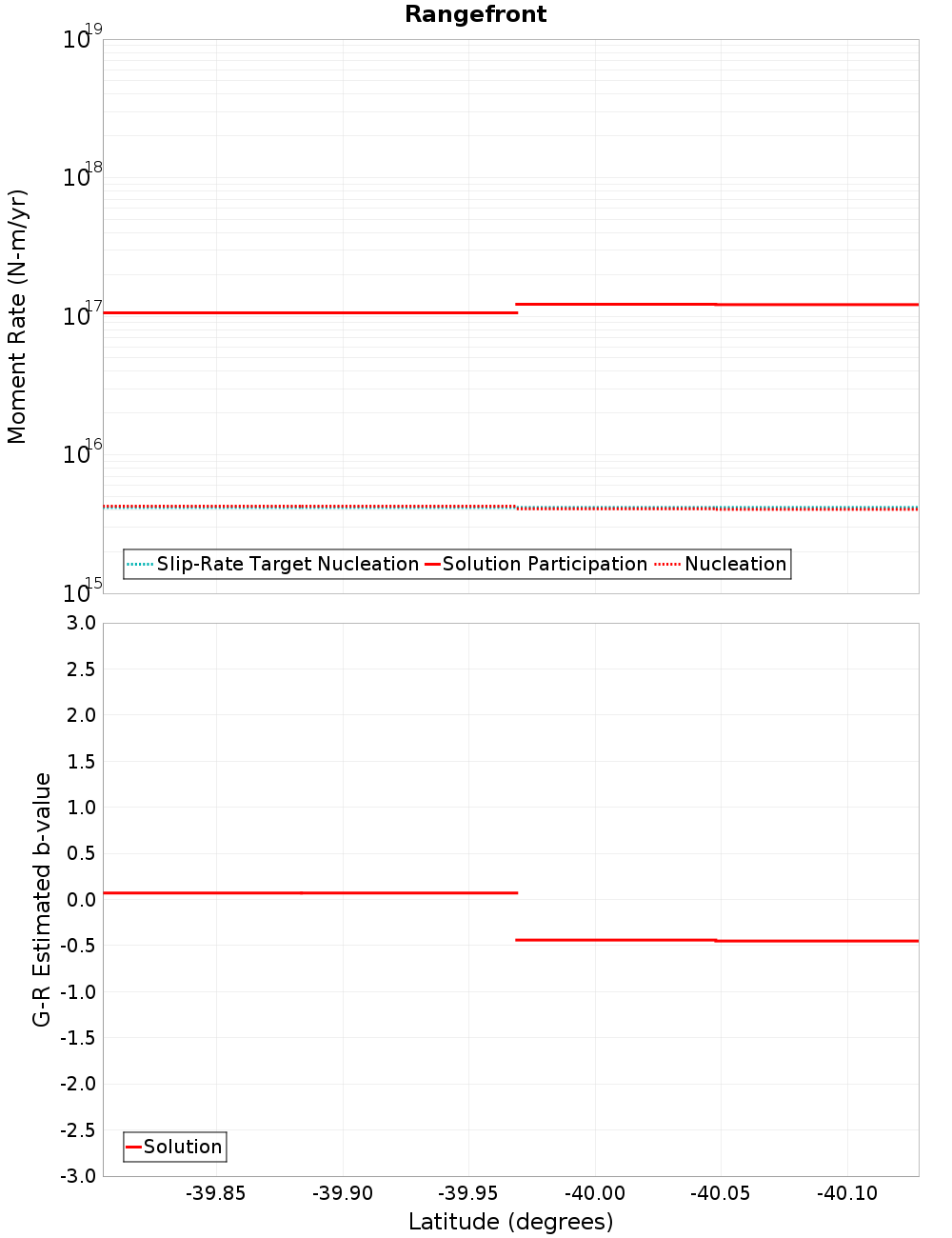

Moment-Rates and b-Values

(top)

Along-strike plot

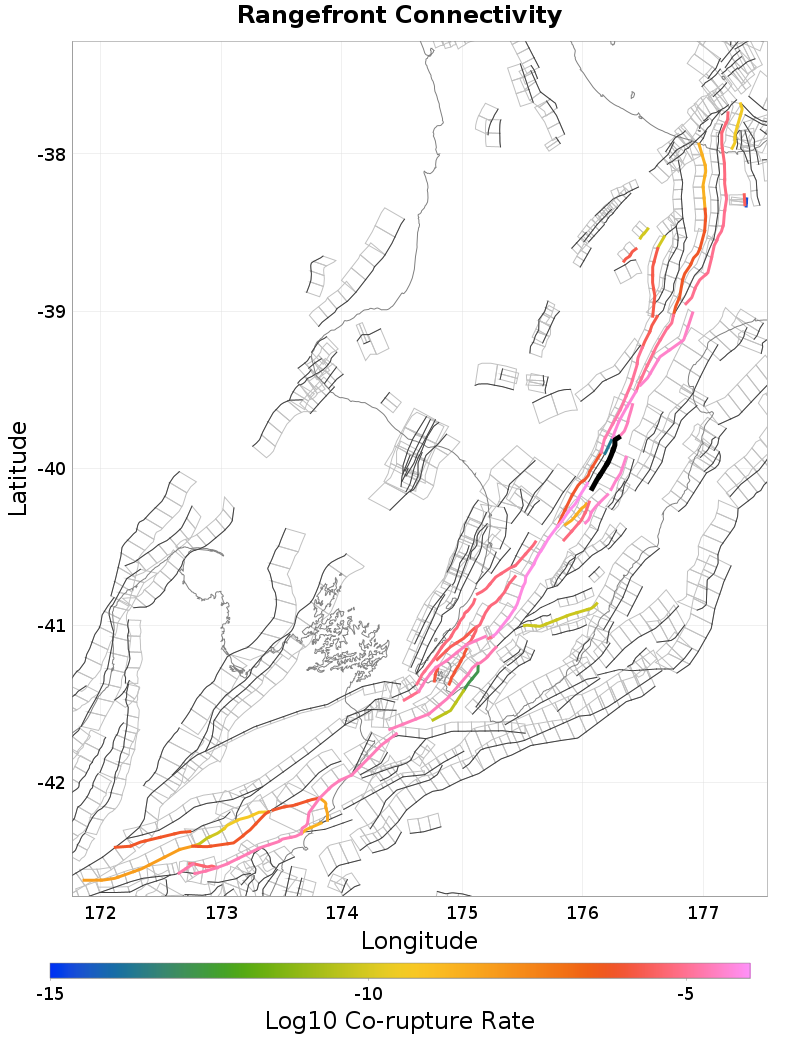

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wakarara, 0 km away
Ruahine: South, 0.19 km away
Ruahine: Central, 0.2 km away
Mohaka: South, 0.2 km away
Ruataniwha, 8.95 km away
Pahiatua, 9.78 km away
Maunga, 10.17 km away
Woodville, 10.84 km away
Pohangina, 12.41 km away

Wakarara, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwOTMuMFhQTFJI
Connected?true
Directly Connected?true
Co-rupture Count396
Co-rupture Rate2.4658812E-5

Ruahine: South, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwOTMuMFhQTFJI
Connected?true
Directly Connected?true
Co-rupture Count971
Co-rupture Rate8.4437113E-7

Ruahine: Central, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwOTMuMFhQTFJI
Connected?true
Directly Connected?true
Co-rupture Count1,397
Co-rupture Rate1.8850062E-5

Mohaka: South, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwOTMuMFhQTFJI
Connected?true
Directly Connected?true
Co-rupture Count10,336
Co-rupture Rate1.1837598E-4

Ruataniwha, 8.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwOTMuMFhQTFJI
Connected?true
Directly Connected?true
Co-rupture Count414
Co-rupture Rate3.6365047E-5

Pahiatua, 9.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwOTMuMFhQTFJI
Connected?true
Directly Connected?false
Co-rupture Count182
Co-rupture Rate6.9085045E-6

Maunga, 10.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwOTMuMFhQTFJI
Connected?true
Directly Connected?false
Co-rupture Count191
Co-rupture Rate3.738622E-5

Woodville, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwOTMuMFhQTFJI
Connected?true
Directly Connected?false
Co-rupture Count223
Co-rupture Rate2.9303E-9

Pohangina, 12.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYwOTMuMFhQTFJI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
