Whangamoa Details

Property	Value
Rupture Count	32,276
Ruptures Above Sect Min Mag	32,268
Ruptures w/ Nonzero Rates	708
Magnitude Range	[6.97, 8.62]
Length Range	[23, 976] km
Total Rate	2.169971E-5 /yr
Multi-Fault Rate	2.161828E-5 /yr (99.62%)
Directly-Connected Faults	5
All Co-Rupturing Faults	100

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

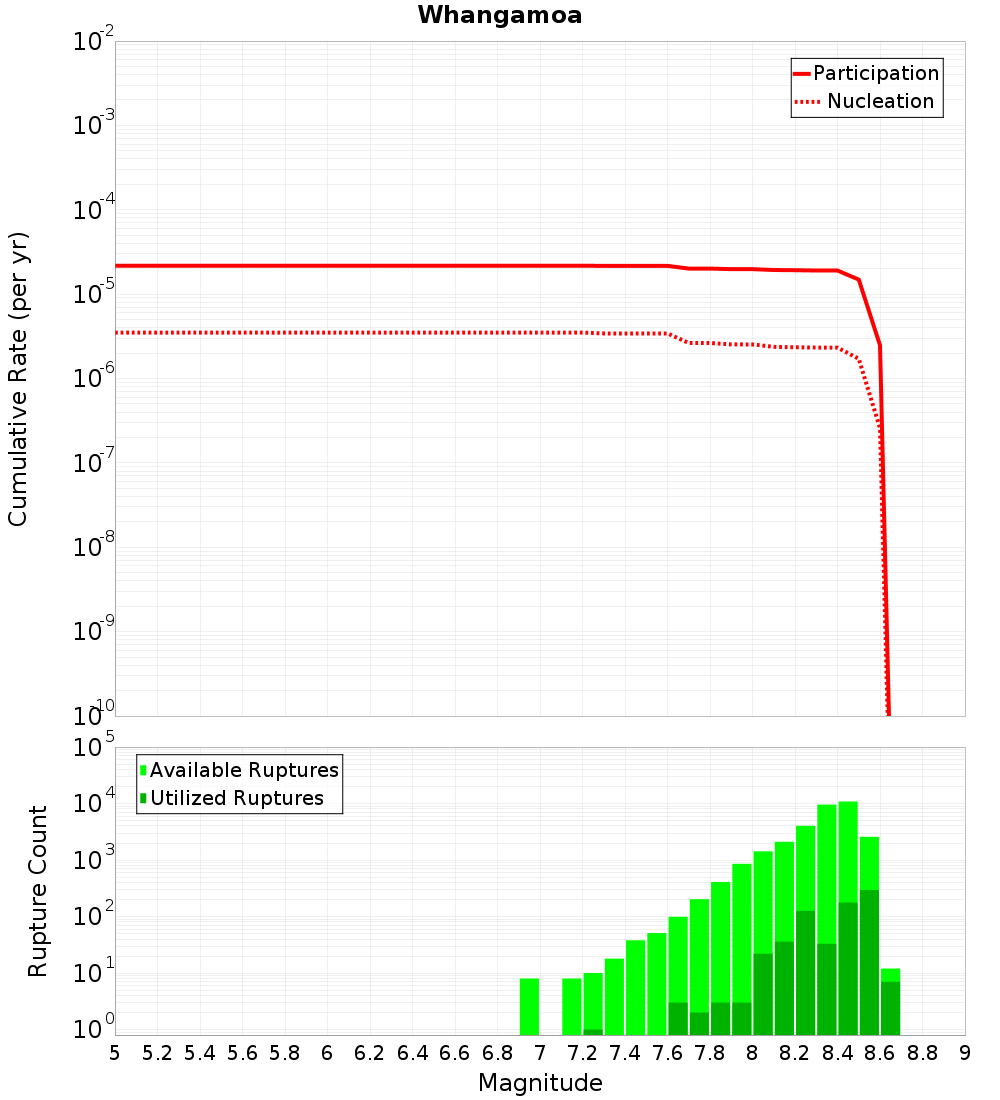

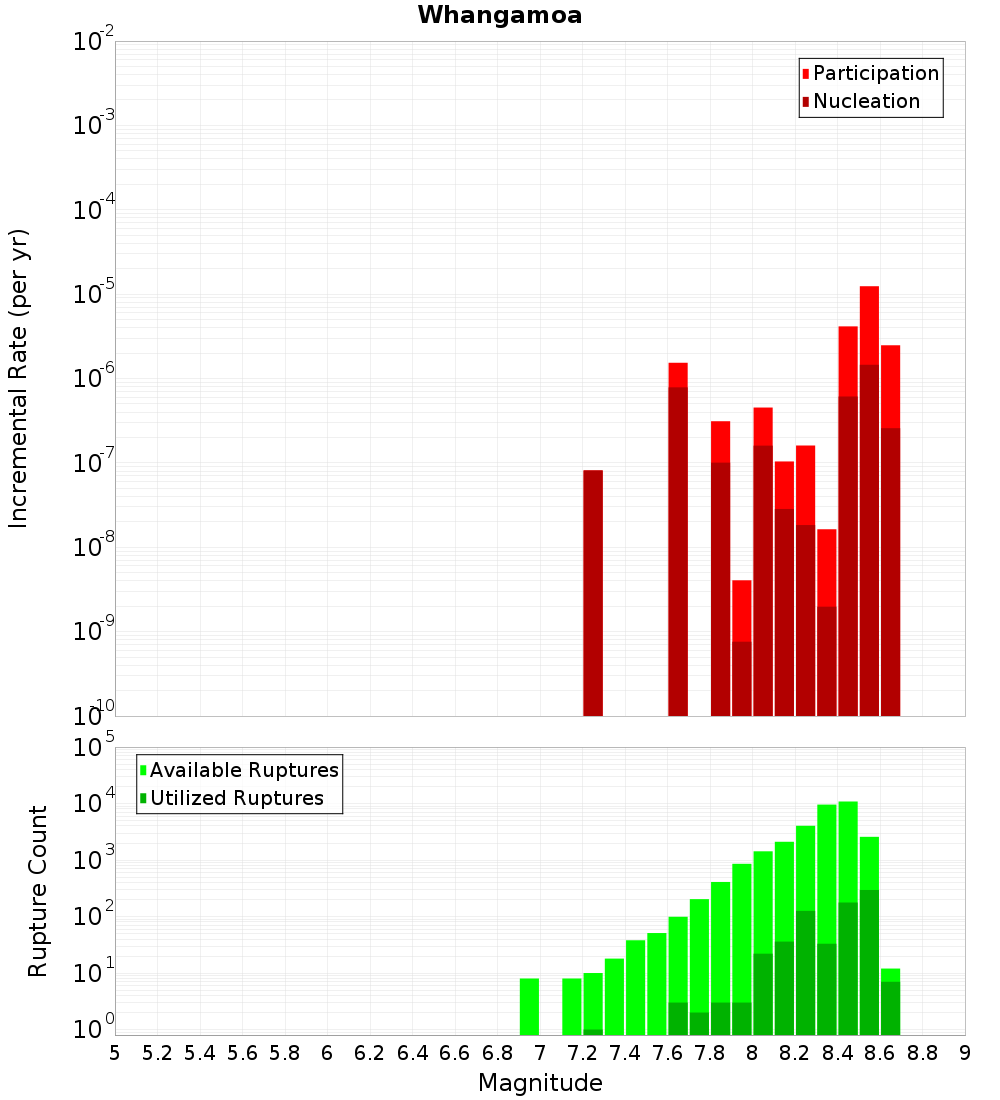

Magnitude-Frequency Distribution

Incremental	Cumulative

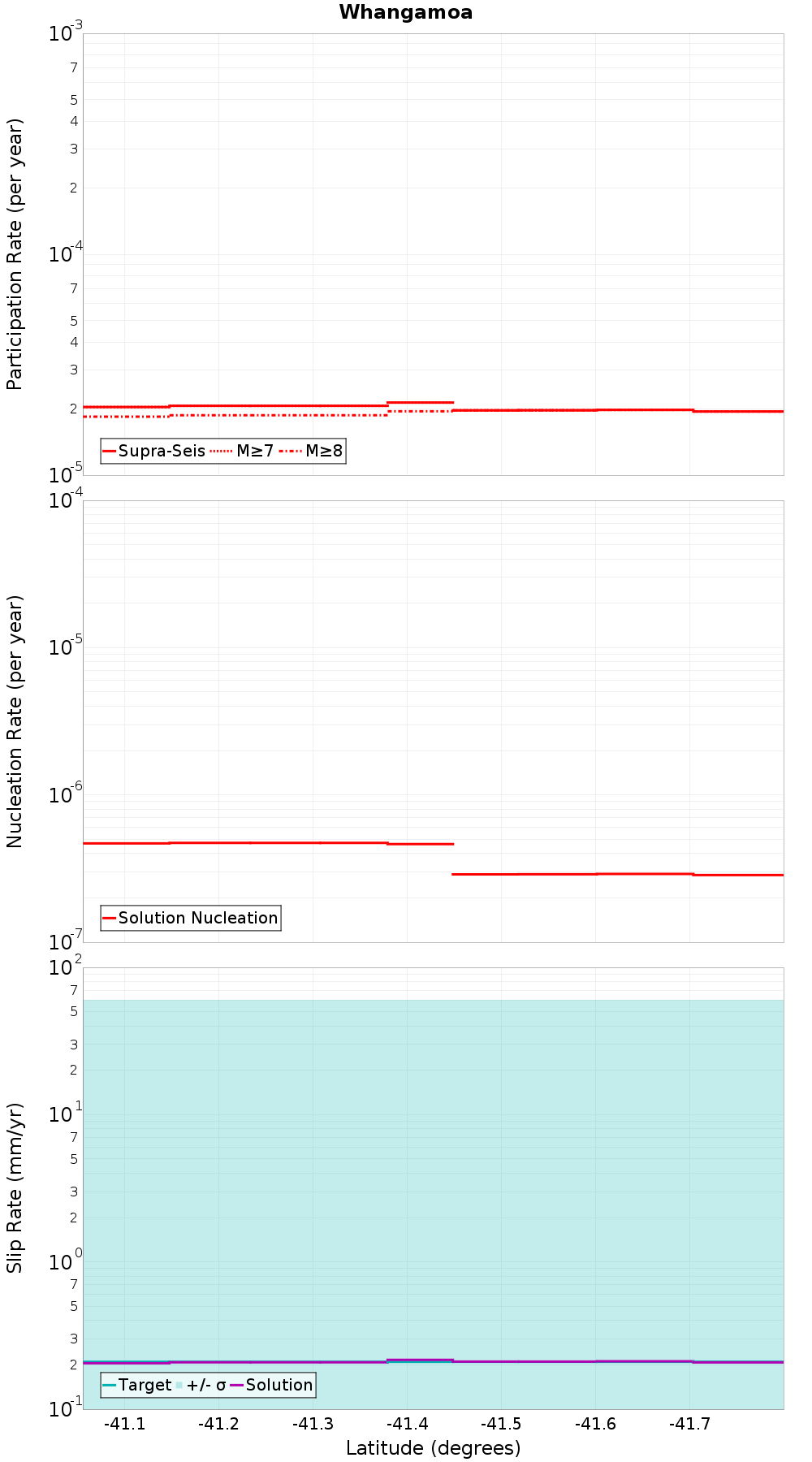

Along-Strike Values

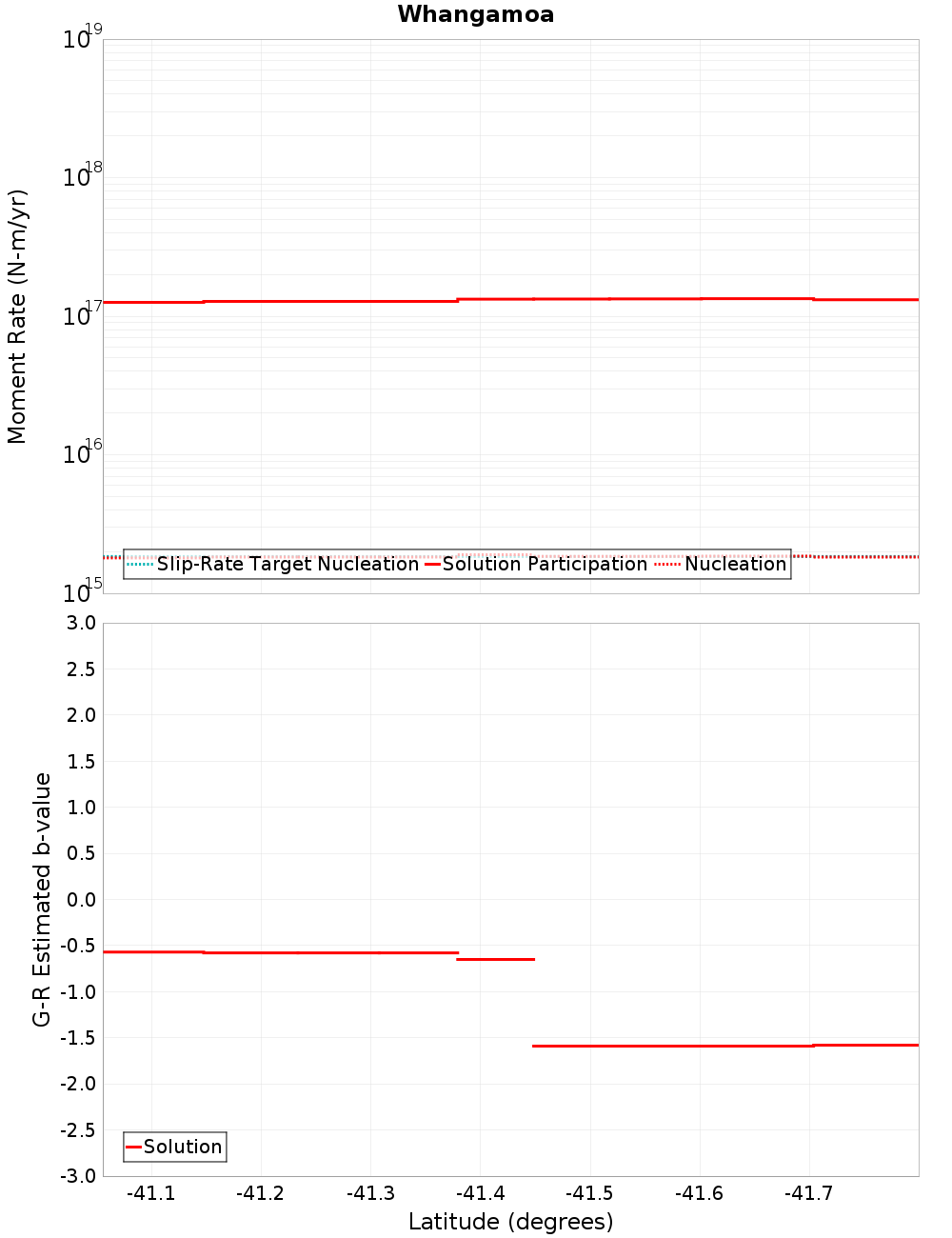

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Wairau, 0 km away
Waimea Offshore, 0.82 km away
Flaxmore - Waimea - Tahunanui, 2.28 km away
Surville, 14.06 km away
Tutaki, 14.86 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMDkuMFQ4YldI
Connected?	true
Directly Connected?	true
Co-rupture Count	31,470
Co-rupture Rate	1.9769972E-5

Wairau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMDkuMFQ4YldI
Connected?	true
Directly Connected?	true
Co-rupture Count	5,375
Co-rupture Rate	3.3480828E-7

Waimea Offshore, 0.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMDkuMFQ4YldI
Connected?	true
Directly Connected?	true
Co-rupture Count	12,245
Co-rupture Rate	1.0768484E-5

Flaxmore - Waimea - Tahunanui, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMDkuMFQ4YldI
Connected?	true
Directly Connected?	true
Co-rupture Count	4,716
Co-rupture Rate	2.6573389E-6

Surville, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMDkuMFQ4YldI
Connected?	true
Directly Connected?	true
Co-rupture Count	2,882
Co-rupture Rate	1.8680379E-6

Tutaki, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMDkuMFQ4YldI
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0
