The Humps Details

PropertyValue
Rupture Count2,781
Ruptures Above Sect Min Mag2,779
Ruptures w/ Nonzero Rates79
Magnitude Range[6.94, 8.45]
Length Range[20, 781] km
Total Rate1.13406844E-4 /yr
Multi-Fault Rate1.13406844E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults76

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

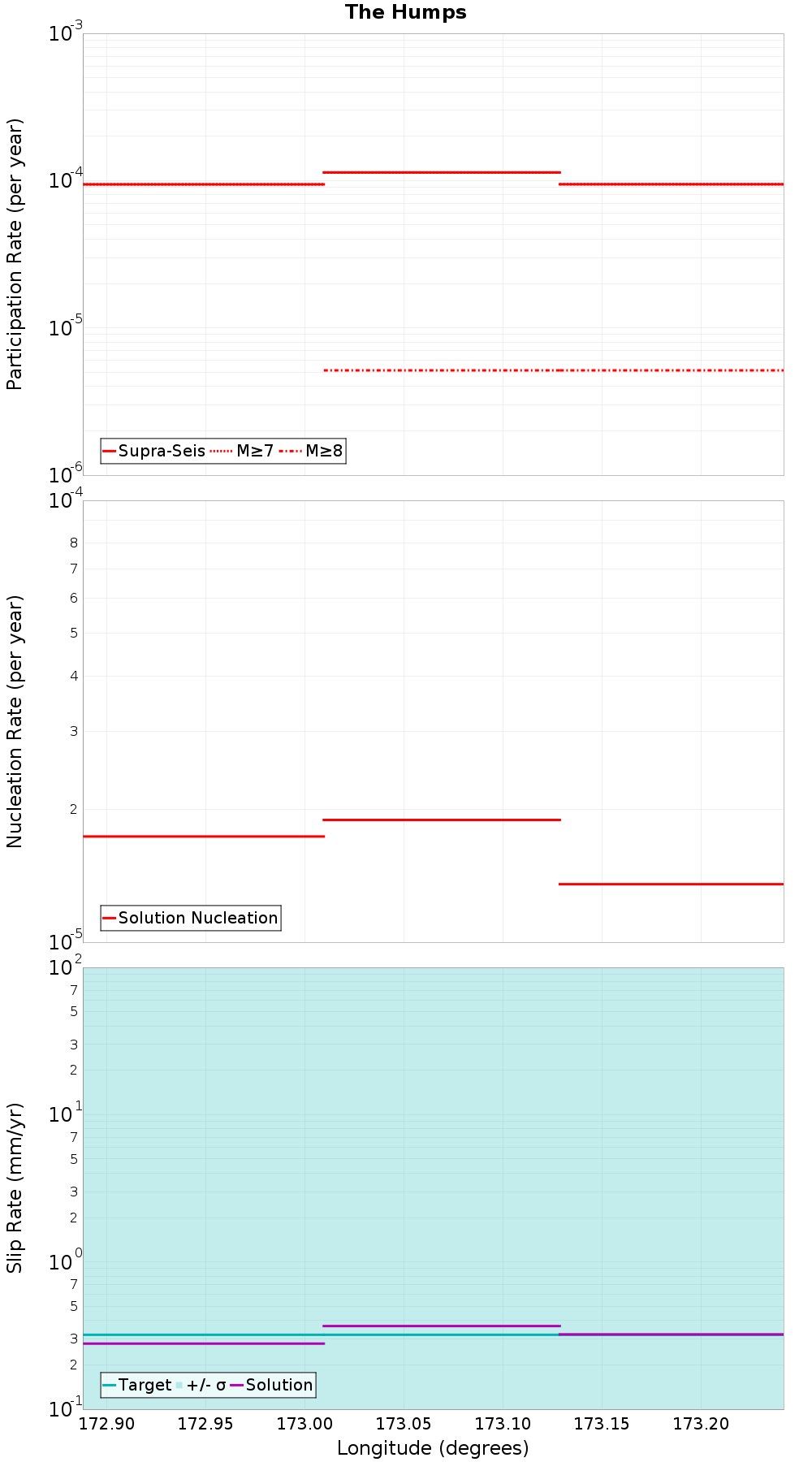

Along-Strike Values

(top)

Along-strike plot

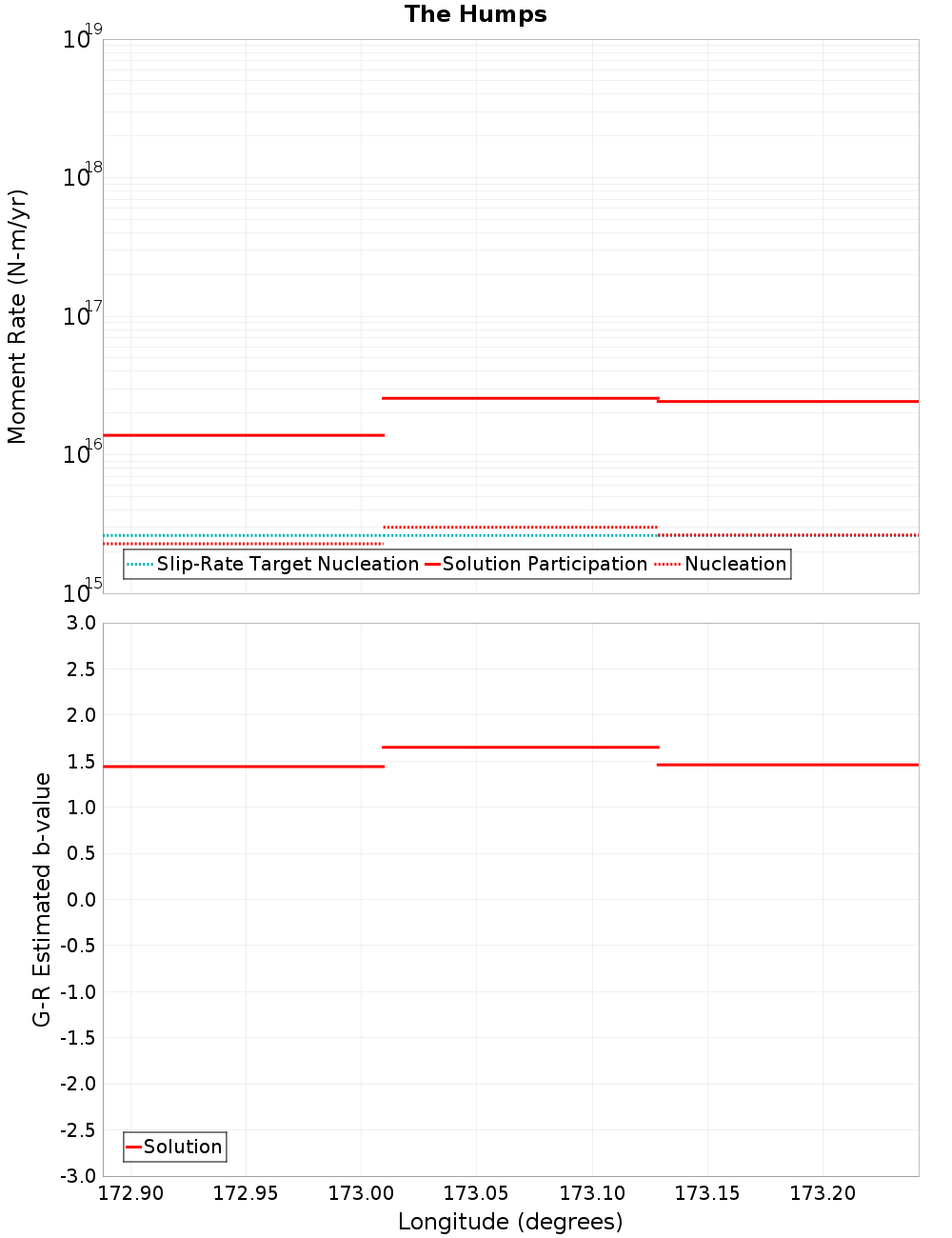

Moment-Rates and b-Values

(top)

Along-strike plot

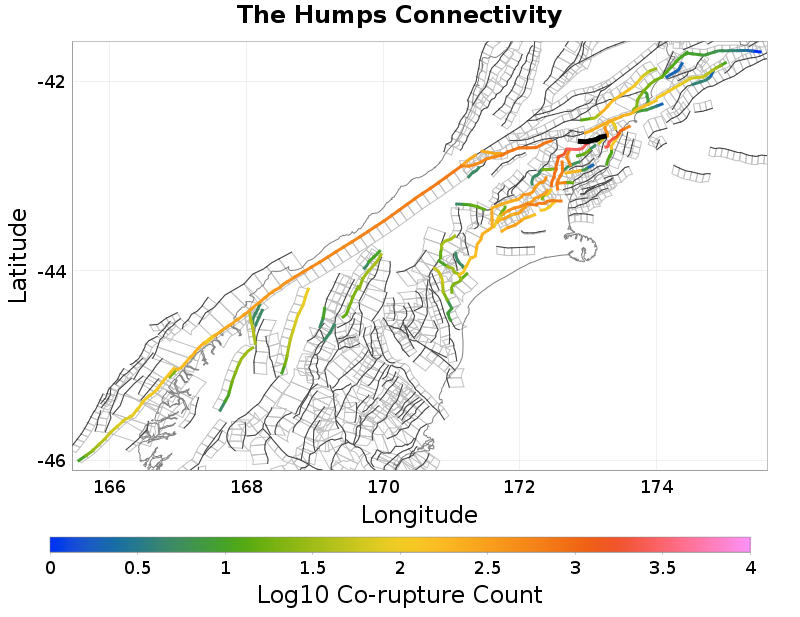

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kaiwara North, 0.22 km away
Hundalee, 0.25 km away
Leader: South, 0.28 km away
Mt Culverden, 1.72 km away
Leader: Central, 2.9 km away
Leonard Mound, 4.72 km away
Hope: Hamner SE, 7.7 km away
Lowry, 8.15 km away
Hanmer, 9.06 km away
Leader: North, 9.77 km away
Hope: Conway, 10.44 km away
Hope: Hamner SW, 10.61 km away
Hawkswood, 11.31 km away
StoneJug, 14.2 km away

Kaiwara North, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTEuME55Nk5y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hundalee, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTEuME55Nk5y
Connected?true
Directly Connected?true
Co-rupture Count2,395
Co-rupture Rate8.430764E-5

Leader: South, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTEuME55Nk5y
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate2.7092054E-5

Mt Culverden, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTEuME55Nk5y
Connected?true
Directly Connected?true
Co-rupture Count2,643
Co-rupture Rate1.9209303E-5

Leader: Central, 2.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTEuME55Nk5y
Connected?true
Directly Connected?false
Co-rupture Count460
Co-rupture Rate0.0

Leonard Mound, 4.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTEuME55Nk5y
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate8.1142694E-5

Hope: Hamner SE, 7.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTEuME55Nk5y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lowry, 8.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTEuME55Nk5y
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate1.7353603E-5

Hanmer, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTEuME55Nk5y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: North, 9.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTEuME55Nk5y
Connected?true
Directly Connected?false
Co-rupture Count186
Co-rupture Rate0.0

Hope: Conway, 10.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTEuME55Nk5y
Connected?true
Directly Connected?false
Co-rupture Count238
Co-rupture Rate0.0

Hope: Hamner SW, 10.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTEuME55Nk5y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkswood, 11.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTEuME55Nk5y
Connected?true
Directly Connected?false
Co-rupture Count124
Co-rupture Rate2.0326099E-10

StoneJug, 14.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTEuME55Nk5y
Connected?true
Directly Connected?false
Co-rupture Count81
Co-rupture Rate0.0
