Caswell 211 Details

PropertyValue
Rupture Count341
Ruptures Above Sect Min Mag336
Ruptures w/ Nonzero Rates19
Magnitude Range[6.72, 8.32]
Length Range[16, 605] km
Total Rate2.3089524E-4 /yr
Multi-Fault Rate2.3089524E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults20

Table Of Contents

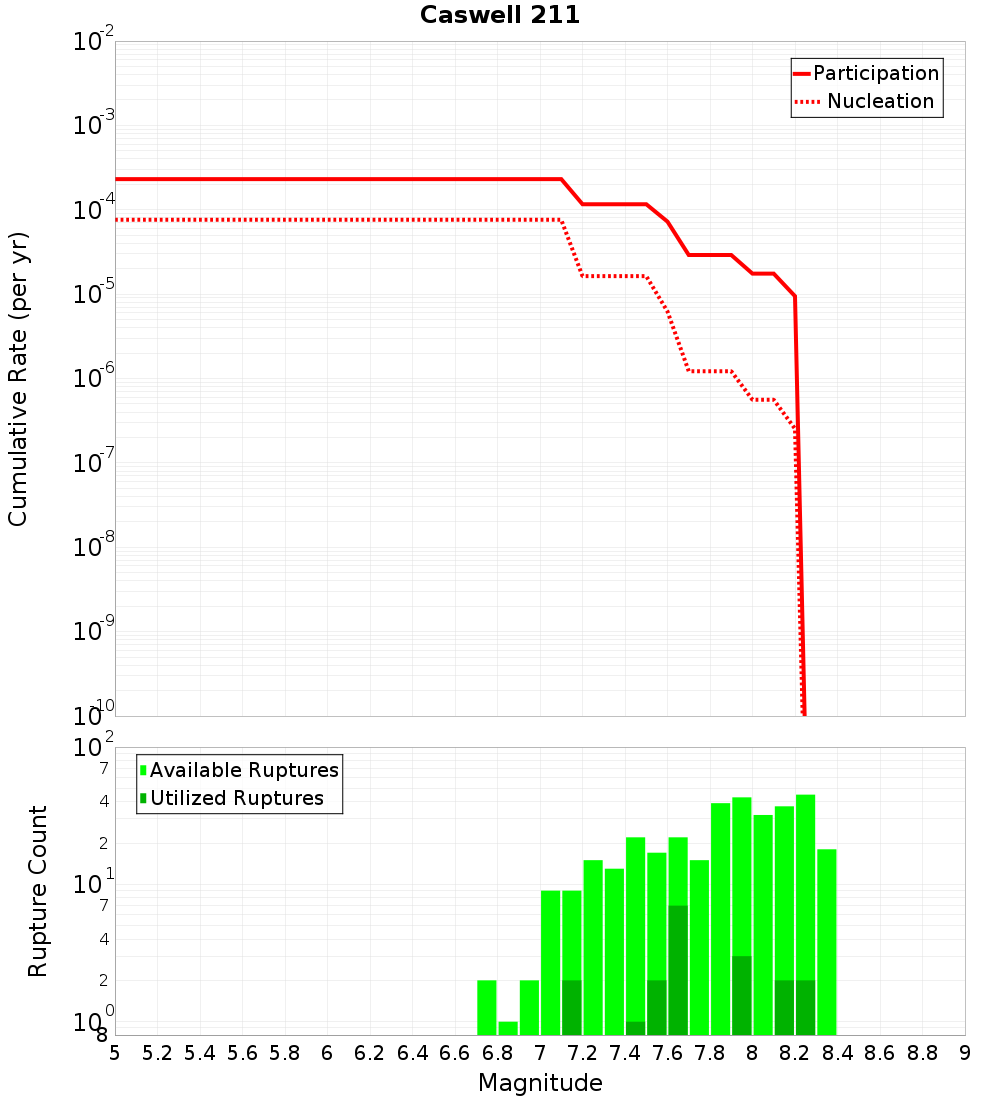

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

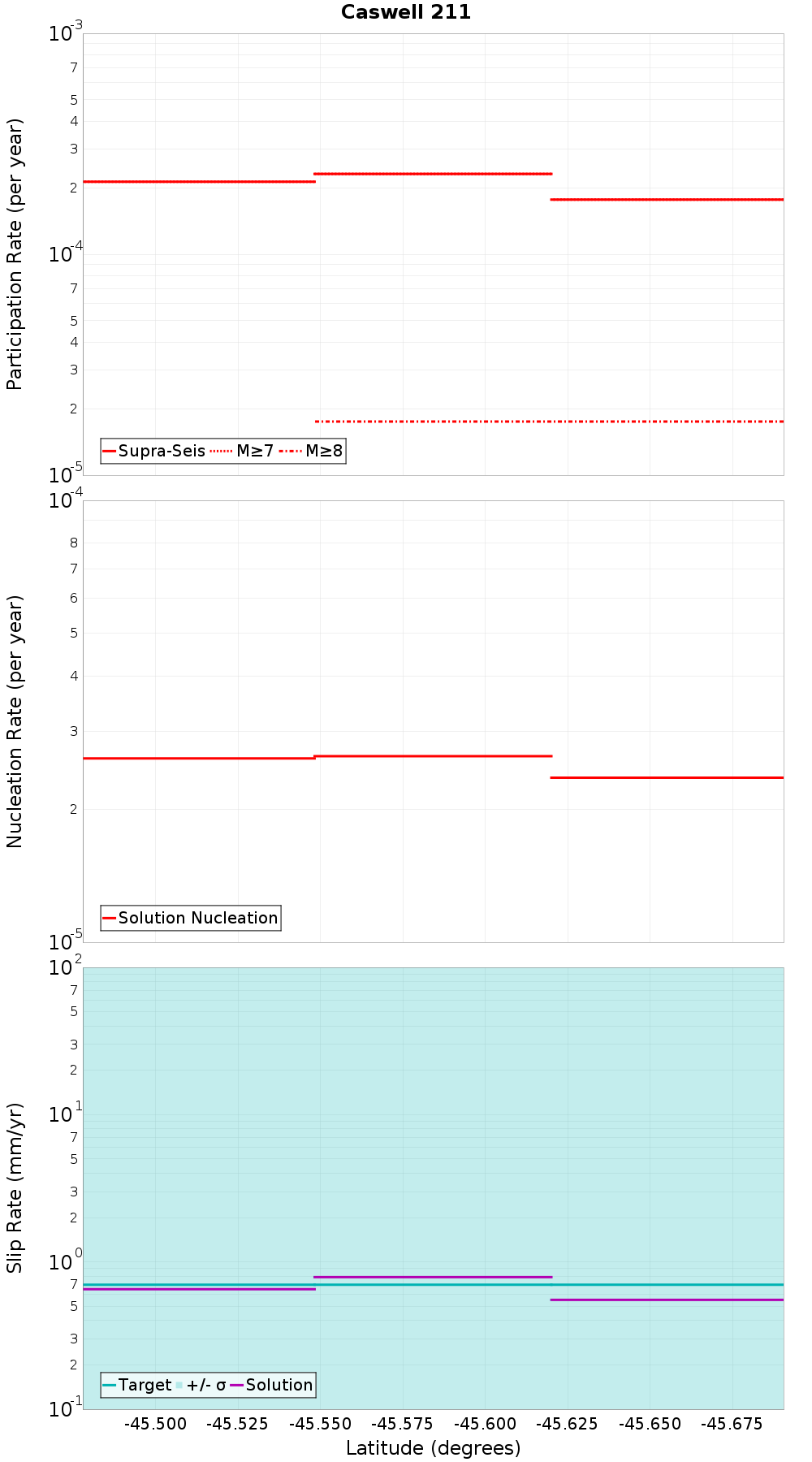

Along-Strike Values

(top)

Along-strike plot

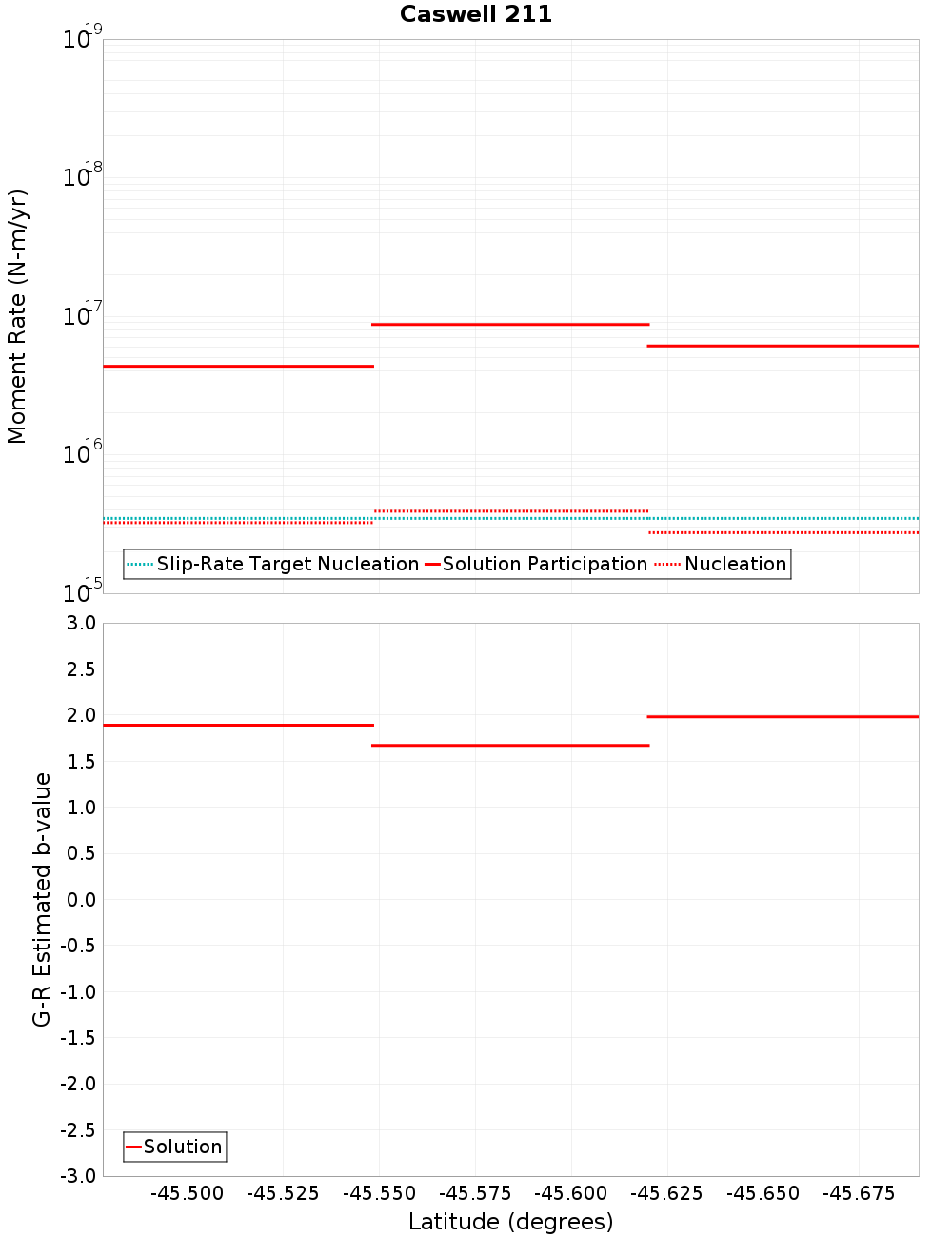

Moment-Rates and b-Values

(top)

Along-strike plot

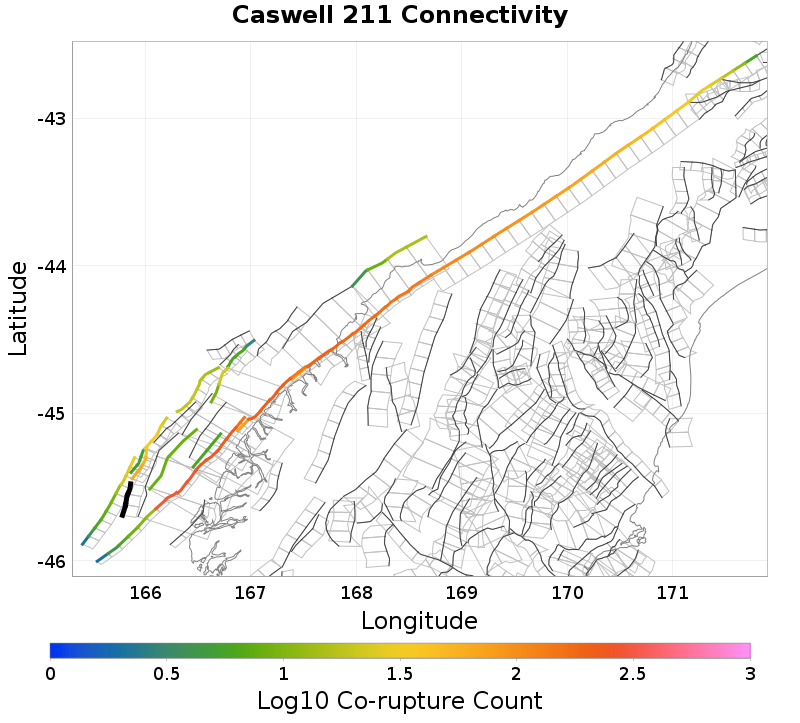

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Caswell High 3, 2.33 km away
Caswell High 1, 4.71 km away
Caswell High 4, 6.16 km away
Alpine: Resolution - Five Fingers, 8.78 km away
South Wedge 5, 9.58 km away
South Wedge 3-6-10, 12.6 km away

Caswell High 3, 2.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?true
Directly Connected?true
Co-rupture Count64
Co-rupture Rate1.5868476E-4

Caswell High 1, 4.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate5.4144602E-5

Caswell High 4, 6.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate9.8209035E-5

Alpine: Resolution - Five Fingers, 8.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?true
Directly Connected?true
Co-rupture Count289
Co-rupture Rate7.230129E-5

South Wedge 5, 9.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 3-6-10, 12.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate1.1602616E-5
