Maungatua - North Taieri Details

Property	Value
Rupture Count	83
Ruptures Above Sect Min Mag	82
Ruptures w/ Nonzero Rates	23
Magnitude Range	[7.12, 8.03]
Length Range	[26, 205] km
Total Rate	1.5950349E-5 /yr
Multi-Fault Rate	1.4016722E-5 /yr (87.88%)
Directly-Connected Faults	4
All Co-Rupturing Faults	19

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

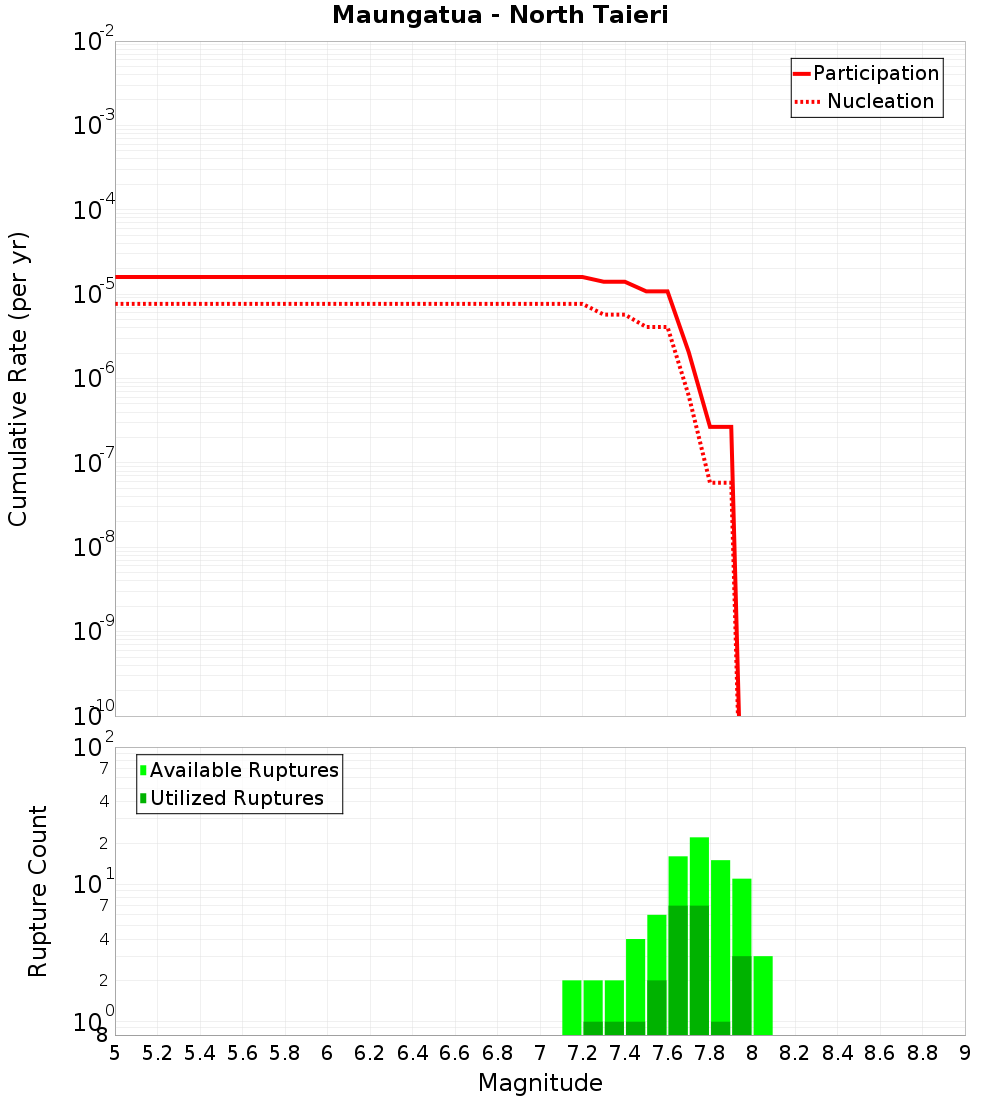

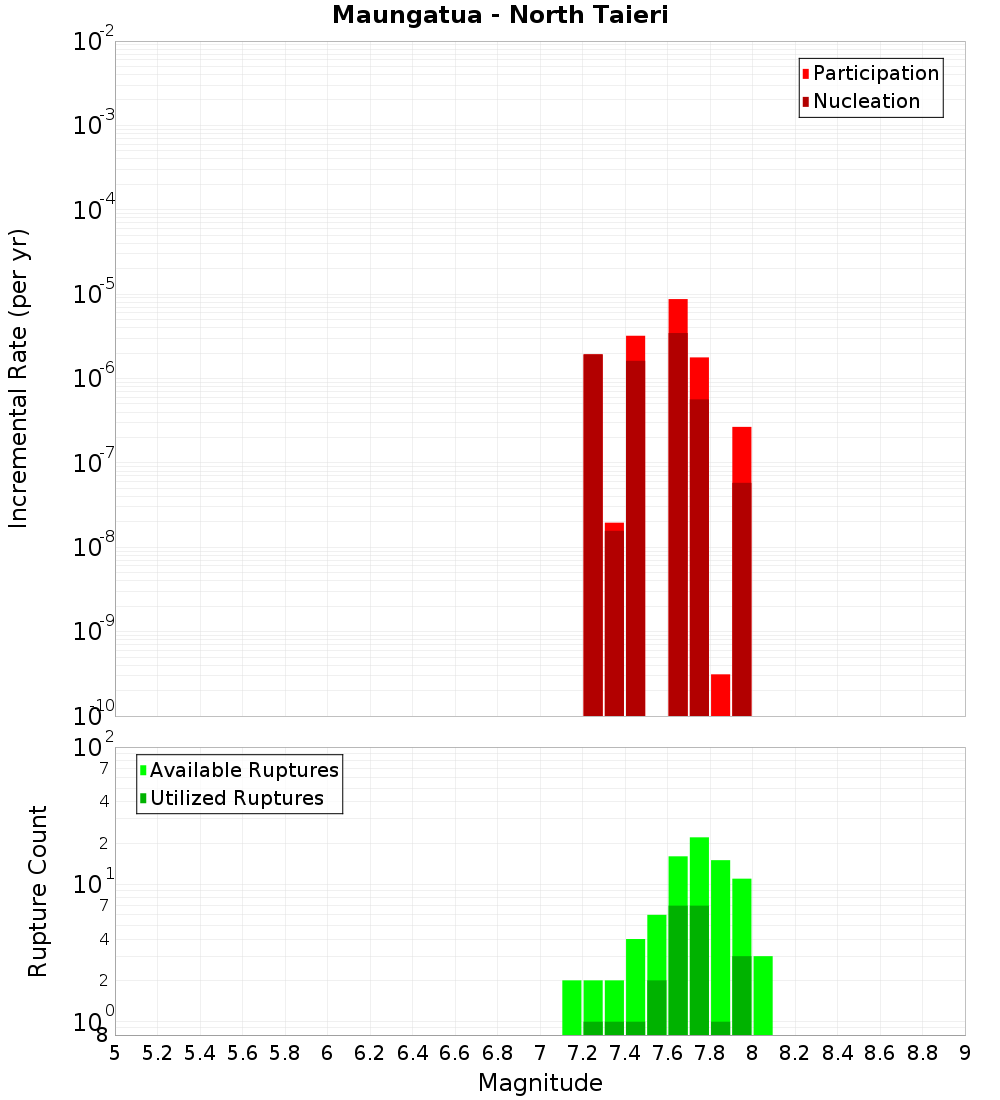

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

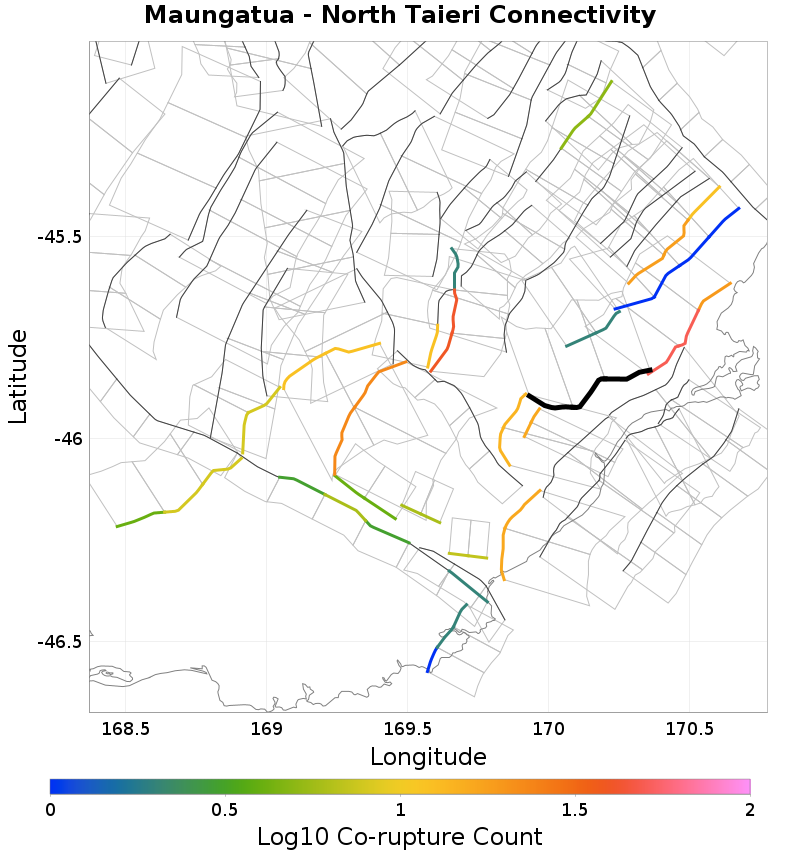

Connectivity

Nearby Sections

Fault Section
Sliver Stream - Merton, 0.13 km away
Beaumont River, 0.31 km away
Waitahuna 1, 0.31 km away
Logan Burn, 0.95 km away
Waitahuna 2, 1.55 km away
Titri North, 5.52 km away
Titri Central, 7.17 km away
Nichols Rock, 8.44 km away
Hyde South - The Twins, 9.58 km away
Kaikorai, 10.06 km away
Flat Stream - Glenpark, 11.66 km away
Green Island, 13.31 km away
Pylap, 14.96 km away

Sliver Stream - Merton, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?	true
Directly Connected?	true
Co-rupture Count	50
Co-rupture Rate	1.1249824E-6

Beaumont River, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?	true
Directly Connected?	true
Co-rupture Count	41
Co-rupture Rate	1.1891182E-6

Waitahuna 1, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	7.352034E-6

Logan Burn, 0.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 2, 1.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?	true
Directly Connected?	true
Co-rupture Count	16
Co-rupture Rate	6.91286E-6

Titri North, 5.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Titri Central, 7.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Nichols Rock, 8.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	4.2390076E-7

Hyde South - The Twins, 9.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaikorai, 10.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Flat Stream - Glenpark, 11.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	4.2390076E-7

Green Island, 13.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pylap, 14.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
