Otara West 2 Details

PropertyValue
Rupture Count45
Ruptures Above Sect Min Mag45
Ruptures w/ Nonzero Rates26
Magnitude Range[7.03, 7.75]
Length Range[21, 126] km
Total Rate7.494879E-5 /yr
Multi-Fault Rate7.494879E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults13

Table Of Contents

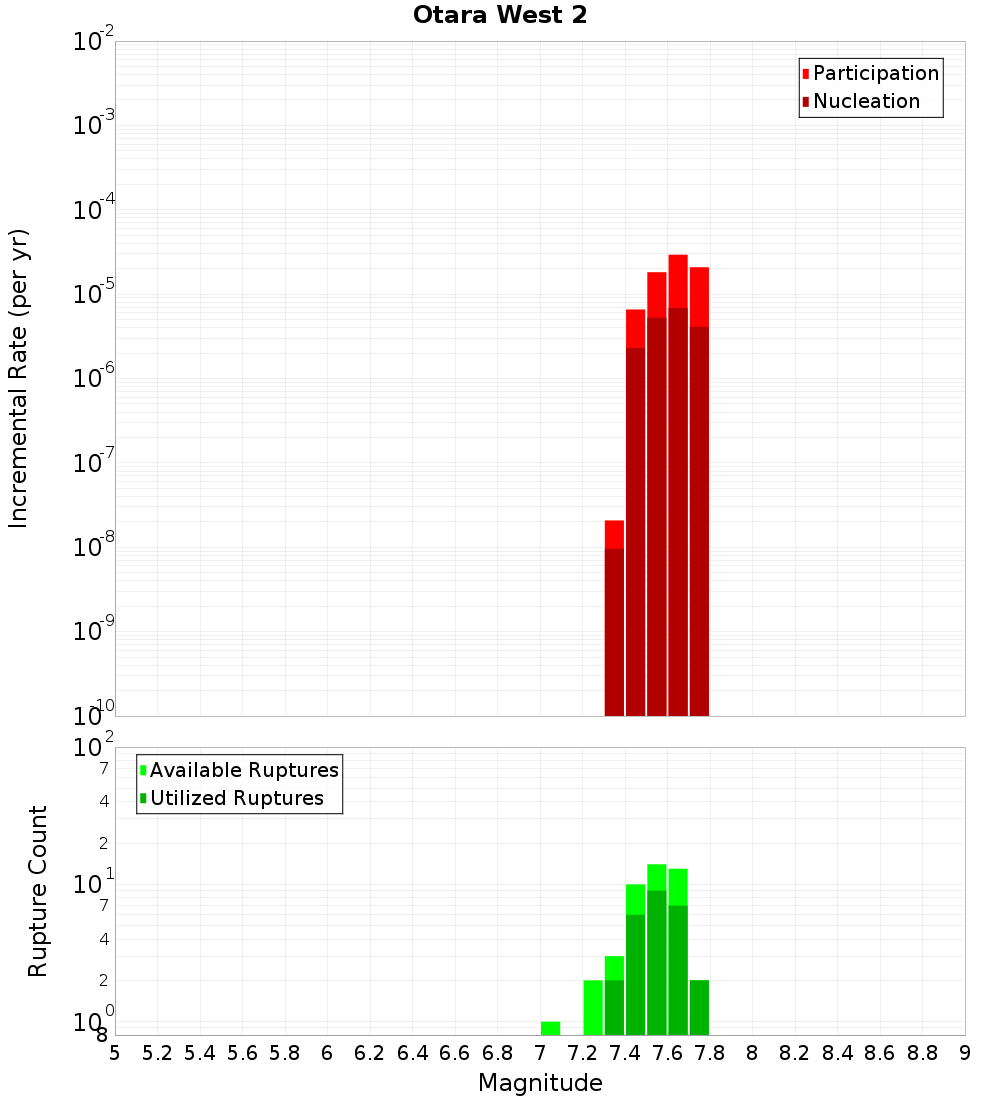

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Otara West 3, 0.15 km away
Tuakana 7, 0.26 km away
Tuakana 6, 0.52 km away
Otara West 1, 0.97 km away
Otara East 2, 1.77 km away
Otara East 1, 3.71 km away
Volkner 4, 4.44 km away
Te Arawa 3, 8.79 km away
Tauranga Trough East 2, 9.83 km away
Te Arawa 2, 11.66 km away
Volkner 3, 12.93 km away
Ohena 3, 13.25 km away
Ohena 2, 14.35 km away

Otara West 3, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Tuakana 7, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate7.474796E-12

Tuakana 6, 0.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate7.2655035E-5

Otara West 1, 0.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.5547802E-6

Otara East 2, 1.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara East 1, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 4, 4.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate1.5598492E-6

Te Arawa 3, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tauranga Trough East 2, 9.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?true
Directly Connected?true
Co-rupture Count36
Co-rupture Rate6.910421E-5

Te Arawa 2, 11.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 3, 12.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate7.0883194E-5

Ohena 3, 13.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate2.9291423E-5

Ohena 2, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate2.7501665E-5
