White Creek - buried Details
| Property | Value |
|---|---|
| Rupture Count | 7,619 |
| Ruptures Above Sect Min Mag | 7,618 |
| Ruptures w/ Nonzero Rates | 90 |
| Magnitude Range | [6.84, 8.46] |
| Length Range | [19, 816] km |
| Total Rate | 6.414939E-5 /yr |
| Multi-Fault Rate | 6.414939E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 60 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

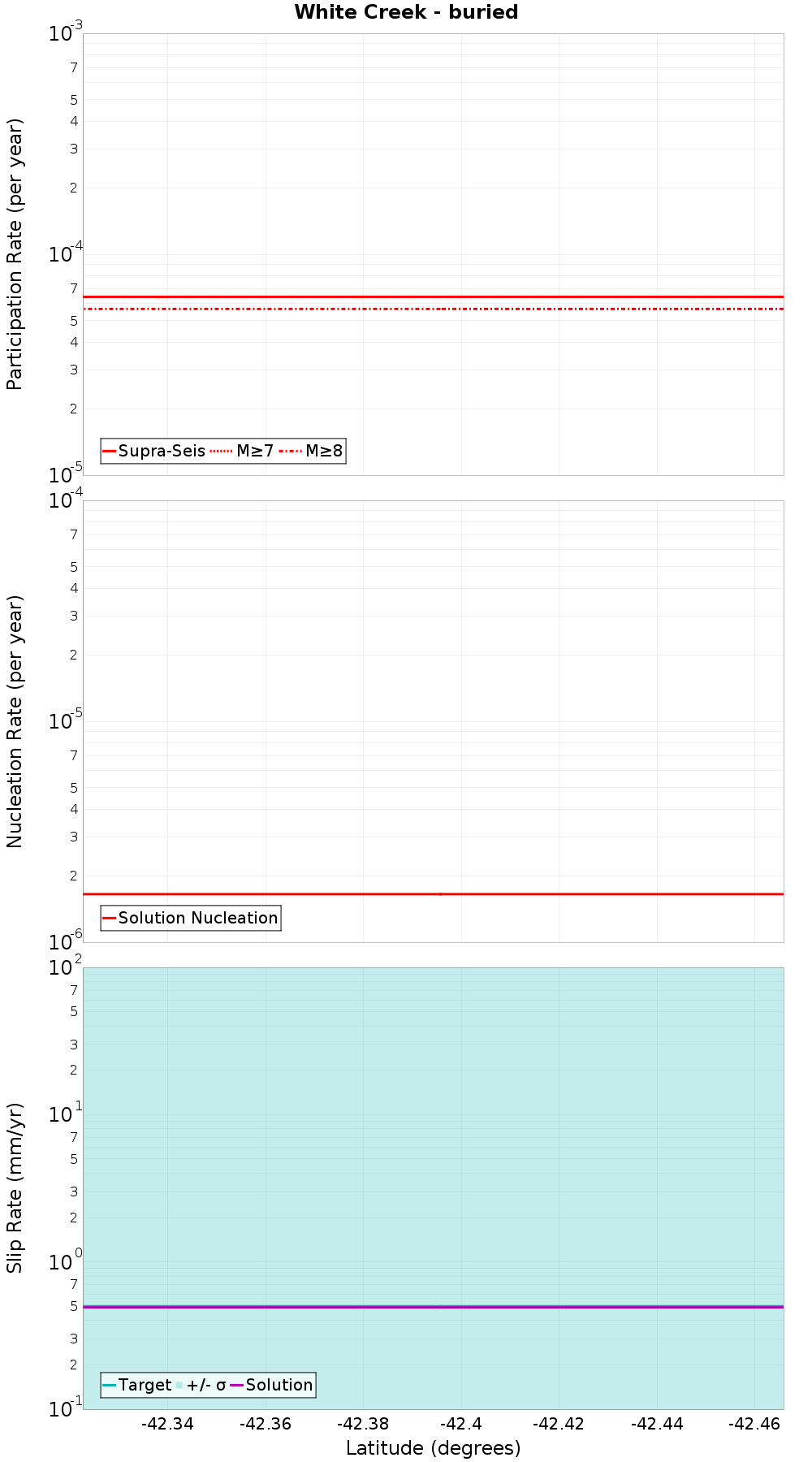

Along-Strike Values
Moment-Rates and b-Values

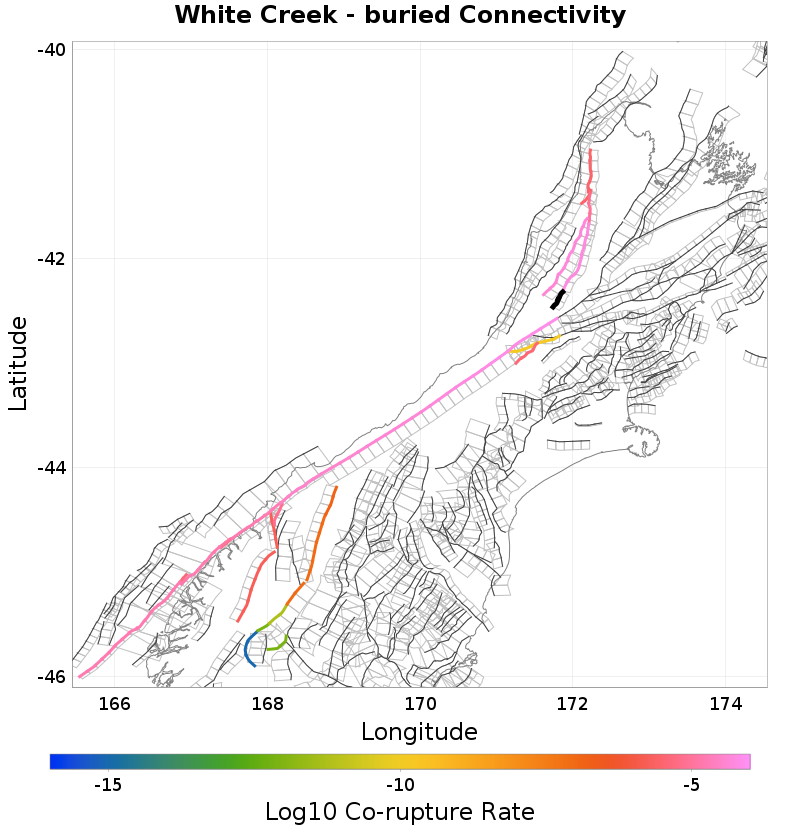

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| White Creek, 0.99 km away |
| Clarence: Southwest, 6.06 km away |
| Lyell South, 7.39 km away |
| Alpine: Kaniere to Springs Junction, 12.03 km away |
White Creek, 0.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,115 |
| Co-rupture Rate | 5.8710222E-5 |
Clarence: Southwest, 6.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lyell South, 7.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,318 |
| Co-rupture Rate | 4.9599003E-5 |
Alpine: Kaniere to Springs Junction, 12.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMTMuMFBBdDI1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,539 |
| Co-rupture Rate | 6.414939E-5 |
