South Wedge 1 Details

Property	Value
Rupture Count	253
Ruptures Above Sect Min Mag	253
Ruptures w/ Nonzero Rates	13
Magnitude Range	[7.22, 8.52]
Length Range	[32, 864] km
Total Rate	1.0940877E-4 /yr
Multi-Fault Rate	1.0940877E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	37

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

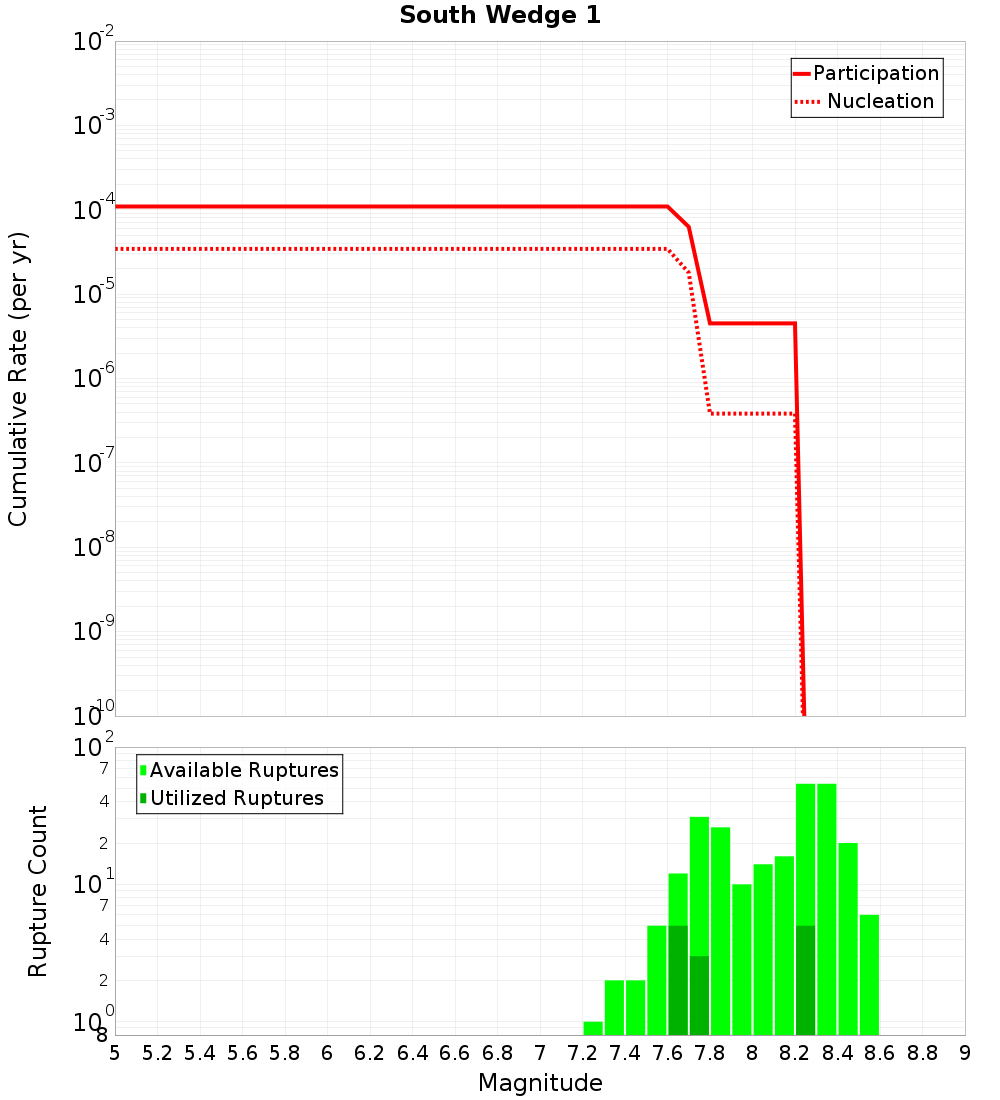

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

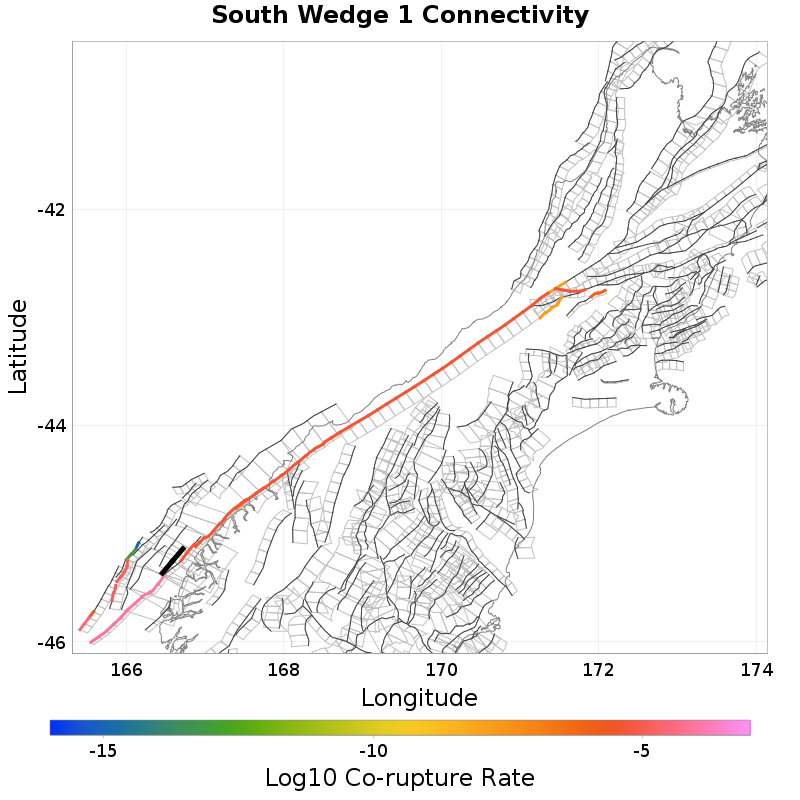

Connectivity

Nearby Sections

Fault Section
South Wedge 2, 0.05 km away
South Wedge 5, 0.1 km away
Alpine: Resolution - Dagg, 0.22 km away
South Wedge 3-6-10, 0.29 km away
Central Wedge 4 - South Wedge 411, 0.35 km away
Alpine: Nancy, 8.89 km away
Alpine: Resolution - Charles, 10.28 km away

South Wedge 2, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjEuMHB2VldQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

South Wedge 5, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjEuMHB2VldQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Resolution - Dagg, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjEuMHB2VldQ
Connected?	true
Directly Connected?	true
Co-rupture Count	251
Co-rupture Rate	1.0940877E-4

South Wedge 3-6-10, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjEuMHB2VldQ
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	0.0

Central Wedge 4 - South Wedge 411, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjEuMHB2VldQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Nancy, 8.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjEuMHB2VldQ
Connected?	true
Directly Connected?	false
Co-rupture Count	215
Co-rupture Rate	4.4945955E-6

Alpine: Resolution - Charles, 10.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjEuMHB2VldQ
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	0.0
