Cardrona - Hawea Details

Property	Value
Rupture Count	16,987
Ruptures Above Sect Min Mag	16,986
Ruptures w/ Nonzero Rates	195
Magnitude Range	[6.94, 8.51]
Length Range	[21, 771] km
Total Rate	8.179447E-6 /yr
Multi-Fault Rate	8.179447E-6 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	80

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

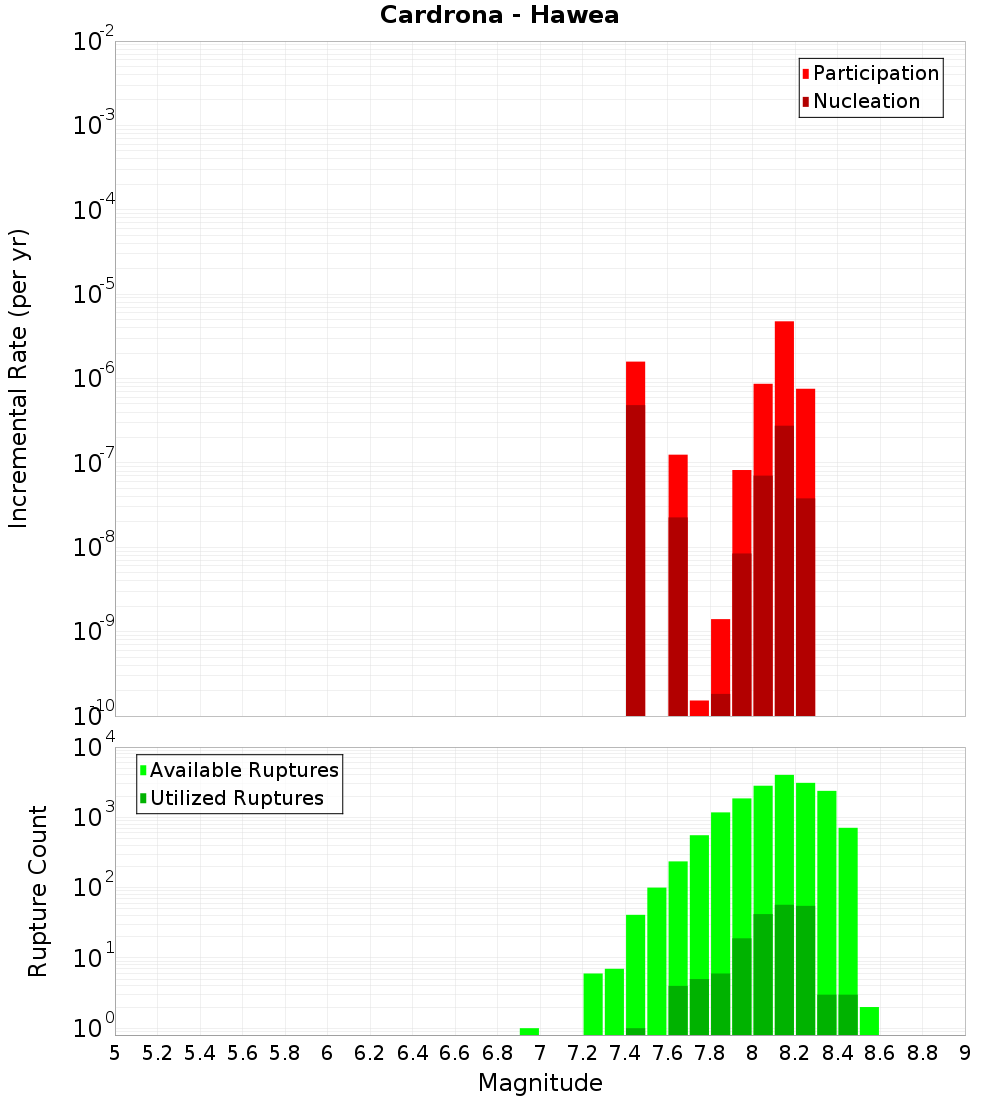

Magnitude-Frequency Distribution

Incremental	Cumulative

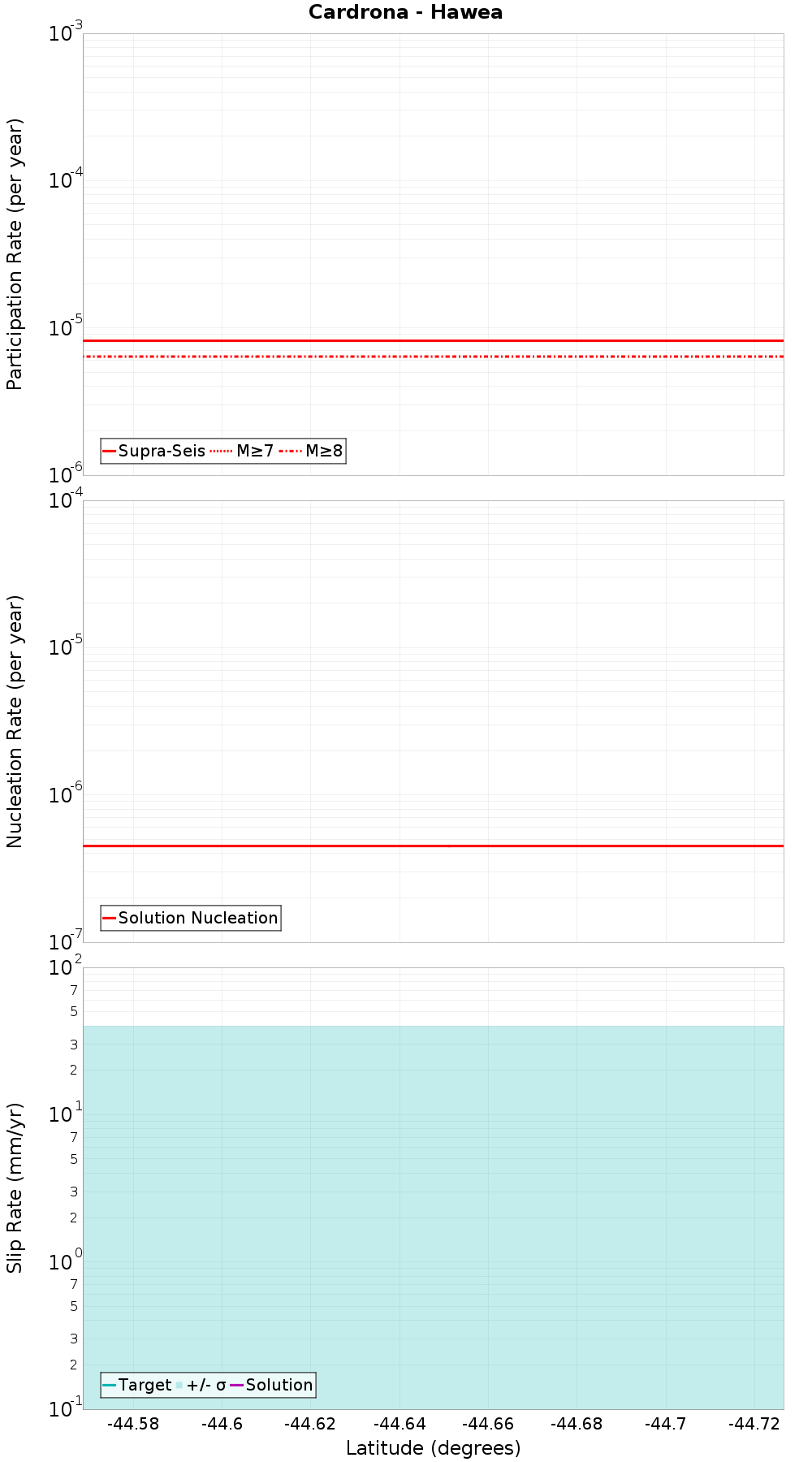

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wanaka, 0.24 km away
Motatapu, 0.37 km away
Hunter Valley, 0.67 km away
Grandview, 0.97 km away
Paddys Ridge, 1.23 km away
NW Cardrona North, 1.36 km away
Timaru Creek, 4.34 km away
Dingle, 11.82 km away
Lindis River, 12.02 km away
Pisa, 13.25 km away

Wanaka, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?	true
Directly Connected?	true
Co-rupture Count	5,804
Co-rupture Rate	1.2486568E-13

Motatapu, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,938
Co-rupture Rate	4.963932E-6

Hunter Valley, 0.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?	true
Directly Connected?	true
Co-rupture Count	7,024
Co-rupture Rate	5.568696E-6

Grandview, 0.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?	true
Directly Connected?	false
Co-rupture Count	66
Co-rupture Rate	0.0

Paddys Ridge, 1.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?	true
Directly Connected?	true
Co-rupture Count	6,842
Co-rupture Rate	3.6920076E-7

NW Cardrona North, 1.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?	true
Directly Connected?	true
Co-rupture Count	6,271
Co-rupture Rate	2.846315E-6

Timaru Creek, 4.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?	true
Directly Connected?	true
Co-rupture Count	4,044
Co-rupture Rate	2.6107505E-6

Dingle, 11.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?	true
Directly Connected?	false
Co-rupture Count	5,391
Co-rupture Rate	5.636275E-13

Lindis River, 12.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pisa, 13.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?	true
Directly Connected?	false
Co-rupture Count	9,171
Co-rupture Rate	3.5663103E-7
