Rauoterangi Details

PropertyValue
Rupture Count109
Ruptures Above Sect Min Mag108
Ruptures w/ Nonzero Rates22
Magnitude Range[7.09, 8.02]
Length Range[24, 245] km
Total Rate9.607809E-5 /yr
Multi-Fault Rate6.873746E-5 /yr (71.54%)
Directly-Connected Faults3
All Co-Rupturing Faults16

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

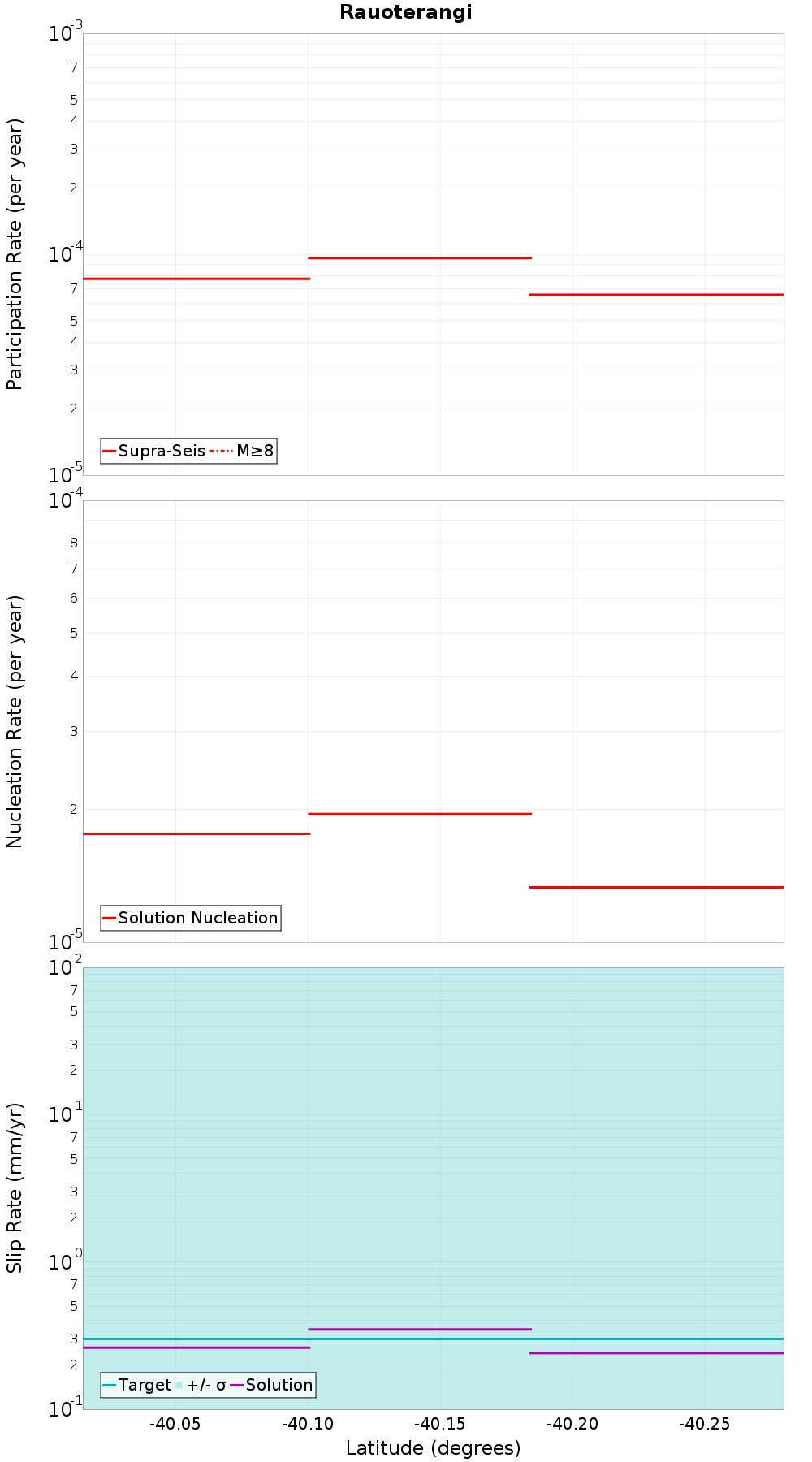

Along-Strike Values

(top)

Along-strike plot

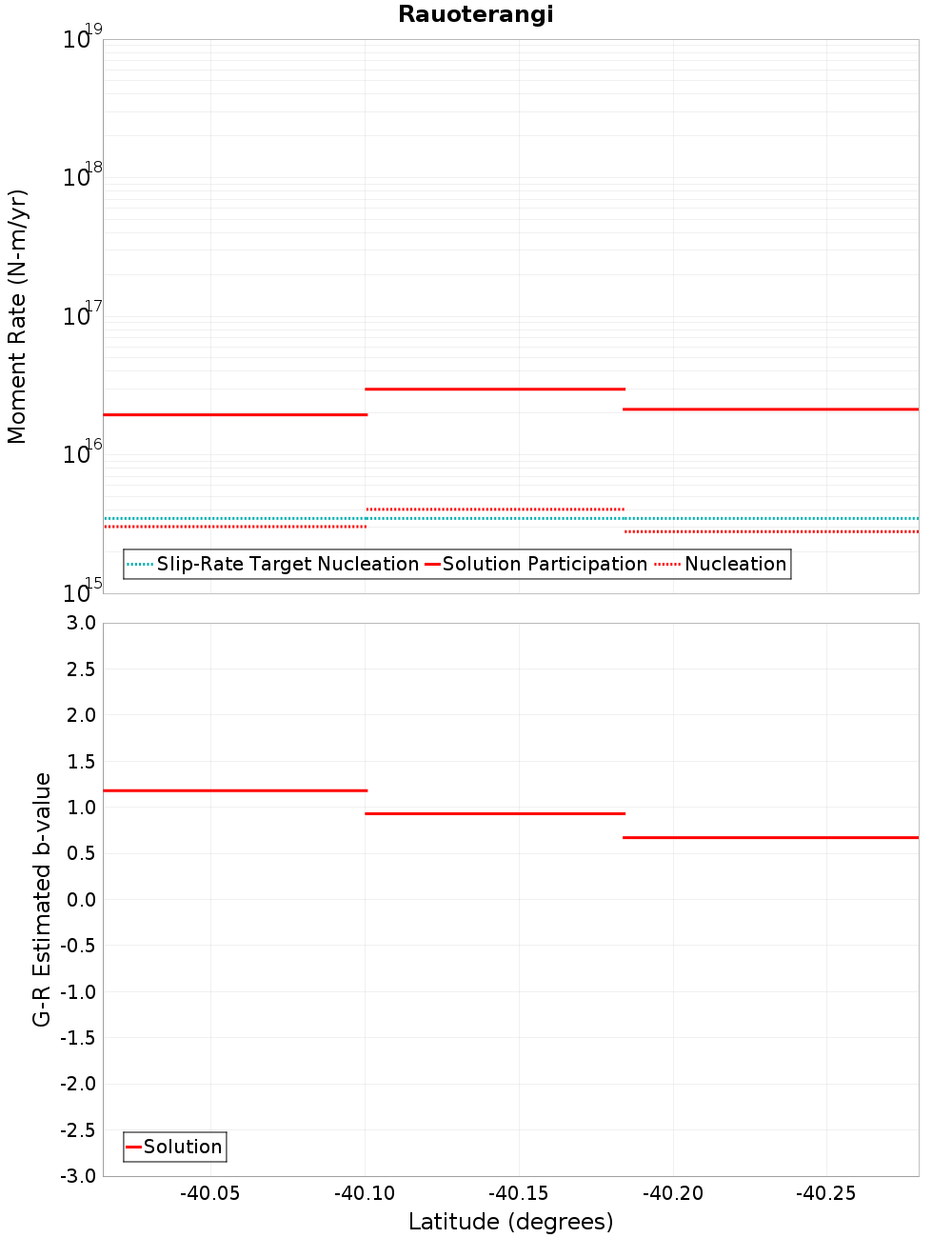

Moment-Rates and b-Values

(top)

Along-strike plot

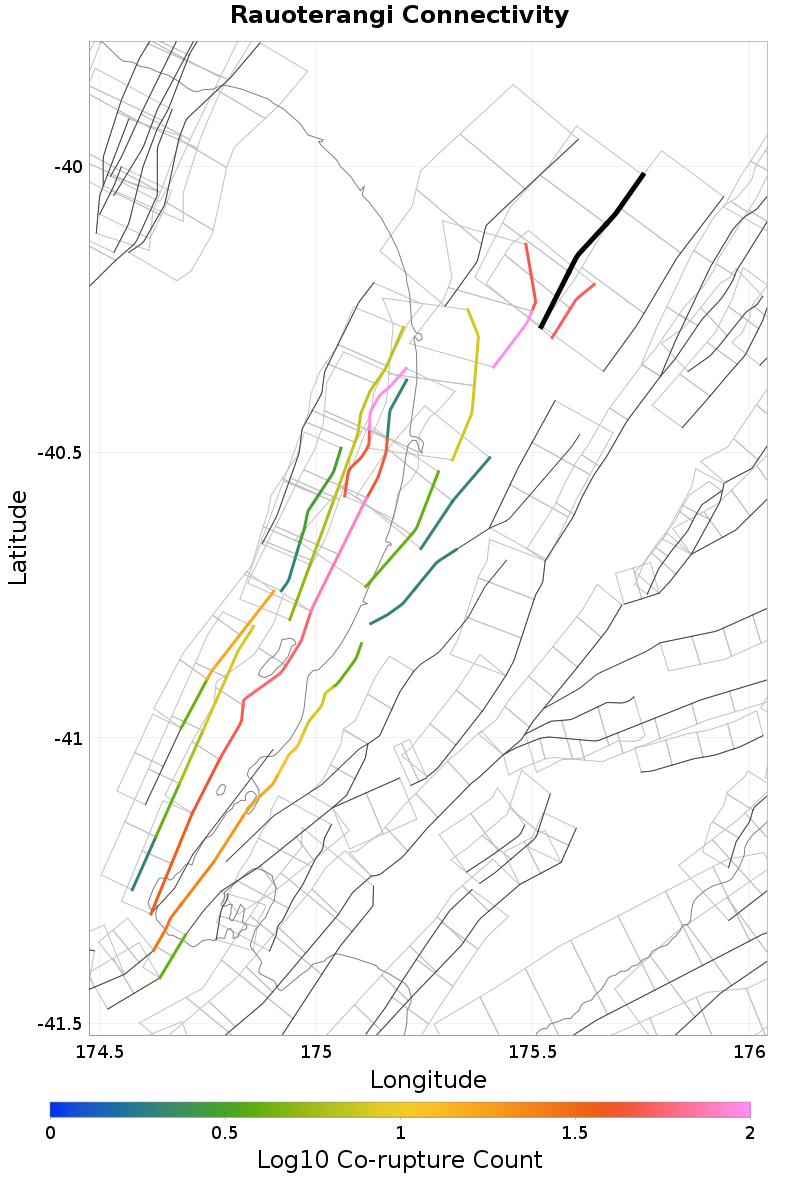

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mt Stewart, 2.5 km away
Taonui, 2.62 km away
Mascarin, 11.5 km away
Himatangi, 11.71 km away
Leedstown, 12.42 km away
Pohangina, 12.82 km away
Tokomaru, 14.68 km away

Mt Stewart, 2.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?true
Directly Connected?true
Co-rupture Count97
Co-rupture Rate3.7406975E-5

Taonui, 2.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?true
Directly Connected?true
Co-rupture Count52
Co-rupture Rate1.99746E-5

Mascarin, 11.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Himatangi, 11.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate1.9594187E-5

Leedstown, 12.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pohangina, 12.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tokomaru, 14.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
