Waimanawa - Waikaremoana Details
| Property | Value |
|---|---|
| Rupture Count | 628 |
| Ruptures Above Sect Min Mag | 627 |
| Ruptures w/ Nonzero Rates | 24 |
| Magnitude Range | [6.65, 8.44] |
| Length Range | [15, 750] km |
| Total Rate | 2.2841629E-4 /yr |
| Multi-Fault Rate | 2.2841629E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 56 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

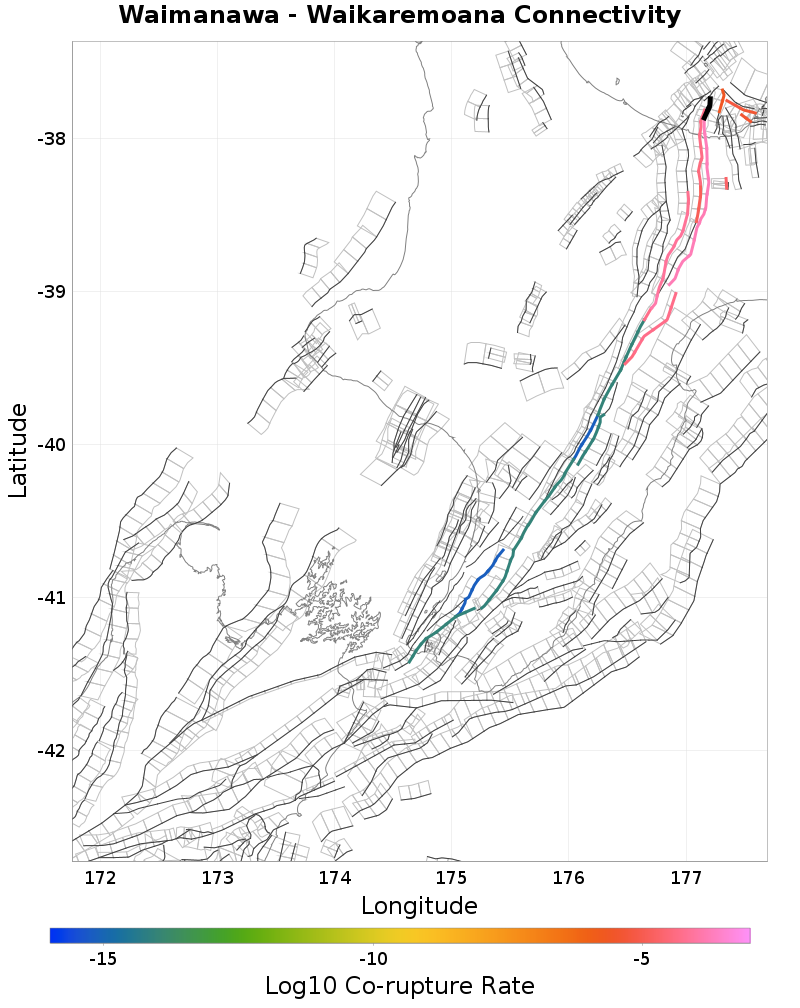

Connectivity
 |  |
|---|
Nearby Sections
Waimana: North, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 172 |
| Co-rupture Rate | 4.4585424E-5 |
Waiotahi: North, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 454 |
| Co-rupture Rate | 1.8383087E-4 |
White Island 2, 1.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohiwa 1, 4.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Island 1, 5.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rangitaiki 2, 6.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Whakaari 4, 7.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opotiki 3, 7.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 2.2150143E-6 |
Ohae 1, 7.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opotiki 2, 10.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Keepa, 10.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohae 2, 11.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 6.0907473E-6 |
Opape 1, 11.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tirohanga, 12.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rangitaiki 1, 12.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kotare - Moutuhora, 14.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Calypso 2, 14.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
