West Balleny Details
| Property | Value |
|---|---|
| Rupture Count | 77 |
| Ruptures Above Sect Min Mag | 32 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [6.49, 7.38] |
| Length Range | [14, 103] km |
| Total Rate | 6.8505225E-4 /yr |
| Multi-Fault Rate | 4.4847908E-4 /yr (65.47%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

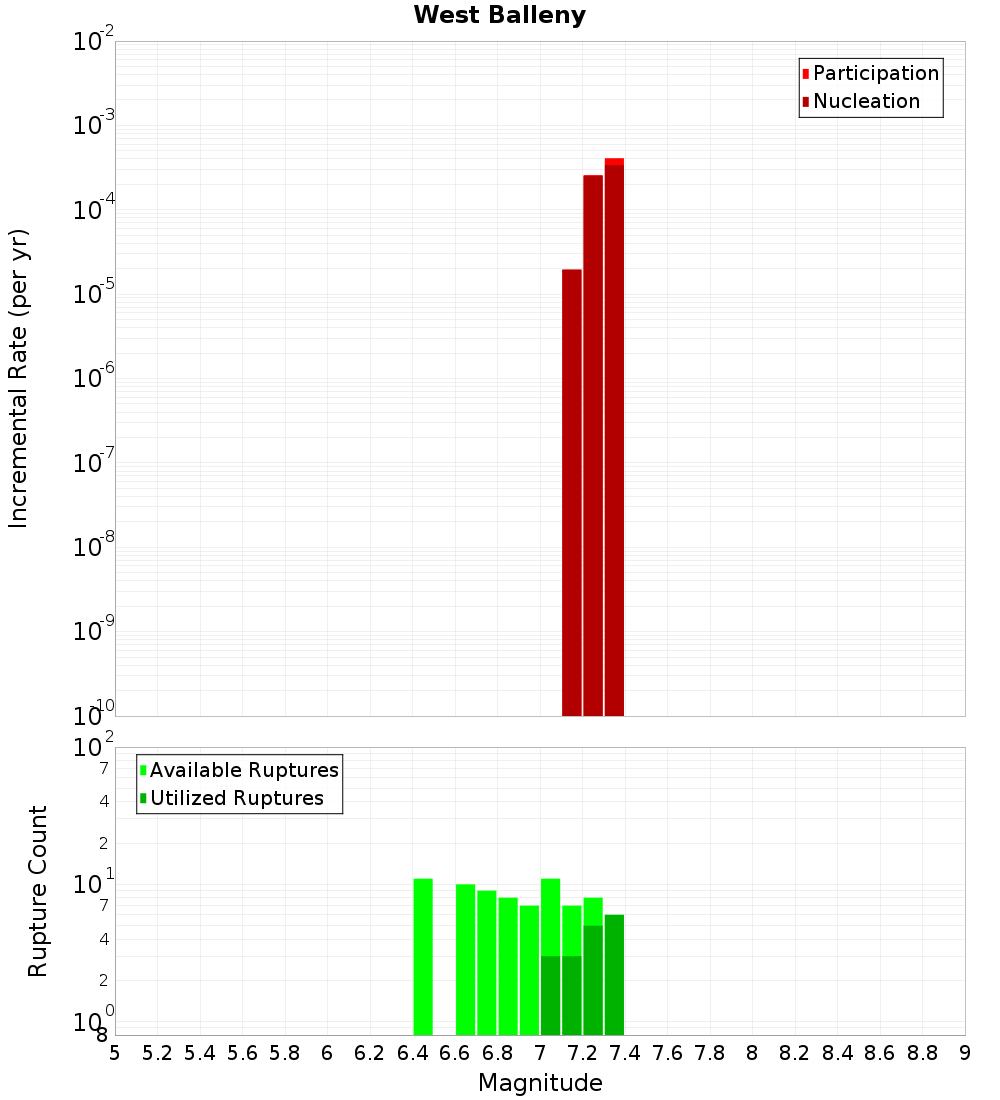

Magnitude-Frequency Distribution

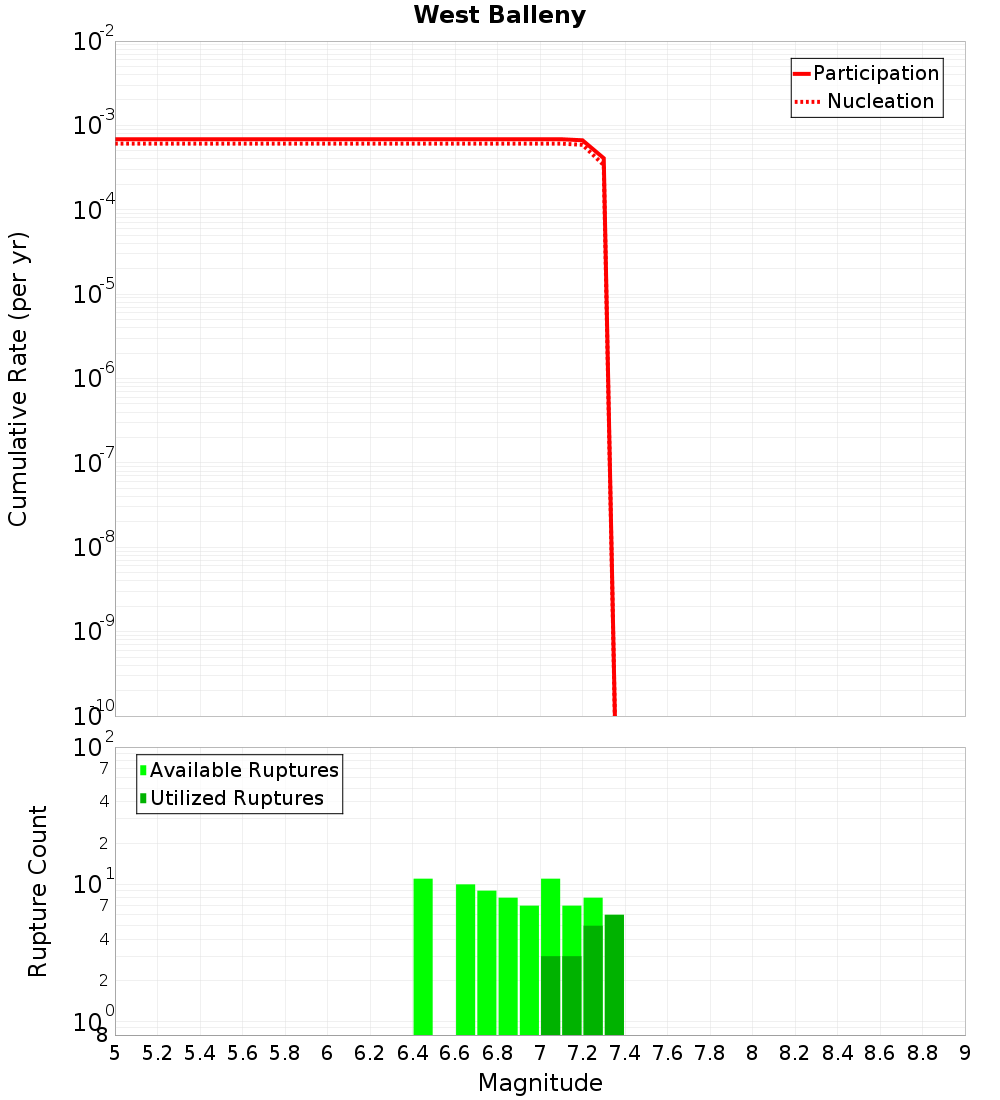

| Incremental | Cumulative |
|---|---|
 |  |

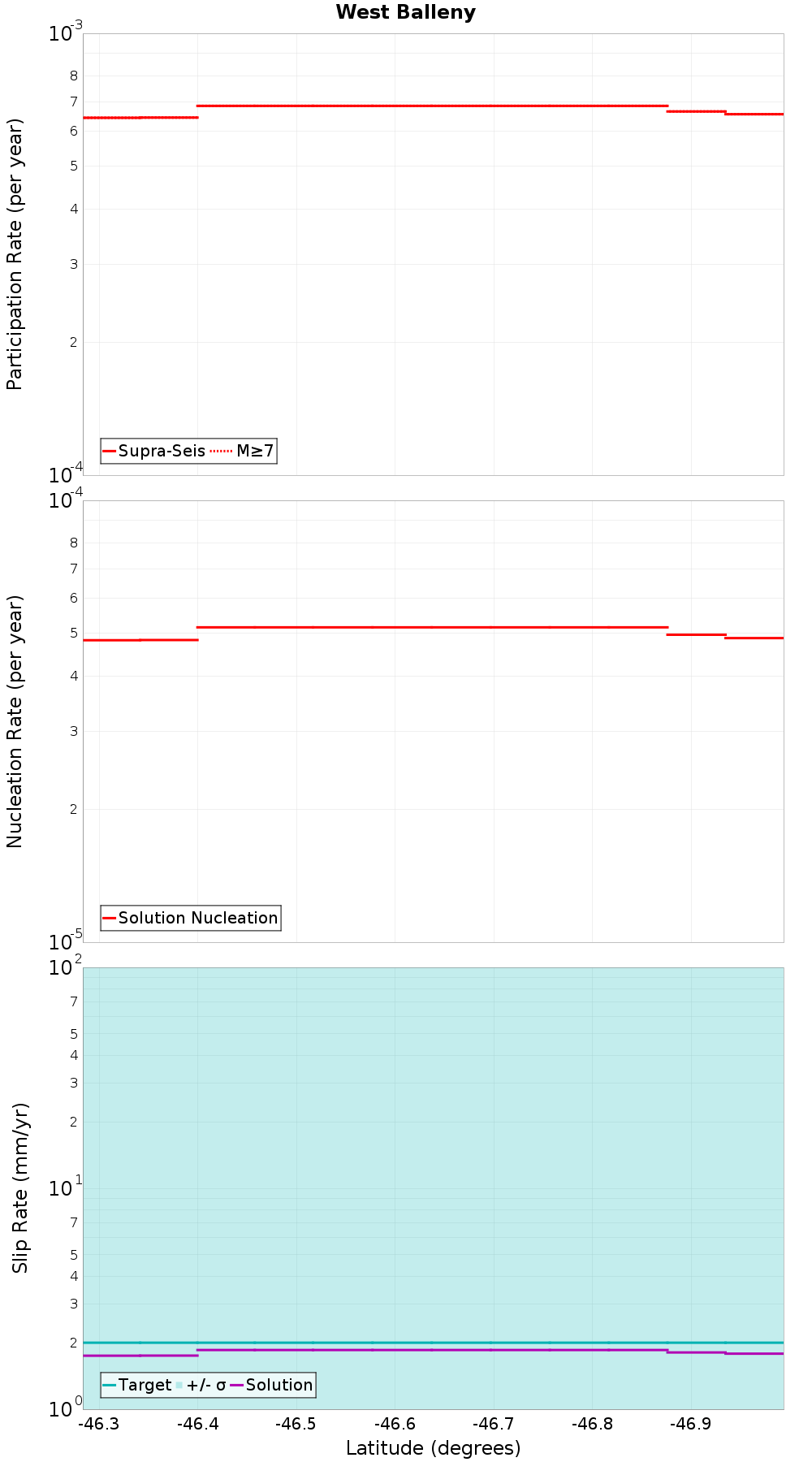

Along-Strike Values
Moment-Rates and b-Values

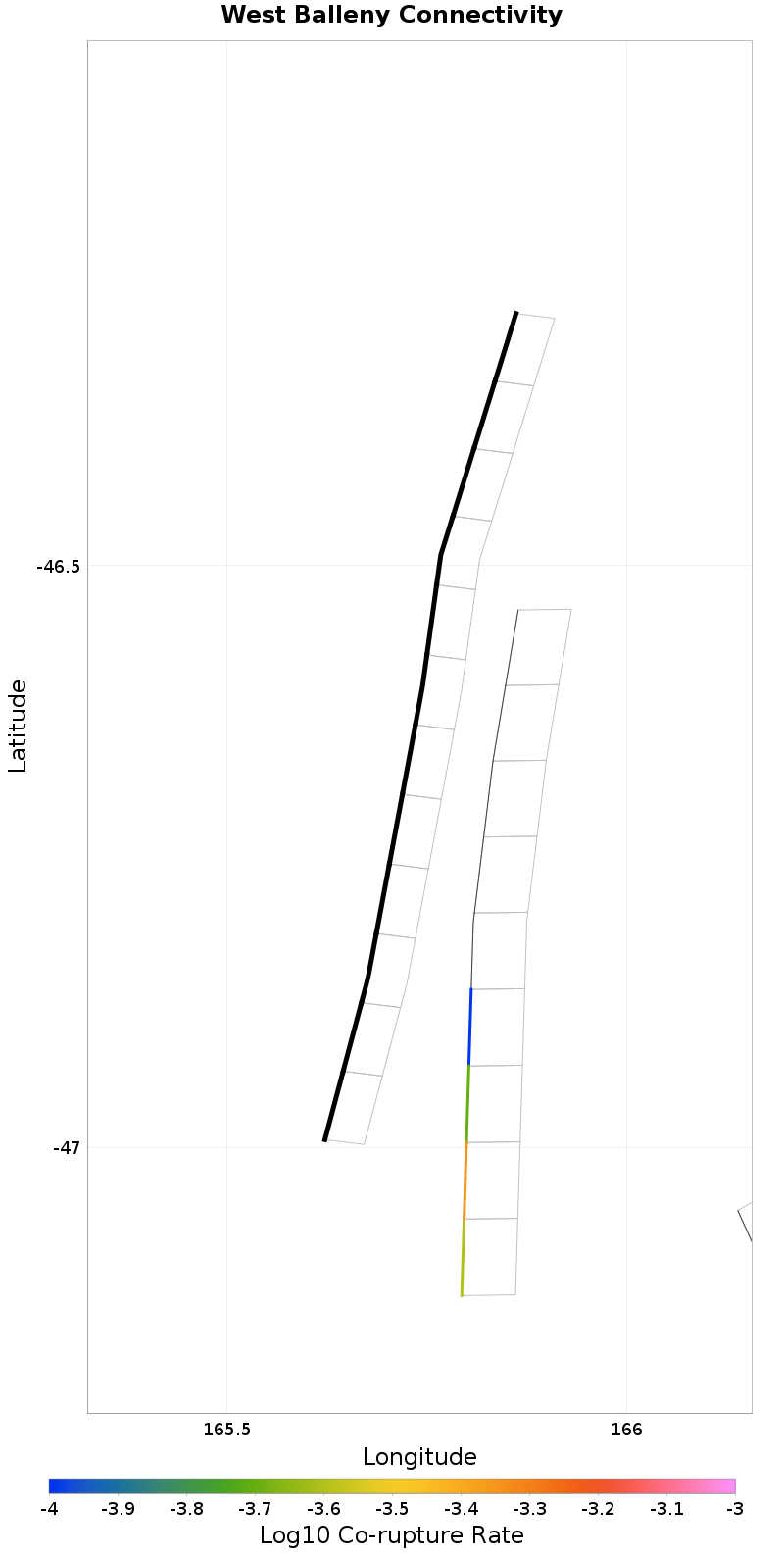

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Central Balleny, 7.57 km away |
Central Balleny, 7.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMjguMGd2Z0Z5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 4.4847908E-4 |
