Dry River - Huangarua: 3 Details
| Property | Value |
|---|---|
| Rupture Count | 354 |
| Ruptures Above Sect Min Mag | 349 |
| Ruptures w/ Nonzero Rates | 81 |
| Magnitude Range | [6.29, 8.11] |
| Length Range | [7, 374] km |
| Total Rate | 1.9223793E-4 /yr |
| Multi-Fault Rate | 1.9223793E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 35 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

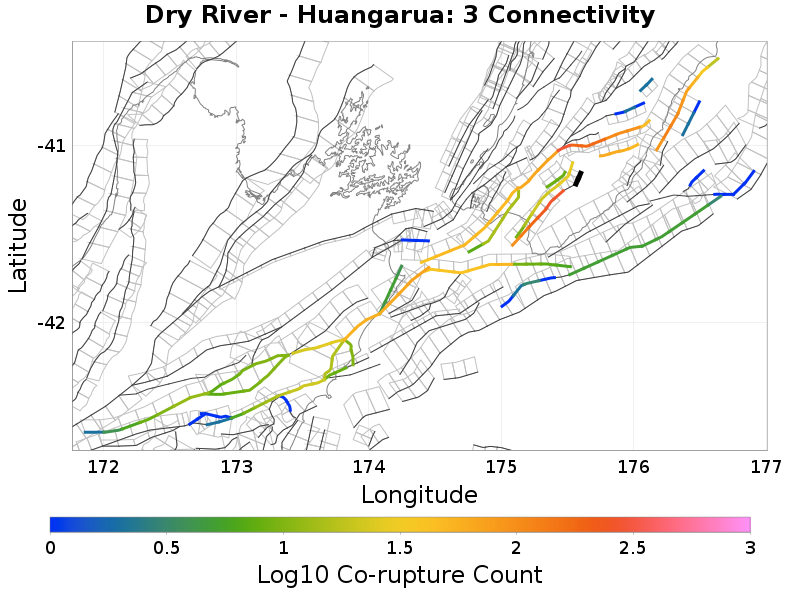

Connectivity
 |  |
|---|
Nearby Sections
Dry River - Huangarua: 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzYuMHNXWkZt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Martinborough, 5.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzYuMHNXWkZt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 28 |
| Co-rupture Rate | 1.1286032E-6 |
Dry River - Huangarua: 1, 7.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzYuMHNXWkZt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 267 |
| Co-rupture Rate | 6.6081455E-5 |
Masterton, 8.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzYuMHNXWkZt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Bidwill, 8.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzYuMHNXWkZt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8 |
| Co-rupture Rate | 4.515856E-6 |
Carterton, 9.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzYuMHNXWkZt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 291 |
| Co-rupture Rate | 1.7667678E-4 |
Otaraia, 13.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzYuMHNXWkZt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 21 |
| Co-rupture Rate | 2.8462505E-6 |
