Logan Burn Details

PropertyValue
Rupture Count2,047
Ruptures Above Sect Min Mag2,045
Ruptures w/ Nonzero Rates82
Magnitude Range[6.96, 8.15]
Length Range[21, 316] km
Total Rate1.1988172E-5 /yr
Multi-Fault Rate1.1988172E-5 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults42

Table Of Contents

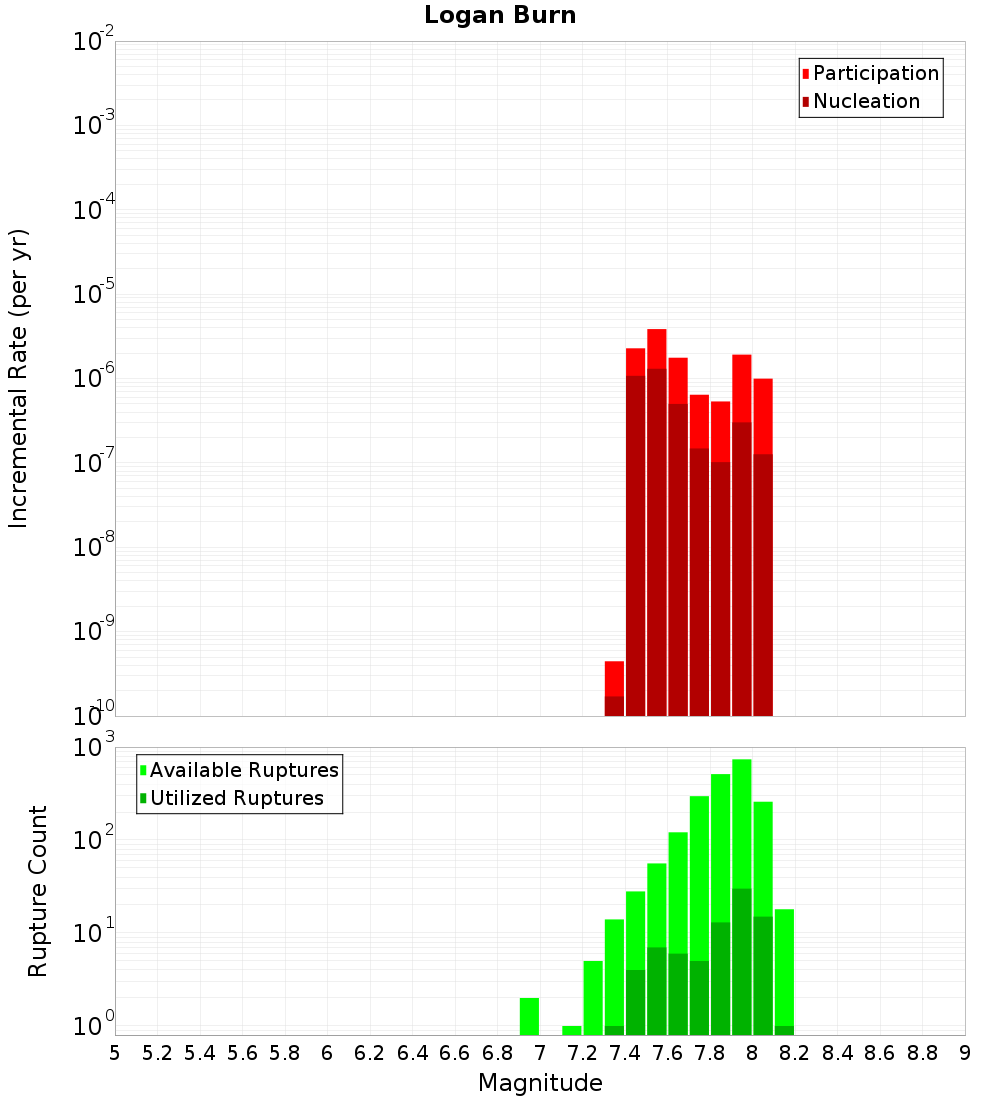

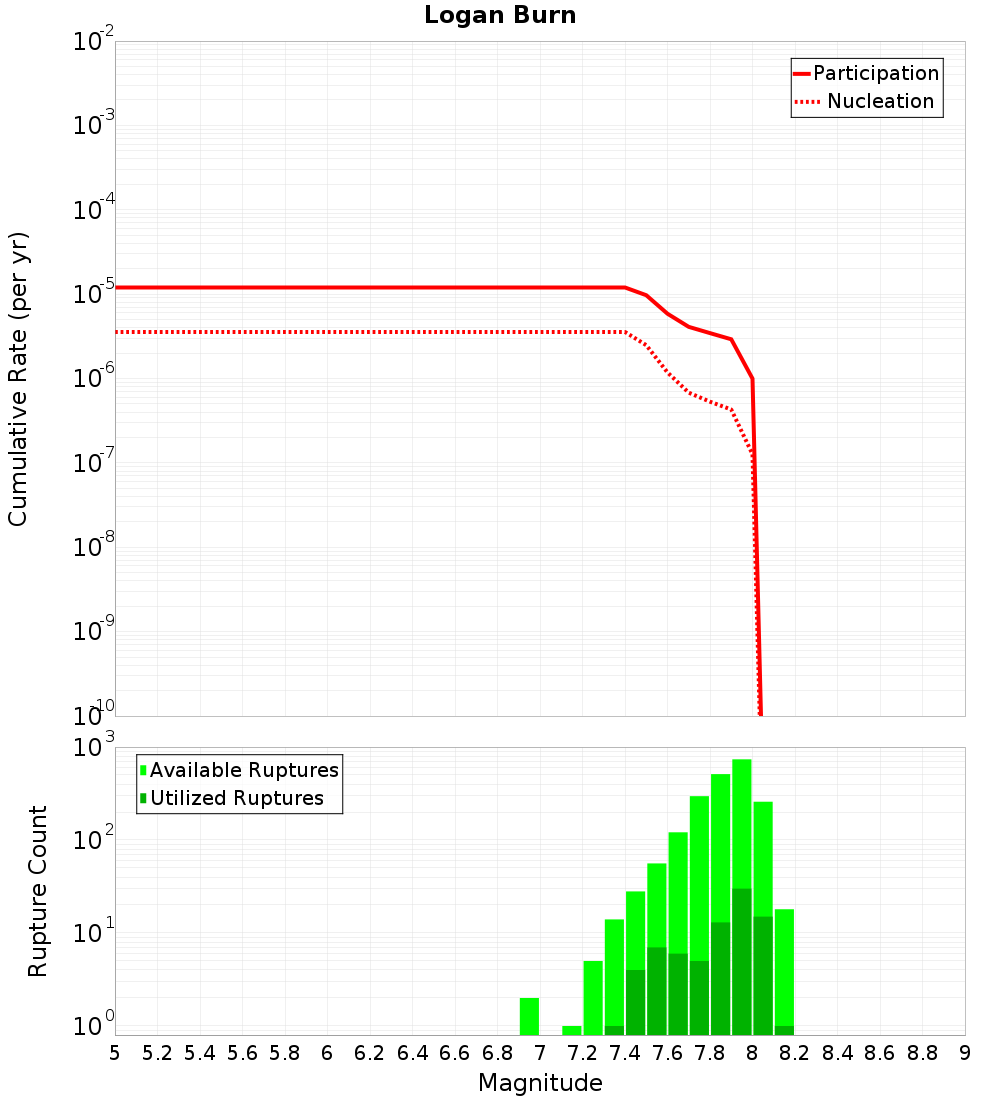

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

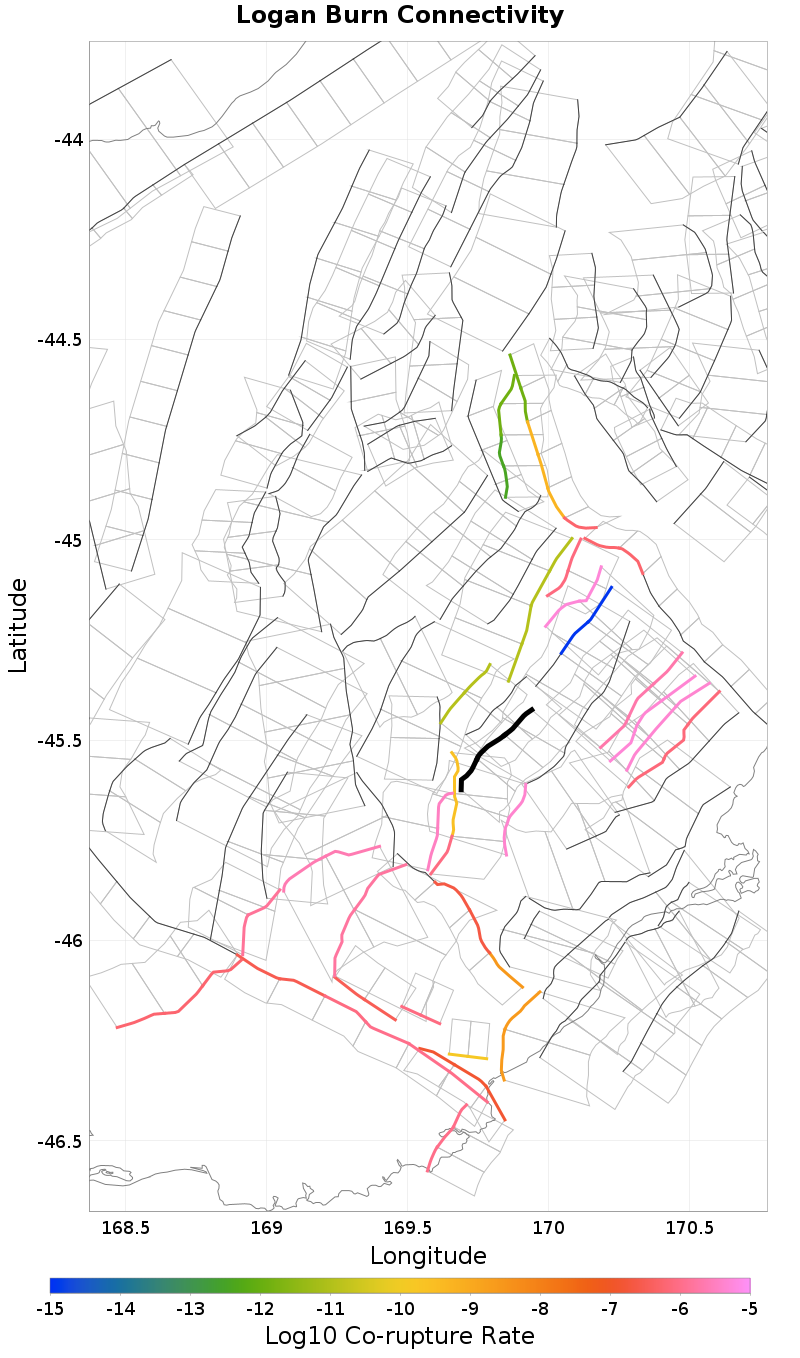

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hyde North, 0.07 km awayHorse Flat, 3.91 km away
Beaumont River, 0.16 km awayMurphys Creek, 4.58 km away
Hyde South - The Twins, 0.19 km awayPylap, 4.69 km away
Maungatua - North Taieri, 0.95 km awayWaipiata, 6.25 km away
Nichols Rock, 1.4 km awayFlat Stream - Glenpark, 6.4 km away
Backbone, 2.62 km awayLake Onslow, 7.67 km away
Dunback Hill, 3.59 km awayGimmerburn, 10.21 km away
Billys Ridge, 3.75 km awayLong Valley, 12.01 km away

Hyde North, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?true
Directly Connected?true
Co-rupture Count492
Co-rupture Rate0.0

Beaumont River, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?true
Directly Connected?true
Co-rupture Count557
Co-rupture Rate8.367045E-7

Hyde South - The Twins, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?true
Directly Connected?true
Co-rupture Count699
Co-rupture Rate4.1551766E-6

Maungatua - North Taieri, 0.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 1.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Backbone, 2.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?true
Directly Connected?true
Co-rupture Count1,151
Co-rupture Rate3.2558833E-6

Dunback Hill, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate7.12857E-7

Billys Ridge, 3.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?true
Directly Connected?true
Co-rupture Count270
Co-rupture Rate6.7367228E-6

Horse Flat, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?true
Directly Connected?true
Co-rupture Count324
Co-rupture Rate1.9942865E-6

Murphys Creek, 4.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?true
Directly Connected?true
Co-rupture Count184
Co-rupture Rate4.3836067E-6

Pylap, 4.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?true
Directly Connected?true
Co-rupture Count498
Co-rupture Rate0.0

Waipiata, 6.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?true
Directly Connected?false
Co-rupture Count137
Co-rupture Rate1.1385071E-15

Flat Stream - Glenpark, 6.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lake Onslow, 7.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gimmerburn, 10.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?true
Directly Connected?false
Co-rupture Count589
Co-rupture Rate1.1174556E-11

Long Valley, 12.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxMzcuMFVlcWRy
Connected?true
Directly Connected?false
Co-rupture Count218
Co-rupture Rate1.1174556E-11
