Knowles Top Details

PropertyValue
Rupture Count793
Ruptures Above Sect Min Mag793
Ruptures w/ Nonzero Rates131
Magnitude Range[7.08, 8.15]
Length Range[27, 368] km
Total Rate2.3339203E-4 /yr
Multi-Fault Rate9.077615E-5 /yr (38.89%)
Directly-Connected Faults4
All Co-Rupturing Faults33

Table Of Contents

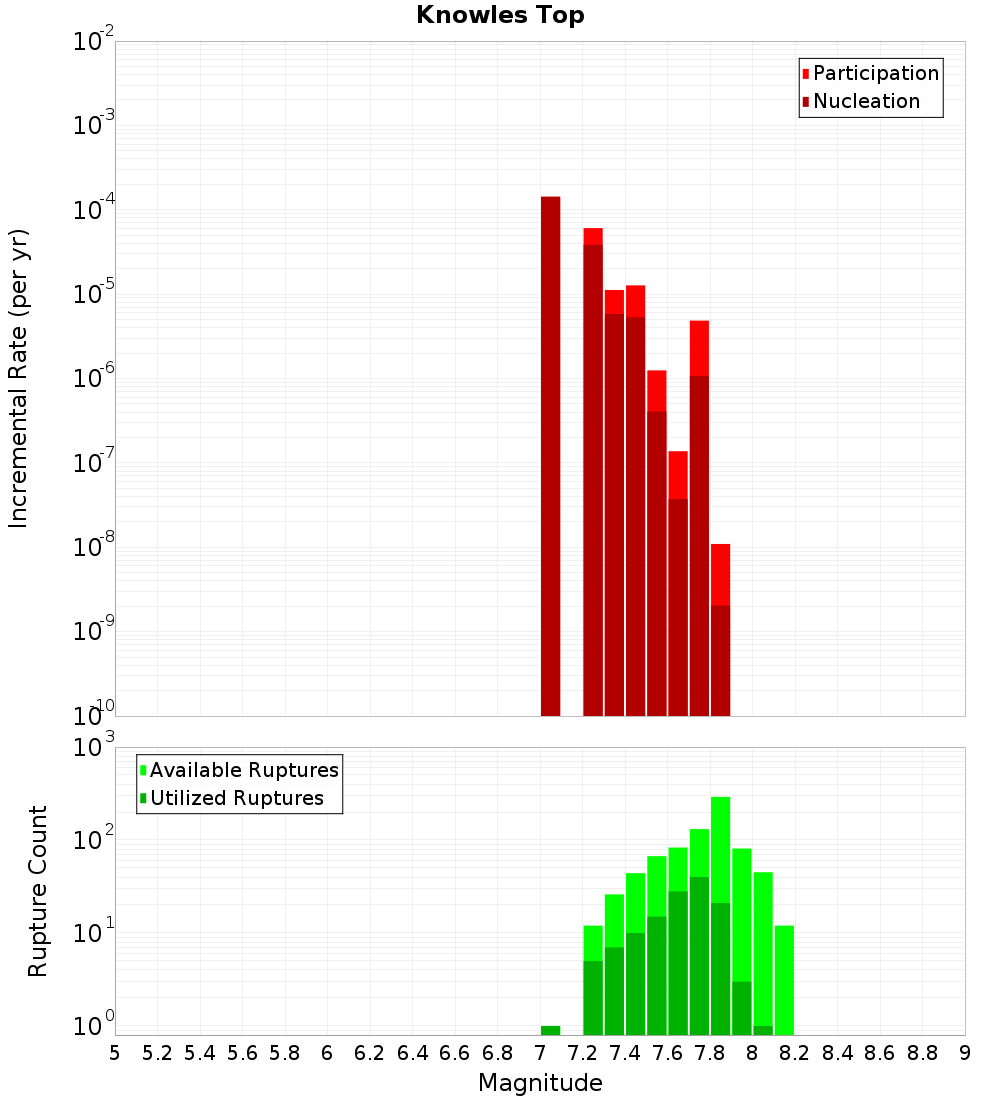

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lees Valley, 0.13 km away
Esk South, 0.16 km away
Pancake, 0.3 km away
Mt Lawry, 1.45 km away
Starvation - Ashley, 1.58 km away
Mt Arden, 2.59 km away
Kowai - View Hill, 2.87 km away
High Peak - Sheffield, 6 km away
Porters Pass, 6.61 km away
Springbank, 8 km away
Hororata, 10.03 km away
Torlesse, 11.34 km away
Doctors, 12.44 km away
Boby Stream, 13.88 km away

Lees Valley, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNDAuMEx2dzNF
Connected?true
Directly Connected?true
Co-rupture Count71
Co-rupture Rate7.459219E-5

Esk South, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNDAuMEx2dzNF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pancake, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNDAuMEx2dzNF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Lawry, 1.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNDAuMEx2dzNF
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate5.7140863E-7

Starvation - Ashley, 1.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNDAuMEx2dzNF
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate1.6137118E-6

Mt Arden, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNDAuMEx2dzNF
Connected?true
Directly Connected?true
Co-rupture Count695
Co-rupture Rate6.509289E-6

Kowai - View Hill, 2.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNDAuMEx2dzNF
Connected?true
Directly Connected?true
Co-rupture Count481
Co-rupture Rate1.8632598E-5

High Peak - Sheffield, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNDAuMEx2dzNF
Connected?true
Directly Connected?true
Co-rupture Count366
Co-rupture Rate1.1959134E-5

Porters Pass, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNDAuMEx2dzNF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNDAuMEx2dzNF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 10.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNDAuMEx2dzNF
Connected?true
Directly Connected?false
Co-rupture Count279
Co-rupture Rate8.105242E-6

Torlesse, 11.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNDAuMEx2dzNF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 12.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNDAuMEx2dzNF
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate1.3622301E-9

Boby Stream, 13.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNDAuMEx2dzNF
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate1.6543612E-24
