Moonlight North Details

Property	Value
Rupture Count	17,245
Ruptures Above Sect Min Mag	17,236
Ruptures w/ Nonzero Rates	1,918
Magnitude Range	[6.84, 8.61]
Length Range	[21, 1,132] km
Total Rate	1.0936937E-5 /yr
Multi-Fault Rate	8.482368E-6 /yr (77.56%)
Directly-Connected Faults	4
All Co-Rupturing Faults	134

Table Of Contents

Magnitude-Frequency Distribution

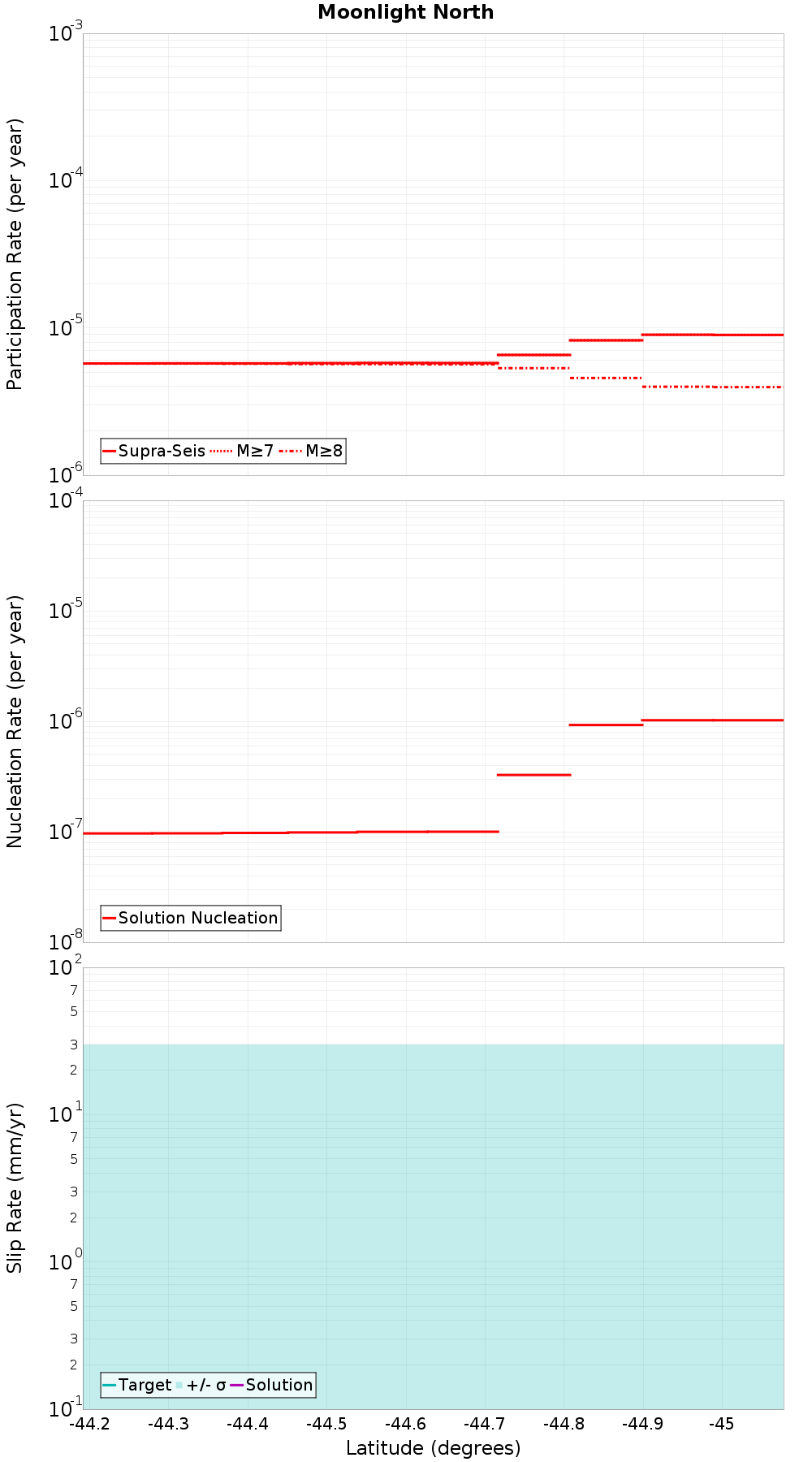

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

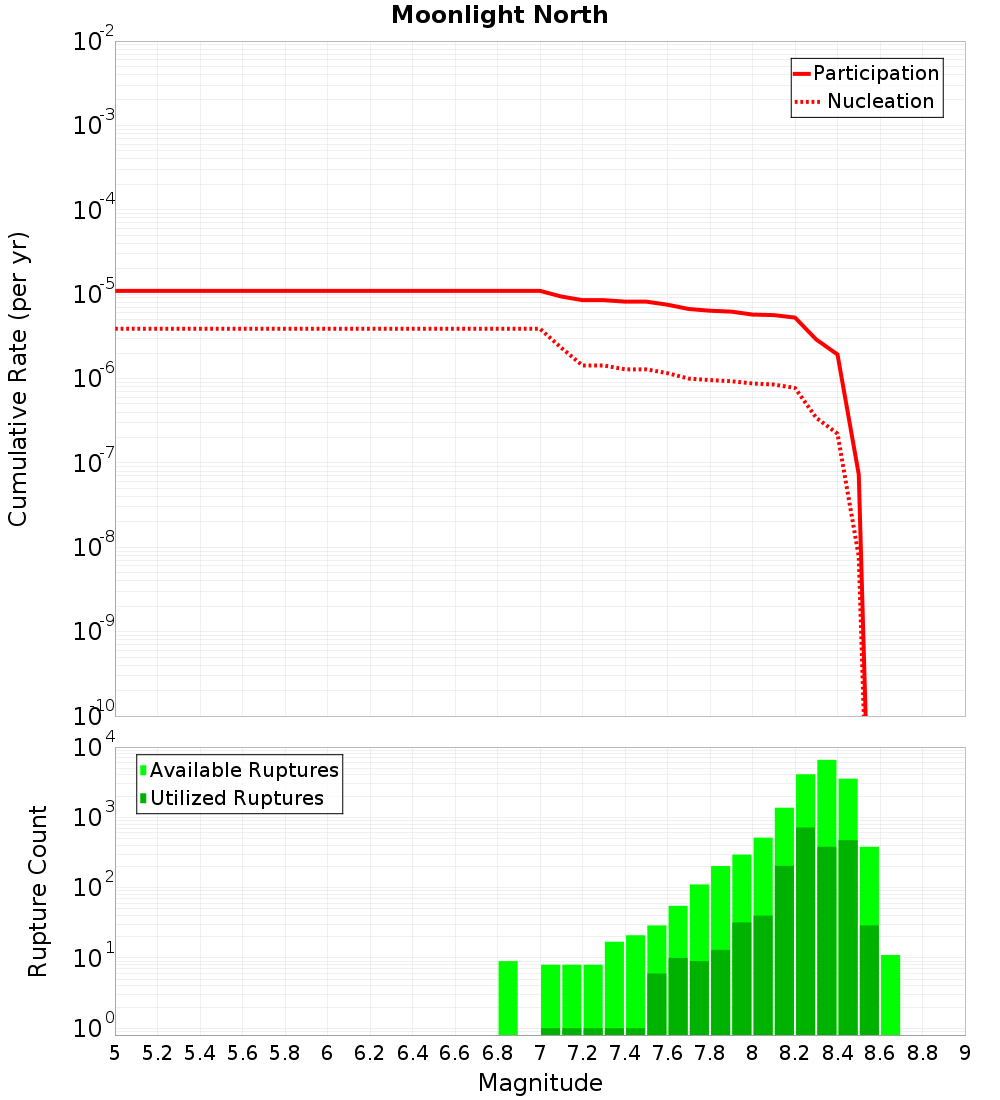

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
West Wakatipu, 0.14 km away
Alpine: Jacksons to Kaniere, 1.51 km away
Moonlight South, 4.72 km away
Alpine: George to Jacksons, 9.46 km away
Livingstone, 9.69 km away
Barn, 10.72 km away

West Wakatipu, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNTguMGNHRWN0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,027
Co-rupture Rate	4.0700053E-7

Alpine: Jacksons to Kaniere, 1.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNTguMGNHRWN0
Connected?	true
Directly Connected?	true
Co-rupture Count	16,727
Co-rupture Rate	5.7284556E-6

Moonlight South, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNTguMGNHRWN0
Connected?	true
Directly Connected?	true
Co-rupture Count	6,691
Co-rupture Rate	5.6792624E-6

Alpine: George to Jacksons, 9.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNTguMGNHRWN0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Livingstone, 9.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNTguMGNHRWN0
Connected?	true
Directly Connected?	true
Co-rupture Count	22
Co-rupture Rate	1.5420363E-6

Barn, 10.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNTguMGNHRWN0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
