Caswell High 4 Details
| Property | Value |
|---|---|
| Rupture Count | 582 |
| Ruptures Above Sect Min Mag | 556 |
| Ruptures w/ Nonzero Rates | 88 |
| Magnitude Range | [6.56, 8.32] |
| Length Range | [14, 605] km |
| Total Rate | 4.2832148E-4 /yr |
| Multi-Fault Rate | 4.248825E-4 /yr (99.20%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 18 |
Table Of Contents

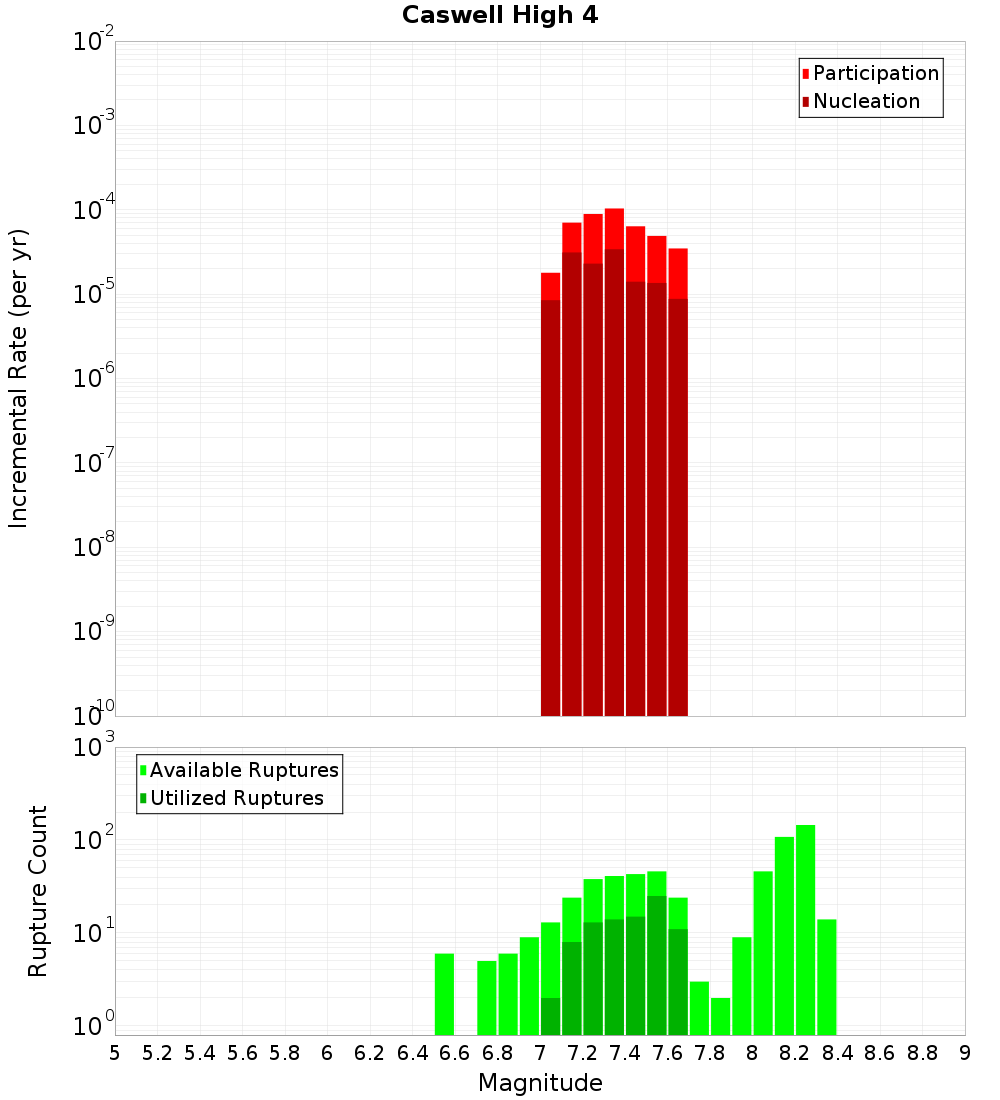

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

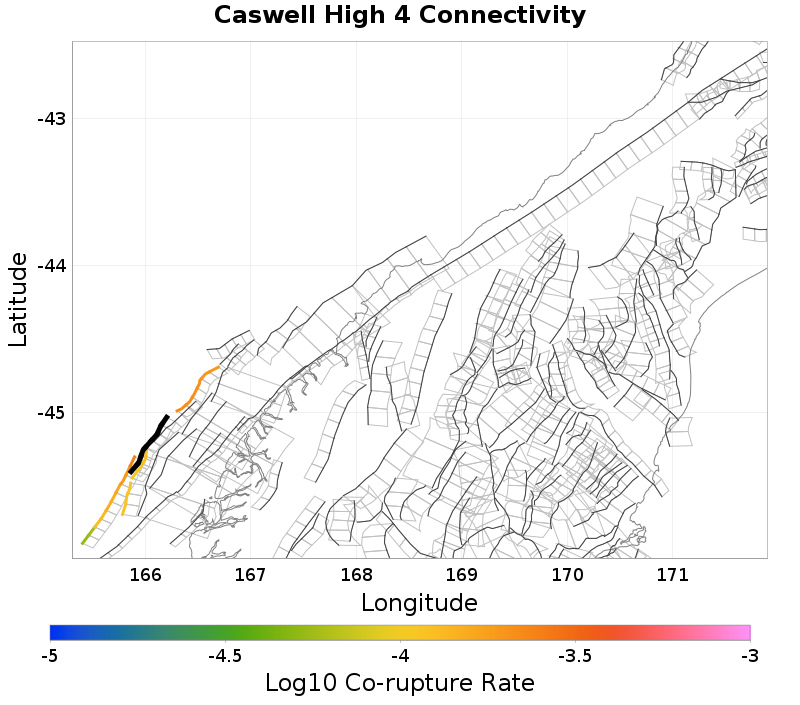

Connectivity
 |  |
|---|
Nearby Sections
Caswell High 5, 0.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Caswell High 3, 0.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 165 |
| Co-rupture Rate | 1.2283542E-4 |
Caswell High 1, 2.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 158 |
| Co-rupture Rate | 2.4388246E-4 |
Caswell 211, 6.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 35 |
| Co-rupture Rate | 1.17031144E-4 |
South Wedge 5, 7.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Caswell High 67, 8.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 456 |
| Co-rupture Rate | 2.1432985E-4 |
Central Wedge 4 - South Wedge 411, 14.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
