Kekerengu Bank Details

Property	Value
Rupture Count	7,838
Ruptures Above Sect Min Mag	7,801
Ruptures w/ Nonzero Rates	1,004
Magnitude Range	[6.70, 8.22]
Length Range	[17, 526] km
Total Rate	7.98909E-4 /yr
Multi-Fault Rate	7.4462156E-4 /yr (93.20%)
Directly-Connected Faults	9
All Co-Rupturing Faults	53

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

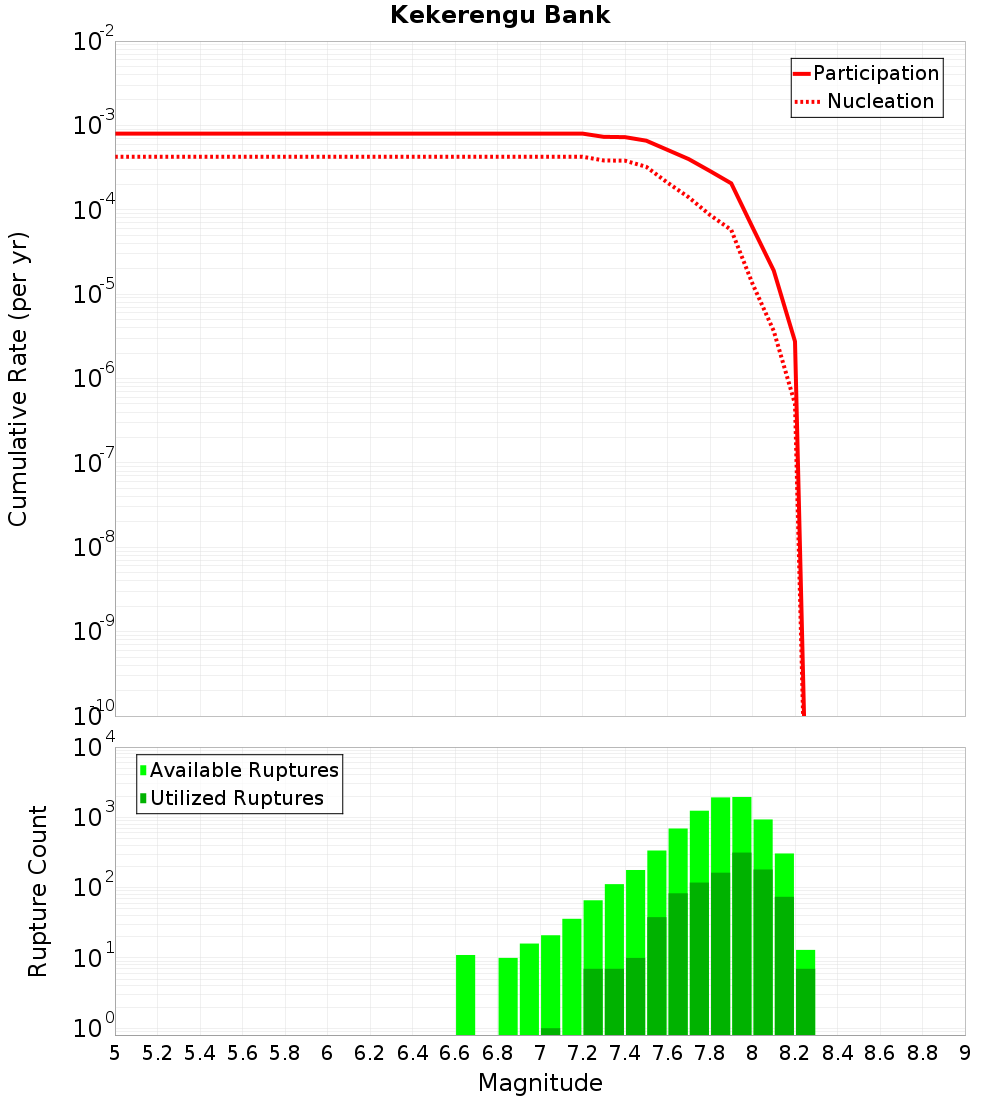

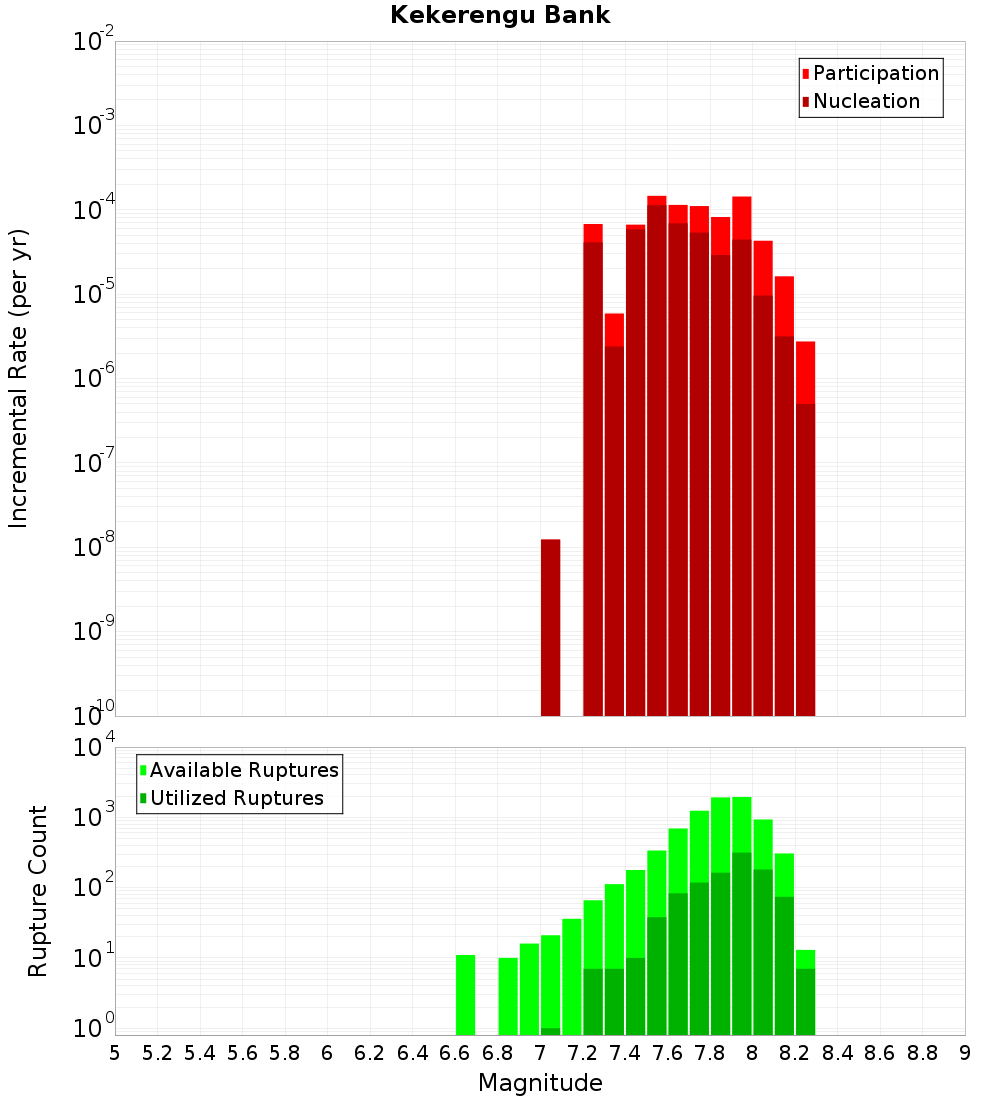

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Pahaua, 0 km away
Te Rapa 1, 3.06 km away
Marlborough Slope 2, 4.37 km away
Marlborough Slope 4, 4.72 km away
Te Rapa 2, 4.95 km away
Opouawe - Uruti, 5.25 km away
Upper Slope, 5.98 km away
Kaikoura - Mangamaunu, 7.75 km away
Campbell Bank, 8.08 km away
Hope: Te Rapa, 8.98 km away
Marlborough Slope 3, 10.31 km away

Pahaua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z
Connected?	true
Directly Connected?	true
Co-rupture Count	2,898
Co-rupture Rate	3.1930633E-4

Te Rapa 1, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z
Connected?	true
Directly Connected?	true
Co-rupture Count	71
Co-rupture Rate	1.7524071E-5

Marlborough Slope 2, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z
Connected?	true
Directly Connected?	true
Co-rupture Count	1,064
Co-rupture Rate	1.6036932E-4

Marlborough Slope 4, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z
Connected?	true
Directly Connected?	true
Co-rupture Count	828
Co-rupture Rate	6.378983E-5

Te Rapa 2, 4.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z
Connected?	true
Directly Connected?	true
Co-rupture Count	57
Co-rupture Rate	7.669207E-5

Opouawe - Uruti, 5.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z
Connected?	true
Directly Connected?	true
Co-rupture Count	4,854
Co-rupture Rate	2.2612224E-4

Upper Slope, 5.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z
Connected?	true
Directly Connected?	true
Co-rupture Count	252
Co-rupture Rate	4.47082E-6

Kaikoura - Mangamaunu, 7.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	7.956344E-6

Campbell Bank, 8.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z
Connected?	true
Directly Connected?	true
Co-rupture Count	1,020
Co-rupture Rate	8.6396336E-5

Hope: Te Rapa, 8.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z
Connected?	true
Directly Connected?	true
Co-rupture Count	214
Co-rupture Rate	4.668961E-5

Marlborough Slope 3, 10.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNjQuMFlSWk4z
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	5.1752435E-5
