Huxley Details
| Property | Value |
|---|---|
| Rupture Count | 13,744 |
| Ruptures Above Sect Min Mag | 13,742 |
| Ruptures w/ Nonzero Rates | 158 |
| Magnitude Range | [6.86, 8.50] |
| Length Range | [18, 762] km |
| Total Rate | 8.005874E-6 /yr |
| Multi-Fault Rate | 8.005874E-6 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 118 |
Table Of Contents

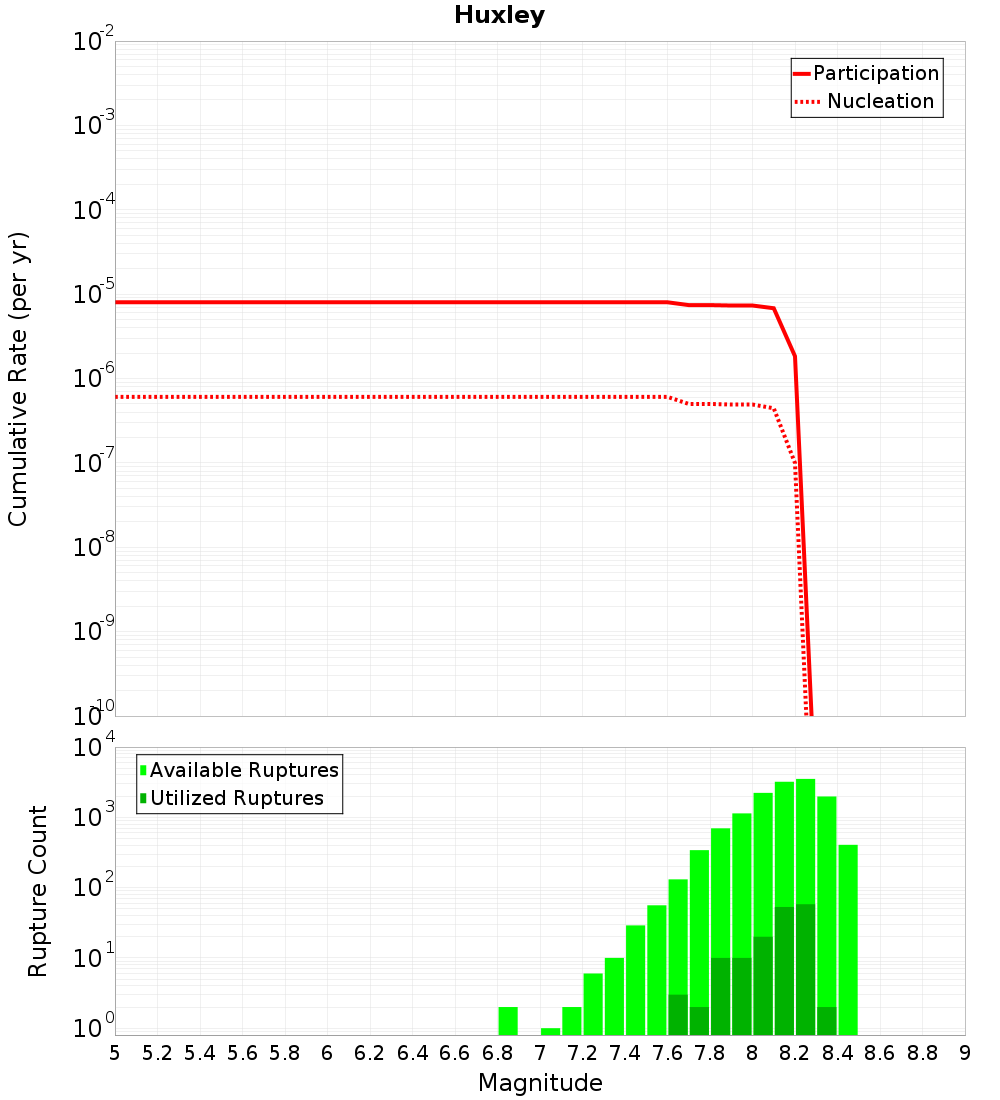

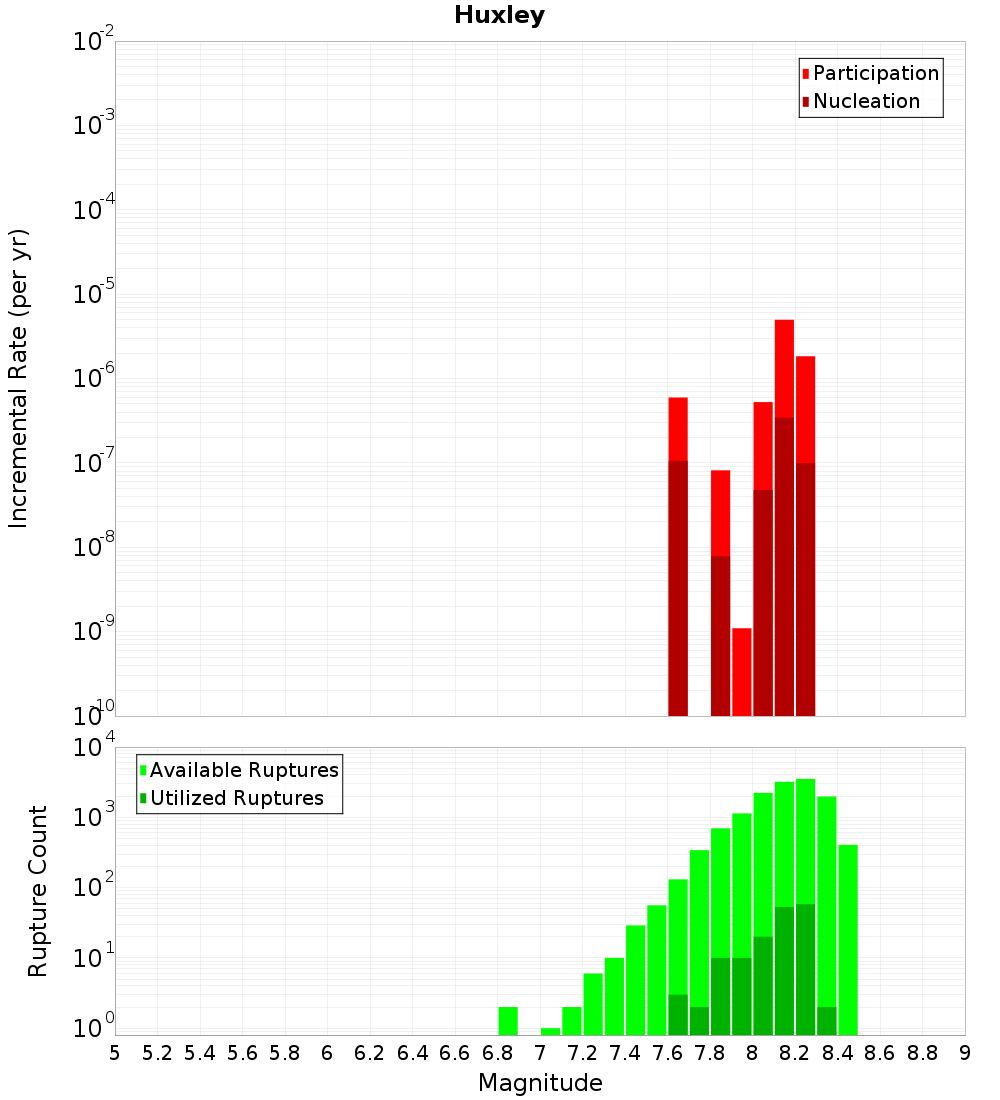

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

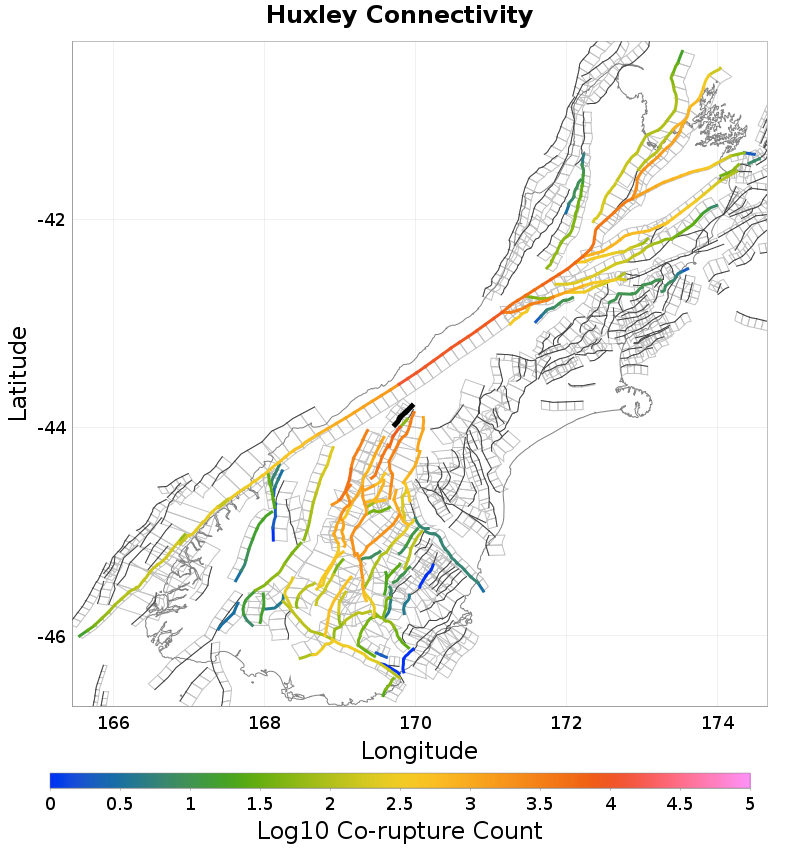

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Alpine: Jacksons to Kaniere, 1.8 km away |
| Hopkins, 3.39 km away |
| Barrier Range, 5.8 km away |
| Ostler North, 10.38 km away |
Alpine: Jacksons to Kaniere, 1.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNzIuMEs4ZUhN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11,659 |
| Co-rupture Rate | 7.1467102E-6 |
Hopkins, 3.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNzIuMEs4ZUhN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8,388 |
| Co-rupture Rate | 6.981656E-6 |
Barrier Range, 5.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNzIuMEs4ZUhN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,319 |
| Co-rupture Rate | 6.6574125E-7 |
Ostler North, 10.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNzIuMEs4ZUhN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,091 |
| Co-rupture Rate | 3.5795244E-7 |
